₹ 1587.22 includes GST and import duties. | |
B2B customers can avail ₹ 242.05 ITC on this product | |
100% Secure Payments | 100% Genuine product |
Description

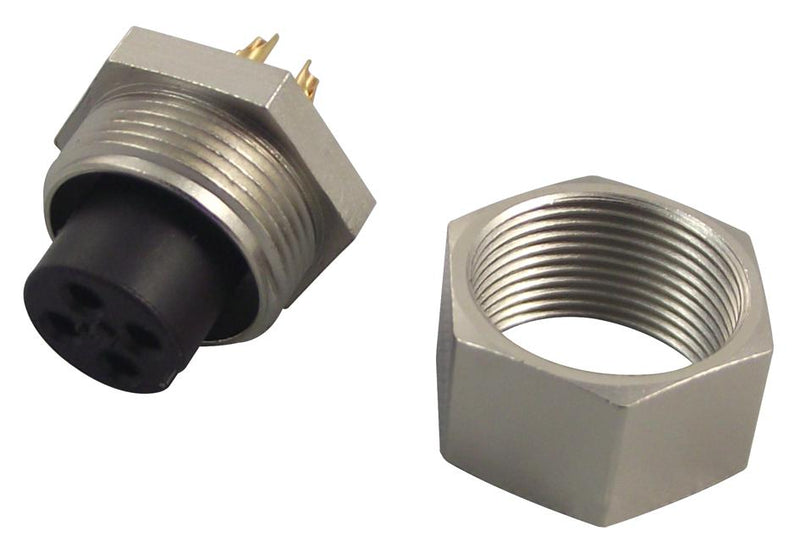

The 09 0082 00 04 is a 4-contact 125V/3A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body and nickel-plated brass housing. The 711 series receptacle with M9 screw locking system, solder termination, front mounting. It accepts 24AWG (0.25mm²) wire. The housing has an integrated strain relief for added strength.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP40 Protection rating
Industrial
Other details
Brand | BINDER |
Part Number | 09 0082 00 04 |
Quantity | Each |
Technical Data Sheet EN |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
Quantity | Price |
2 | ₹ 1555.48 |
3-5 | ₹ 1539.6 |
5-10 | ₹ 1507.86 |
10+ | ₹ 1476.11 |
Bulk discount will be automatically applied during checkout based on quantity.
