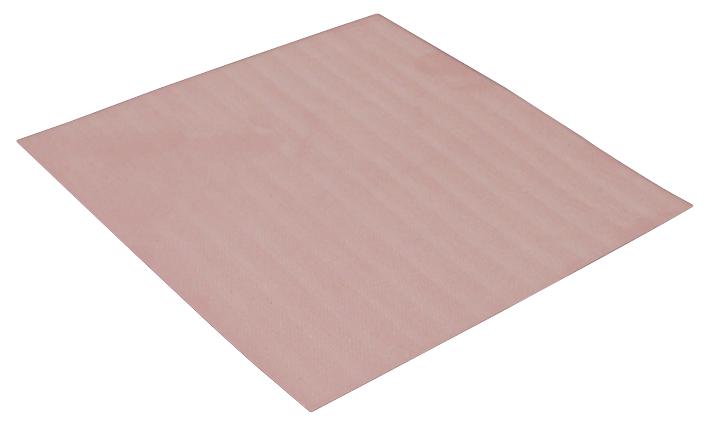

The SP900S-0.009-00-1212 is a Thermal Insulator designed for a wide variety of applications requiring high thermal performance and electrical isolation. These applications also typically have low mounting pressures for component clamping. The material combines a smooth and highly compliant surface characteristic with high thermal conductivity. These features optimize the thermal resistance properties at low pressures. Applications requiring low component clamping forces include discrete semiconductors (TO-220, TO-247 and TO-218) mounted with spring clips. Spring clips assist with quick assembly and apply a limited amount of force to the semiconductor. The smooth surface texture of Sil-Pad 900S minimizes interfacial thermal resistance and maximizes thermal performance.
- High performance
- Electrically isolating
- Low mounting pressures
- Smooth and highly compliant surface
- General-purpose thermal interface material solution
- UL94V-0 Flammability rating
- Available in pink colour
Applications
Thermal Management, Automotive, Power Management
Product details
| Insulator Body Material |
- |
| Thermal Conductivity |
1.6W/m.K |
| Breakdown Voltage Vbr |
5.5kV |
| Thickness |
0.229mm |
| Volume Resistivity |
10000Mohm-m |
| Thermal Impedance |
- |
| Dielectric Strength |
- |
| Product Range |
- |
Other details
| Brand |
BERGQUIST |
| Part Number |
SP900S-0.009-00-1212 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
