- 17.6 lb (8 kg) Load Capacity
- 75mm Head
- Flat Base By Removing Tiedown Stud
- 5-Step Counterbalance
- Independent 4-Step Pan and Tilt Drag
- Manfrotto 501/504PL Type Sliding Plate
- 2-Stage Twin Leg Aluminum Tripod
- 28 to 63" Height Range
- Mid-Level Spreader
- Spike Feet & Removable Rubber Foot Pads

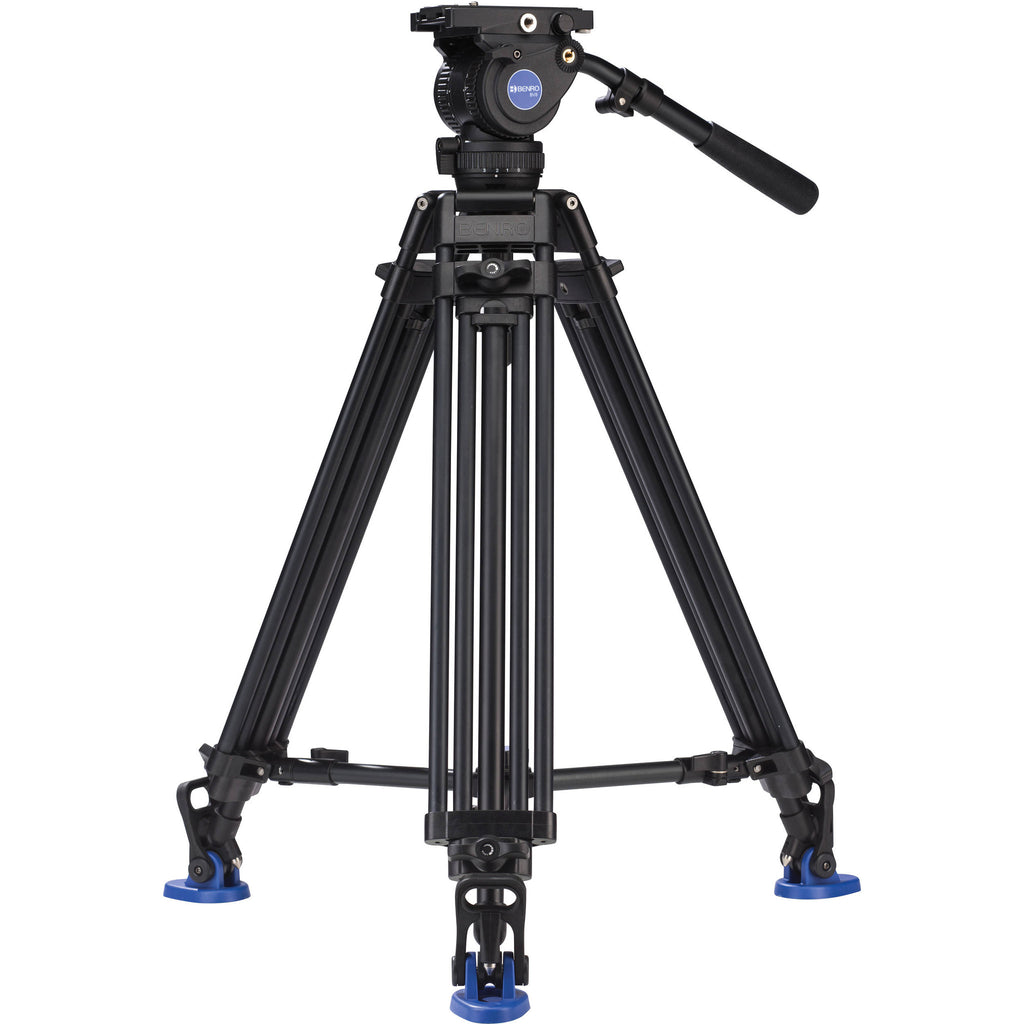

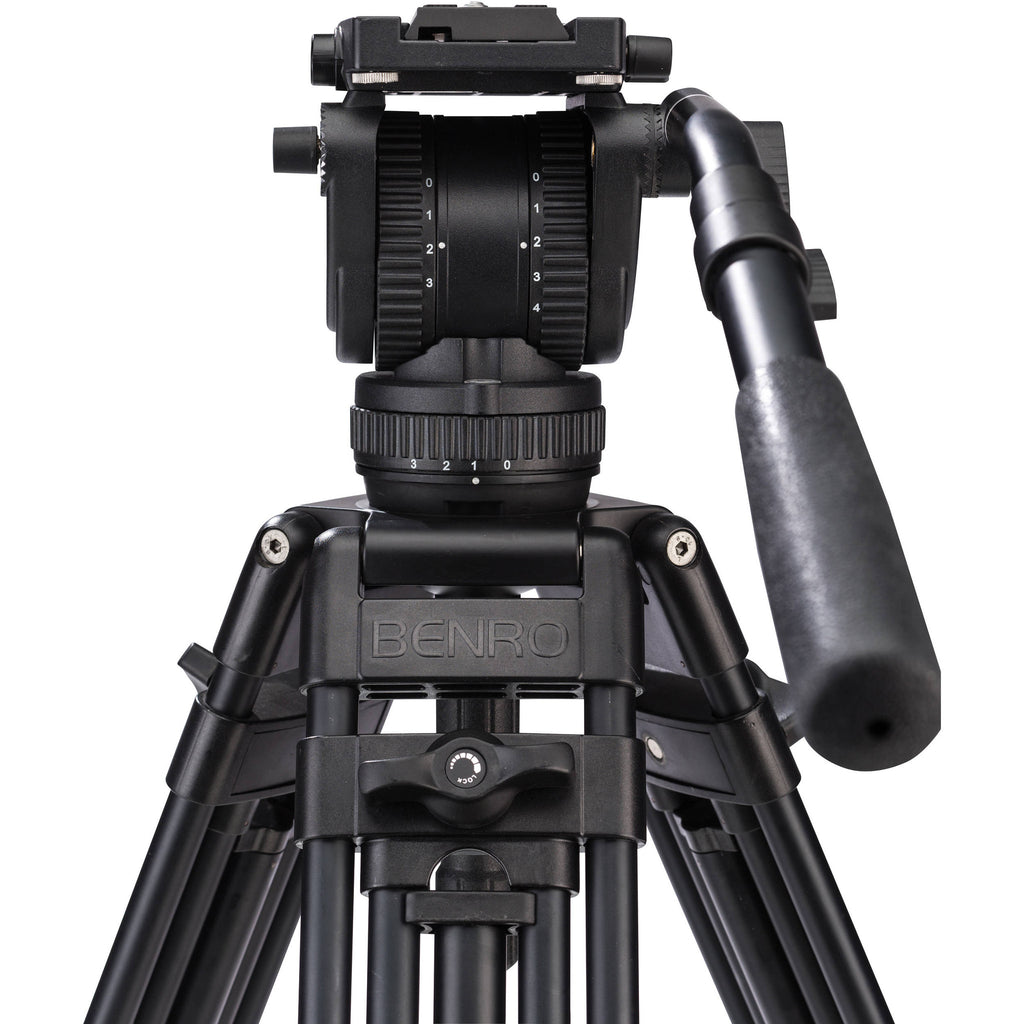

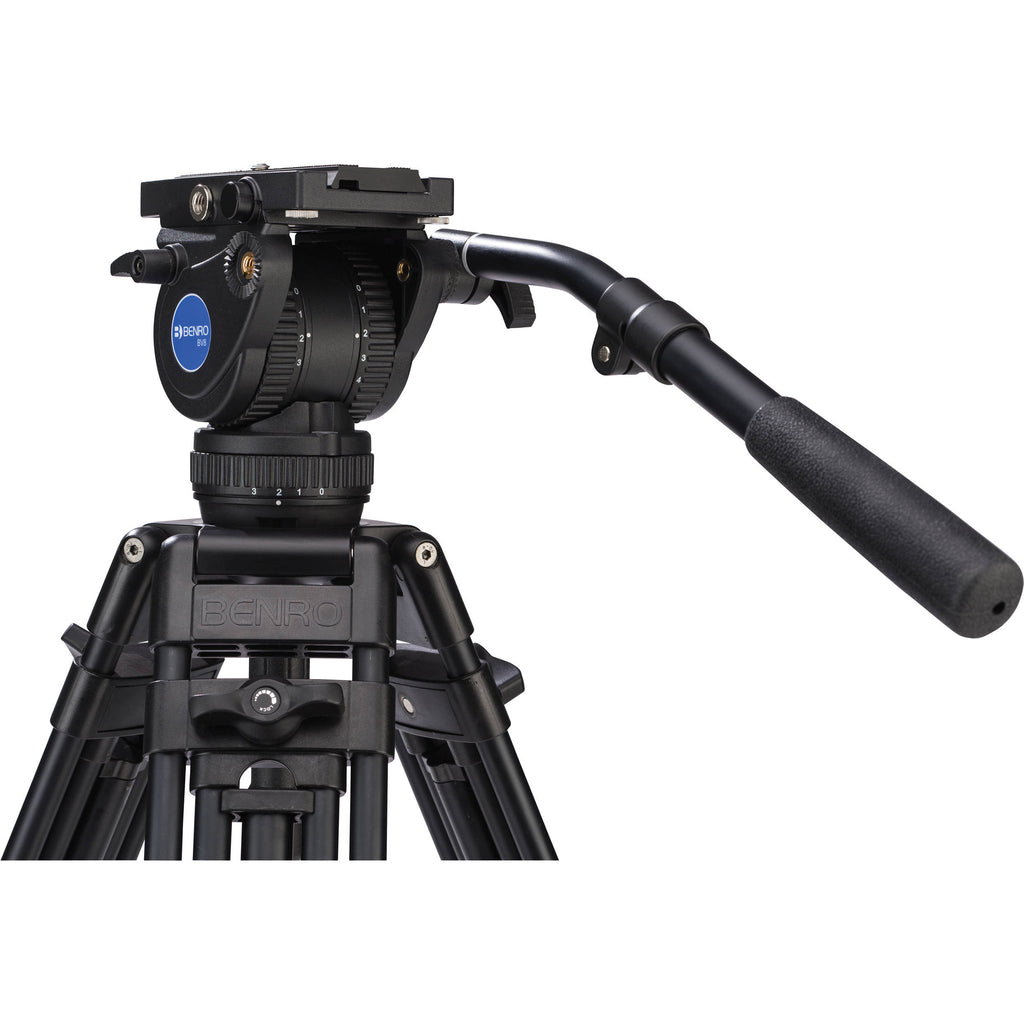

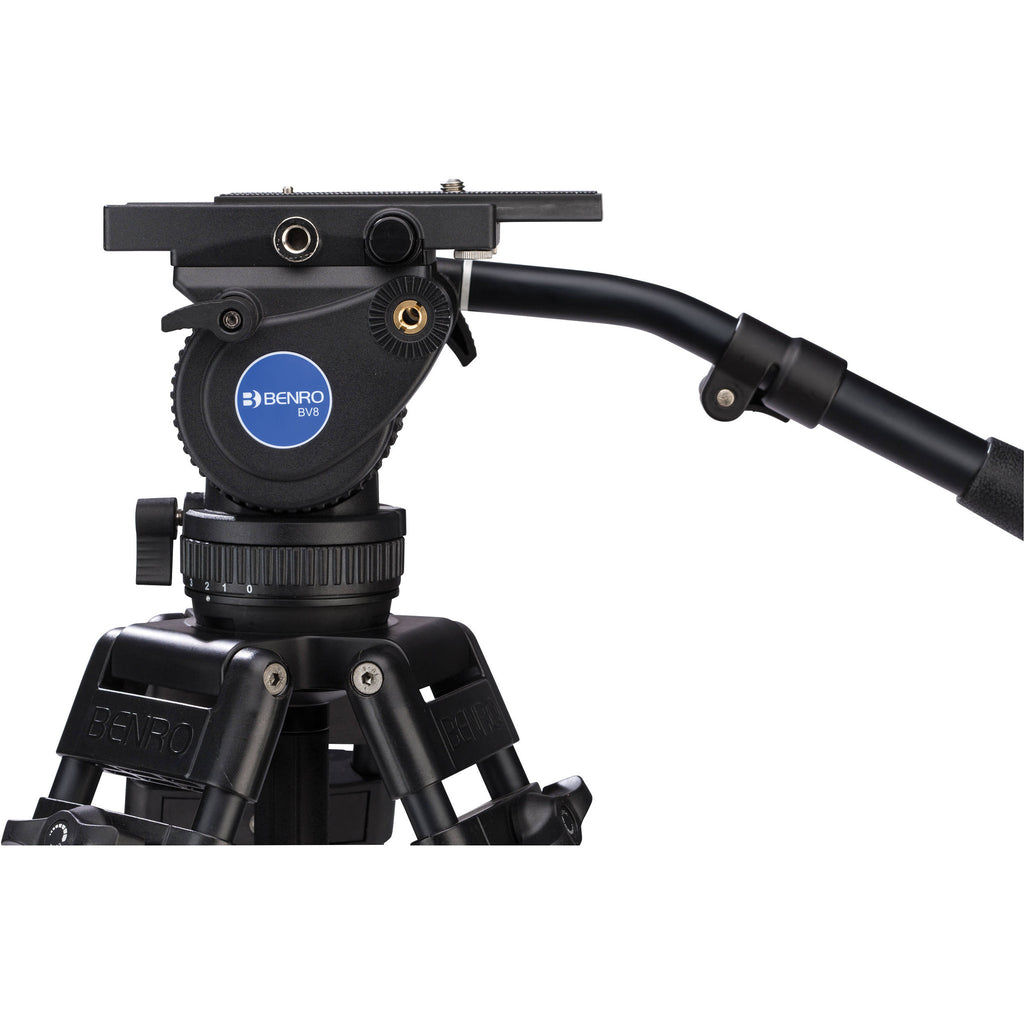

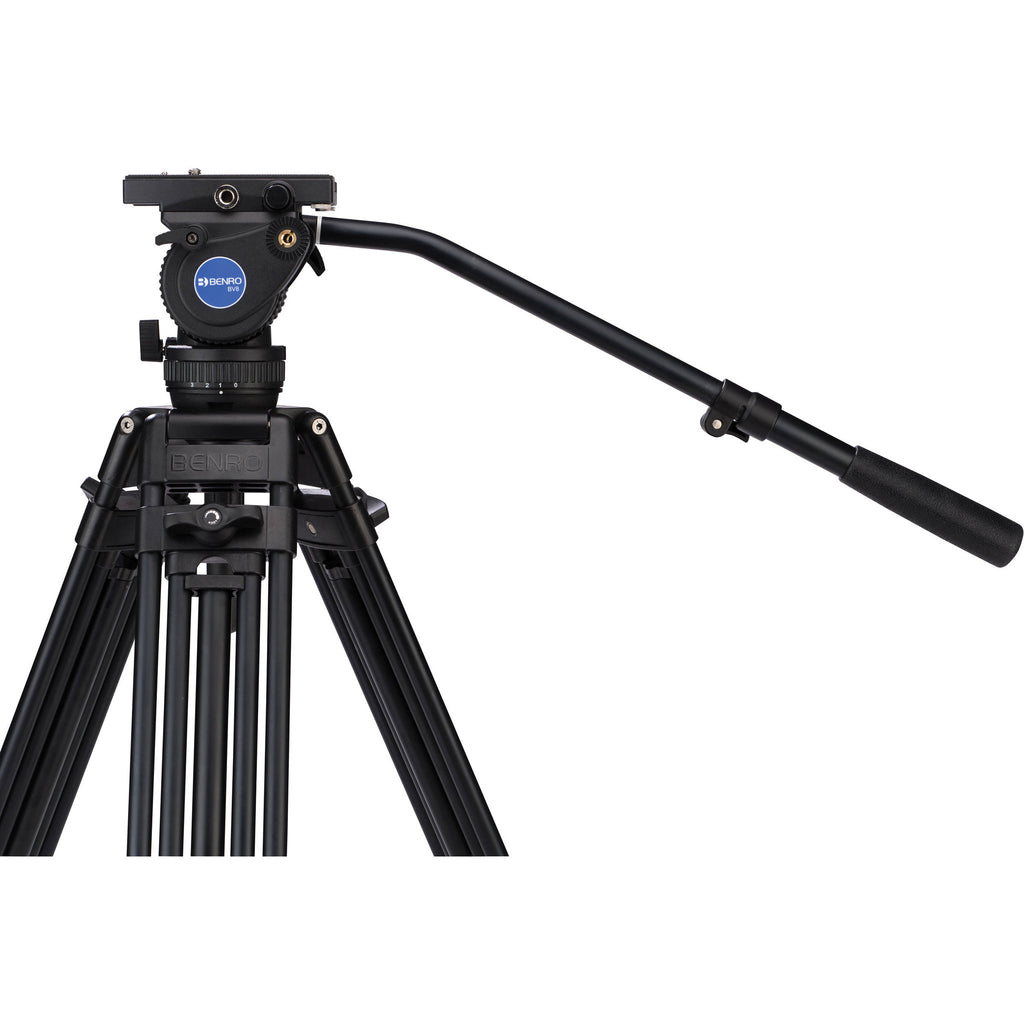

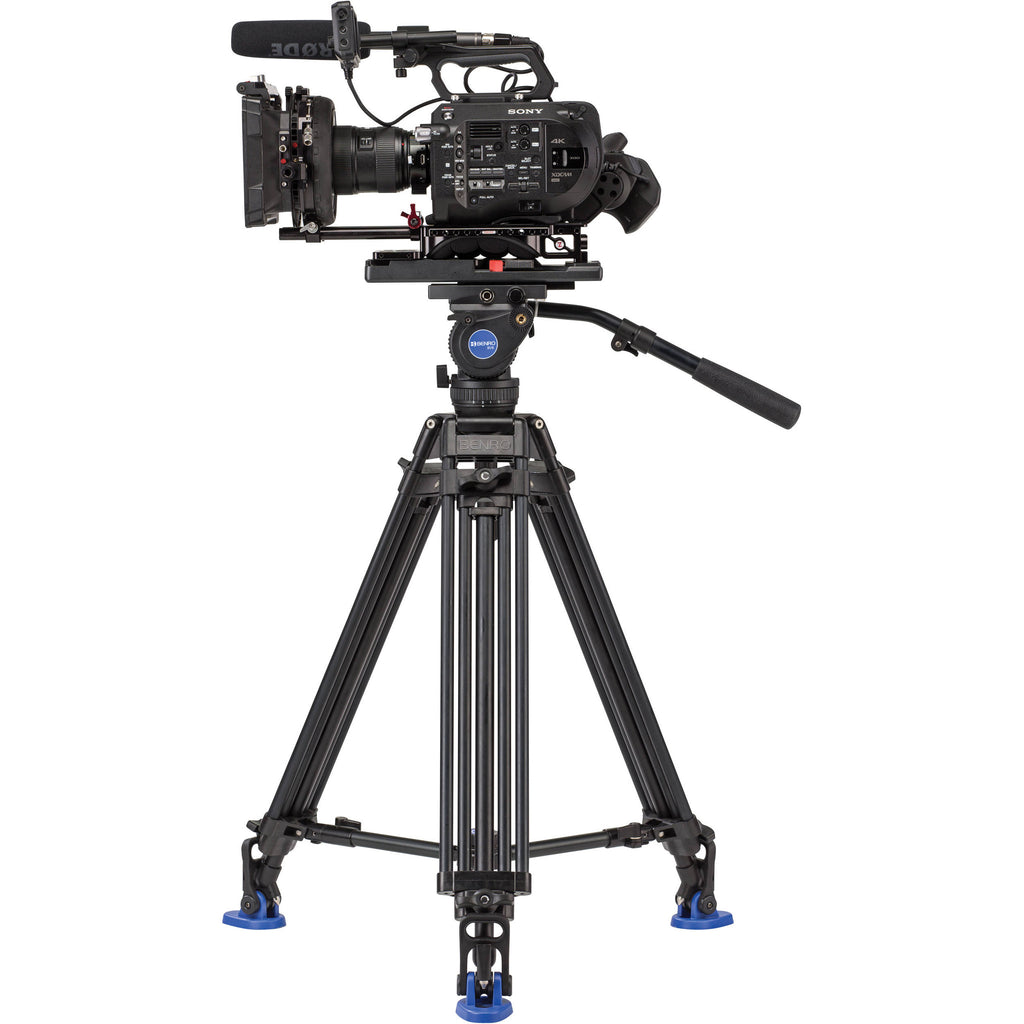

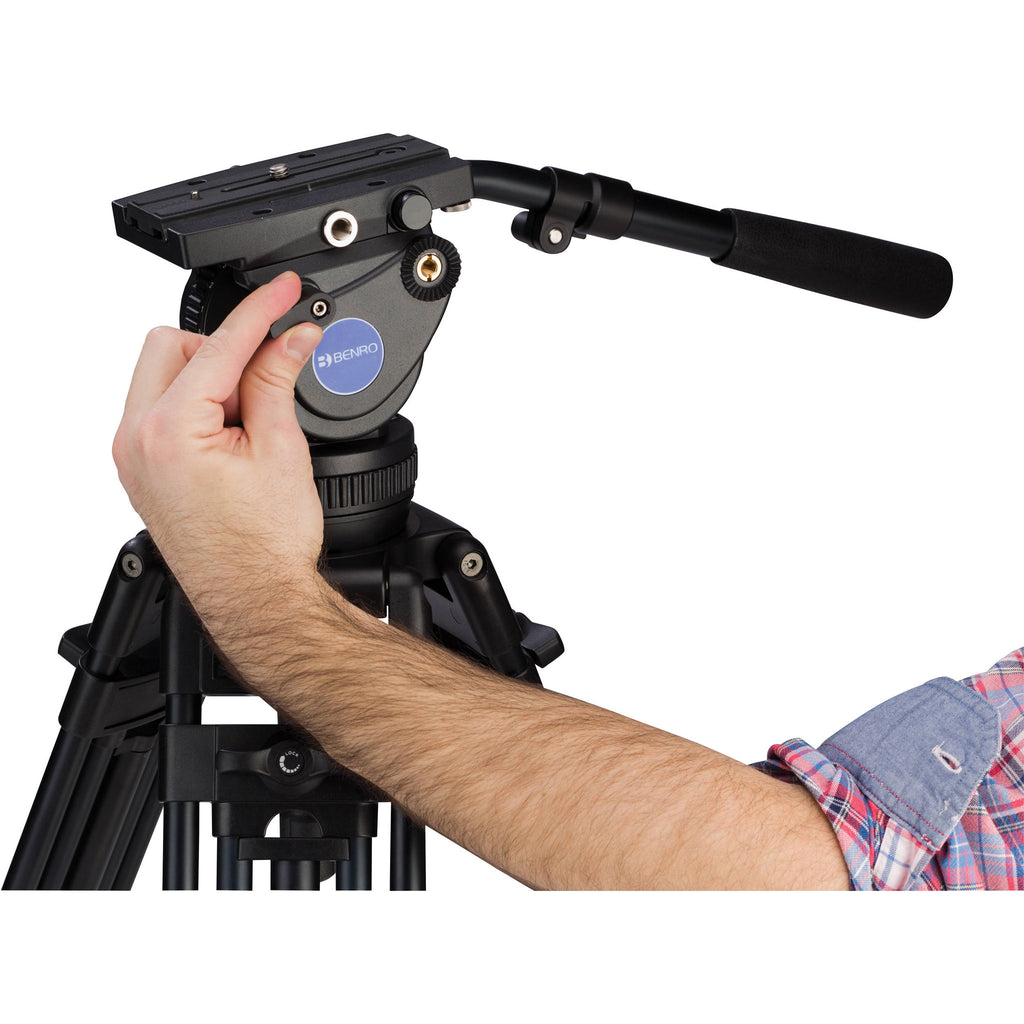

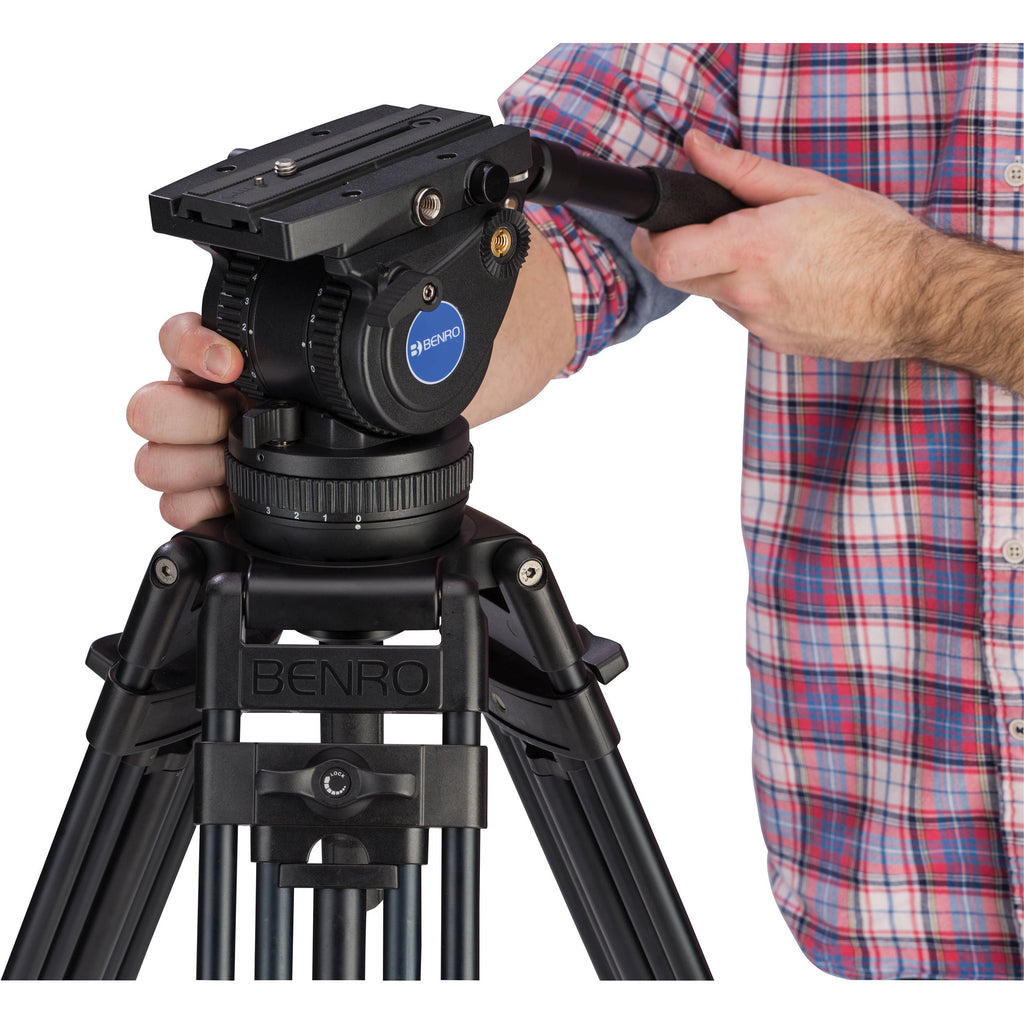

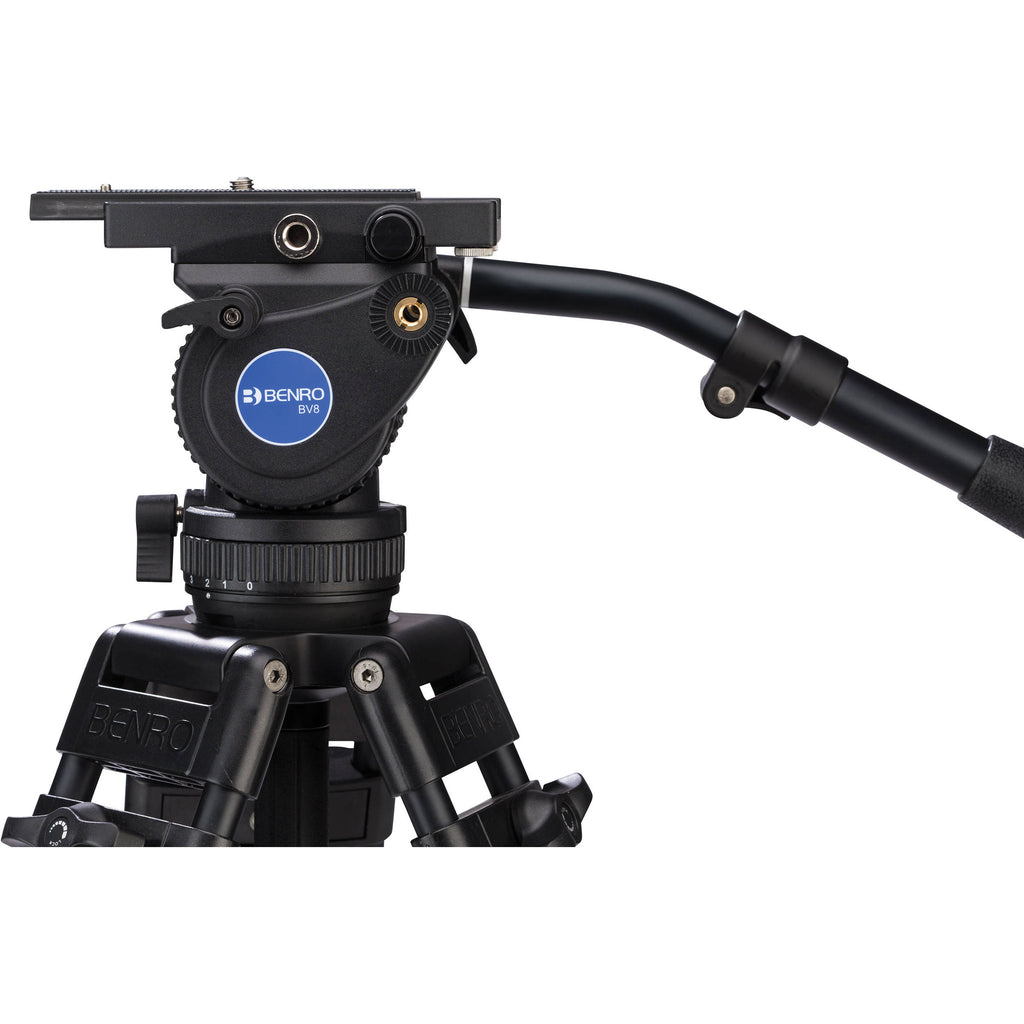

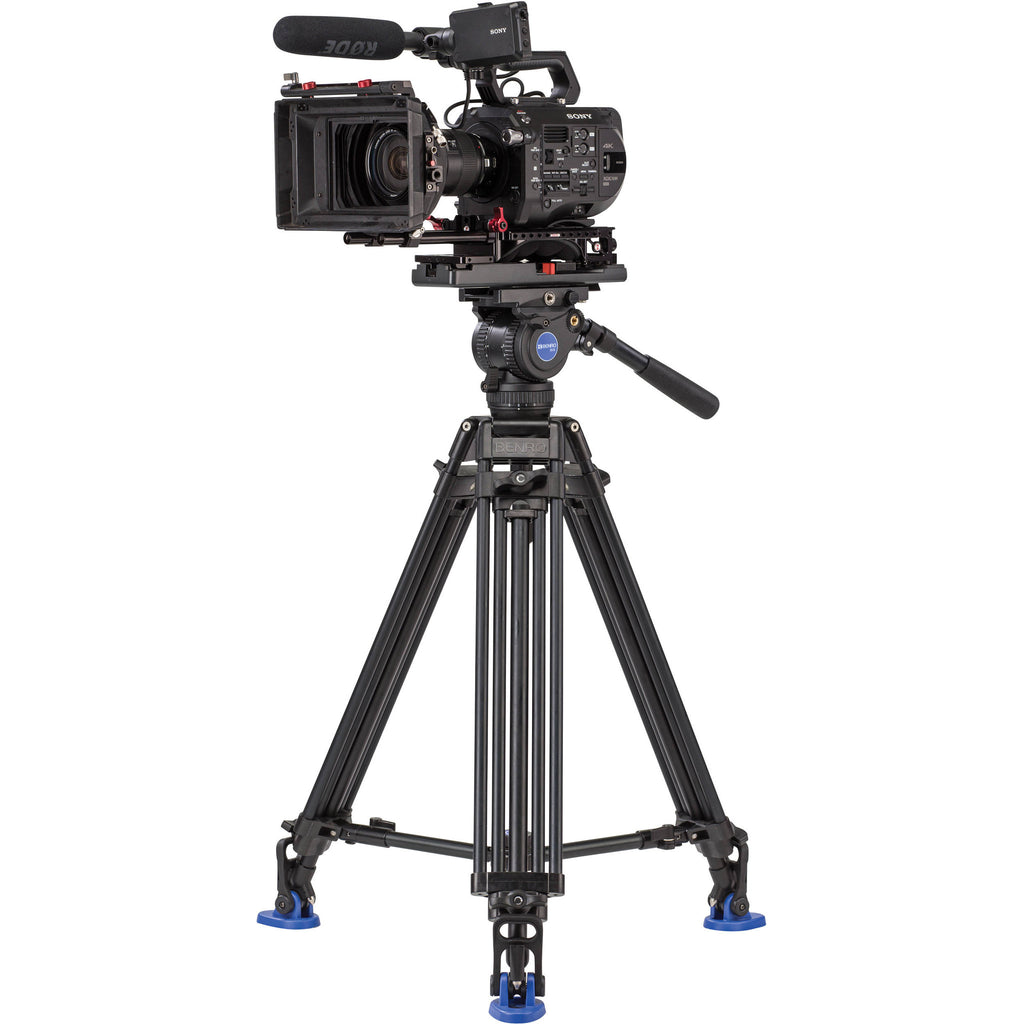

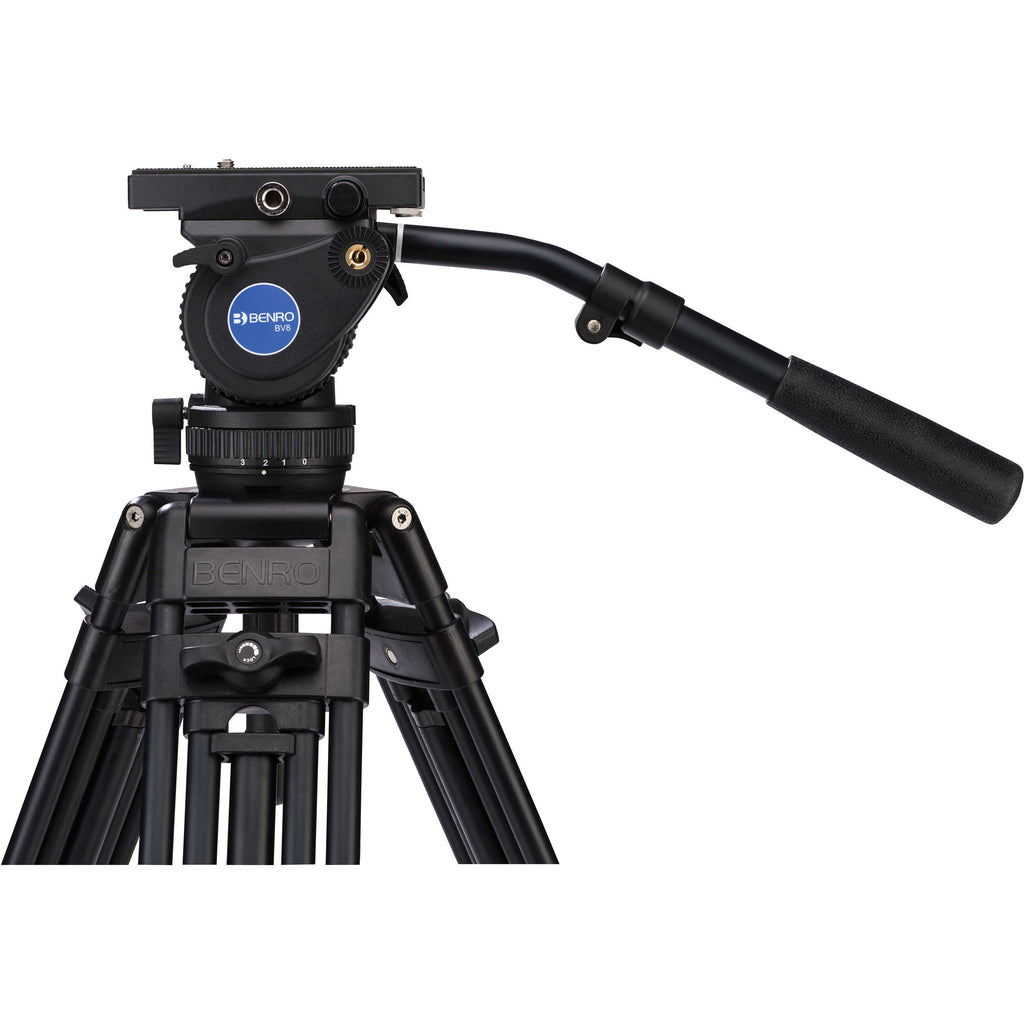

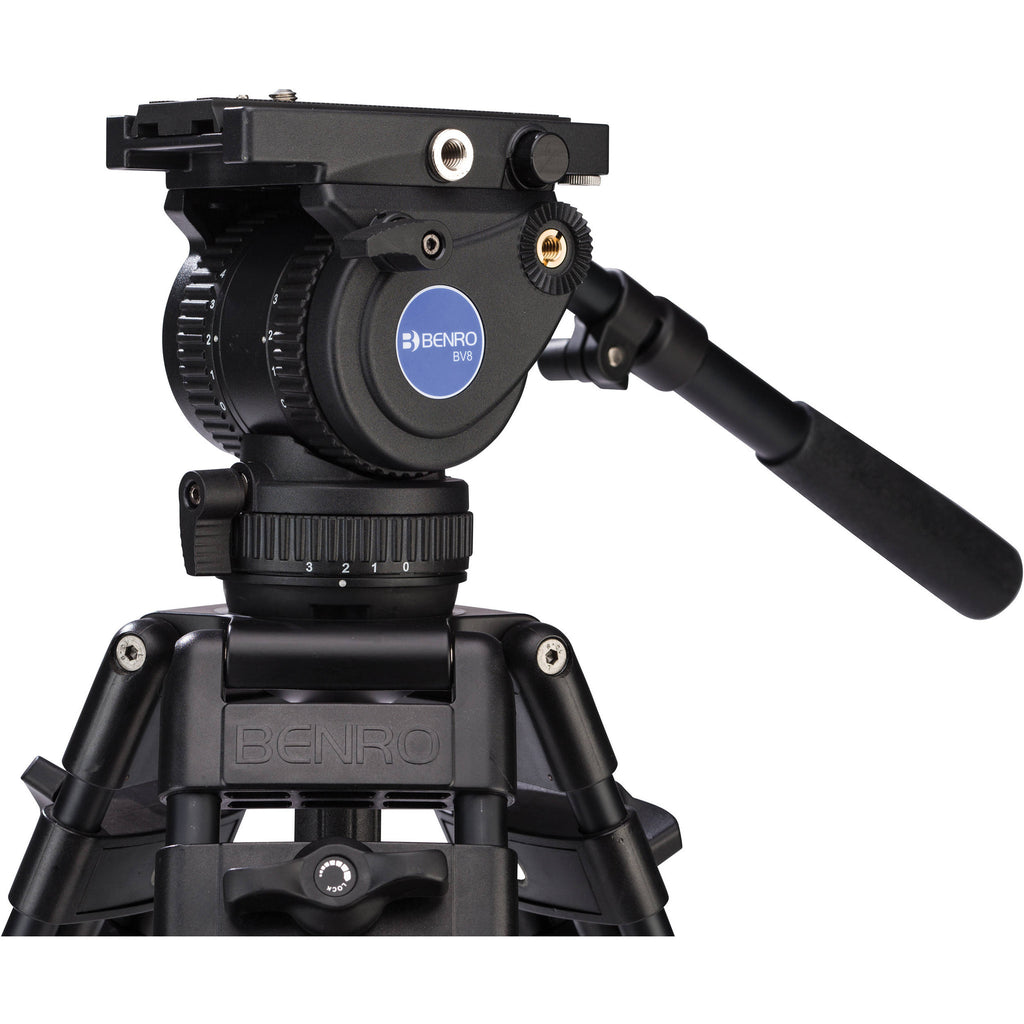

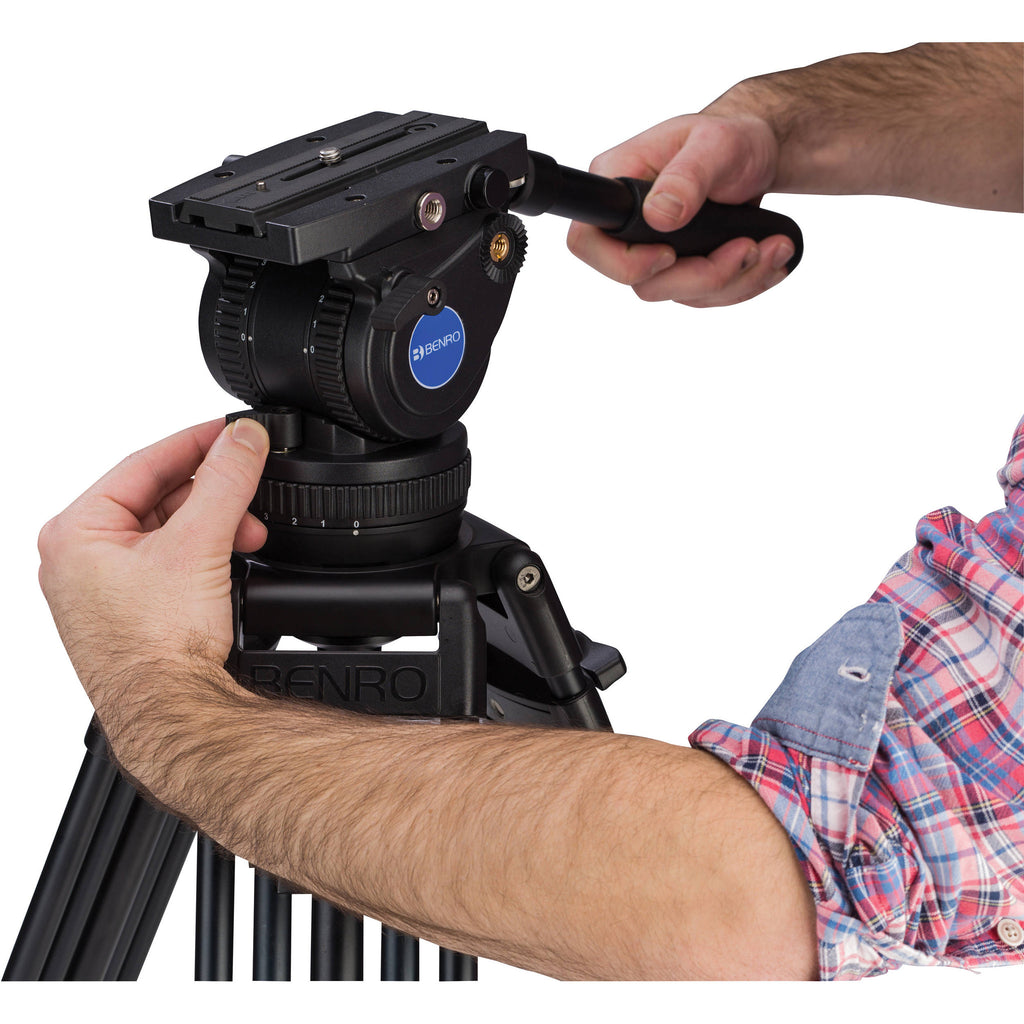

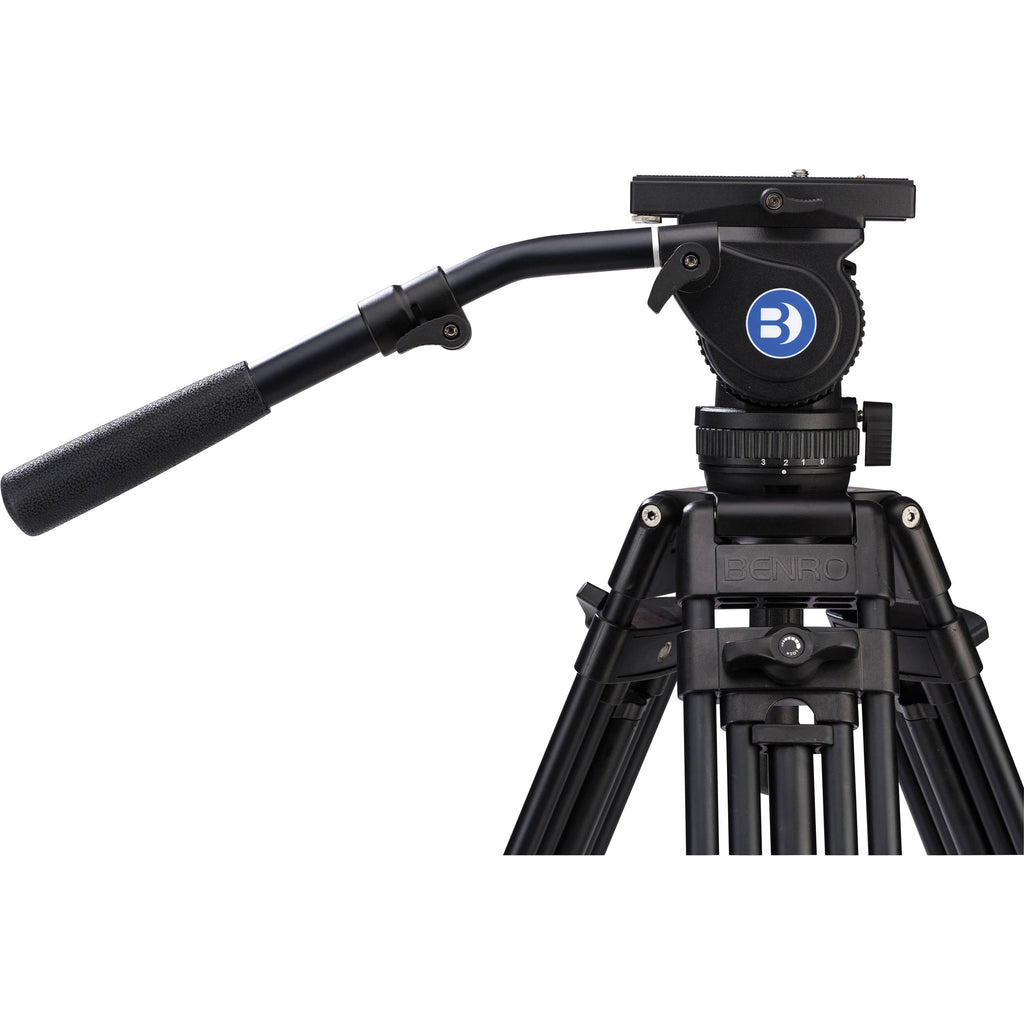

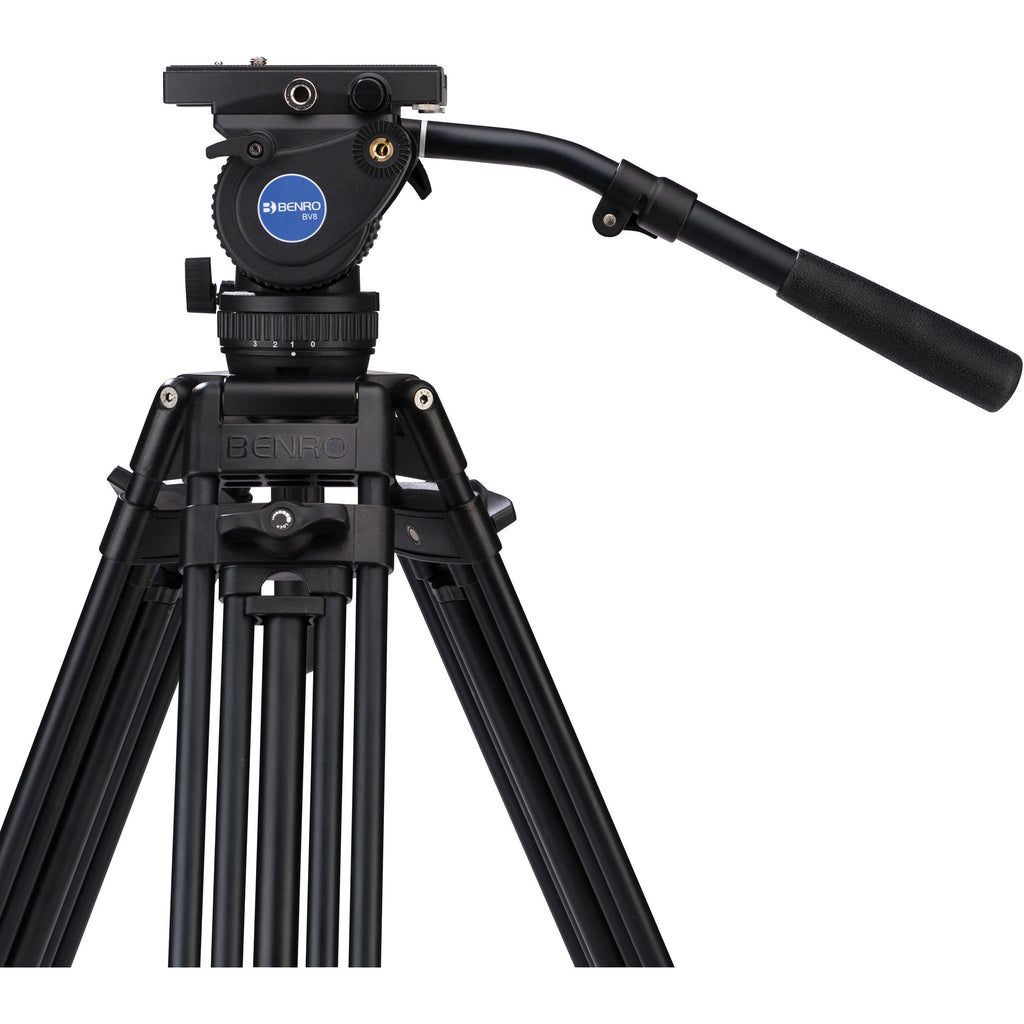

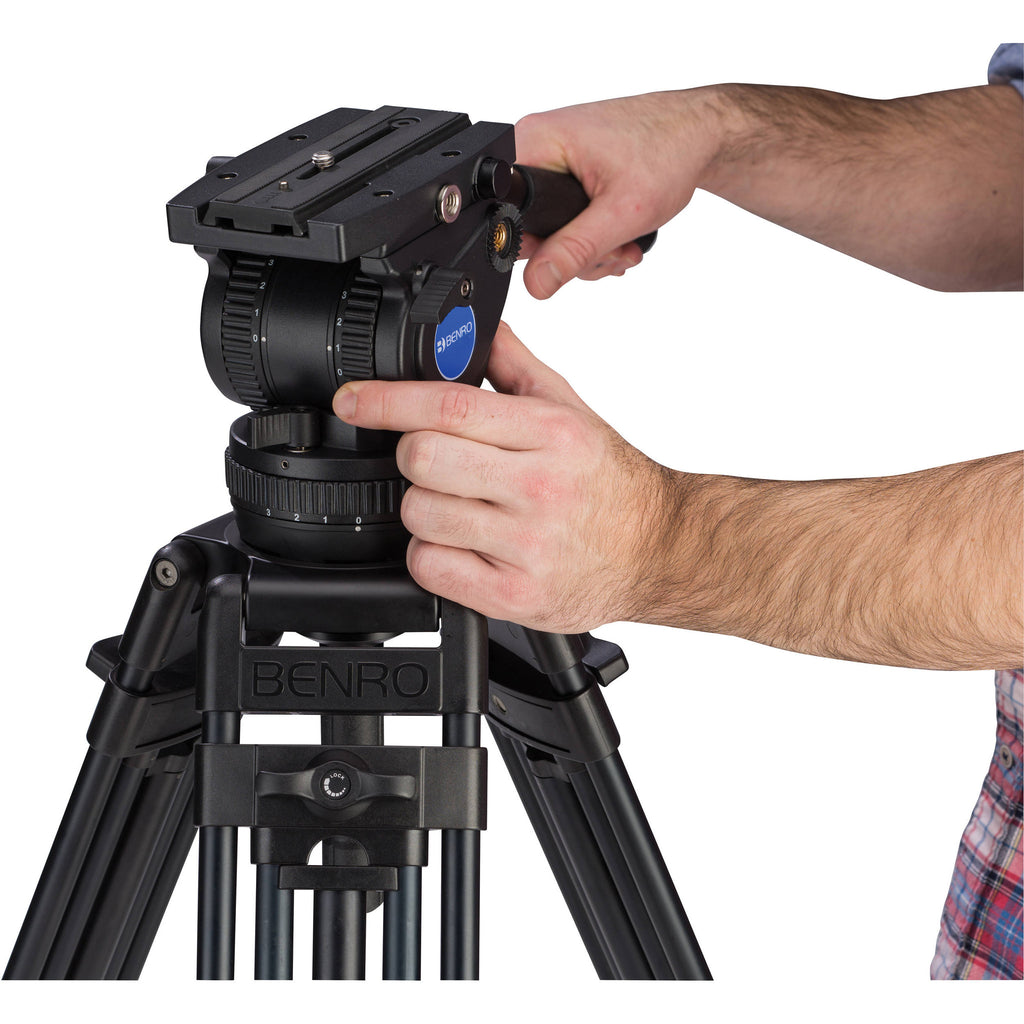

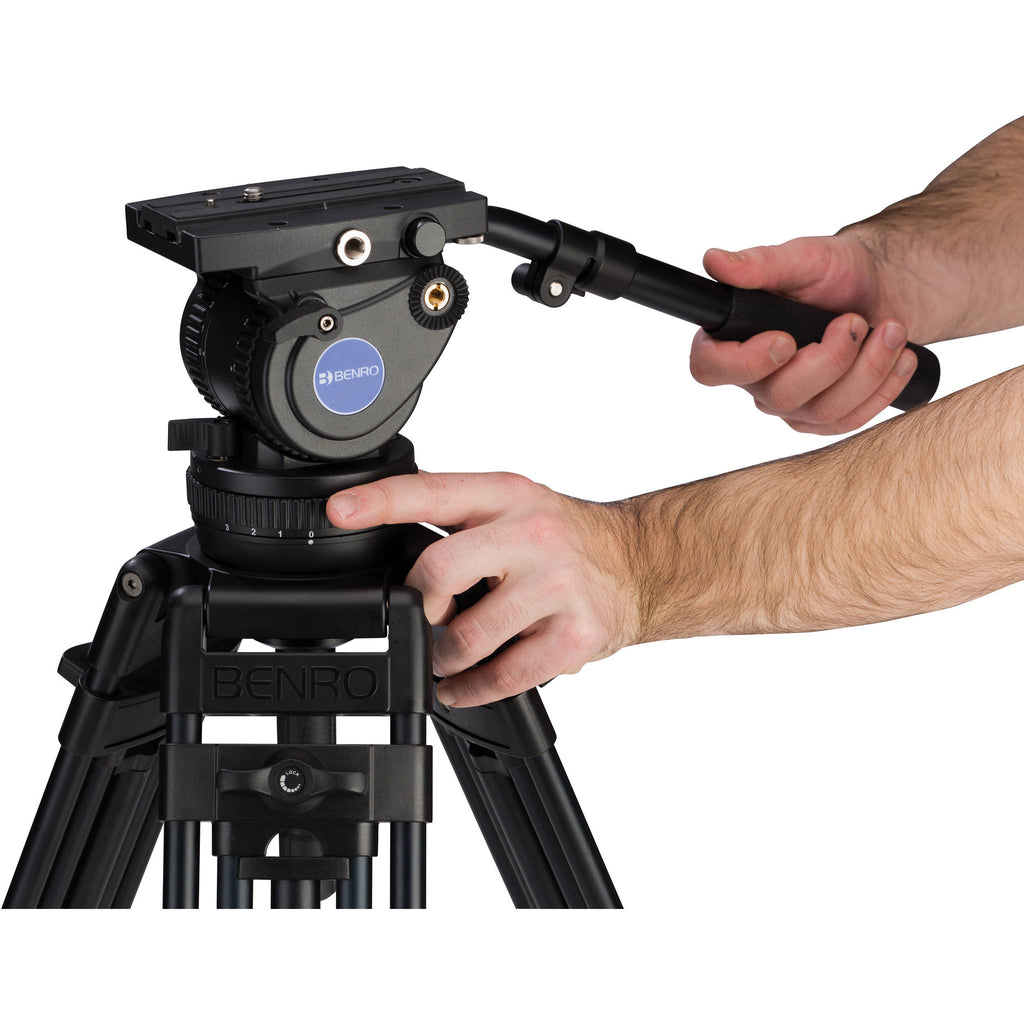

The Benro BV8 Twin Leg Aluminum Tripod Kit is a complete tripod system ideal for studio applications and handling larger camera rigs weighing up to 17.6 pounds. The kit pairs the 75mm-ball BV8 video head with a twin leg aluminum tripod. The BV8 head features a 5-step counterbalance system to dial in the correct amount for your set-up, and independent 4-step pan and tilt drag settings for precise control over camera movements. A Manfrotto 501/504PL compatible sliding quick-release plate is provided. All of the main controls, other than counterbalance, are located on the left side of the head making it easy to make adjustments with a single hand while operating the camera. For added versatility, the 75mm-ball tiedown stud is removable to convert the head to a flat base for use on a slider or other support device.

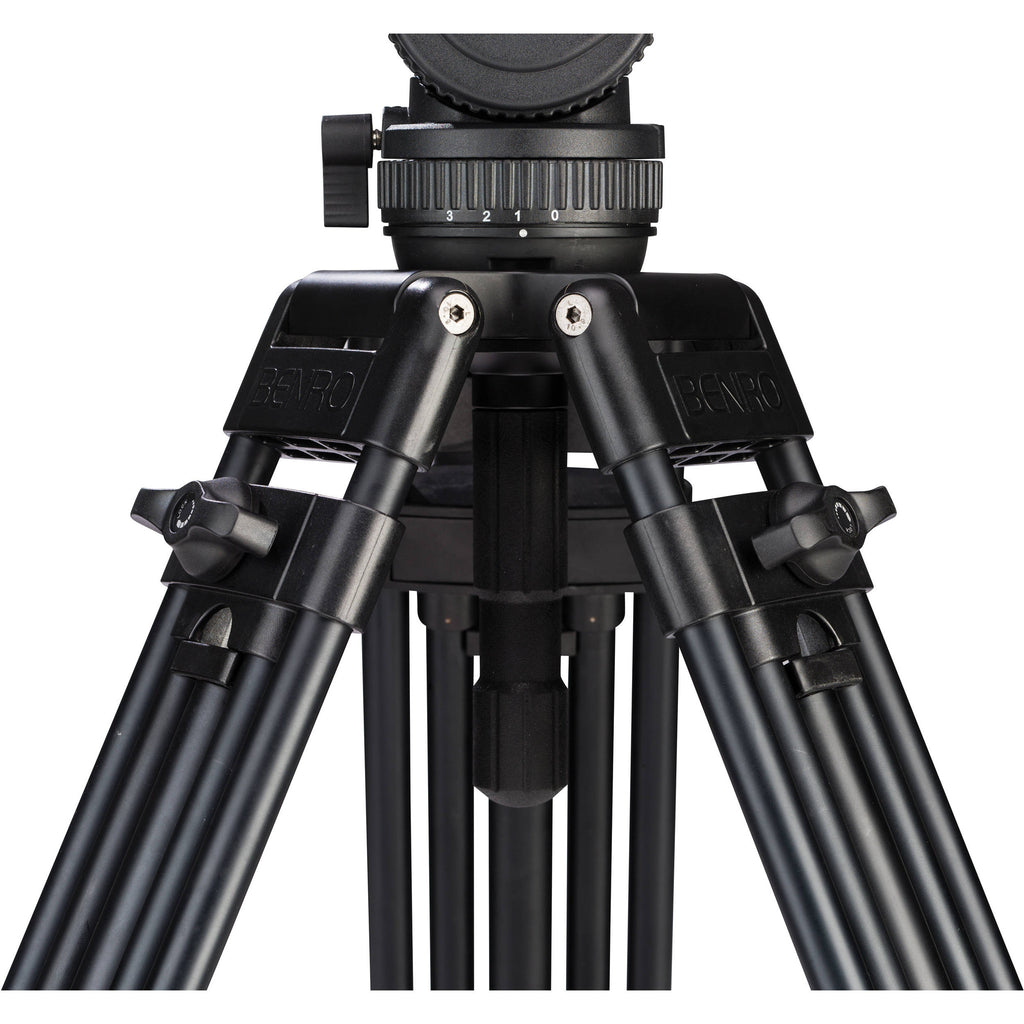

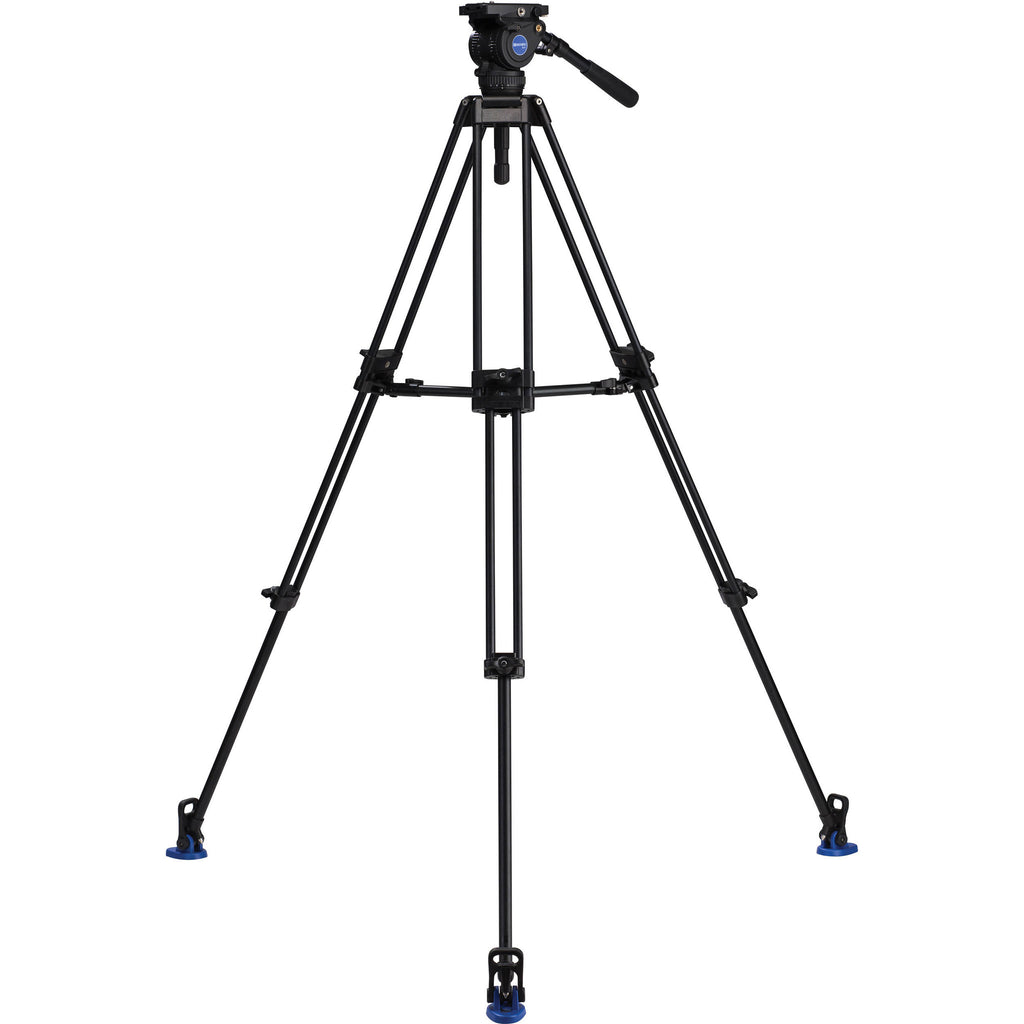

The 2-stage, 3-section twin leg aluminum tripod incorporates a 75mm bowl and offers sturdy support for the BV8 head. It features oversized quick positive leg locks for simple and fast setup, an adjustable/removable mid-level spreader, and dual spike feet with removable rubber pads. The tripod system extends to a maximum height of 63", while getting as low as 28". A carry case and shoulder strap are included.
- Head
-
- Supports up to 17.6 lb
- Removable tiedown stud to convert to flat base head

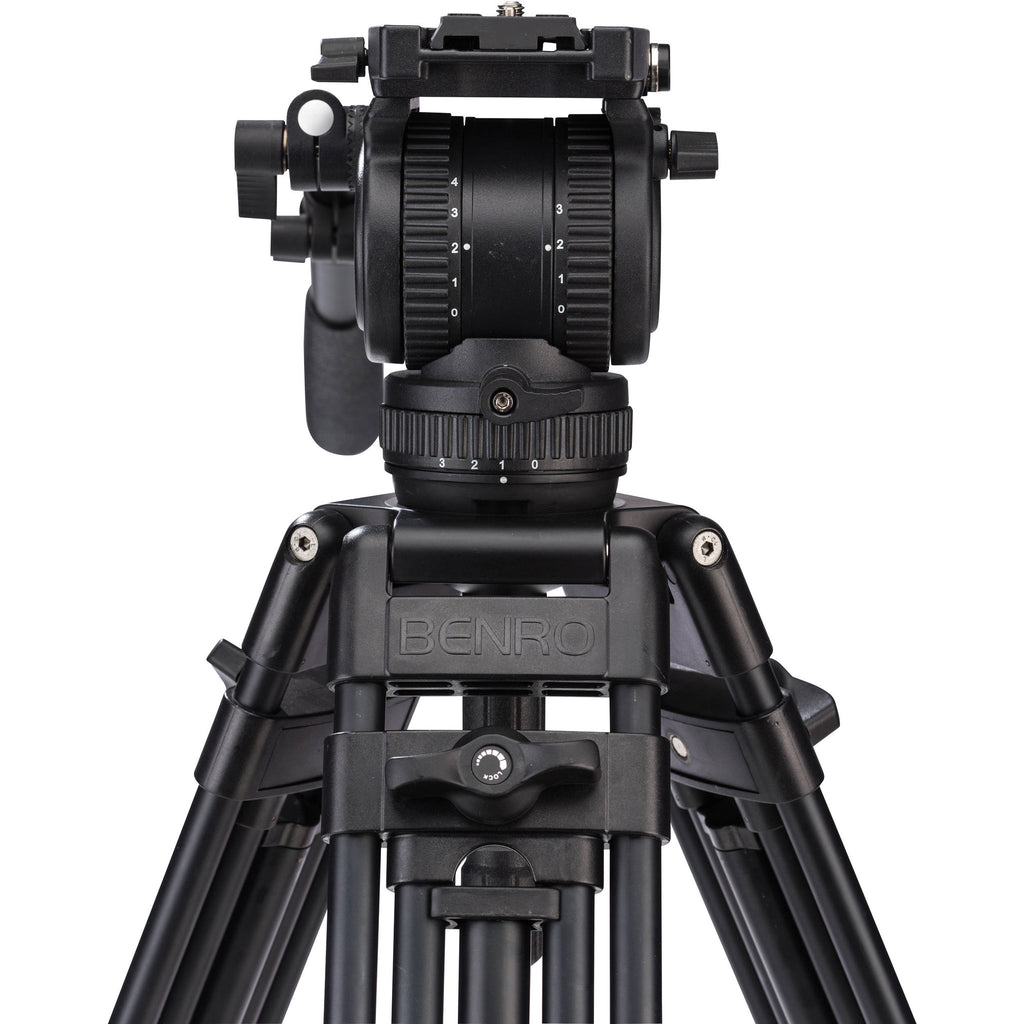

- 5-step (0 to 4) counterbalance

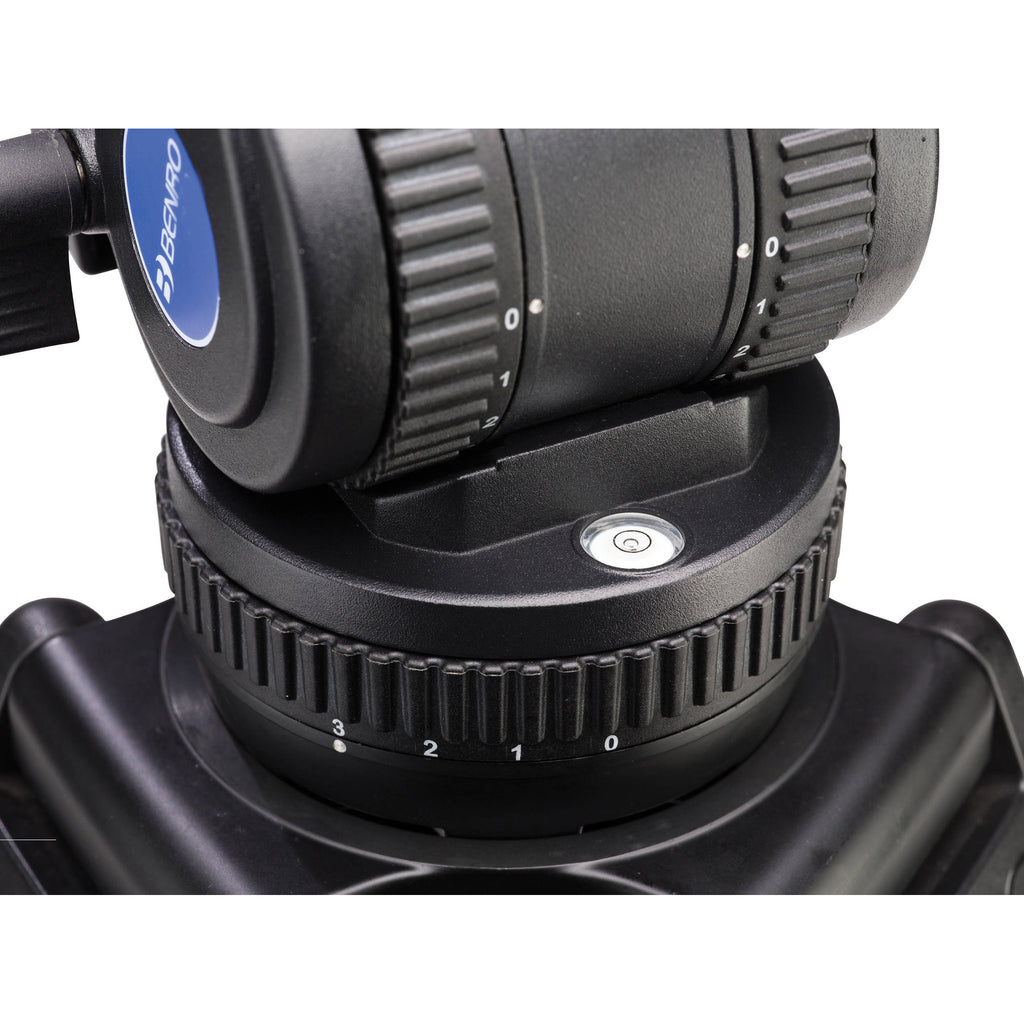

- Independent 4-step (0 to 3) pan and tilt drag
- -70° to +90° tilt range
- Manfrotto 501/504PL compatible sliding plate

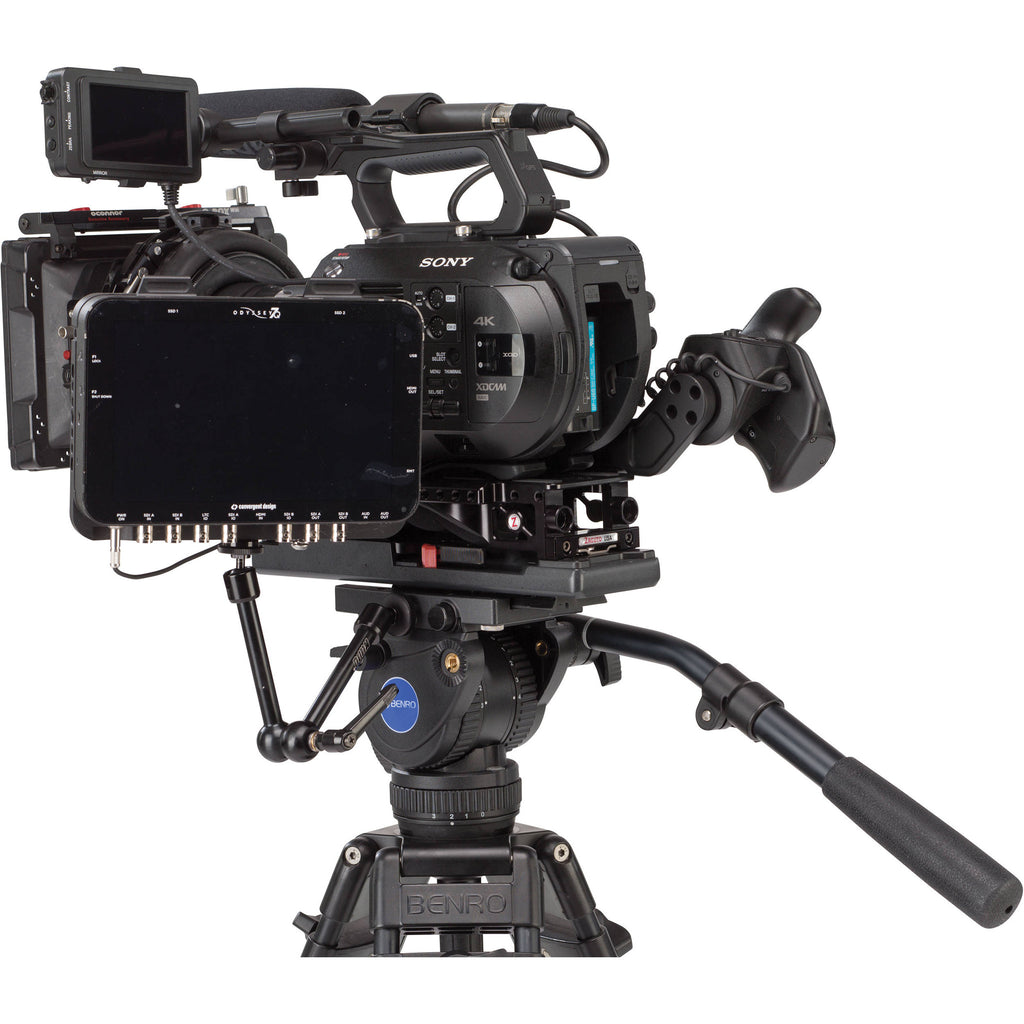

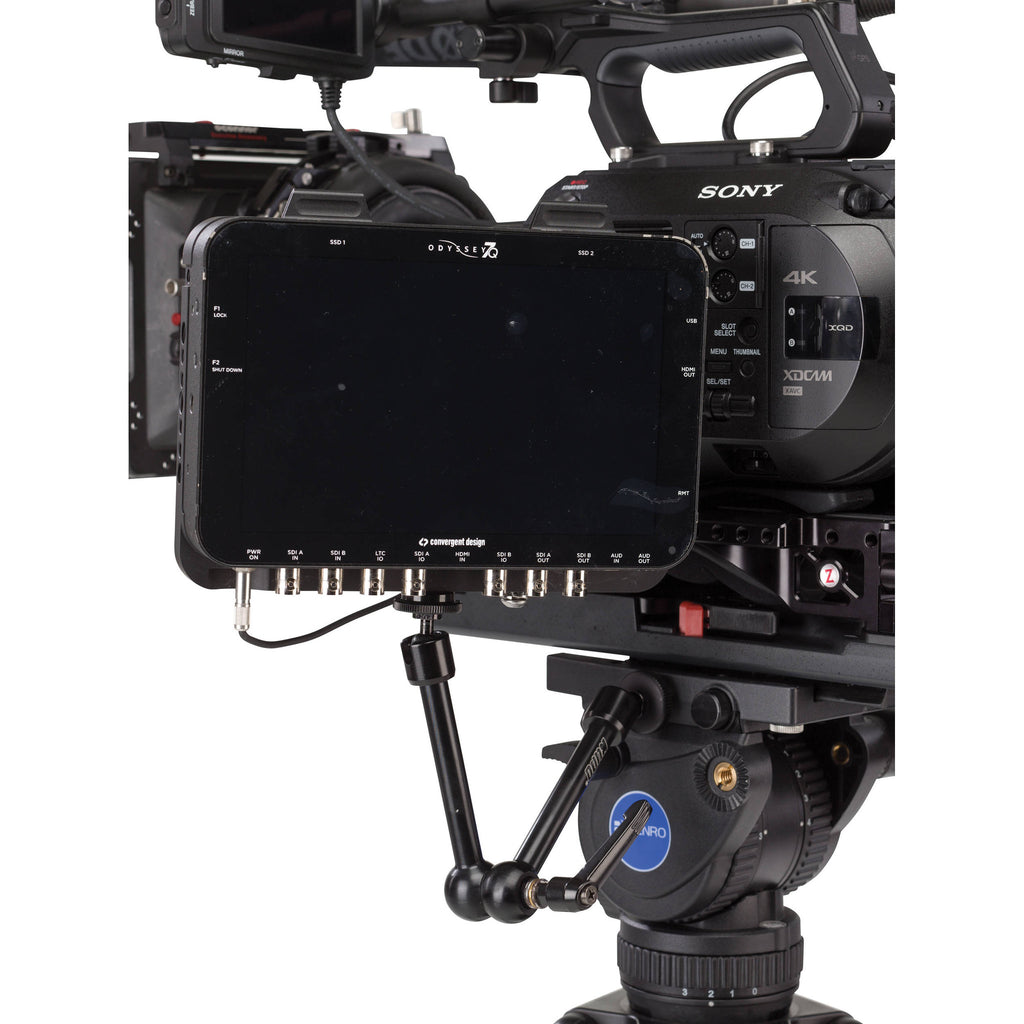

- Two 3/8"-16 accessory threads for mounting accessories, such as monitor or recorder
- Bubble level
- Legs
-
- Twin leg aluminum tripod with 100mm bowl fitting
- 28 to 63" height range (with head attached)
- Oversized twist lever leg locks

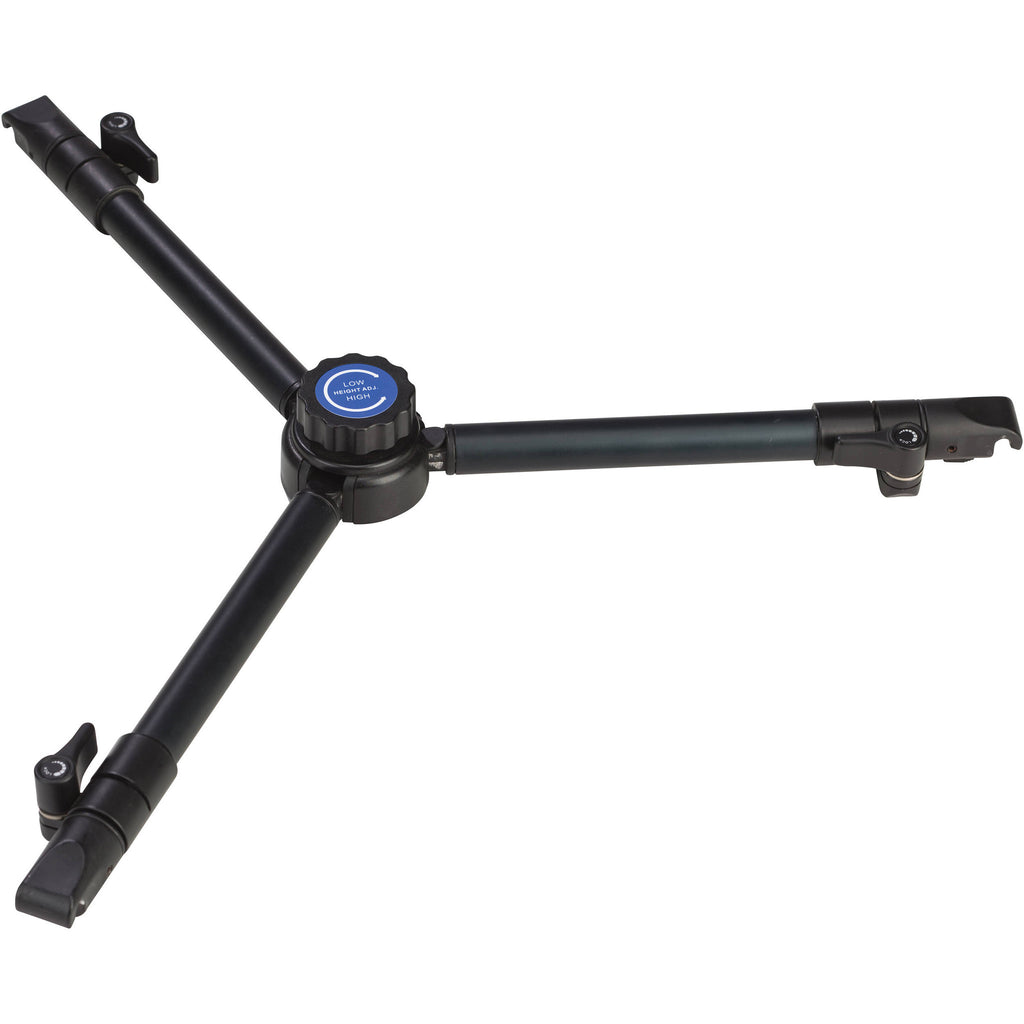

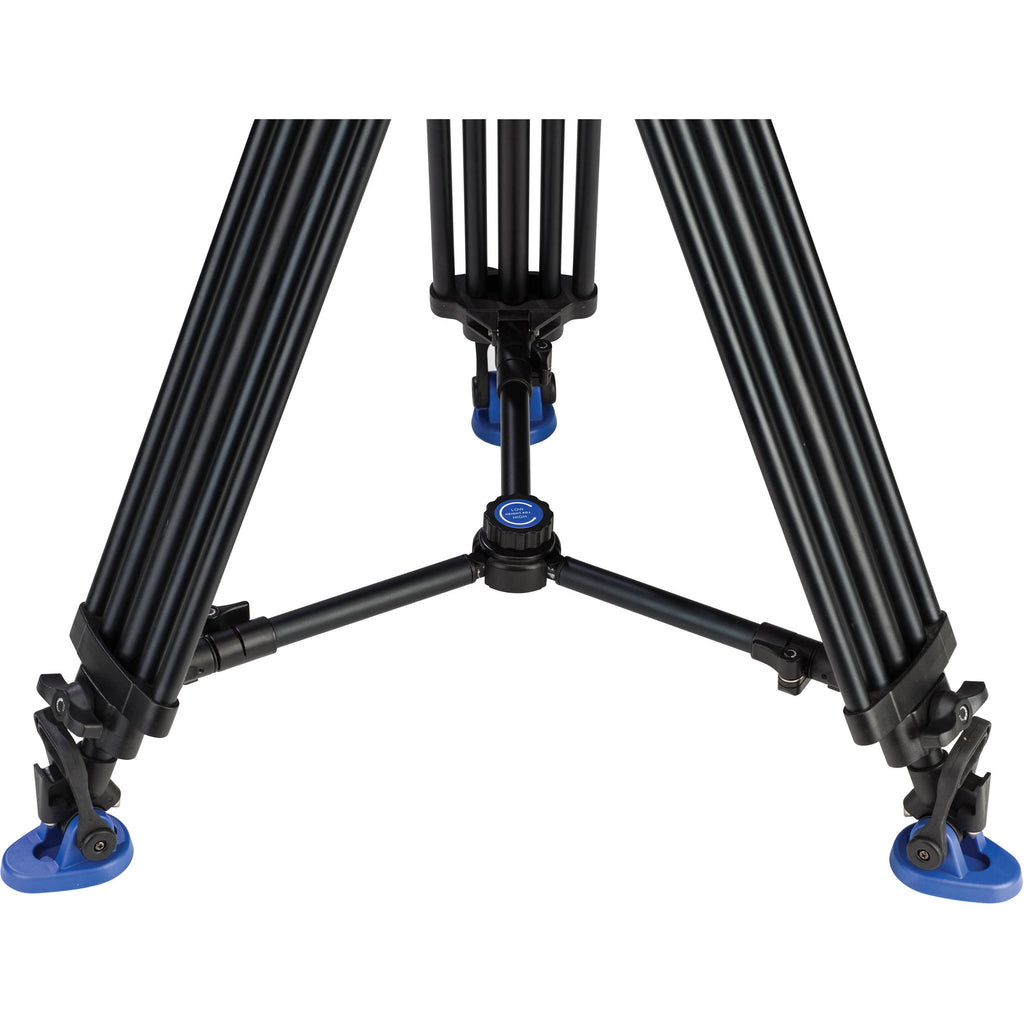

- Adjustable/removable mid-level spreader
- Dual spiked feet with removable rubber pads
Head |
Load Capacity | 17.6 lb (8 kg) |
Head Mount | 75 mm bowl |
Counterbalance | 5-step (0 to 4) |
Pan Drag | 4-step (0 to 3) fluid cartridge |
Tilt Drag | 4-step (0 to 3) fluid cartridge |
Panning Range | 360° |
Tilt Range | -70° to +90° |
Quick Release Plate | QR13 (Manfrotto 501/504PL compatible) 1/4"-20 and 3/8"-16 cameras screws |
Accessory Mounting Threads | 2 x 3/8"-16 |
Legs |
Material | Aluminum |
Stages | 2 |
Sections | 3 |
General |
Minimum Height | 28" (71.1 cm) |
Maximum Height | 63" (160 cm), at 24° leg angle with column extended |

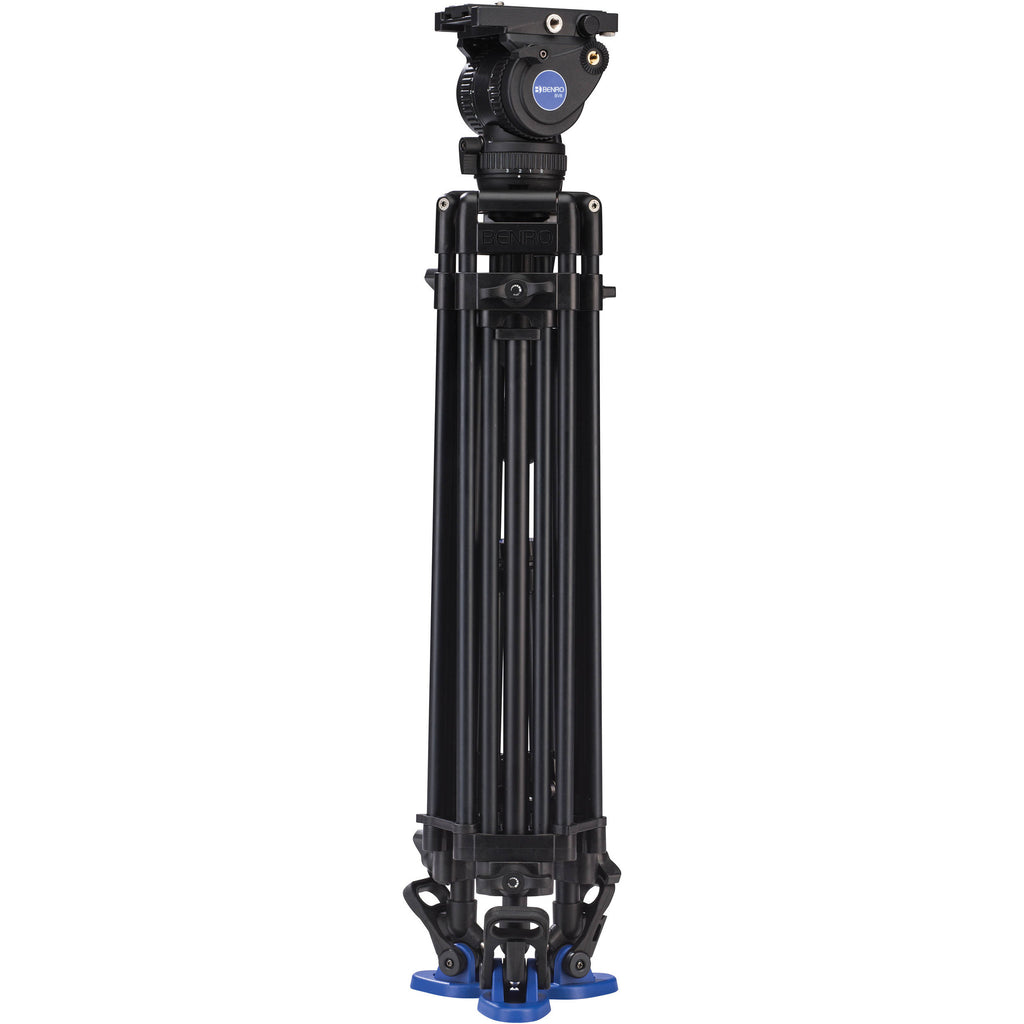

Folded Length | 34.1" (86.7 cm) |
Weight | 14 lb (6.3 kg) |
Packaging Info |
Package Weight | 21.0 lb |
Box Dimensions (LxWxH) | 38.78 x 9.58 x 9.38" |
In the Box
Benro BV8 Twin Leg Aluminum Tripod Kit
