- 13.2 lb Load Capacity
- 75mm Ball
- Flat Base by Removing Tiedown Stud
- 8-Step Counterbalance
- Independent 4-Step Pan and Tilt Drag
- Manfrotto 501/504PL Type Sliding Plate
- 2x 3/8"-16 Accessory Mounting Threads

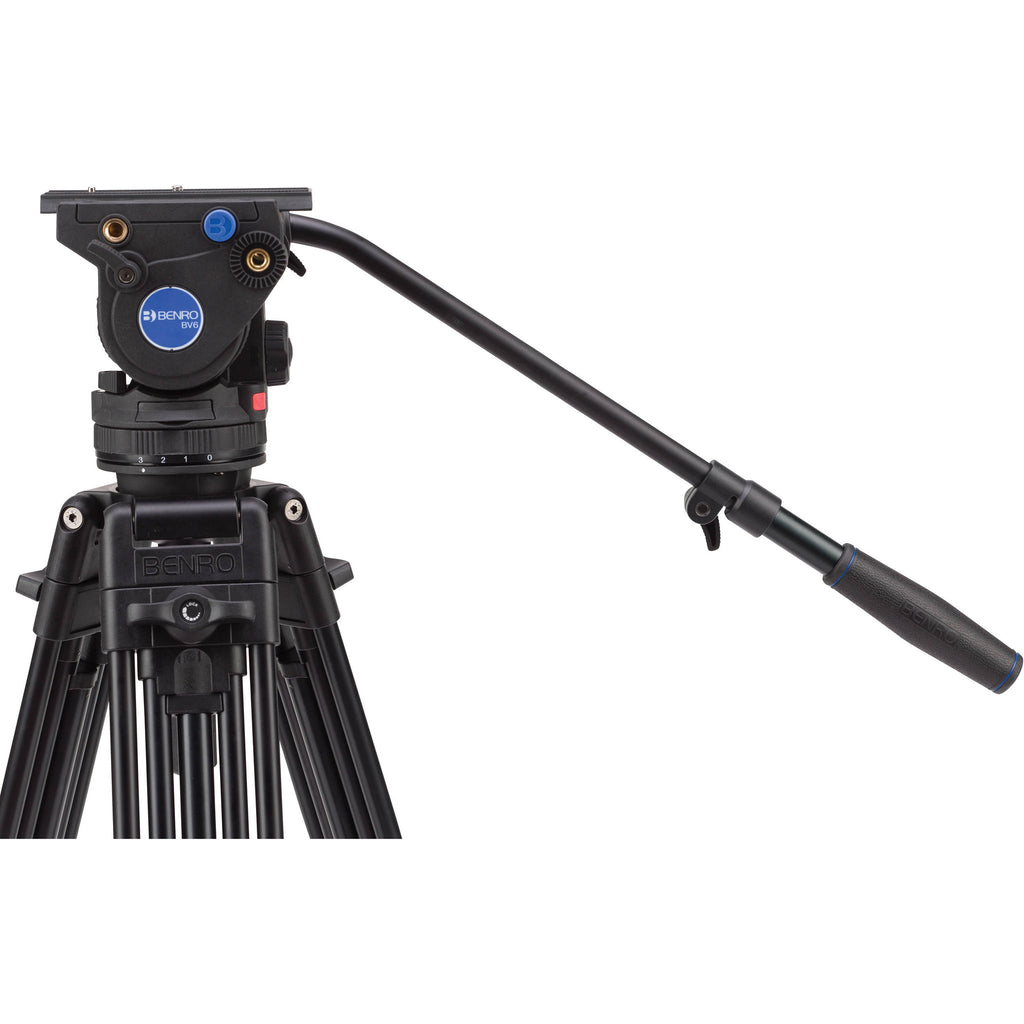

- Adjustable Length Pan Bar Handle

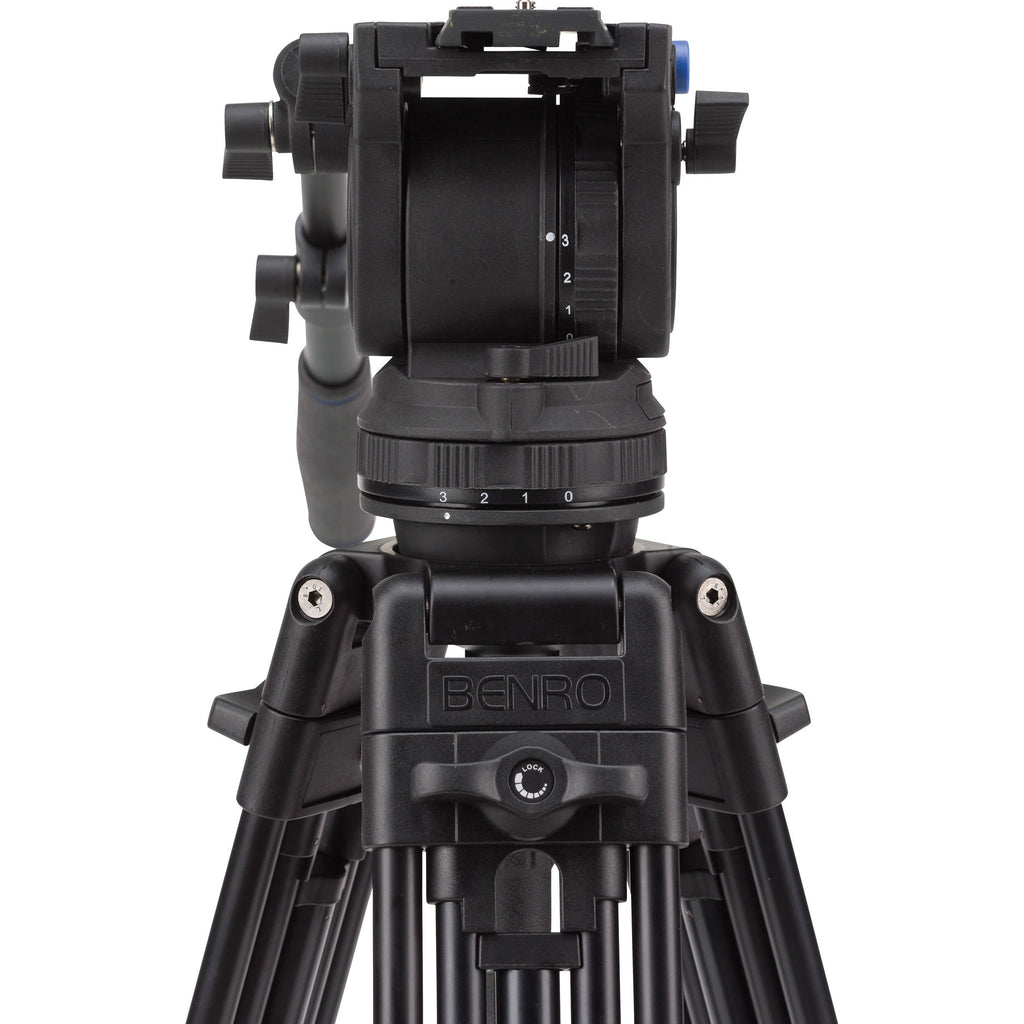

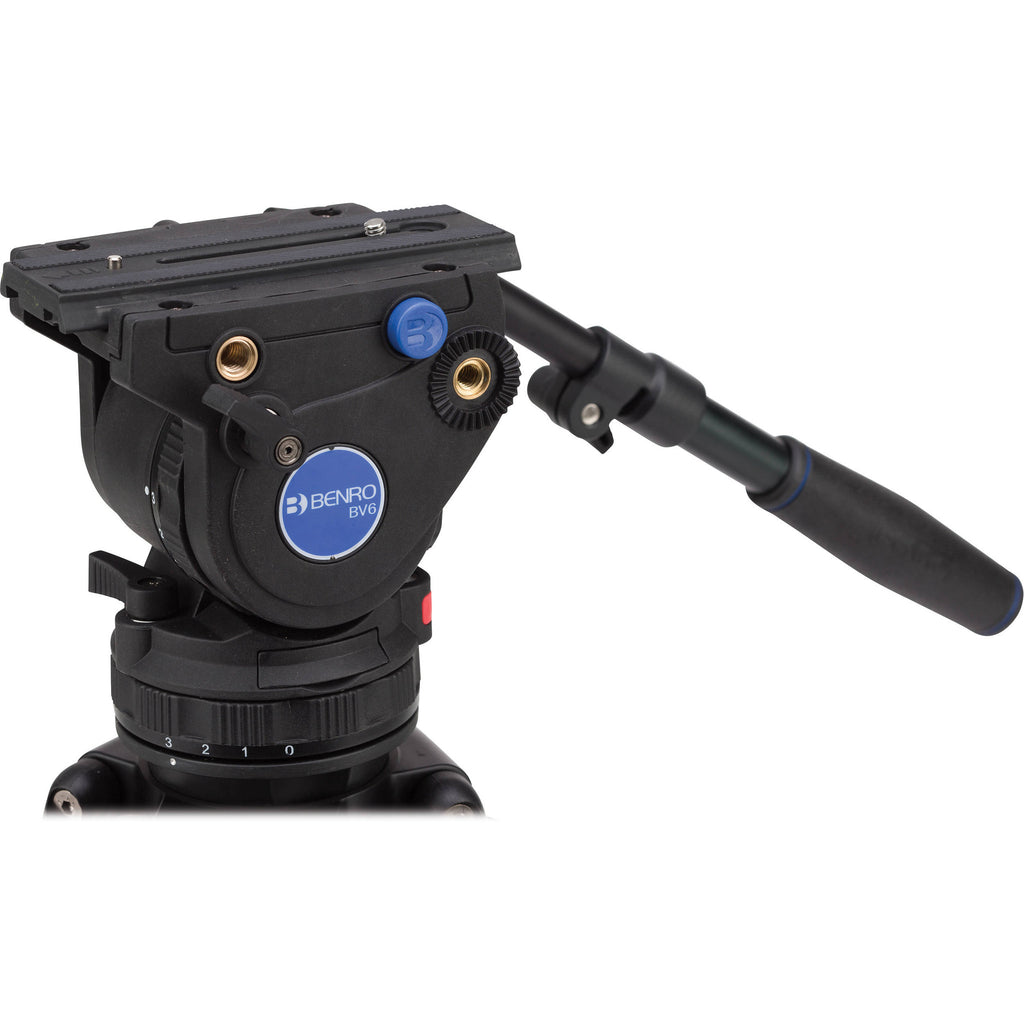

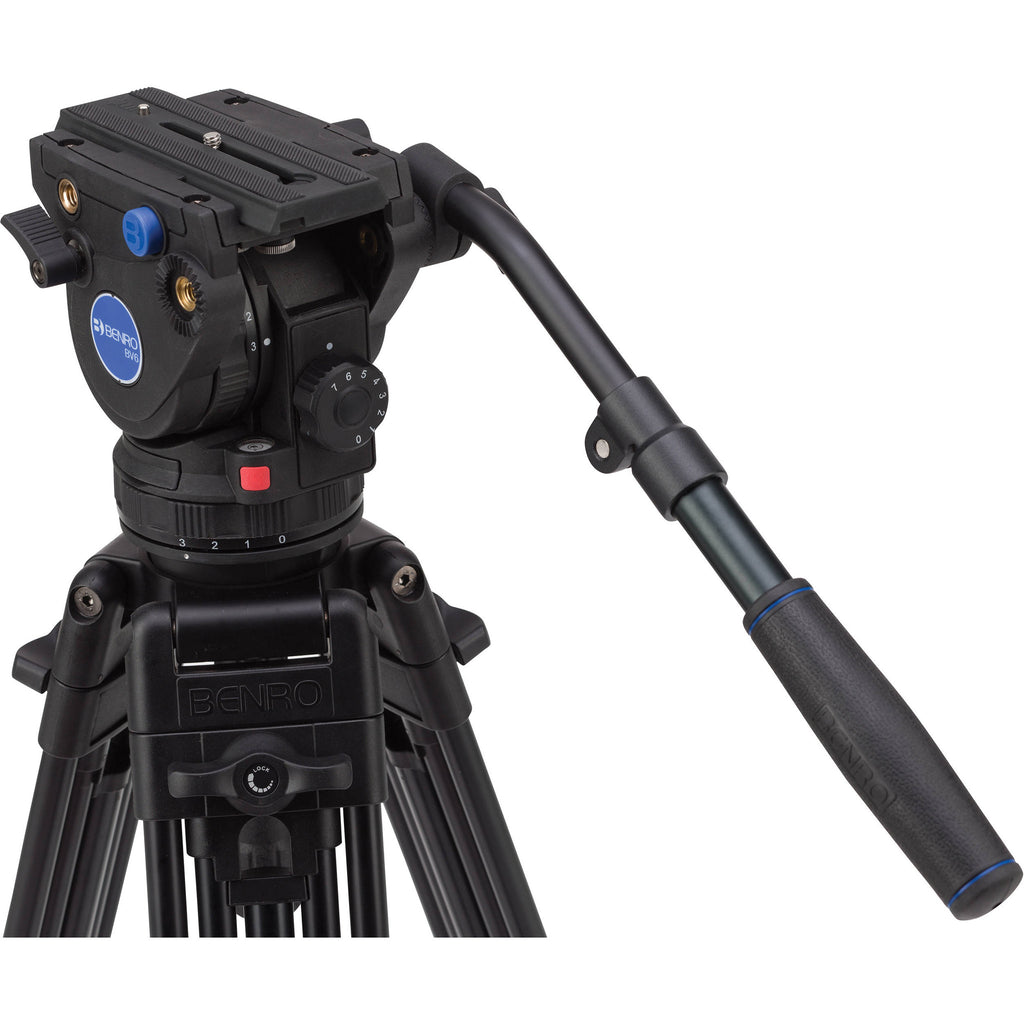

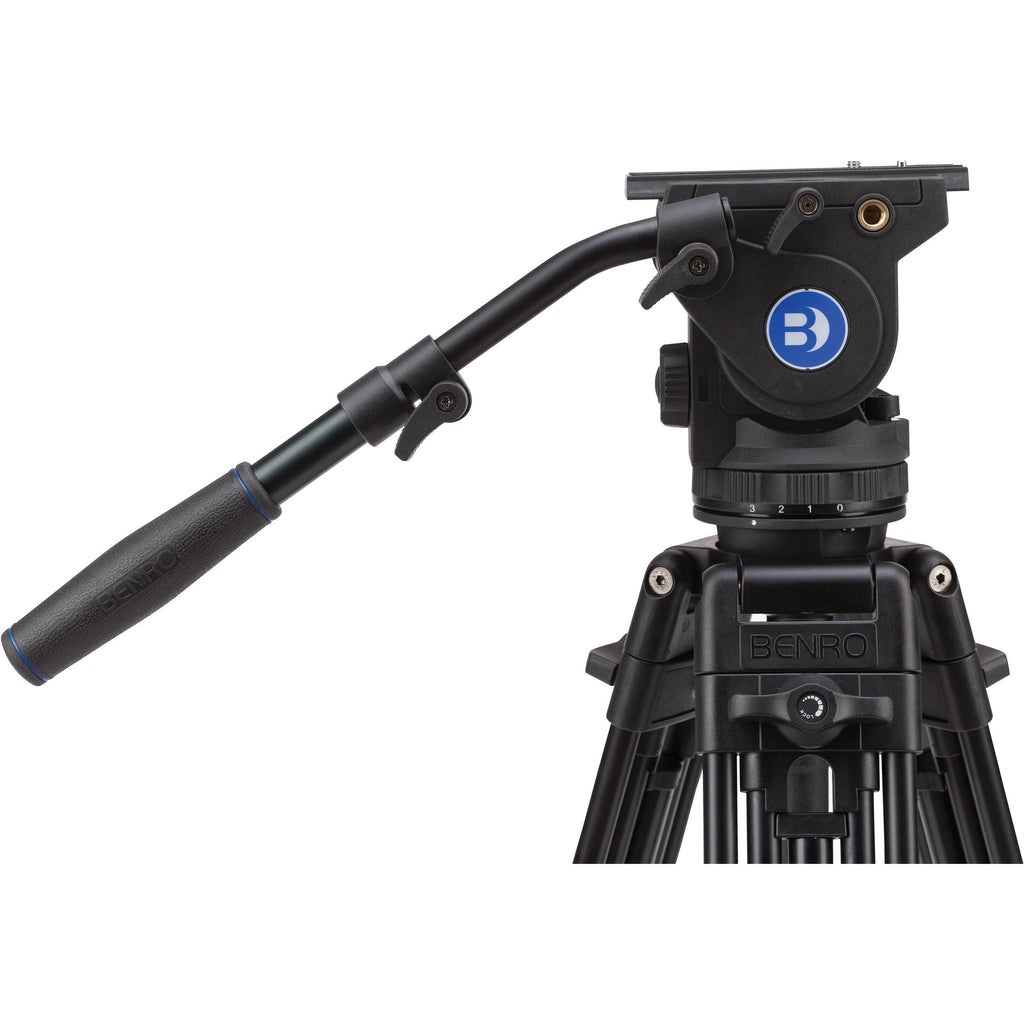

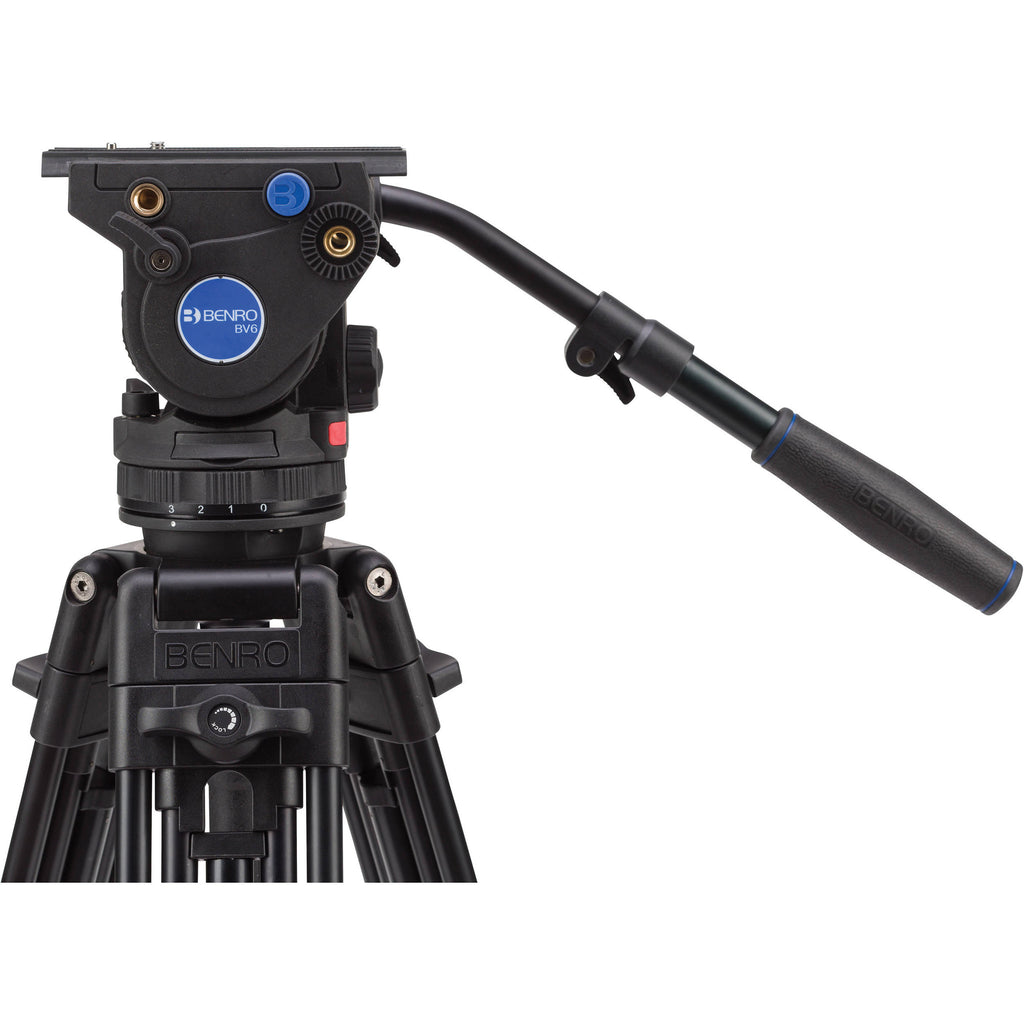

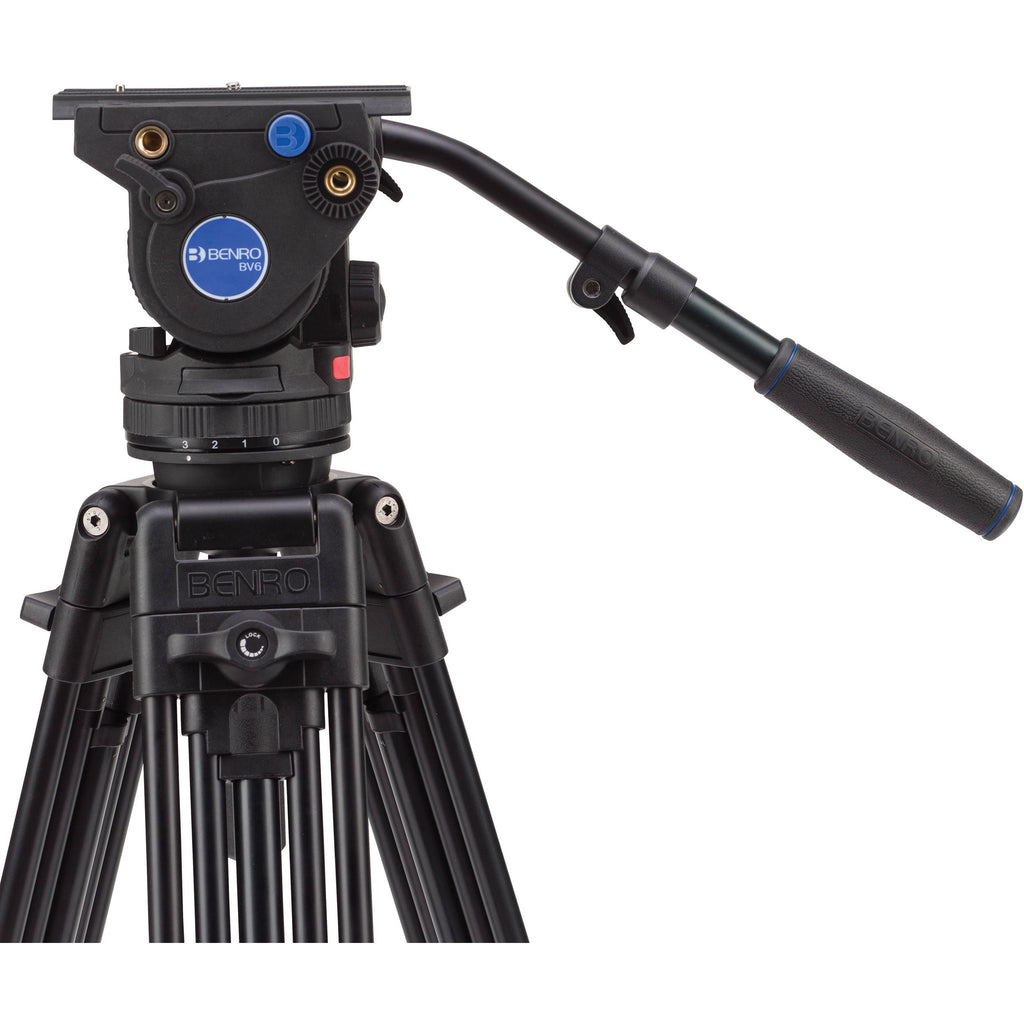

The Benro BV6 Video Head is designed for use with 75mm bowl tripods and supports loads up to 13.2 pounds. It features an 8-step counterbalance system to dial in the correct amount for your set-up, and independent 4-step pan and tilt drag settings for precise control over camera movements. A Manfrotto 501/504PL compatible sliding quick-release plate is provided, making it easy to set the balance point for your gear.

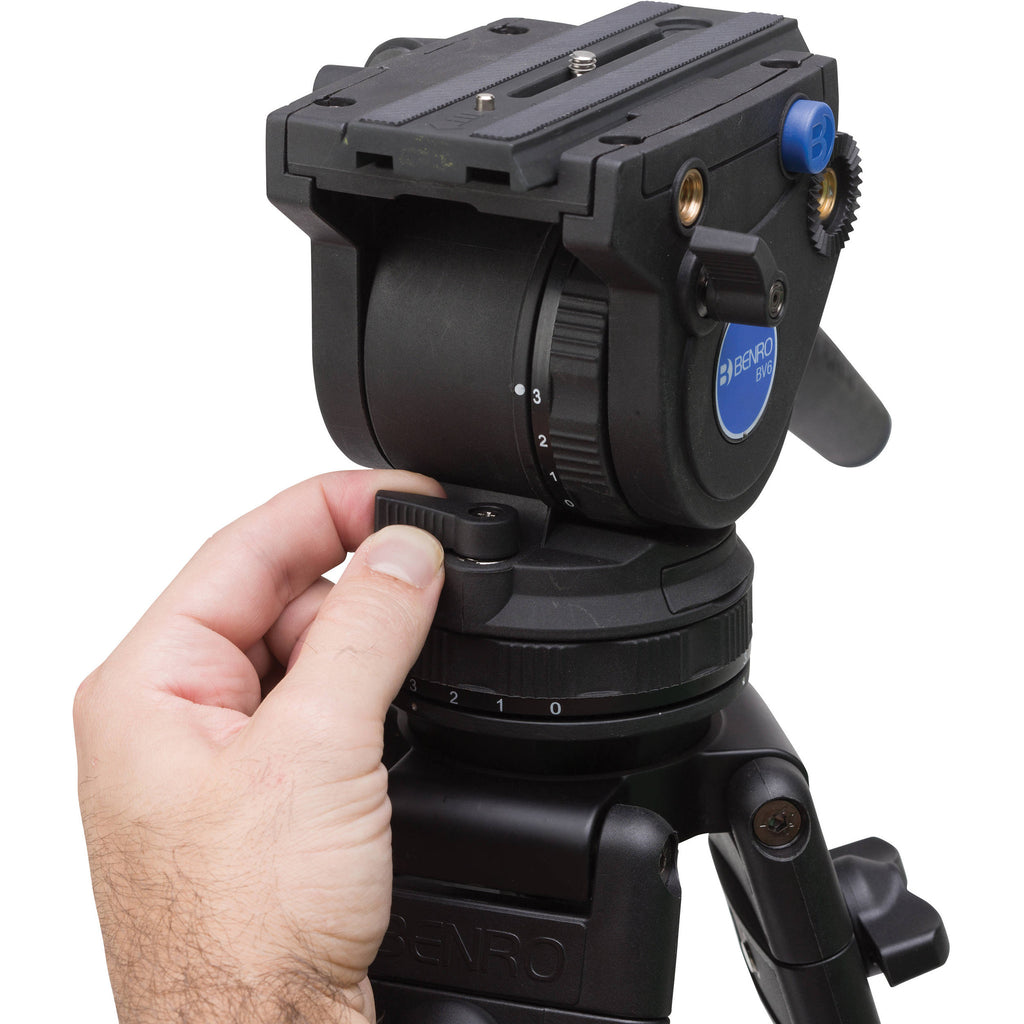

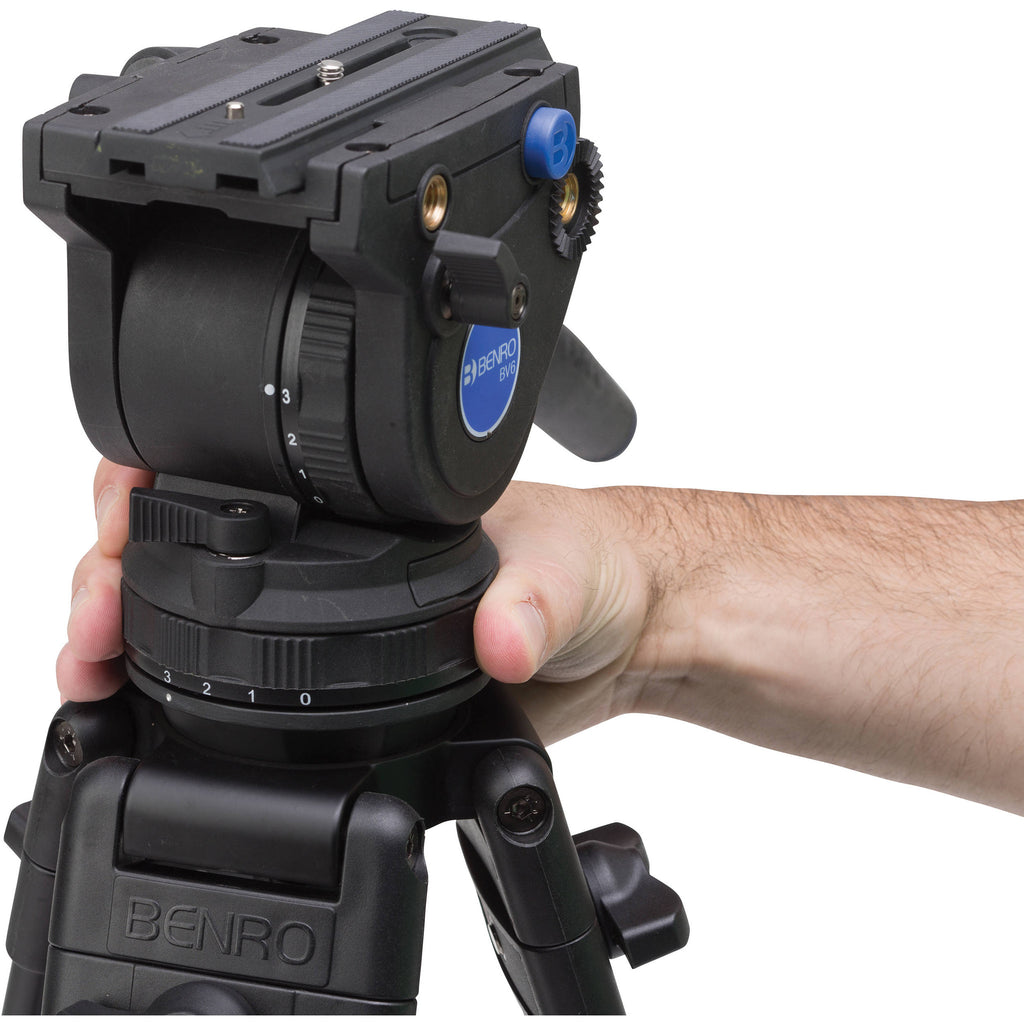

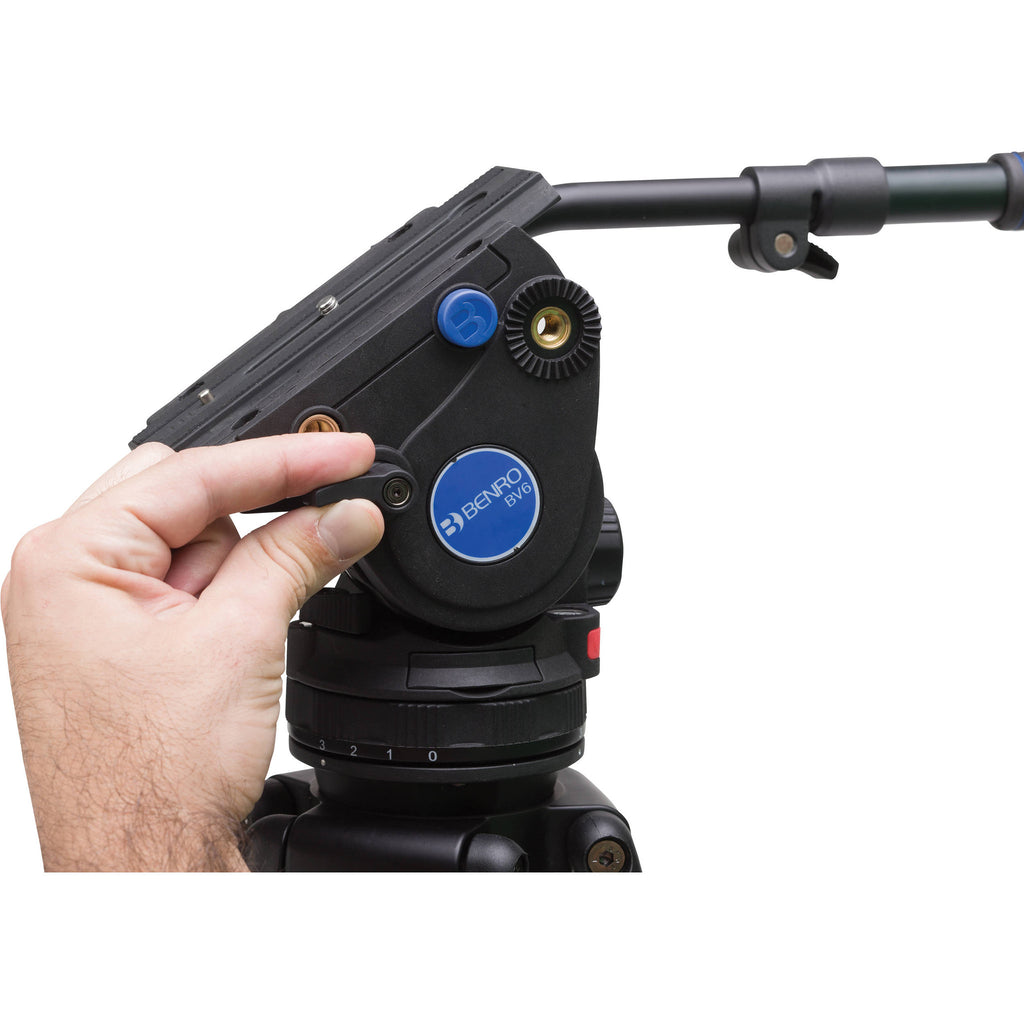

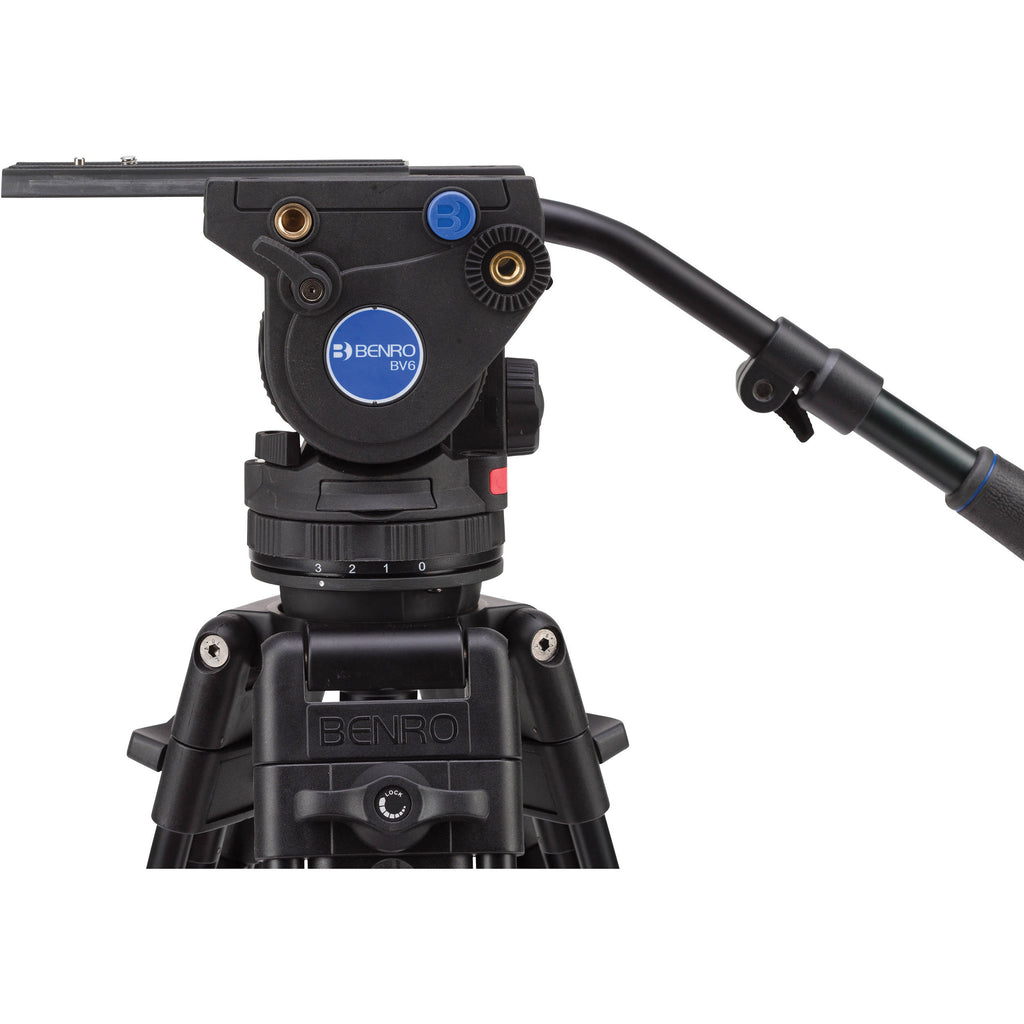

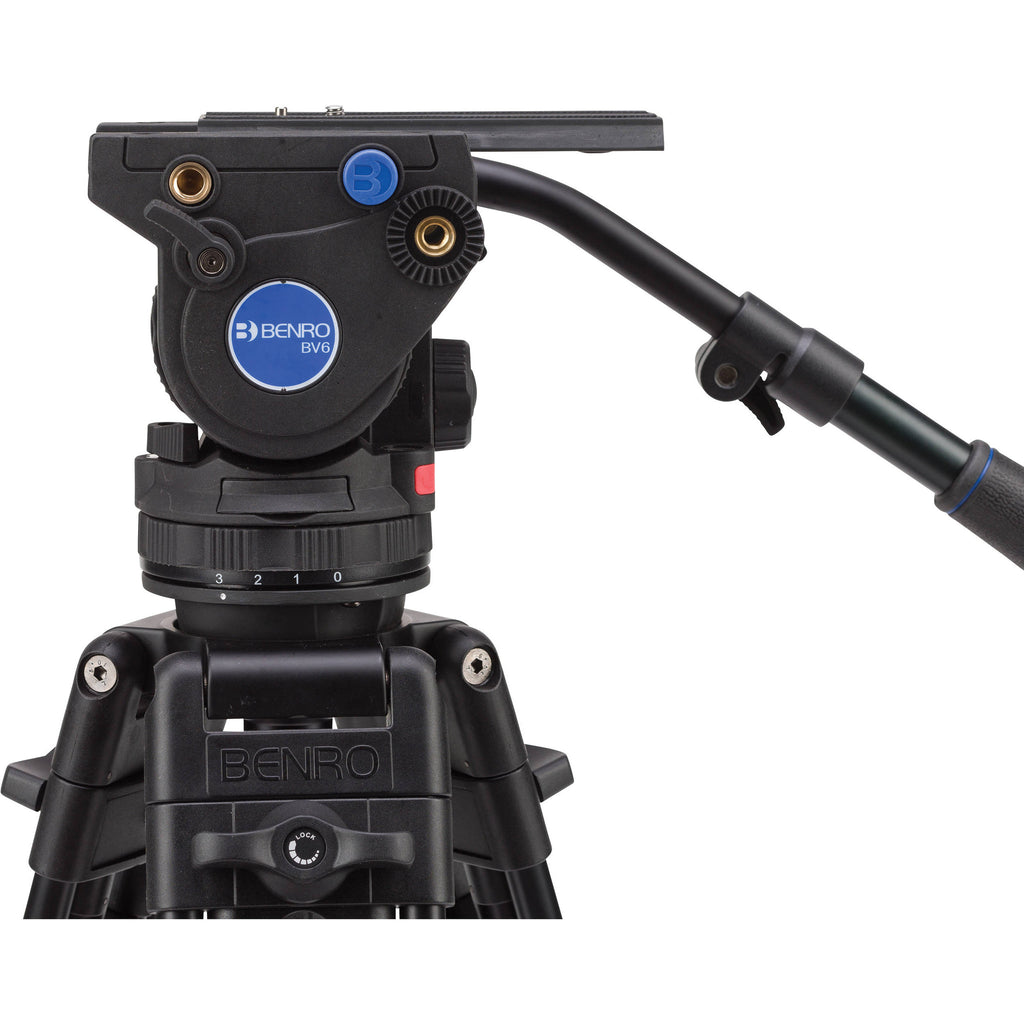

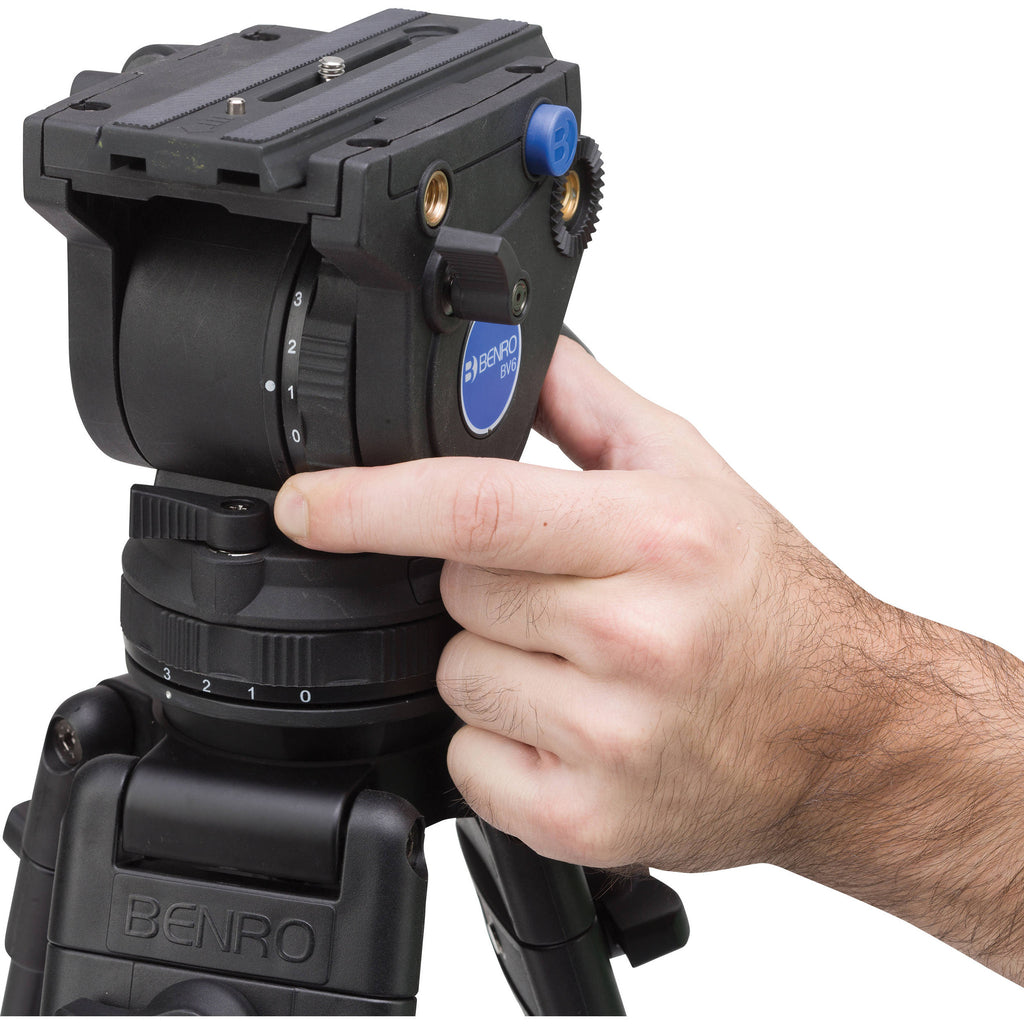

All of the main controls, other than counterbalance, are located on the left side of the head making it easy to make adjustments with a single hand while operating the camera. For added versatility, the 75mm-ball tiedown stud is removable to convert the head to a flat base for use on a slider or other support device. Dual safety rosettes let you mount the included adjustable length pan bar handle on either side of the head, or add a second pan bar or dual handle control.
- Key Features
-
- Supports up to 13.2 lb
- Removable tiedown stud to convert to flat base head

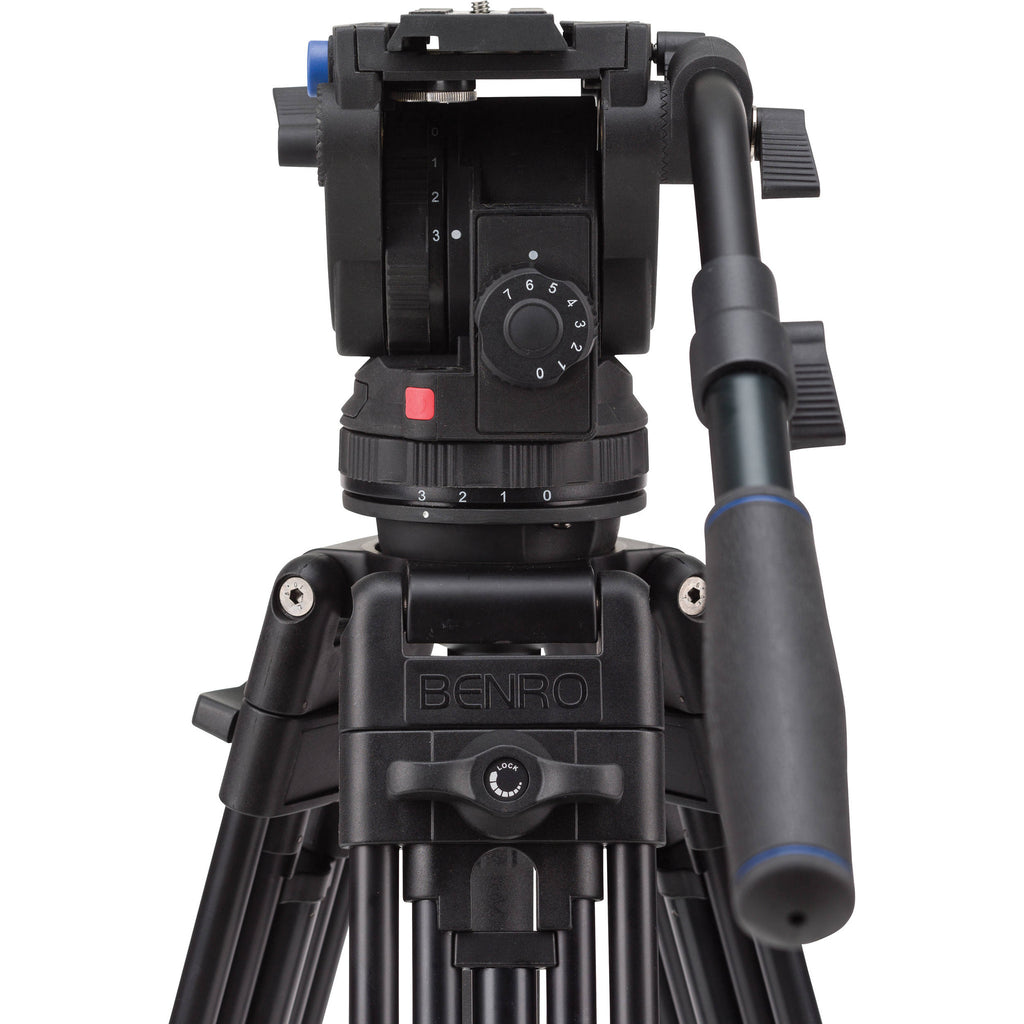

- 8-step (0 to 7) counterbalance
- Independent 4-step (0 to 3) pan and tilt drag
- -60° to +90° tilt range
- Manfrotto 501/504PL compatible sliding plate
- Two 3/8"-16 accessory threads for mounting accessories, such as monitor or recorder
- Bubble level
| Head |
| Load Capacity | 13.2 lb (6 kg) |
| Head Mount | 75 mm bowl |
| Counterbalance | 8-step (0 to 7) |
| Pan Drag | 4-step (0 to 3) fluid cartridge |
| Tilt Drag | 4-step (0 to 3) fluid cartridge |
| Panning Range | 360° |
| Tilt Range | -60° to +90° |
| Quick Release Plate | QR13 (Manfrotto 501/504PL compatible)
1/4"-20 and 3/8"-16 cameras screws |
| Accessory Mounting Threads | 2 x 3/8"-16 |
| Weight | Not specified by manufacturer |
| Packaging Info |
| Package Weight | 6.05 lb |
| Box Dimensions (LxWxH) | 14.488 x 7.953 x 5.906" |
