Description

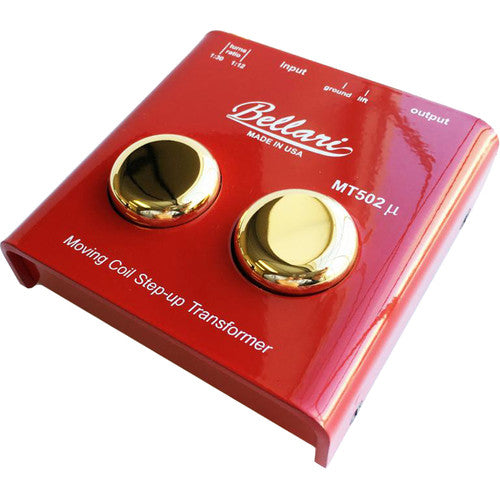

Bellari MT502 MU Overview
Use the MT502 mu Moving Coil Step-Up Matching Transformer from Bellari to raise the low output of your turntable's moving coil cartridge to an impressive moving magnet level. With the selectable turn ratios of 12:1 or 30:1, Mu Metal shielding, and hand-wound transformers, the MT502 mu equips your analog phono stage with an even higher performance than before.
Increased Fidelity and Output
The built-in hand-wound transformers convert low-impedance outputs from a moving coil cartridge to a higher impedance, making this a great match when pairing with preamps built for moving magnet cartridges.
Selectable Turns Ratios
The included turns ratio switch allows for added versatility to any phono stage. A ratio of 12:1 is ideal for cartridges like the Denon DL-103 or DL-103R, while the 30:1 ratio is great at providing extra gain for lower-output cartridges.
Mu Metal Shielding
The Mu Metal encases the transformers to significantly reduce the overall magnetic interference of the unit, making for a better overall performance.
Hand-Wound Precision
All transformers are meticulously hand-wound, ensuring quality and detail are at optimal performance.
RCA Input and Outputs
The use of RCA connectors for both input and output stages makes for an easy and versatile connection to your favorite phono stages.
Lift/Ground Switch
Use the onboard ground switch to reduce any unwanted ground loop noise that may enter the audio signal path.
UPC: 675889050202
- Bellari Moving MT502 mu Coil Step-Up Matching Transformer
- Limited 1-Year Manufacturer Warranty
Bellari MT502 MU Specs
General
| Cable I/O |
RCA
|
| Input Impedance |
30 to 300 Ohms
|
| Output Impedance |
30 Kilohms
|
| THD |
0.02% at 1 kHz
|
Physical
| Color |
Red
|
| Material of Construction |
Gold-Plated Copper Chassis
|
| Dimensions |
4 x 4 x 1.1" / 10.2 x 10.2 x 2.8 cm
|
| Weight |
2 lb / 0.9 kg
|
Packaging Info
| Package Weight |
1.53 lb
|
| Box Dimensions (LxWxH) |
7.75 x 4.6 x 2.95"
|
