Description
- Bulk Video Cable
- 20 AWG
- 1000 ft
- 47 lbs Max Pull Tension

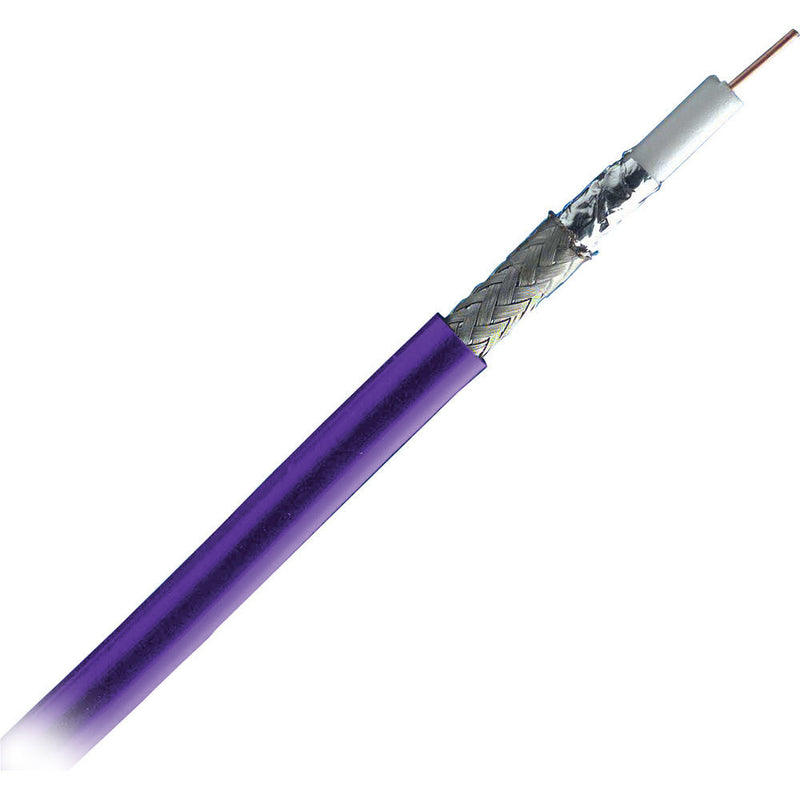

The Belden RG59 Digital Video Coax Cable 1000 ft Violet is a precision broadcast video cable for analog and digital signals.
It's 20 AWG thick and features a solid .032" bare copper conductor and gas-injected foam HDPE insulation. Its shield is made of Dufoil and tinned copper braid and has 95% coverage. Total length is 1000 ft and the weight comes to 31 lbs. Eight different colors are available to choose from and this one that you've clicked into is violet.
UPC: 612825356400
In the Box
Belden RG59 Digital Video Coax Cable 1000 ft Violet
- 10-Year Limited Warranty
| AWG | # coax: 1 AWG: 20 Stranding: solid Conductor: BC - bare copper Diameter: .032" (.08 cm) |
| Insulation | Material: gas-injected FHDPE - foam high density polyethylene Diameter: .145" (.36 cm) |
| Outer Shield | Layer 1: Outer shield trade name: Duofoil Type: tape Material: aluminum foil-polyester tape-aluminum foil Coverage: 100% Layer 2: Type: braid Material: TC - tinned copper Coverage: 95% |
| Outer Jacket | Material: PVC - polyvinyl chloride |
| Max. Recommended Pulling Tension | 47 lbs (21.3 kg) |
| Min. Bend Radius | (Install)/Minor Axis: 2.5" (6.35 cm) |
| Compliance | NEC/(UL) specification: CMR CEC/C(UL) specification: CMG EU CE mark: yes EU directive 2000/53/EC (ELV): yes EU directive 2002/95/EC (RoHS): yes EU RoHS compliance date: 01/01/2005 EU directive 2002/96/EC (WEEE): yes EU directive 2003/11/EC (BFR): yes CA prop 65 (CJ for wire and cable): yes MII order #39 (China RoHS): yes RG type: sub-miniature 59/U |
| Flame Test | UL flame test: UL1666 vertical shaft |
| Suitability | Indoor: yes Outdoor: (yes - black only) Aerial: (yes - black only, when supported by a messenger wire) |
| Plenum/Non-Plenum | Non-plenum |
| Impedance | 75 Ohm (tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination) |
| Inductance | (�H/ft): .107 |
| Capacitance | (pF/ft): 16.3 |
| Velocity of Propagation | 82% |
| Delay | (ns/ft): 1.240 |
| Conductor DC Resistance | DCR @ 68°F (20°C) (Ohm/1000 ft (304.8 m)): 10 |
| Outer Shield | DCR @ 68°F (20�C) (Ohm/1000 ft (304.8 m)): 3.8 |
| Attenuation | Freq. MHz: 1.000 = attenuation dB/100 ft (dB/30.48 m): .300 Freq. MHz: 3.600 = attenuation dB/100 ft (dB/30.48 m): .600 Freq. MHz: 5.000 = attenuation dB/100 ft (dB/30.48 m): .630 Freq. MHz: 6.000 = attenuation dB/100 ft (dB/30.48 m): .690 Freq. MHz: 7.000 = attenuation dB/100 ft (dB/30.48 m): .740 Freq. MHz: 10.000 = attenuation dB/100 ft (dB/30.48 m): .900 Freq. MHz: 12.000 = attenuation dB/100 ft (dB/30.48 m): .910 Freq. MHz: 25.000 = attenuation dB/100 ft (dB/30.48 m): 1.300 Freq. MHz: 67.500 = attenuation dB/100 ft (dB/30.48 m): 2.050 Freq. MHz: 71.500 = attenuation dB/100 ft (dB/30.48 m): 2.100 Freq. MHz: 88.500 = attenuation dB/100 ft (dB/30.48 m): 2.200 Freq. MHz: 100.000 = attenuation dB/100 ft (dB/30.48 m): 2.300 Freq. MHz: 135.000 = attenuation dB/100 ft (dB/30.48 m): 2.700 Freq. MHz: 143.000 = attenuation dB/100 ft (dB/30.48 m): 2.800 Freq. MHz: 180.000 = attenuation dB/100 ft (dB/30.48 m): 3.100 Freq. MHz: 270.000 = attenuation dB/100 ft (dB/30.48 m): 3.800 Freq. MHz: 360.000 = attenuation dB/100 ft (dB/30.48 m): 4.400 Freq. MHz: 540.000 = attenuation dB/100 ft (dB/30.48 m): 5.500 Freq. MHz: 720.000 = attenuation dB/100 ft (dB/30.48 m): 6.400 Freq. MHz: 750.000 = attenuation dB/100 ft (dB/30.48 m): 6.500 Freq. MHz: 1000.000 = attenuation dB/100 ft (dB/30.48 m): 7.600 Freq. MHz: 1500.000 = attenuation dB/100 ft (dB/30.48 m): 9.300 Freq. MHz: 2000.000 = attenuation dB/100 ft (dB/30.48 m): 10.900 Freq. MHz: 2250.000 = attenuation dB/100 ft (dB/30.48 m): 11.600 Freq. MHz: 3000.000 = attenuation dB/100 ft (dB/30.48 m): 13.400 Freq. MHz: 4500.000 = attenuation dB/100 ft (dB/30.48 m): 16.400 |
| Minimum Return Loss | Start freq. (MHz) 5: Stop freq. (MHz) = 1600 Min. RL (dB) = 23 Start freq. (MHz) 1600: Stop freq. (MHz) = 4500 Min. RL (dB) = 21 (Return loss tested in accordance with ASTM D-4566 paragraph 45.3 using a 75 Ohm fixed bridge and termination) |
| Sweep Testing | 100% sweep tested 5 MHz to 4.5 GHz |
| Operating Voltage | Max. - UL: 300 V RMS |
| Operating Temperature | -22 to 167�F (-30 to 75�C) |
| UL Temperature Rating | 167°F (75�C) |
| Overall Diameter | .233" (.59 cm) |
| Length | 1000 ft (304.8 m) |
| Weight | 31 lbs (14 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 34.2 lb |
| Box Dimensions (LxWxH) | 15.354 x 15.276 x 10.551" |
