Description

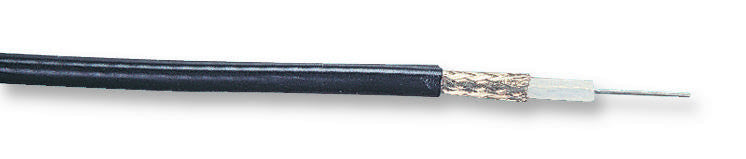

The MRG5800.10100 is a 328ft Transmission Cable with stranded (19 x 0.18) tinned copper inner conductor, PE dielectric, braid outer conductor and black PVC jacket. This transmission cable is used for low and high power radio frequency (RF) connections.
- 100pF/m Conductor to shield nominal capacitance
- 66% Nominal velocity of propagation
- 52R/km Maximum DC loop resistance
- -15 to +70�C Operating temperature range
Applications
RF Communications
Product details
| Reel Length (Metric) | 100m |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| External Diameter | 4.95mm |
| Reel Length (Imperial) | 328ft |
| Impedance | 50ohm |
| Coaxial Cable Type | RG58 |
| Product Range | - |
| Wire Gauge | - |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 19 x 0.18mm |
| Conductor Area CSA | - |
Other details
| Brand | BELDEN |
| Part Number | MRG5800.10100 |
| Quantity | Reel of 1 |
