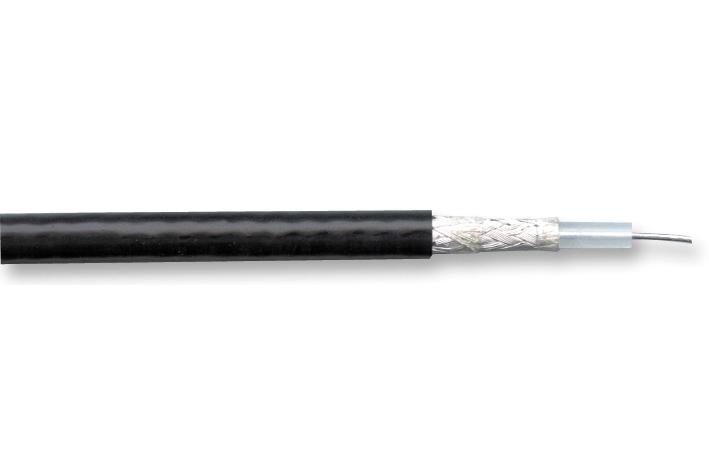

The MRG1791.0050 is a 164ft RG179 Coaxial Cable with silver-plated copper cladded steel inner conductor, solid PE dielectric, tinned copper braid and PVC sheath. This coaxial communication cable based on MIL-C-17. This coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, they are used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna. Coaxial cable (coax) is typically identified or classified according to its impedance or RG-type. Belden® coaxial cable is tested with equipment that simulates every known environmental and electrical performance condition. As a result, this cable can be counted on for positive, reliable and trouble-free operation.
- CPR: Fca
- <=802R/km DC resistance inner conductor
- 67 ±3pF/m Capacitance
- -25 to +70°C Operating temperature range
Applications
Communications & Networking
Product details
| Coaxial Cable Type |
RG179 |
| Wire Gauge |
- |
| Conductor Area CSA |
- |
| Impedance |
75ohm |
| Reel Length (Imperial) |
164ft |
| Reel Length (Metric) |
50m |
| Jacket Colour |
Black |
| Jacket Material |
PVC |
| Conductor Material |
Copper |
| No. of Max Strands x Strand Size |
7 x 0.1mm |
| External Diameter |
2.8mm |
| Product Range |
- |
Other details
| Brand |
BELDEN |
| Part Number |
MRG1791.0050 |
| Quantity |
Reel of 50 |
| Technical Data Sheet EN |
 |
