Description
Belden 1505ABHD3 Overview

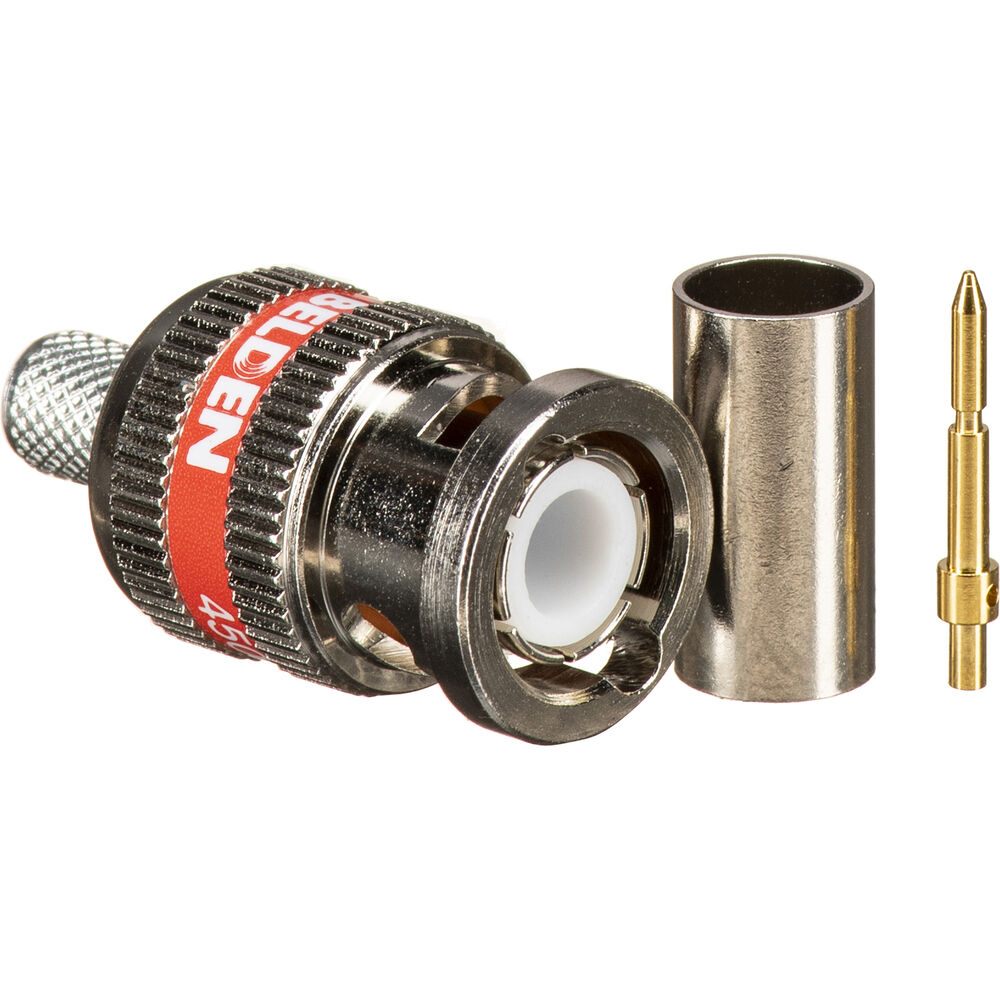

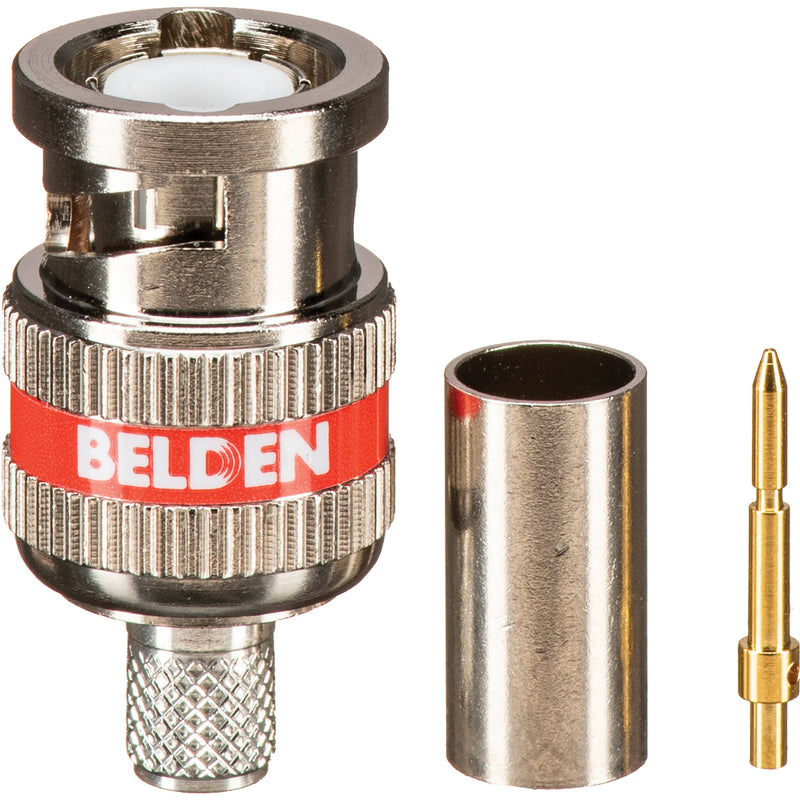

This HD Series 6 GHz BNC 3-Piece Crimp Connector from Belden is designed for use with a Belden RG59 coax cable. It has an impedance rating of 75 Ohms and delivers a minimum return loss of 7 to 15 dB at 6000 to 5 MHz. With its traditional three-piece design, the nickel-plated brass connector offers durability and a solid performance. The connector's design includes an extended head knurl nut for easy gripping when installing. A red ring identifies its compatibility with 1505A RG59 coax cables.
In the Box
- Belden HD Series 6 GHz BNC 3-Piece Crimp Connector for RG59 Coax Cable (Single)
- Limited Lifetime Warranty (when Used with Belden Cable)
- Limited 10-Year Warranty (when Used with Third-Party Cable)
Belden 1505ABHD3 Specs
| Connector Type | BNC Coaxial |
| Gender | Male |
| Compatibility | Belden 1505A RG59 Digital Video Coax Cable |
| Body Type | 3-Piece Crimp Connector, Non Locking |
| Materials | Nut: Brass, Nickel Plated Body: Brass, Nickel Plated Contact: Brass, Gold Plated Insulator: PTFE |
| Termination | Crimp |
| Impedance | 75 Ohms |
| Minimum Return Loss | 5 to 1485 MHz: 15 dB 1485 to 3000 MHz: 10 dB 3000 to 6000 MHz: 7 dB |
| Cable Diameter Limits | Cable Center Conductor Diameter Limits: 0.0295 to 0.0322" / 0.7 to 0.8 mm Cable Dielectric Diameter Limits: 0.1377 to 0.1456" / 3.5 to 3.7 mm Cable Outer Jacket Diameter Limits: 0.2342 to 0.25" / 5.9 to 6.3 mm |
| RG Type | 59/U |
| Certifications | ELV, ROHS II, WEEE, BFR |
| Environmental Rating | Indoor |
Packaging Info
| Package Weight | 0.035 lb |
| Box Dimensions (LxWxH) | 1.55 x 0.7 x 0.55" |
