Description

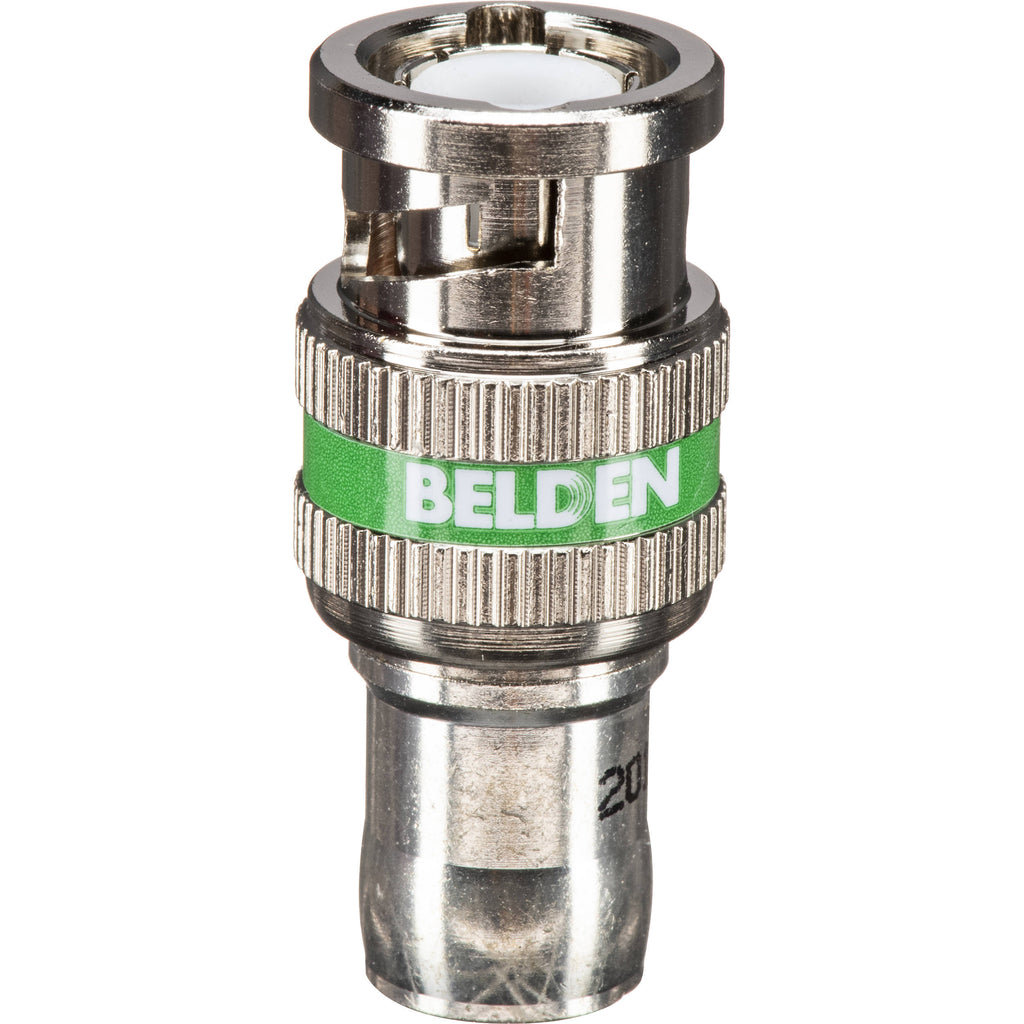

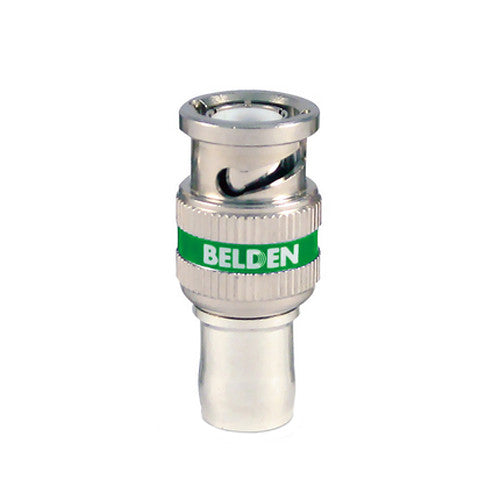

Belden 1694ABHD1-50 Overview
This HD BNC Compression Connector 50-pack from Belden is compatible with Belden 1694A RG6 coax cables. These brass connectors feature a better than -20 dB at 4.5 GHz return loss with their solid insulator materials to deliver professional, high-definition broadcast audio and video. Their one-piece design and 360° compression rings make for fast and easy installation, while their green ring color-coding helps identify compatibility with 1694A RG6 cables.
UPC: 845671002416
In the Box
- Belden HD BNC Compression Connector for 1694A RG6 Coax Cable (50-Pack)
- Limited Lifetime Warranty (When Used with Belden Cable)
- Limited 10-Year Warranty (When Used with Third-Party Cable)
Belden 1694ABHD1-50 Specs
| Connector Type | BNC Coaxial |
| Compatibility | Belden 1694A RG6 Coax Cable |
| Body Type | Straight Plug |
| Contact Material | Brass |
| Contact Plating | Gold |
| Termination | Compression |
| Impedance | 75 Ohms |
| Voltage Rating | 500 VRMS |
| Return Loss | 1 to 4.5 GHz / <-22 to -32 dB |
| Insulation Resistance | >5000 Megohms at 100 VDC |
| Durability | 500 Cycles |
| Cable Retention Force | >100 lb / 45 kg |
| Finish | Body/Bayonet: Brass, Nickel-Plated |
Packaging Info
| Package Weight | 1.715 lb |
| Box Dimensions (LxWxH) | 10.6 x 5.9 x 1.7" |
