Description
Belden 1694ABHD1 Overview

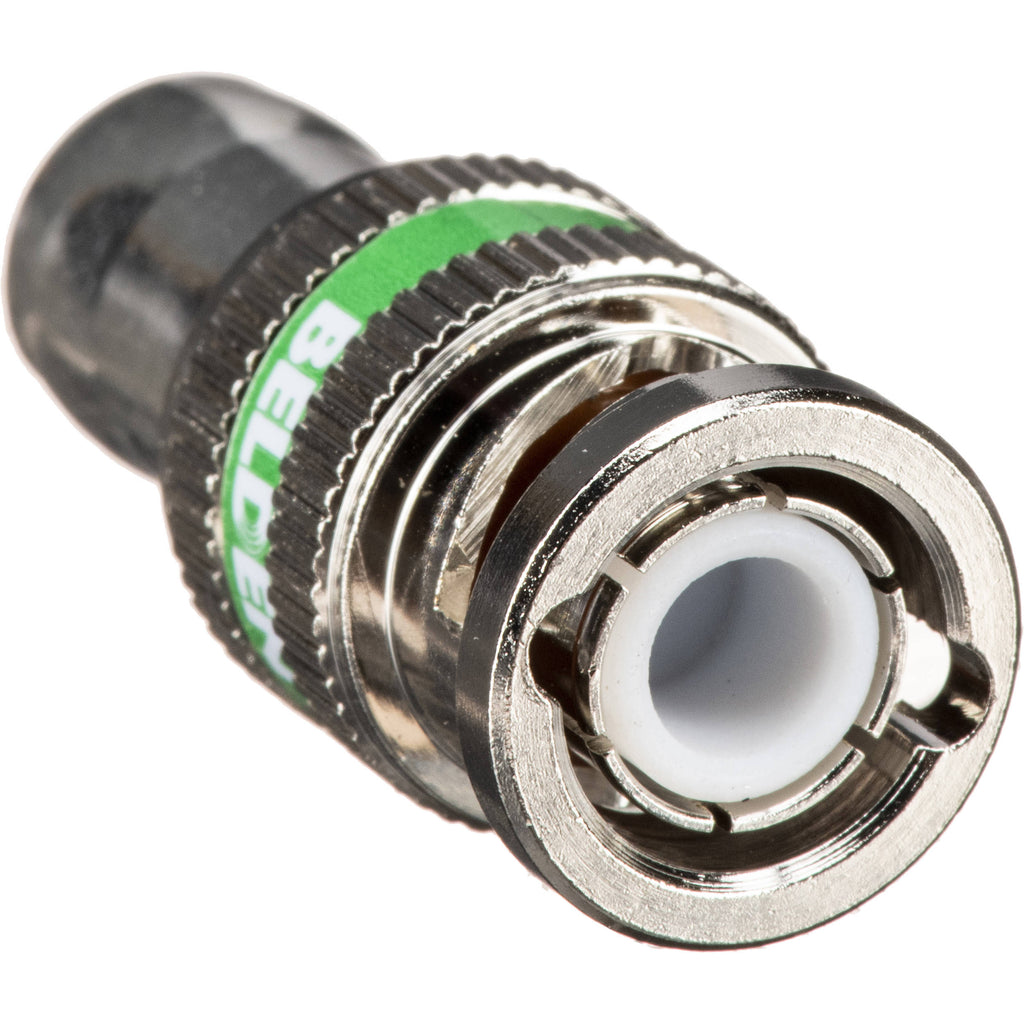

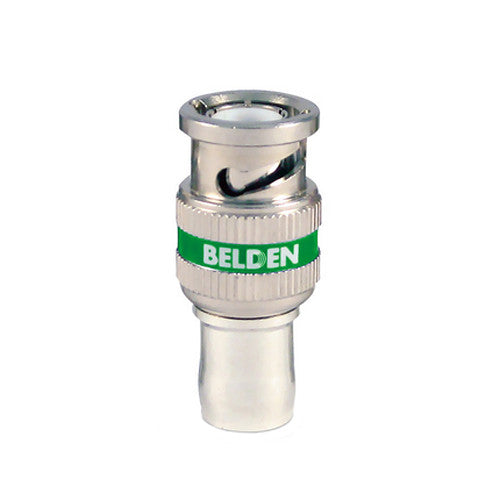

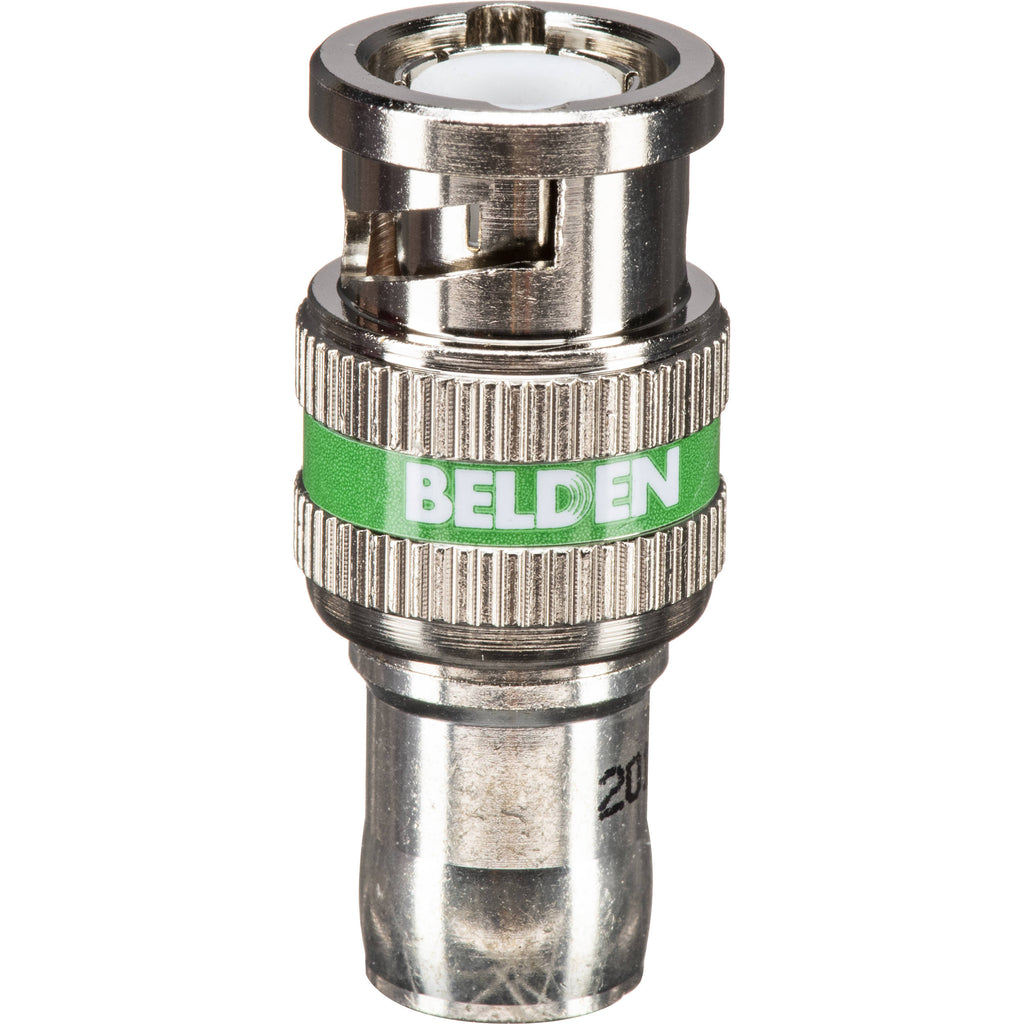

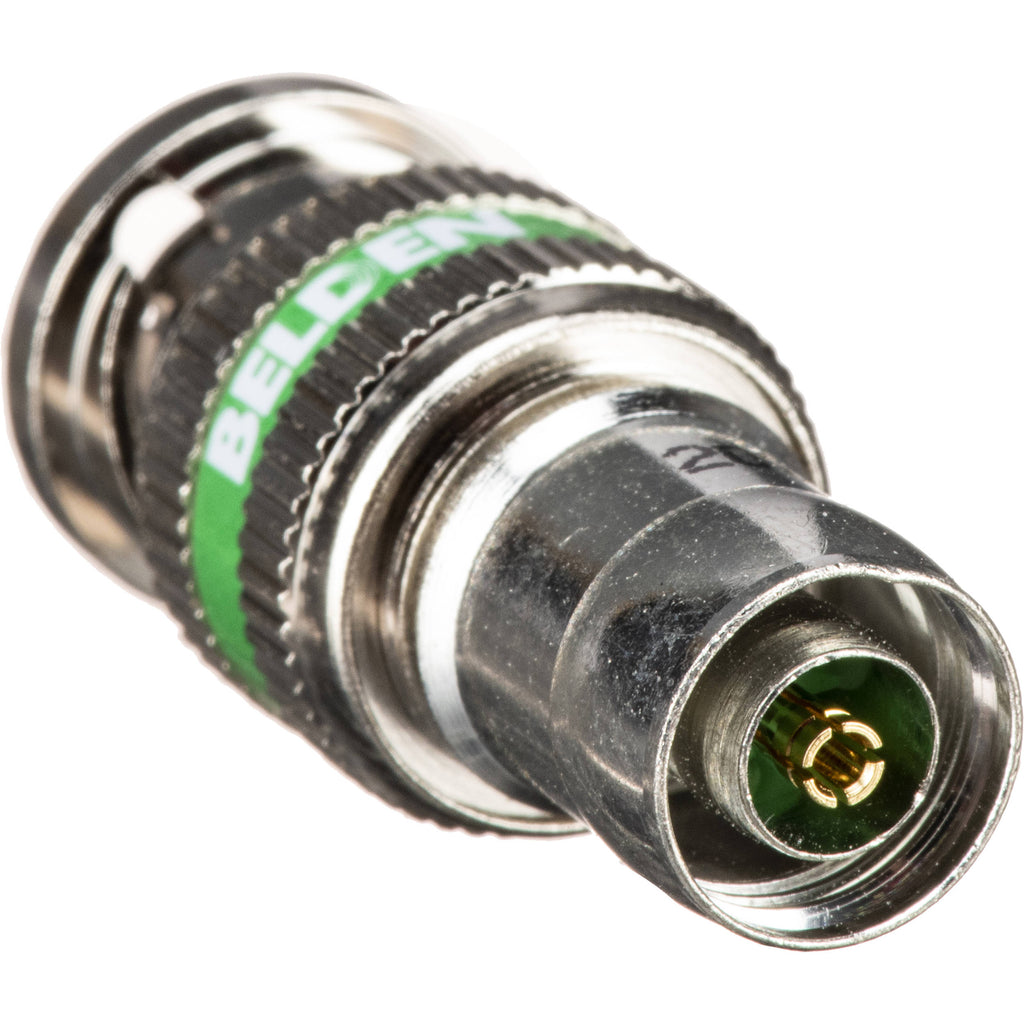

The HD BNC Compression Connector from Belen is designed for use with a Belden 1694A RG6 coax cable. This brass connector delivers better than -20 dB at 4.5 GHz return loss with its solid insulator materials to deliver professional, high-definition broadcast audio and video. Its one-piece design and 360° compression rings make for fast and easy installation. The connector is color-coded with a green ring to identify its compatibility with 1694A RG6 coax cables.
In the Box
- Belden HD BNC Compression Connector for 1694A RG6 Coax Cable (1 Piece)
- Limited Lifetime Warranty (When Used with Belden Cable)
- Limited 10-Year Warranty (When Used with Third-Party Cable)
Belden 1694ABHD1 Specs
| Connector Type | BNC Coaxial |
| Compatibility | Belden 1694A RG6 Coax Cable |
| Body Type | Straight Plug |
| Contact Material | Brass |
| Contact Plating | Gold |
| Termination | Compression |
| Impedance | 75 Ohms |
| Voltage Rating | 500 VRMS |
| Return Loss | 1 to 4.5 GHz / <-22 to -32 dB |
| Insulation Resistance | >5000 MOhms at 100 VDC |
| Durability | 500 Cycles |
| Cable Retention Force | >100 lb / 45 kg |
| Finish | Body/Bayonet: Brass, Nickel-Plated |
Packaging Info
| Package Weight | 0.035 lb |
| Box Dimensions (LxWxH) | 1.25 x 0.6 x 0.5" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
