Description
Belden 179DTBHD3-50 Overview

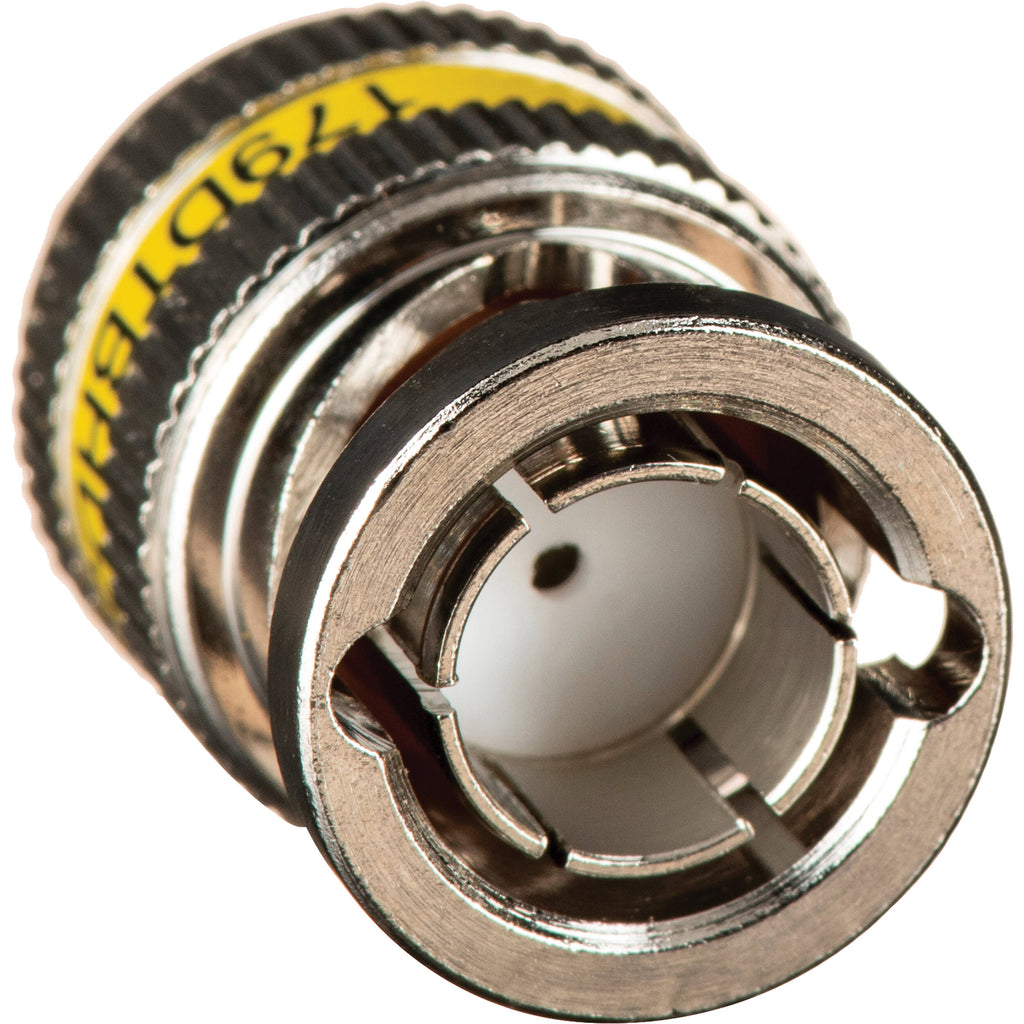

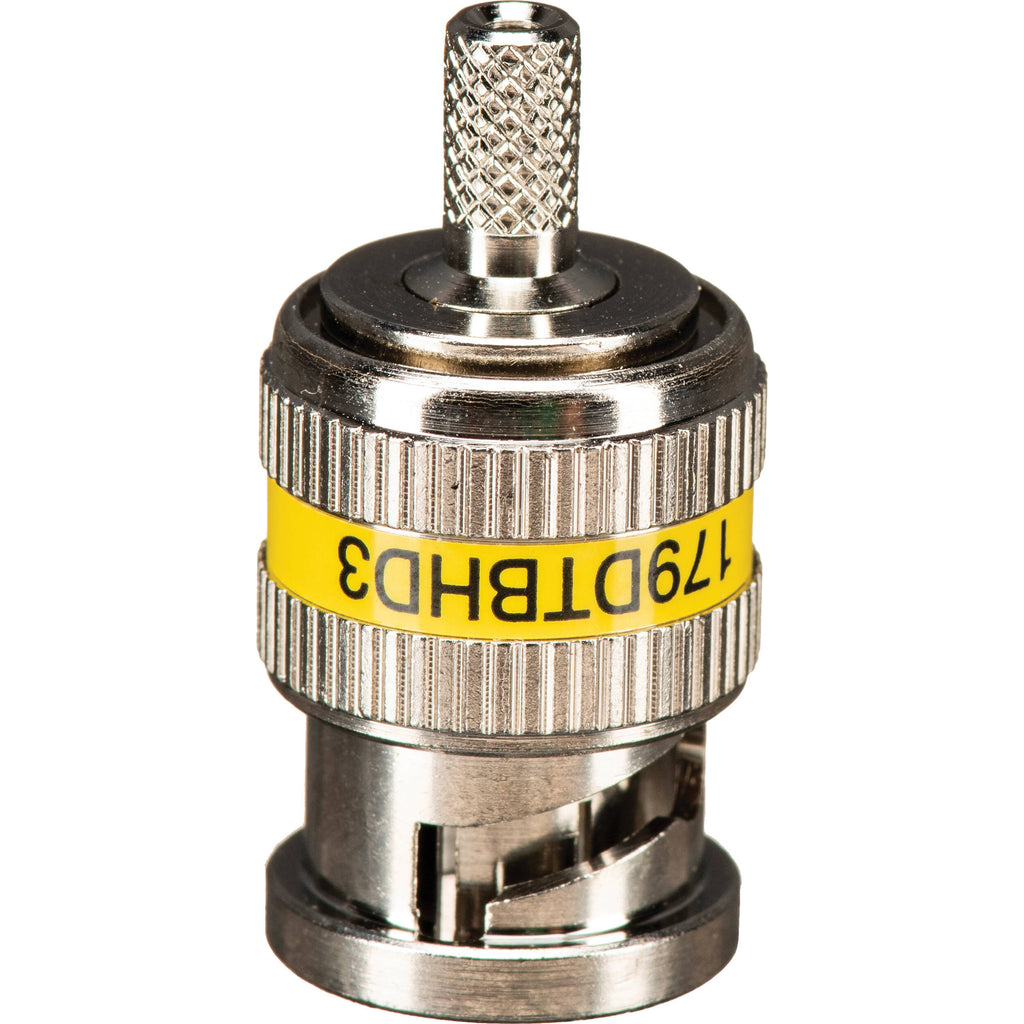

This 50-pack Digital Truck Mini Coax 3-Piece Crimp Connector from Belden is designed for use with Belden or other ultra-mini 179DT coax cables. This 6GHz BNC video connector is suitable for HD-SDI video, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s, and HD-SDI 1080p applications. Its three-piece design offers this nickel-plated brass connector durability and a solid performance. The extended-head knurled nut offers easy gripping when installing and the yellow ring signifies its 28.5 AWG compatibility with Belden 179DT cables.
Yellow Ring
Yellow ring color-coding for Belden Ultra-Mini RG59 coax cables
Tool Compatibility
BB3PHCT (crimp)
UPC: 845671002317
In the Box

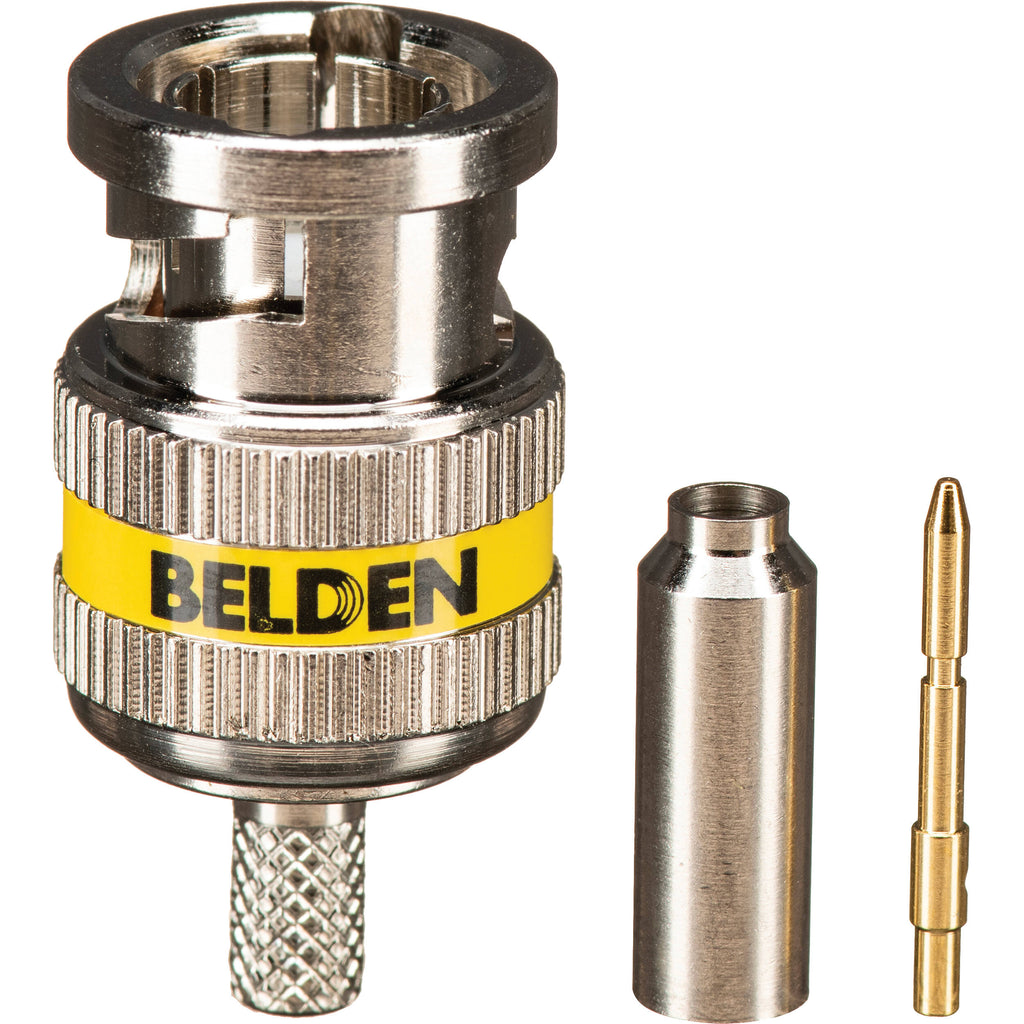

- Belden Digital Truck Mini Coax 3-Piece HD BNC Crimp Connector with Yellow Band (50 Pieces)
- Brass, Nickel-Plated Body
- Brass, Nickel-Plated Nut

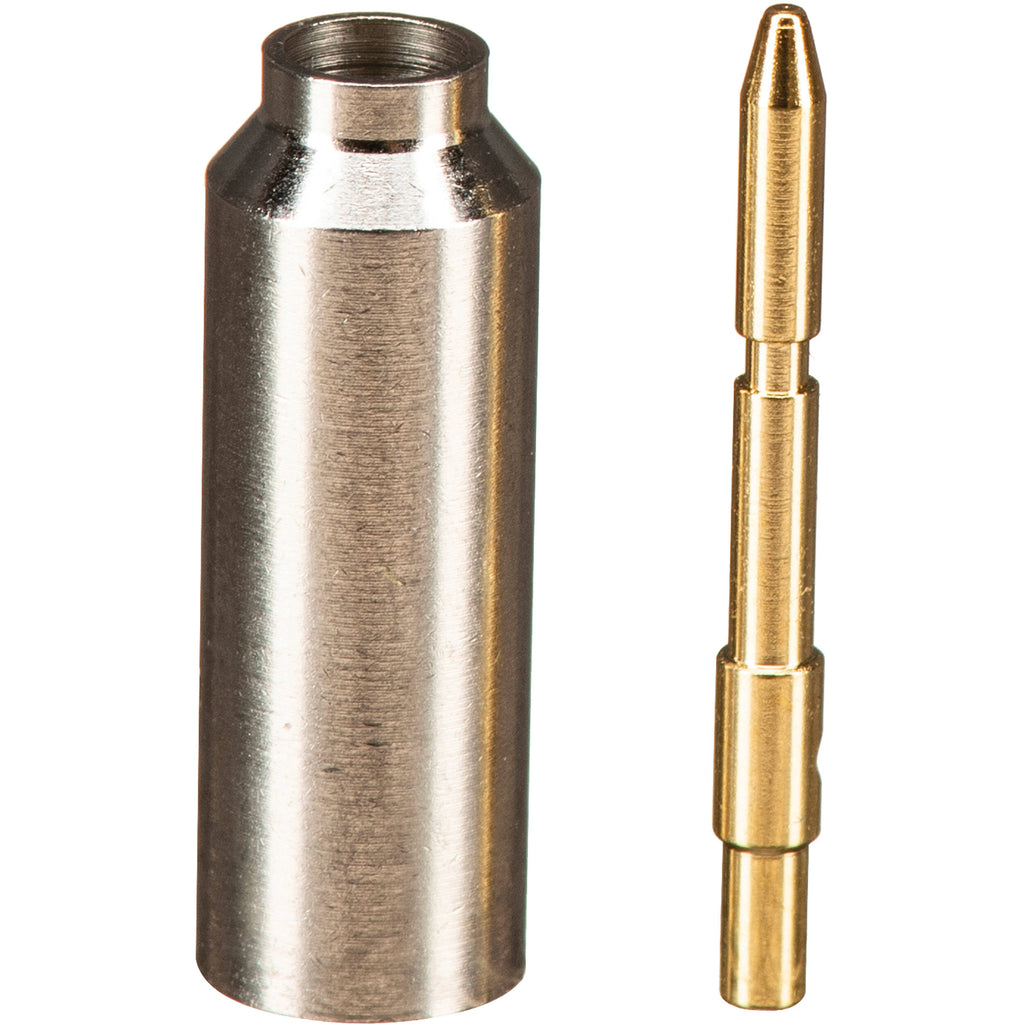

- Brass, Gold-Plated Contact
- Limited Lifetime Warranty
- Limited 10-Year Manufacturer Warranty (When Used with 3rd-Party Cables)
Belden 179DTBHD3-50 Specs
| Connector Type | BNC Coaxial, 3-Piece Crimp |
| Compatibility | Belden Ultra-Mini 179DT Coax Cables |
| American Wire Gauge (AWG) | 28.5 |
| Body Type | Straight Plug |
| Gender | Male |
| Impedance | 75 Ohms |
| Minimum Return Loss | 5 to 1485 MHz: 15 dB 1485 to 3000 MHz: 10 dB 3000 to 6000 MHz: 7 dB |
| Materials | Brass, Nickel Plating |
| Certifications | ELV, ROHS II, WEEE, BFR |
| Environmental Rating | Indoor |
Packaging Info
| Package Weight | 1.69 lb |
| Box Dimensions (LxWxH) | 11 x 5.8 x 1.9" |
