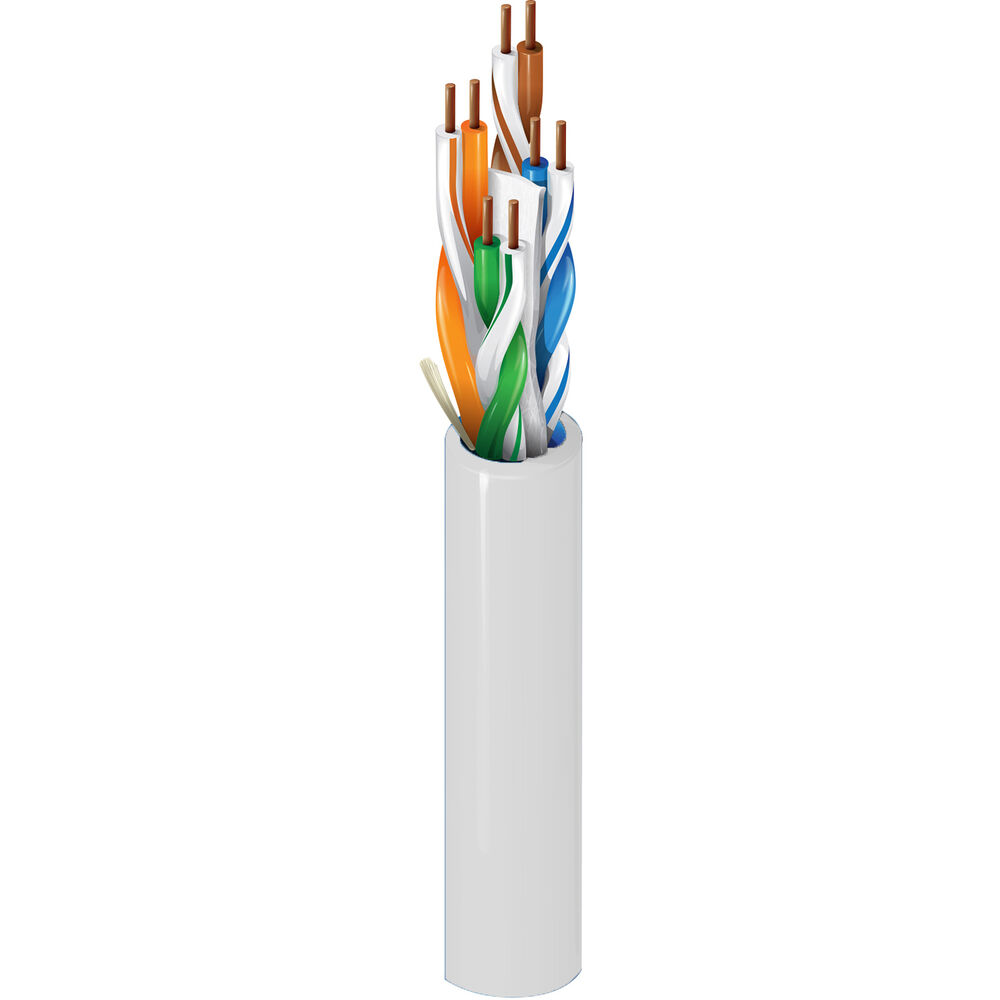

Belden 2412-1000-WH Overview
The white Cat 6 Bulk Ethernet Cable from Belden features a 23 AWG solid bare copper conductor with a polyolefin insulation. This 1000' bulk cable also has a PVC (Polyvinyl Chloride) outer jacket and separated internally by dielectric tape. It has a ripcord, which is situated under the jacket of the cable. The cable is suitable for applications such as premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM.
The Cat 6 Cable is made up of a polyvinyl chloride outer jacket and separated internally by dielectric tape.
It is suitable for premises horizontal cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, and PoE
In the Box
- Belden Cat 6 Bulk Ethernet Cable (1000', White)
Belden 2412-1000-WH Specs
General
Cable Length |
1000' / 304.8 m |
Ethernet Standards |
Cat 6 |
Compatibility |
10/100/1000 Base-T |
Physical
Shielding |
None |
Cable Configuration |
Solid |
Boot Type |
None |
Outer Diameter |
0.22" / 5.59 mm |
Wire Gauge |
23 AWG |
Jacket Type |
Polyvinyl Chloride (PVC) |
Conductor |
Bare Copper |
Contact Plating |
None |
Environmental Protection |
None |
Packaging Info
Package Weight |
24.3 lb |
Box Dimensions (LxWxH) |
13.9 x 13.6 x 11.9" |
