Description

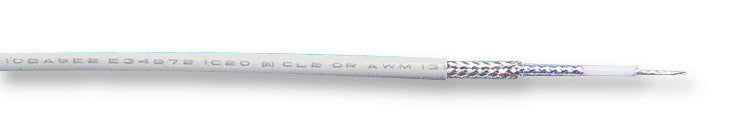

The 9907 is a thinnet 10Base2 Ethernet Coaxial Cable with 20AWG stranded (19 x 32) 0.037-inch tinned copper conductor, foam polyethylene insulation, Duobond� II bonded aluminium foil-polyester tape (100% coverage) plus an overall tinned copper braid shield (93% coverage) and grey PVC jacket. This coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, they are used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna. Coaxial cable (coax) is typically identified or classified according to its impedance or RG-type. Belden� coaxial cable is tested with equipment that simulates every known environmental and electrical performance condition. As a result, this cable can be counted on for positive, reliable and trouble-free operation.
- 50R Nominal characteristic impedance
- 25.4pF/ft Conductor to shield nominal capacitance
- 80% Nominal velocity of propagation
- 8.8R/1000ft at 20�C Nominal conductor DC resistance
- 5.8R/1000ft at 20�C Nominal outer shield DC resistance
- UL1685 Flame tested
Applications
Industrial
Product details
| Reel Length (Metric) | - |
| Conductor Material | Copper |
| Jacket Material | PVC |
| External Diameter | 4.7mm |
| Reel Length (Imperial) | - |
| Impedance | 50ohm |
| Coaxial Cable Type | RG58A |
| Product Range | - |
| Wire Gauge | 20AWG |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 19 x 32AWG |
| Conductor Area CSA | - |
Other details
| Brand | BELDEN |
| Part Number | 9907 |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
