Description

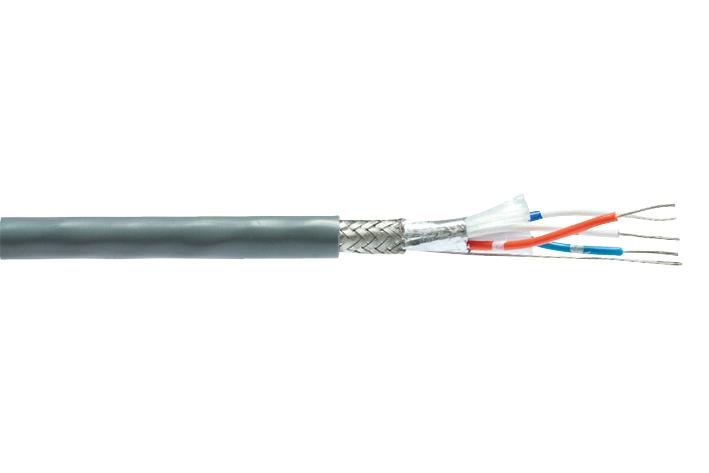

The 9842NH is a 2-pair chrome low capacitance Computer Cable with polyethylene (PE) insulation, tinned copper conductor, 24AWG stranded tinned copper drain wire and low smoke zero halogen (LSZH) jacket. The computer cable features Beldfoil® aluminium foil-polyester tape (100% coverage) and tinned copper braid shield (90% coverage). Suitable for EIA RS-485 applications.
- CPR: Not Yet Qualified
- 120R Impedance
- 13.75pF/ft Conductor to conductor nominal capacitance
- 66% Nominal velocity of propagation
- 1.54ns/ft Nominal delay
- 0.6dB/100ft (at 1MHz) Attenuation
- -20 to +80°C Operating temperature range
Applications
Sensing & Instrumentation, Computers & Computer Peripherals, Power Management, Audio, Automotive, Medical, Industrial
Product details
| Cable Shielding: Screened |
| No. of Pairs: 2 Pair |
| Wire Gauge: 24AWG |
| Conductor Area CSA: - |
| Reel Length (Imperial): - |
| Reel Length (Metric): - |
| Jacket Colour: Chrome |
| No. of Max Strands x Strand Size: 7 x 32AWG |
| Voltage Rating: 300V |
| Jacket Material: LSZH |
| Conductor Material: Tinned Copper |
| External Diameter: 8.65mm |
| Product Range: - |
Other details
| Brand | BELDEN |
| Part Number | 9842NH |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2131.2 |
| 3-5 | ₹ 2109.45 |
| 5-10 | ₹ 2065.96 |
| 10+ | ₹ 2022.46 |
Bulk discount will be automatically applied during checkout based on quantity.
