| ₹ 1573.2 includes GST and import duties. | |
| B2B customers can avail ₹ 239.91 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

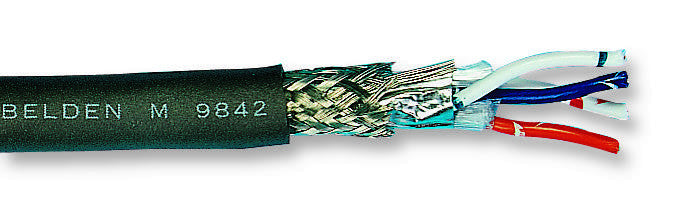

The 9842 from Belden is a multi conductor low capacitance computer cable for EIA RS485 applications. This cable is approved by UL standard.
- Two twisted pairs, 24AWG stranded (7x32) tinned copper conductors
- Polyethylene insulation
- Overall Beldfoil (100% coverage) and tinned copper braid shield (90% coverage)
- Polyvinyl chloride (PVC) outer jacket
- Operating temperature range from -30�C to 80�C
- Overall nominal diameter is 8.636mm
- Nominal characteristic impedance of 120 ohm
- Nominal conductor DC resistance (DCR) of 78.744ohm/Km at 20�C
- Maximum operating voltage of 300Vrms (according to UL)
- Maximum recommended current of 2.1A per conductor at 25�C
Applications
Industrial, Communications & Networking
Product details
| Reel Length (Metric) | - |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| External Diameter | 8.64mm |
| No. of Pairs | 2 Pair |
| Voltage Rating | 300V |
| Reel Length (Imperial) | - |
| Product Range | - |
| Wire Gauge | 24AWG |
| Jacket Colour | Chrome |
| No. of Max Strands x Strand Size | 7 x 32AWG |
| Conductor Area CSA | 0.2mm� |
Other details
| Brand | BELDEN |
| Part Number | 9842 |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1541.74 |
| 3-5 | ₹ 1526.0 |
| 5-10 | ₹ 1494.54 |
| 10+ | ₹ 1463.08 |
Bulk discount will be automatically applied during checkout based on quantity.
