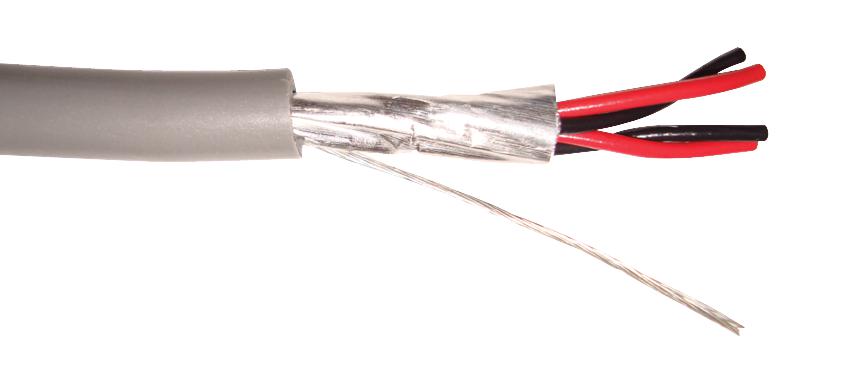

The 9552 0601000 305m (1000 ft) 300V Power Limited Tray Multipaired Shielded Cable features two 18 AWG pairs stranded (19x30) tinned copper conductors, PVC insulation, overall Beldfoil® aluminium foil-polyester tape screen (100% coverage), and a chrome PVC jacket.
- 300V UL PLTC, 150V ITC
- Suitable for indoor, outdoor, burial use
- Sunlight and oil resistant
- Flammability rated: UL 1685, CSA FT4, IEEE 1202
- Min Bend Radius/Minor Axis: 93.98mm
- UL AWM Style: 2464 (300V 80°C)
- Operating temperature range: -30°C to +105°C
Product details
| Cable Shielding |
Screened |
| No. of Pairs |
2 Pair |
| Wire Gauge |
18AWG |
| Conductor Area CSA |
- |
| Reel Length (Imperial) |
1000ft |
| Reel Length (Metric) |
304.8m |
| Jacket Colour |
Chrome |
| No. of Max Strands x Strand Size |
19 x 30AWG |
| Voltage Rating |
300Vrms |
| Jacket Material |
PVC |
| Conductor Material |
Tinned Copper |
| External Diameter |
9.347mm |
| Product Range |
- |
Other details
| Brand |
BELDEN |
| Part Number |
9552 0601000 |
| Quantity |
Reel of 305 |
| Technical Data Sheet EN |
 |
