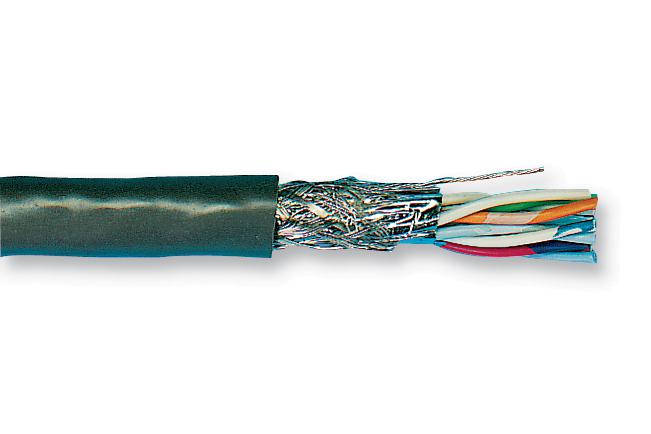

The 8102 060500 is a 500ft 2-pair 4-conductor low capacitance shielded Computer Cable with tinned copper conductors with foam high density polyethylene insulation. It has an outer shield of 100% aluminium foil-polyester tape with shorting fold coverage and 65% TC braid coverage.
- CPR: Eca
- 27.5lb Maximum recommended pulling tension
- 100R Impedance
- 1.8A at 25°C Current per conductor
- -30 to 80°C Operating temperature range
Applications
Computers & Computer Peripherals, Communications & Networking
Product details
| Cable Shielding |
Screened |
| No. of Pairs |
2 Pair |
| Wire Gauge |
24AWG |
| Conductor Area CSA |
0.2mm² |
| Reel Length (Imperial) |
498.69ft |
| Reel Length (Metric) |
152.4m |
| Jacket Colour |
Chrome |
| No. of Max Strands x Strand Size |
7 x 0.2mm |
| Voltage Rating |
300V |
| Jacket Material |
PVC |
| Conductor Material |
Tinned Copper |
| External Diameter |
6.9mm |
| Product Range |
- |
Other details
| Brand |
BELDEN |
| Part Number |
8102.01152 |
| Quantity |
Reel of 152 |
| Technical Data Sheet EN |
 |
