Description
Belden 1505ABHD1 Overview

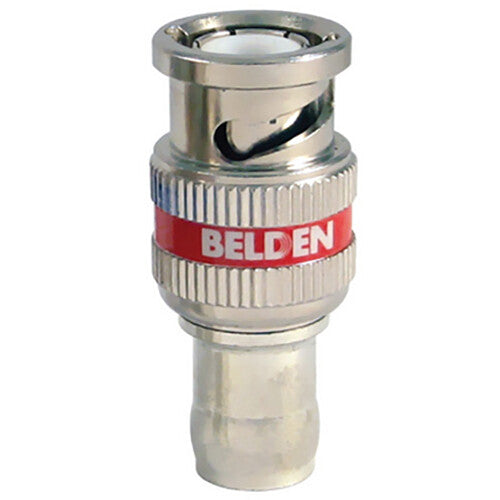

This 50-pack of Belden 6 GHz RG59 HD BNC Compression Connectors features one-piece construction and uses compression attachment/termination for attaching it to a cable. This is the BNC connector only, and you must source a compatible cable as well as tools separately. The connector is designed for indoor use only and the housing is made from brass with nickel plating, while the electrical conductor is brass with gold plating. This provides a durable connector with an oxidation-resistant electrical interface. The connector has a rated impedance of 75 ohms and is RG59/U compliant, it is suitable for 6 Gb/s UHD, 3 Gb/s 1080P HD-SDI, digital and analog video signals.
The single-piece construction provides for faster and more consistent assembly in the field than standard 3-piece connectors
The connectors 360° compression rings withstand more than 100 pounds of pull force
Designed to fit with Belden Brilliance cable
The extended knurled nut provides for ease of identification and installation
UPC: 845671002362
In the Box
- Belden 6 GHz RG59 HD BNC Compression Connector (50-Pack)
- Limited Lifetime Warranty (When Used with Belden Cable)
- Limited 10-Year Warranty (When Used with Third-Party Cable)
Belden 1505ABHD1 Specs
| Material of Construction | Body: Nickel Plated Brass Nut: Nickel Plated Brass Contact: Gold Plated Brass Insulator: PTFE |
| Impedance | 75 Ohms |
| Return Loss | Frequency 5 to 1485 MHz: 15 dB (Minimum) 1485 to 3000 MHz: 10 dB (Minimum) 3000 to 6000: 7 dB (Minimum) |
| Mechanical Characteristics | Footprint: Coax Connector Type: BNC Gender: Male Connector Series Name: HD Locking: No Tool Compatibility: CPLCRBC-BR (Compression), SPA59/6 (Strip) Termination Type: Compression |
| Standards | RG-59/U |
| Environmental | Use Space: Indoor EU Directive 2000/53/EC (ELV) EU Directive 2011/65/EU (ROHS II) EU Directive 2012/19/EU (WEEE) EU Directive 2015/863/EU EU Directive Compliance: 2003/11/EC (BFR) |
| Application / Usage |
Packaging Info
| Package Weight | 1.755 lb |
| Box Dimensions (LxWxH) | 10.5 x 6.2 x 1.7" |
