Description

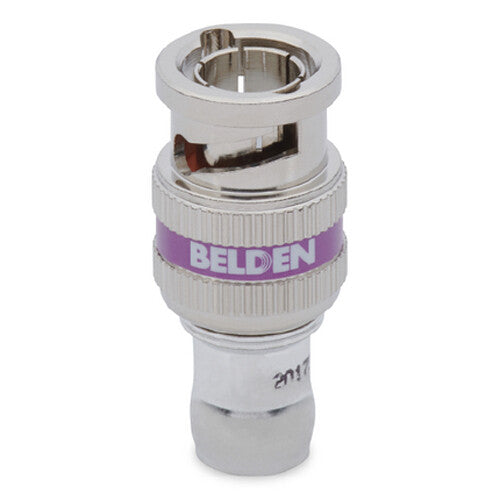

Belden 1855ABHD1 Overview
The Belden 6 GHz Mini RG59 BNC Compression Connector uses compression termination for attaching it to a compatible cable for indoor use. The housing is made from brass with nickel plating, while the electrical conductor is brass with gold plating. This design combined with 360° compression rings that deliver a pull strength exceeding 100 lb, results in a durable male connector that can be used over 500 cycles.
Additionally, a violet color-coding ring helps identify compatibility with select cables. The connector is mini RG59 compliant and suitable for applications with HD-SDI, SMPTE 2081-1 6 Gb/s UHD, SMPTE 424M 3 Gb/s 1080p, and digital and analog video signals. Compatible compression and strip tools include the Belden CPLCRBC-BR and PS59/6/RGB.
In the Box
- Belden 6 GHz Mini RG59 BNC Compression Connector
- Limited Lifetime Warranty (When Used with Belden Cables)
- Limited 10-Year Warranty (When Used with Third-Party Cables)
Belden 1855ABHD1 Specs
| Material of Construction | Body: Nickel-Plated Brass Nut: Nickel-Plated Brass Contact: Gold-Plated Brass Insulator: PTFE |
| Impedance | 75 Ohms |
| Minimum Return Loss | 5 to 1485 MHz: 15 dB 1485 to 3000 MHz: 10 dB 3000 to 6000 MHz: 7 dB |
| Color Band | Violet |
| Standards | Mini RG59 |
| Environmental Space | Indoor |
| EU Directive | 2000/53/EC (ELV): Yes 2011/65/EU (ROHS II): Yes 2012/19/EU (WEEE): Yes 2015/863/EU: Yes Compliance: 2003/11/EC (BFR) |
| Package Weight | 0.035 lb |
| Box Dimensions (LxWxH) | 4.65 x 2.05 x 0.55" |
