Description
Belden 1855ABHD3 Overview

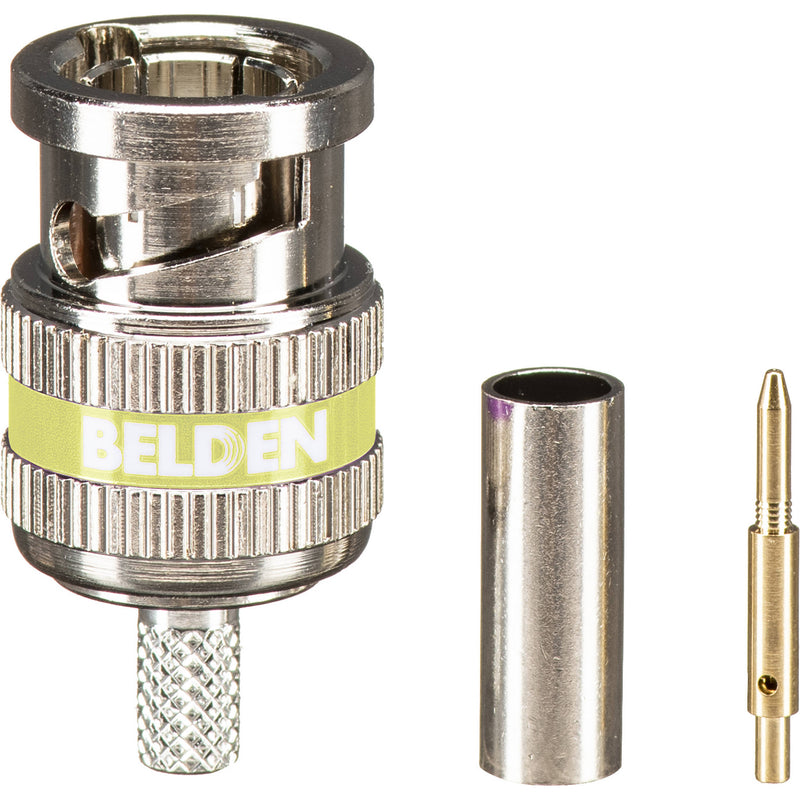

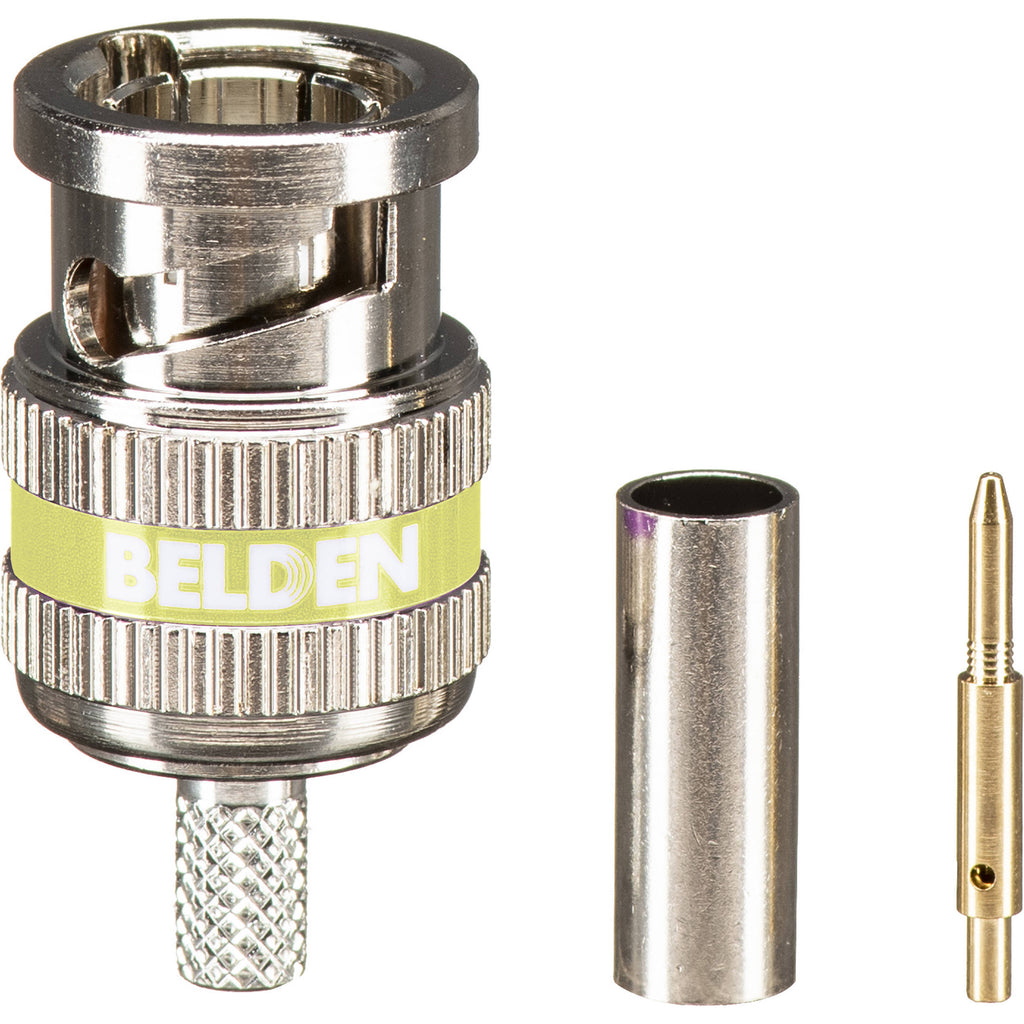

This single 6 Hz BNC 3-Piece Crimp Connector from Belden is designed for use with the Belden Mini RG59 coax cable. It has an impedance rating of 75 ohms and delivers a minimum return loss of 7 to 15 dB at 5 to 6000 MHz. This BNC connector is suitable for HD-SDI video signal, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s, and HD-SDI 1080p applications. With its traditional three-piece design, the nickel plated brass connector offers durability and a solid performance. The connector's design includes an extended head knurl nut for easy gripping when installing. The connector is color-coded with a violet ring to identify its compatibility with Mini RG59 coax cables.
In the Box
- Belden 6 GHz BNC 3-Piece Crimp Connector for Mini RG59 Coax Cable (Single)
- Brass, Nickel-Plated Body
- Brass, Nickel-Plated Nut
- Brass, Gold-Plated Contact
- Limited Lifetime Warranty (when Used with Belden Cable)
- Limited 10-Year Warranty (when Used with Third-Party Cable)
Belden 1855ABHD3 Specs
| Connector Type | BNC Coaxial, 3-Piece Crimp |
| Compatibility | Belden Mini RG59 Coax Cable |
| Body Type | Straight Plug |
| Gender | Male |
| Termination | Crimp |
| Impedance | 75 Ohms |
| Minimum Return Loss | 5 to 1485 MHz: 15 dB 1485 to 3000 MHz: 10 dB 3000 to 6000 MHz: 7 dB |
| Cable Diameter Limits | Cable Center Conductor Diameter Limits: 0.0208 - 0.0244" / 0.5 to 0.6 mm Cable Dielectric Diameter Limits: 0.0964 - 0.1070" / 2.5 to 2.7 mm Cable Outer Jacket Diameter Limits: 0.1574 - 0.1692" / 4 to 4.3 mm |
| RG Type | Mini 59/U |
| Materials | Brass, Nickel Plated |
| Certifications | ELV, ROHS II, WEEE, BFR |
| Environmental Rating | Indoor |
Packaging Info
| Package Weight | 0.035 lb |
| Box Dimensions (LxWxH) | 1.05 x 0.55 x 0.55" |
