Description
- Bare ETP Copper Conductors
- Twisted Pair, Unshielded
- Rugged PVC Jacket
- Outer Jacket Ripcord
- Max Operating Voltage 300V
- Temperature Rating 167°F
- Comes On a Reel
The 5100UP 010500 (500') from Belden is a 14-gauge, high-strand bulk speaker cable used for connecting speakers and amplifiers in security, commercial or residential AV systems.

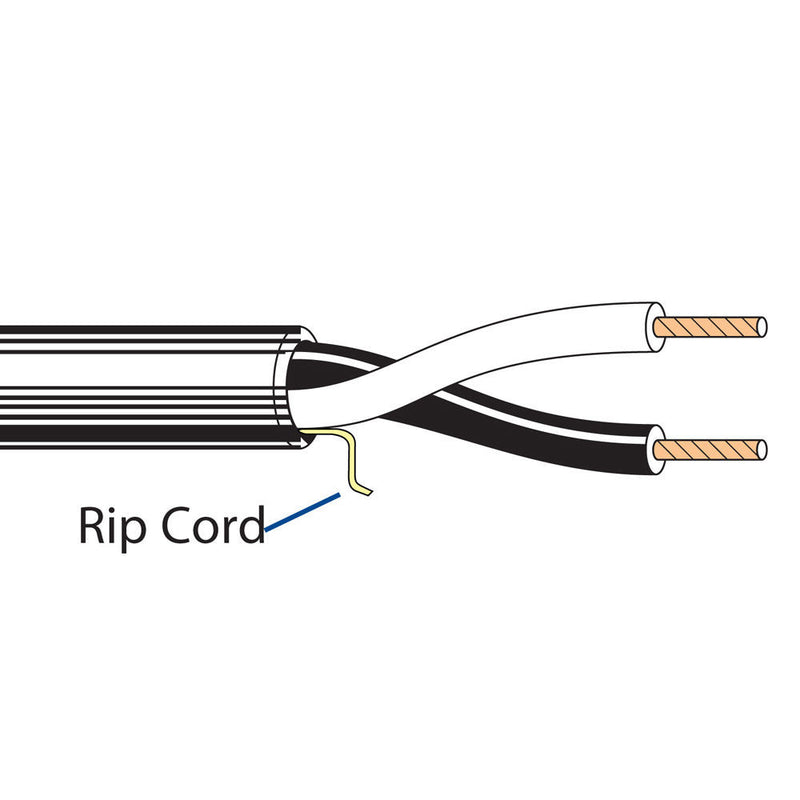

It features a twisted pair of unshielded, high-conductivity bare-copper conductors, protected from the rigors of installation by a flexible and rugged black PVC jacket with ripcord.
This UL-certified cable offers a temperature rating of 167°F, and a maximum operating voltage of 300V. It comes on a reel for easy deployment.
- 14-gauge high-strand twisted-pair cable design
- Rugged PVC jacket
- UL certified: CL3 (temperature rating of 167°F)
- Comes on a reel for easy deployment
- Applications include intercom system, PA/audio system, fire alarm
| Construction | Conductors: 2 AWG: 14 Stranding: 42 x 30 Conductor Material: Bare high-conductivity ETP copper Insulation Material: Polyvinyl chloride (PVC) Insulation Nominal Wall Thickness: 0.02" (0.50 mm) Lay Length: 3.5" (88.9 mm) Twists: 3.4 twist/ft Outer Shield: Unshielded Outer Jacket Material: Polyvinyl chloride (PVC) Outer Jacket Nominal Diameter: 0.266" (6.75 mm) Outer Jacket Nominal Wall Thickness: 0.018" (1.21 mm) Outer Jacket Ripcord: Yes |
| Electrical | Nominal Conductor DCR: 2.42 Ohms/1000' Nominal Capacitance Conductor to Conductor: 29 pF/ft Maximum Recommended Current: 22 A per conductor, at 77° F (25° C) Nominal Inductance: 0.17 ?H/ft UL Voltage Rating: 300 V RMS |
| Overall | Maximum Recommended Pulling Tension: 109.2 lb (49.53 kg) UL Flammability: UL1685 UL Loading Operating Temperature Range: -4 to 167°F (-20 to +75° C) UL Temperature Rating: 167° F (75° C) Minimum Bend Radius/Minor Axis: 2.625" (66.67 mm) Plenum (Y/N): No Put-Up Type: Reel Length: 500' (152.4 m) |
| Standards & Certifications | CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes NEC/(UL) Specification: CL3 EU Directive Compliance: EU Directive 2003/11/EC (BFR) EU CE Mark: Yes |
| Packaging Info | |
|---|---|
| Package Weight | 22.0 lb |
| Box Dimensions (LxWxH) | 13.5 x 10.0 x 7.2" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 60549.3 |
| 3-5 | ₹ 59931.45 |
| 5-10 | ₹ 58695.75 |
| 10+ | ₹ 57460.05 |
Bulk discount will be automatically applied during checkout based on quantity.
