Description

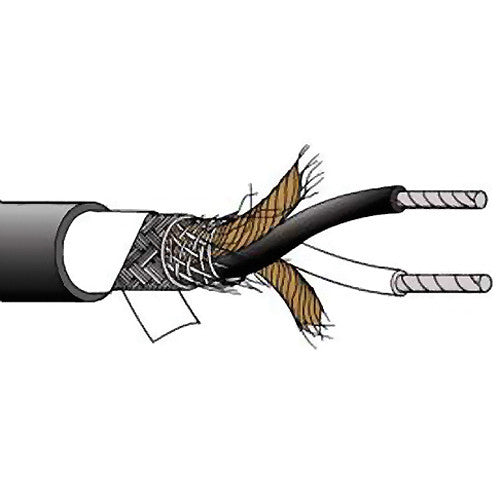

The Belden 2-Conductor, Low-Impedance Cable (1000') features 20 AWG stranded (26 x 34) high-conductivity TC conductors, an EPDM rubber insulation, a rayon braid, a TC braid shield (85% coverage), a cotton wrap, and an EPDM jacket.
In the Box
Belden 2-Conductor, 20 AWG Low-Impedance Cable (1000')
- Limited 10-Year Warranty
| Conductor | Number of Conductors: 2 AWG: 20 Stranding: 26 x 34 Conductor Material: High Conductivity TC (Tinned Copper) Diameter: 0.04" (0.94 mm) |
| Insulation Material | Insulation Material: EPDM (Ethylene Propylene Diene Monomer Rubber) Wall Thickness: 0.02" (0.58 mm) Diameter: 0.08" (2.1 mm) |
| Outer Shield Material | Layer: 1 Type: Braid Outer Shield Material: Cotton Layer: 2 Type: Braid Outer Shield Material: TC (Tinned Copper) Coverage (%): 85 Outer Shield Separator Material: Cotton wrap |
| Outer Jacket Material | Outer Jacket Material: EPDM (Ethylene Propylene Diene Monomer Rubber) Nominal Wall Thickness: 0.04" (0.9 mm) |
| Cable | Cabling Color Code: 1: White 2: Black Cabling Separator Material: Rayon braid Nominal Diameter: 0.26" (6.65 mm) |
| Impedance | 67 ? |
| Inductance | 0.59 �H/m |
| Capacitance | Nominal Capacitance Conductor to Conductor: 108.27 pF/m Nominal Capacitance Conductor to Other Conductor & Shield: 190.29 pF/m |
| Conductor DC Resistance | 34.78 ?/km at 68�F (20�C) |
| Outer Shield DC Resistance | 14.77 ?/km at 68�F (20�C) |
| Maximum Voltage | 600 Vrms (Non-UL) |
| Current | 4 A per conductor at 77�F (25�C) |
| Compliance | EU Directive 2011/65/EU (ROHS II) EU CE Mark EU Directive 2000/53/EC (ELV) EU Directive 2002/95/EC (RoHS) EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE) EU Directive 2003/11/EC (BFR) CA Prop 65 (CJ for Wire and Cable) MII Order #39 (China RoHS) |
| Temperature | Operating Temperature Range: -58 to 194�F (-50 to +90�C) Non-UL Temperature Rating: 194�F (90�C) |
| Tension Control | Recommended Pulling Tension: 444.82 N |
| Bend Radius | 2.75" (69.85 mm) |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 48.15 lb |
| Box Dimensions (LxWxH) | 15.3 x 15.2 x 10.4" |
