Description
- 23 AWG Bonded-Pairs
- Solid Bare Copper Conductors
- Non-Plenum
- Polyolefin Insulation
- PVC Jacket
- Unshielded Outer Shield
- Polyvinyl Chloride Outer Jacket

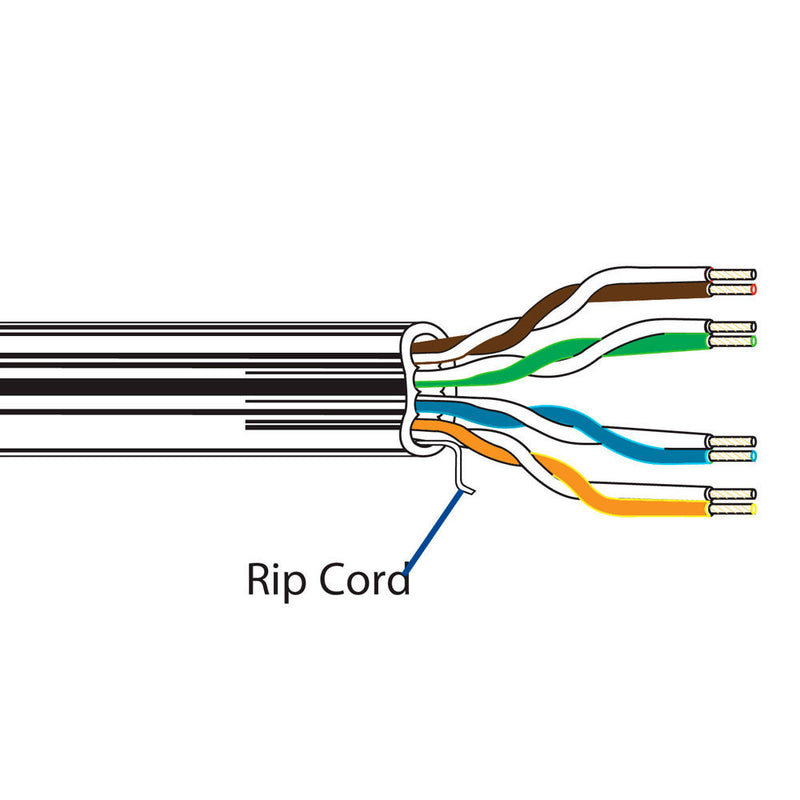

The 1000' black 1872A Multi-Conductor - Enhanced Category 6 Bonded - Pair Cable from Belden features 23 AWG bonded-pairs, solid bare copper conductors, non-plenum, polyolefin insulation, ripcord, and a PVC jacket. The cable is suitable for applications like premises horizontal cabling, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite videos, AES/EBU, digital videos, RS-422, and noisy environments.
- The cable is compatible with applications like premises horizontal cabling, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite videos, AES/EBU, digital videos, RS-422, and noisy environments.
- The cable is made of bare copper conductors and has a Polyolefin insulation material.
In the Box
Belden 1872A Multi-Conductor - Enhanced Category 6 Bonded - Pair Cable 1000' (Black)
- Limited Lifetime Warranty
| Pairs | 4 |
| AWG | 23 |
| Stranding | Solid |
| Conductor Material | Bare copper |
| Compatibility | Premises horizontal cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL component or composite video, AES/EBU, digital video, RS-422, and noisy environments |
| Insulation Material | Polyolefin |
| Outer Shield Material | Unshielded |
| Outer Jacket Material | Polyvinyl Chloride |
| Outer Jacket Diameter | 0.365" (0.927 cm) and 0.165" (0.419 cm) nominal |
| Outer Jacket Ripcord | Yes |
| Overall Nominal Diameter | 0.365" (0.927 cm) and 0.165" (0.419 cm) |
| Pair Color Code Chart | 1: White/blue stripe and blue 2: White/orange stripe and orange 3: White/green stripe and green 4: White/brown stripe and brown |
| NEC/(UL) Specification | CMR |
| CEC/C(UL) Specification | CMR |
| Other Standards | ISO/IEC 11801 ed 2.1 (2008) Class E |
| EU CE Mark | No |
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2002/95/EC (RoHS) | Yes |
| EU RoHS Compliance Date | 01/01/2004 |
| EU Directive 2002/96/EC (WEEE) | Yes |
| EU Directive 2003/11/EC (BFR) | Yes |
| CA Prop 65 (CJ for Wire and Cable) | Yes |
| MII Order #39 (China RoHS) | Yes |
| Telecommunications Standards | Category 6 - TIA 568.C.2 |
| Other Specification | UL Verified to Category 6 |
| Country Patent |
|
| Flame Test | UL1666 vertical riser |
| CSA Flame Test | FT4 |
| Plenum | No |
| Plenum Number | 1874A |
| Nominal Mutual Capacitance | 15 capacitance (pF/ft) |
| Maximum Capacitance Unbalance | 49 (pF/100 m) |
| Nominal Velocity of Propagation | 70 VP (%) |
| Maximum Delay | 510 @ 100 MHz delay (ns/100 m) |
| Max. Delay Skew | 25 delay skew (ns/100 m) |
| Max Conductor DC Resistance | 7.5 DCR @ 68�F (20�C) (Ohm/100 m) |
| Max. Operating Voltage - UL | 300 V RMS |
| Maximum DCR Unbalanced | 3 DCR unbalance @ 68�F (20�C) (%) |
| Operating Temperature Range | -4 to 176�F (-20 to 80�C) |
| Max Recommended Pulling Tension | 45 lb (20.41 kg) |
| Min. Bend Radius/Minor Axis | 1" (2.54 cm) |
| Length | 1000' (304.8 m) |
| Weight | 29 lb (13.15 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 32.4 lb |
| Box Dimensions (LxWxH) | 14.3 x 14.3 x 12.7" |
