Description
- Sub Miniature Video Coax Cable
- 23 AWG / 1000 ft
- For Composite through SDI Transmissions
- 36 lb Max Pull Tension
- 75 Ohm Impedance
- Choose from 10 Colors

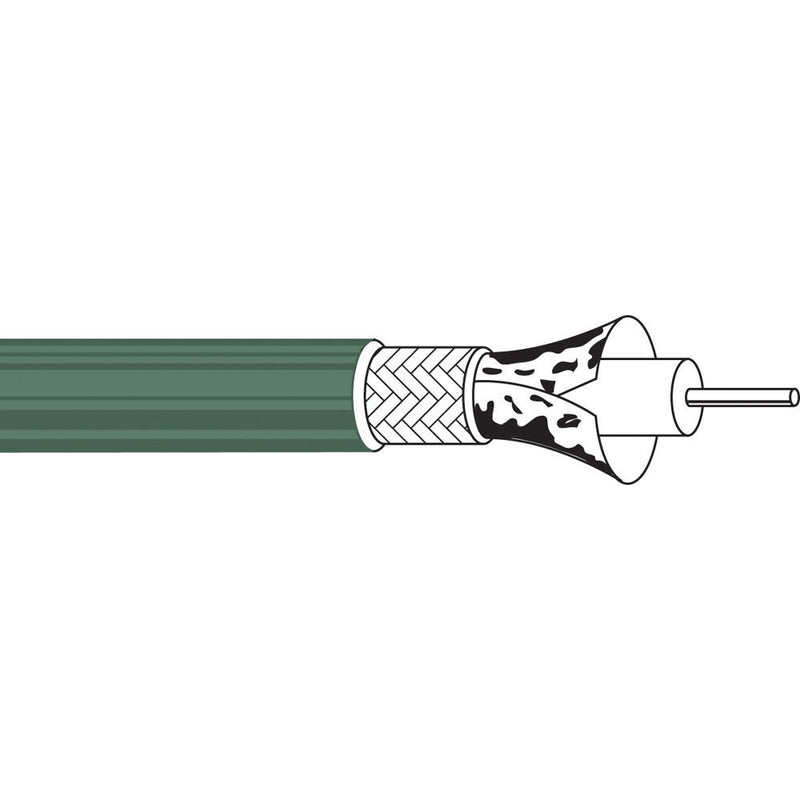

The Belden 1855A Sub Miniature Video Coax 23 AWG 1000 ft Green is a precision broadcast video cable for analog and digital signals. It can be used for narrow-band composite through wide-band SDI transmissions.
Stranding is solid and the conductor is bare copper. Insulation material is gas-injected foam high density polyethylene and the outer shield is of two layers, with layer 1 made of aluminum foil-polyester tape-aluminum foil and featuring 100% coverage and layer 2 made of tinned copper with 95% coverage.
Max pull tension is at 36 lbs and bend radius at 1.5". Impedance is 75 Ohm and overall diameter .159". Ten different colors are available to choose from, with black exclusively offering outdoor and aerial suitability.
-
- Precision broadcast video cable for analog and digital signals
- For narrow-band composite through wide-band SDI transmissions
- 10 colors can be chosen from, with black good for outdoor / aerial use
UPC: 612825358480
In the Box
Belden 1855A Sub Miniature Video Coax 23 AWG 1000 ft Green
- 10-Year Warranty
| AWG | # coax: 1 AWG: 23 Stranding: solid Conductor: BC - bare copper Diameter: .023" (.06 cm) |
| Insulation | Material: gas-injected FHDPE - foam high density polyethylene Diameter: .102" (.26 cm) |
| Outer Shield | Layer 1: Outer shield trade name: Duofoil Type: tape Material: aluminum foil-polyester tape-aluminum foil Coverage: 100% Layer 2: Type: braid Material: TC - tinned copper Coverage: 95% |
| Outer Jacket | Material: PVC - polyvinyl chloride |
| Max. Recommended Pulling Tension | 36 lbs (16.3 kg) |
| Min. Bend Radius | (Install)/Minor Axis: 1.5" (3.8 cm) |
| Compliance | NEC/(UL) specification: CMR CEC/C(UL) specification: CMG EU CE mark: yes EU directive 2000/53/EC (ELV): yes EU directive 2002/95/EC (RoHS): yes EU RoHS compliance date: 01/01/2004 EU directive 2002/96/EC (WEEE): yes EU directive 2003/11/EC (BFR): yes CA prop 65 (CJ for wire and cable): yes MII order #39 (China RoHS): yes RG type: sub-miniature 59/U |
| Flame Test | UL flame test: UL1666 vertical shaft |
| Suitability | Indoor: yes Outdoor: (yes - black only) Aerial: (yes - black only, when supported by a messenger wire) |
| Plenum/Non-Plenum | Non-plenum |
| Impedance | 75 Ohm (tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination) |
| Inductance | (�H/ft): .107 |
| Capacitance | (pF/ft): 16.3 |
| Velocity of Propagation | 82% |
| Delay | (ns/ft): 1.22 |
| Conductor DC Resistance | DCR @ 68°F (20�C) (Ohm/1000 ft (304.8 m)): 20.1 |
| Outer Shield | DCR @ 68°F (20�C) (Ohm/1000 ft (304.8 m)): 7.6 |
| Attenuation | Freq. (MHz): 1.000 = attenuation (dB/100 ft (30.48 m)) .390 Freq. (MHz): 3.580 = attenuation (dB/100 ft (30.48 m)) .780 Freq. (MHz): 5.000 = attenuation (dB/100 ft (30.48 m)) .920 Freq. (MHz): 6.000 = attenuation (dB/100 ft (30.48 m)) 1.000 Freq. (MHz): 7.000 = attenuation (dB/100 ft (30.48 m)) 1.080 Freq. (MHz): 10.000 = attenuation (dB/100 ft (30.48 m)) 1.200 Freq. (MHz): 12.000 = attenuation (dB/100 ft (30.48 m)) 1.300 Freq. (MHz): 25.000 = attenuation (dB/100 ft (30.48 m)) 1.800 Freq. (MHz): 67.500 = attenuation (dB/100 ft (30.48 m)) 2.830 Freq. (MHz): 71.500 = attenuation (dB/100 ft (30.48 m)) 3.060 Freq. (MHz): 88.500 = attenuation (dB/100 ft (30.48 m)) 3.160 Freq. (MHz): 100.000 = attenuation (dB/100 ft (30.48 m)) 3.330 Freq. (MHz): 135.000 = attenuation (dB/100 ft (30.48 m)) 3.810 Freq. (MHz): 143.000 = attenuation (dB/100 ft (30.48 m)) 3.920 Freq. (MHz): 180.000 = attenuation (dB/100 ft (30.48 m)) 4.380 Freq. (MHz): 270.000 = attenuation (dB/100 ft (30.48 m)) 5.400 Freq. (MHz): 540.000 = attenuation (dB/100 ft (30.48 m)) 7.700 Freq. (MHz): 720.000 = attenuation (dB/100 ft (30.48 m)) 9.470 Freq. (MHz): 750.000 = attenuation (dB/100 ft (30.48 m)) 9.590 Freq. (MHz): 1000.000 = attenuation (dB/100 ft (30.48 m)) 10.500 Freq. (MHz): 1500.000 = attenuation (dB/100 ft (30.48 m)) 13.000 Freq. (MHz): 2000.000 = attenuation (dB/100 ft (30.48 m)) 15.100 Freq. (MHz): 2250.000 = attenuation (dB/100 ft (30.48 m)) 16.000 Freq. (MHz): 3000.000 = attenuation (dB/100 ft (30.48 m)) 18.500 Freq. (MHz): 4500.000 = attenuation (dB/100 ft (30.48 m)) 22.800 |
| Minimum Return Loss | Start freq. (MHz) 5: Stop freq. (MHz) = 1600 Min. RL (dB) = 23 Start freq. (MHz) 1601: Stop freq. (MHz) = 4500 Min. RL (dB) = 21 (Return loss tested in accordance with ASTM D-4566 paragraph 45.3 using a 75 Ohm fixed bridge and termination) |
| Sweep Testing | 100% sweep tested 5 MHz to 4.5 GHz |
| Operating Voltage | Max. - UL: 300 V RMS |
| Operating Temperature | -22 to 167�F (-30 to 75�C) |
| UL Temperature Rating | 167°F (75�C) |
| Overall Diameter | .159" (.4 cm) |
| Length | 1000 ft (304.8 m) |
| Weight | 17 lbs (7.7 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 18.4 lb |
| Box Dimensions (LxWxH) | 8.4 x 7.0 x 5.9" |
