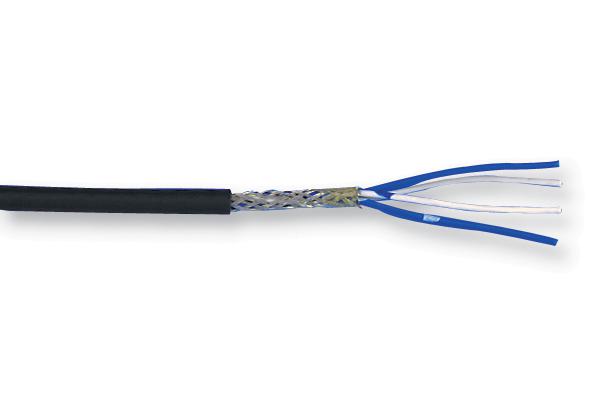

The 1804A J5C100 is a 100ft 4-conductor 28AWG shielded Star Quad Cable with stranded (19 x 40) high-conductivity silver-plated copper alloy (SPCA) conductors, polypropylene insulation, tinned copper braid shield (80% coverage) and black PVC jacket. This multi-conductor cable deliver low voltage analogue data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- CPR: Not Yet Qualified
- Low impedance
- 40R Nominal characteristic impedance
- 40pF/ft Conductor to shield nominal capacitance
- 66% Nominal velocity of propagation
- 65R/1000ft at 20°C Nominal conductor DC resistance
- 15R/1000ft at 20°C Nominal outer shield DC resistance (DCR)
Applications
Industrial
Product details
| Cable Shielding |
Screened |
| No. of Cores |
4Core |
| Wire Gauge |
28AWG |
| Conductor Area CSA |
0.08mm² |
| Reel Length (Imperial) |
98.43ft |
| Reel Length (Metric) |
30.48m |
| Jacket Colour |
Black |
| No. of Max Strands x Strand Size |
19 x 0.079mm |
| Conductor Material |
Silver Plated Copper |
| Jacket Material |
PVC |
| External Diameter |
2.921mm |
| Voltage Rating |
100V |
| Product Range |
- |
Other details
| Brand |
BELDEN |
| Part Number |
1804A J5C100 |
| Quantity |
Reel of 30 |
| Technical Data Sheet EN |
 |
