Description
Belden BBD1694 Overview

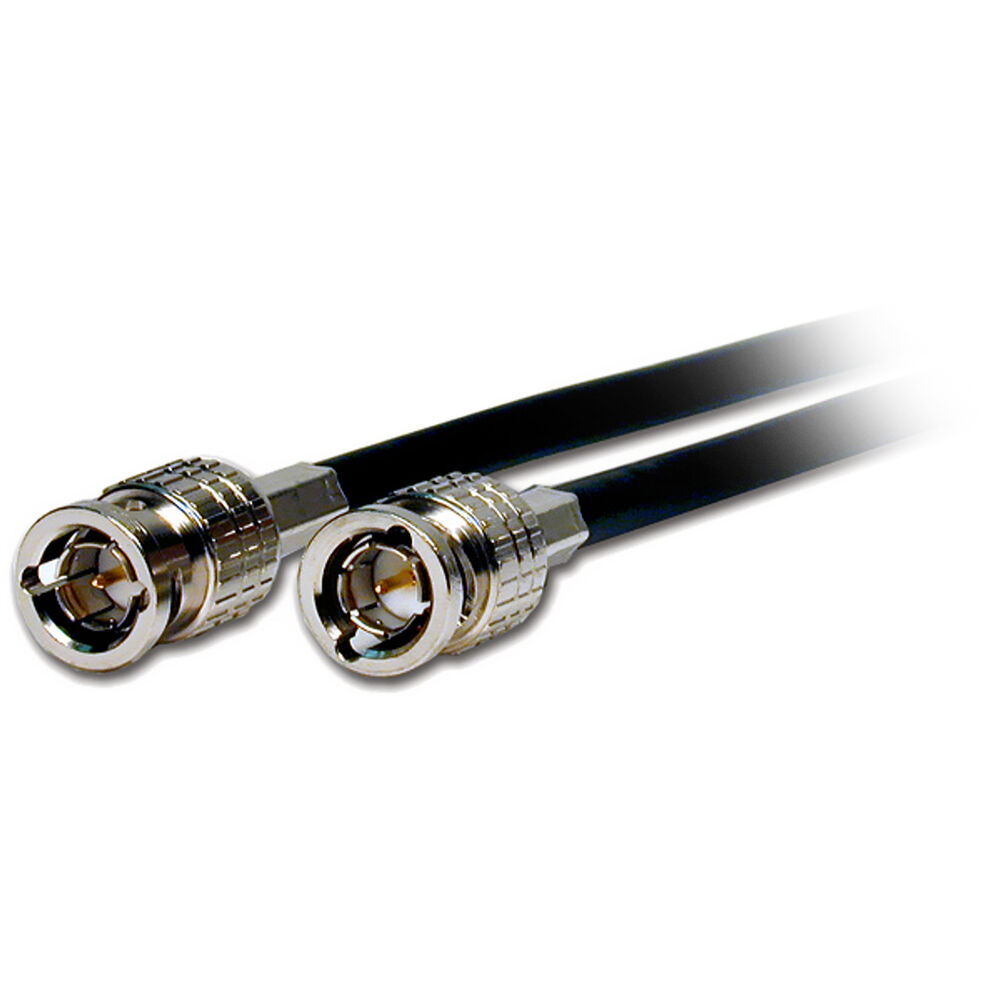

The Belden 1694A Digital Video BNC Cable, 25' long, is an RG6 cable designed for critical HDTV/SDI applications. It features exceptional impedance consistency throughout the entire length, and has extremely low loss. It's double shielded and features a foam dielectric. The connectors are either made by Canare or Kings, as decided by Belden at the time of manufacturing.
UPC: 808447043228
In the Box
- Belden 1694A Digital Video BNC Cable (25')
- Limited Lifetime Warranty
Belden BBD1694 Specs
General
| Connector 1 |
1 x BNC
|
| Connector 2 |
1 x BNC
|
| Cable Length |
25' / 7.6 m
|
| Signal Type |
HD-SDI
|
| Coaxial Type |
RG-6
|
| Conductor Material |
Bare Copper
|
| Insulation Type |
Foamed-Polyethylene (FM-PE)
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Outer Diameter |
0.274" / 6.96 mm
|
| Shielding |
100% Aluminum-Polyester Tape
95% Tinned Copper Braid |
| Wire Gauge |
18 AWG
|
Electrical
| Attenuation |
0.24 dB @ 1 MHz
0.44 dB @ 3.58 MHz 0.52 dB @ 5 MHz 0.57 dB @ 6 MHz 0.61 dB @ 7 MHz 0.71 dB @ 10 MHz 0.78 dB @ 12 MHz 1.08 dB @ 25 MHz 1.65 dB @ 67.5 MHz 1.69 dB @ 71.5 MHz 1.86 dB @ 88.5 MHz 1.95 dB @ 100 MHz 2.24 dB @ 135 MHz 2.3 dB @ 143 MHz 2.57 dB @ 180 MHz 3.17 dB @ 270 MHz 3.69 dB @ 360 MHz 4.5 dB @ 540 MHz 5.3 dB @ 720 MHz 5.4 dB @ 750 MHz 6.3 dB @ 1000 MHz 7.8 dB @ 1500 MHz 9.2 dB @ 2000 MHz 9.8 dB @ 2250 MHz 11.5 dB @ 3000 MHz 14.5 dB @ 4500 MHz 17.7 dB @ 6000 MHz |
| Capacitance |
16.2 pF/ft
|
Environmental
| Certifications |
RoHS
|
| Operating Temperature |
-22 to 167°F / -30 to 75°C
|
