Description
- Belden 1694A RG6 Low Loss Coax Cable
- BNC Connectors for HDTV/SDI Applications
- Consistent Impedance Along Entire Length
- 18 AWG Solid .040" Bare Copper Conductor
- Double Shielded
- Tinned Copper Braid Shield, 95% Coverage
- Foam Dielectric
- Gas-Injected Foam HDPE Insulation
- PVC Jacket
- RoHS Compliant

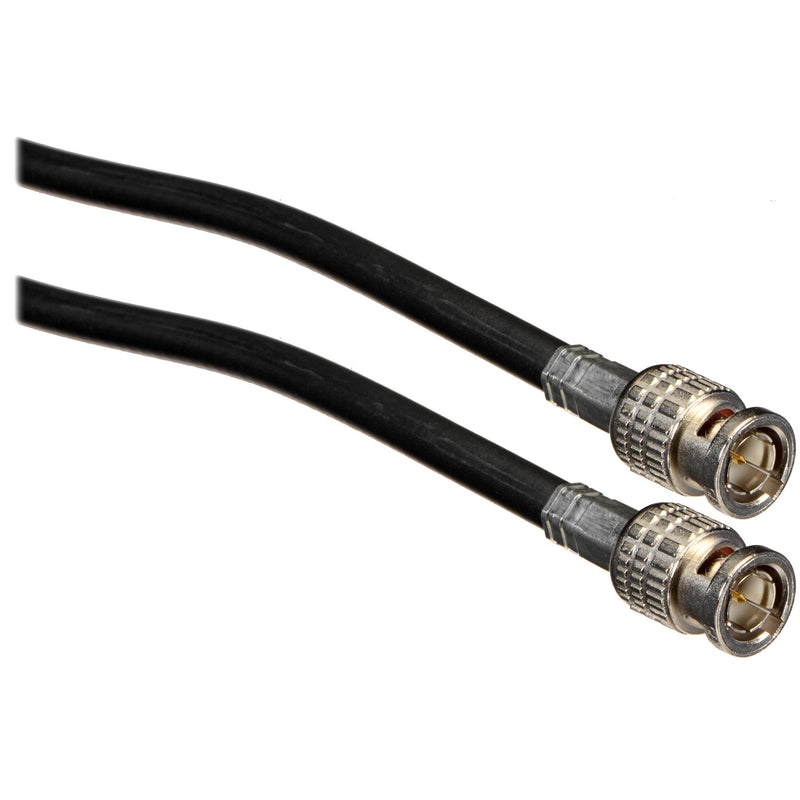

Featuring quality BNC connectors (alternately from Canare, Kings, or other reliable manufacturers), this 100 ft long Belden 1694A Digital Video BNC Cable , in black, is suitable for HDTV and professional SDI applications.
The cable itself is Belden's broadcast-quality 18 AWG 1694A RG6 low-loss coax cable, offering consistent impedance along the entire 100 ft length.
UPC: 808447043259
| Connector 1 | BNC |
| Connector 2 | BNC |
| Conductor | 18 AWG .040" (1 mm) diameter bare copper conductor Solid stranding |
| Insulation | Gas-injected FHDPE - Foam High Density Polyethylene 0.18" (0.46 cm) diameter |
| Outer Shield | Layer 1: Duofoil aluminum foil - polyester tape - aluminum foil 100% coverage Layer 2: Braid TC - tinned copper 95% coverage |
| Outer Jacket | Polyvinyl chloride |
| Overall Nominal Diameter | 0.274" (7 mm) |
| Max. Recommended Pulling Tension | 69 lb (31 kg) |
| Min. Bend Radius/Minor Axis | 2.75" (7 cm) |
| Operating Voltage | UL: 300 V RMS |
| UL Flame Test | UL1666 Vertical Shaft |
| CSA Flame Test | FT4 |
| Suitability | Indoor: Yes |
| Plenum | No |
| Impedance | 75 Ohms |
| Inductance | 0.106 ?H/ft |
| Capacitance | 16.2 ?H/ft |
| Velocity of Propagation | 82% |
| Delay | 1.24 ns/ft |
| Standards | NEC/(UL) Specification: CMR CEC/C(UL) Specification: CMG EU Directive 2011/65/EU (ROHS II): Yes EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes RG Type: 6/U |
| UL Temperature Rating | 167°F (75°C) |
| Operating Temperature | -22 to 167°F (-30 to 75°C) |
| Cable Length | 100 ft (30.5 m) |
| Weight | 6 lb (2.7 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.3 lb |
| Box Dimensions (LxWxH) | 9.8 x 9.4 x 2.8" |
In the Box
Belden 1694A Digital Video BNC Cable (100 ft, Black)
- Limited Lifetime Warranty
