Description

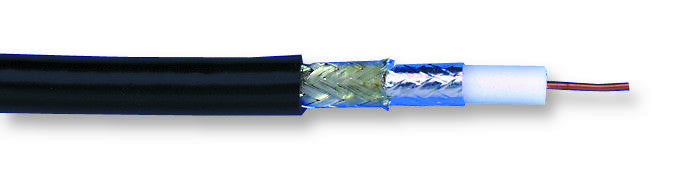

The 1694A from Belden is a low loss serial digital coaxial cable. This cable is UL recognized and CSA certified.
- RG-6/U type, 18AWG, solid 0.040inch diameter bare copper conductor
- Gas injected foam high density polyethylene (FHDPE) insulation
- Duofoil tinned copper braid shield (95% coverage)
- Polyvinyl chloride (PVC) outer jacket
- Overall nominal diameter is 0.274inch
- Operating temperature range from -30°C to 75°C
- Nominal characteristic impedance of 75ohm
- Nominal inductance of 0.106µH/ft
- Nominal conductor DC resistance (DCR) of 6.4ohm/1000ft at 20°C
- Maximum operating voltage of 300Vrms (according to UL)
Applications
Industrial, Communications & Networking
Product details
| Reel Length (Metric) | - |
| Conductor Material | Copper |
| Jacket Material | PVC |
| External Diameter | 6.96mm |
| Reel Length (Imperial) | - |
| Impedance | 75ohm |
| Coaxial Cable Type | RG6 |
| Product Range | - |
| Wire Gauge | 18AWG |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | Solid |
| Conductor Area CSA | - |
Other details
| Brand | BELDEN |
| Part Number | 1694A |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
