Description
Belden 4855RBUHD3 B50 Overview

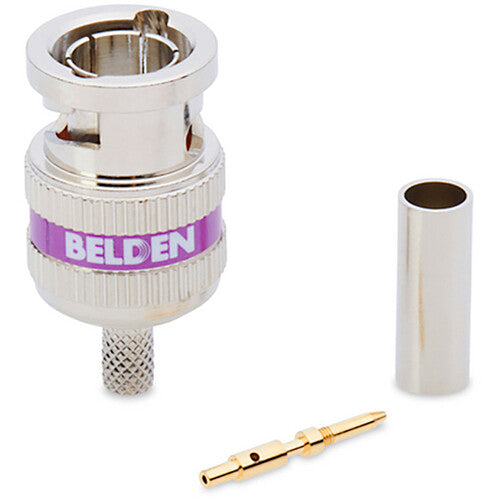

This bundle features 50 3-piece 12GHz Mini RG59 BNC Connectors compatible with Belden 4855R mini coax cables in indoor applications. Each one includes a connector, center pin, and compression ring. The connectors are suitable for use with signals including HD-SDI, UHD, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, and SMPTE 424M 3 Gb/s HD-SDI 1080p signals. The compatible Belden crimping tool is the BB3PHCT.
UPC: 845671005509
In the Box
- Belden 12GHz Mini RG59 BNC Connectors for 4855R Cables (50-Pack)
- 50 x Belden 12 GHz 3-Piece Purple Band Mini RG59 BNC Connector
Belden 4855RBUHD3 B50 Specs
| Type | Mini RG59 Coax |
| Connector | BNC Male |
| Materials | Nut: Brass, Nickel Plated Body: Brass, Nickel Plated Contact: Brass, Gold Plated Insulator: PTFE |
| Impedance | 75 Ohms |
| Return Loss | 5-1485 MHz: 15 dB 1485-3000 MHz: 10 dB 3000-6000 MHz: 7 dB 6000-12,000 MHz: 4 dB |
| Color Band | Violet |
| Cable Center Conductor Limits | Diameter: 0.0208 to 0.0244" / 0.53 to 0.62 mm |
| Cable Dielectric Limits | Diameter: 0.0964 to 0.1019" / 2.45 to 2.6 mm |
| Cable Outer Jacket Limits | Diameter: 0.1574 to 0.1692" / 4 to 4.3 mm |
| Environment | Indoor |
| EU Directives | 2000/53/EC (ELV), 2011/65/EU (RoHS 2), 2012/19/EU (WEEE), 2015/863/EU (RoHS 2 Amendment) |
| EU Directive Compliance | 2003/11/EC (BFR) |
| Plenum | No |
Packaging Info
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 10.6 x 5.8 x 1.7" |
