Description

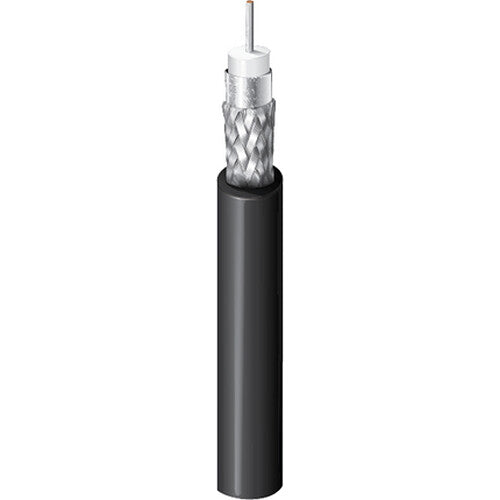

Belden 4855R-1000-BLK Overview
Add 1000' of bulk coax cable to your 4K productions with this black 12G-SDI 75-Ohm UHD 4K Mini Coax Video Cable from Belden. This precision broadcast video cable transfers analog and 12G-SDI digital video signals up to UHD 4K.
The mini 23 AWG cable is ultra thin and features a solid 0.023" silvered copper conductor and PE foam insulation. Its shield is made of tri-laminate and tinned copper braid and has 95% coverage. The total length of the bulk cable is 1000' and it weighs 17 lb.
UPC: 612825390572
In the Box
- Belden 12G-SDI 75-Ohm UHD 4K Mini Coax Video Cable (1000', Black)
- Limited 10-Year Warranty
Belden 4855R-1000-BLK Specs
| AWG | AWG: 23 Stranding: Solid Conductor: SC Silvered Copper Diameter: 0.023" / 0.058 cm |
| Insulation | Material: PE Polyethylene (Foam) Diameter: 0.102" / 0.259 cm |
| Outer Shield | Layer 1: Type: Tape Material: Tri-Laminate (Alum+Poly+Alum) Coverage: 100% Layer 2: Type: Braid Material: TC Tinned Copper Coverage: 95% |
| Outer Jacket | Material: PVC Polyvinyl Chloride |
| Max. Recommended Pulling Tension | 40 lb / 18.1 kg |
| Min. Bend Radius | 1.6" / 4.1 cm |
| Compliance | CMR, CMG, EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), China RoHS II (GB/T 26572-2011); CA Prop 54 Sustainability |
| Flame Test | Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4 |
| Impedance | 75 Ohms |
| Capacitance | 16.3 pF/foot |
| Velocity of Propagation | 82% |
| Operating Voltage | UL: 300 V CMR, CMG Maximum |
| Operating Temperature | -22 to 167°F / -30 to 75°C |
| UL Temperature Rating | 140°F / 60°C |
| Diameter | 0.159" / 0.403 cm |
| Length | 1000' / 304.8 m |
| Weight | 17 lb / 7.7 kg |
Packaging Info
| Package Weight | 18.2 lb |
| Box Dimensions (LxWxH) | 10.7 x 6.8 x 6.3" |
