Description
Belden 4855RBUHD1 Overview
- 1Description
- 2Quick Deployment
- 3Excellent Holding Strength
- 4Outstanding Return Loss Performance

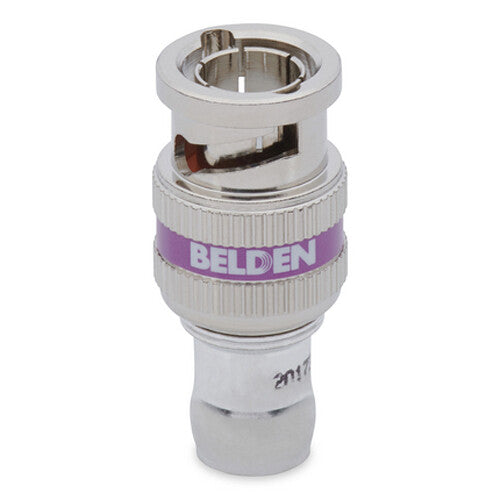

The Belden 12 GHz Mini RG59 BNC Compression Connector uses compression termination for attachment to 4855R mini coax cables in indoor applications. The housing is made from brass with nickel plating, while the electrical conductor is brass with gold plating. The connector is suitable for use with signals including HD-SDI, UHD, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, and SMPTE 424M 3 Gb/s HD-SDI 1080p signals. This series is easily identified by its violet color band.
Quick Deployment
A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy.
Excellent Holding Strength
Internal 360-degree compression rings eliminate ingress and egress from the back of the connector.
Outstanding Return Loss Performance
- 5 to 1485 MHz: 15 dB
- 1485 to 3000 MHz: 10 dB
- 3000 to 6000 MHz: 7 dB
- 6000 to 12,000 MHz: 4 dB
In the Box
- Belden 12 GHz Mini RG59 BNC Compression Connector for 4855R Cables (Single Connector)
- Limited 10-Year Manufacturer Warranty
Table of Contents
- Description
- Quick Deployment
- Excellent Holding Strength
- Outstanding Return Loss Performance
Belden 4855RBUHD1 Specs
| Type | Mini RG59 Coax |
| Connector | BNC Male |
| Termination Type | Compression |
| Materials | Nut: Nickel-Plated Brass Body: Nickel-Plated Brass Contact: Gold-Plated Brass Insulator: PTFE |
| Impedance | 75 Ohms |
| Return Loss | 5 to 1485 MHz: 15 dB 1485 to 3000 MHz: 10 dB 3000 to 6000 MHz: 7 dB 6000 to 12,000 MHz: 4 dB |
| Color Band | Violet |
| Cable Center Conductor Limits | Diameter: 0.0208 to 0.0263" / 0.53 to 0.67 mm |
| Cable Dielectric Limits | Diameter: 0.0964 to 0.1019" / 2.45 to 2.59 mm |
| Cable Outer Jacket Limits | Diameter: 0.1574 to 0.1692" / 4 to 4.3 mm |
| Environment | Indoor |
| EU Directives | 2000/53/EC (ELV), 2011/65/EU (RoHS 2), 2012/19/EU (WEEE), 2015/863/EU (RoHS 2 Amendment) |
| EU Directive Compliance | 2003/11/EC (BFR) |
| Plenum | No |
Packaging Info
| Package Weight | 0.04 lb |
| Box Dimensions (LxWxH) | 3.9 x 1.4 x 0.55" |
