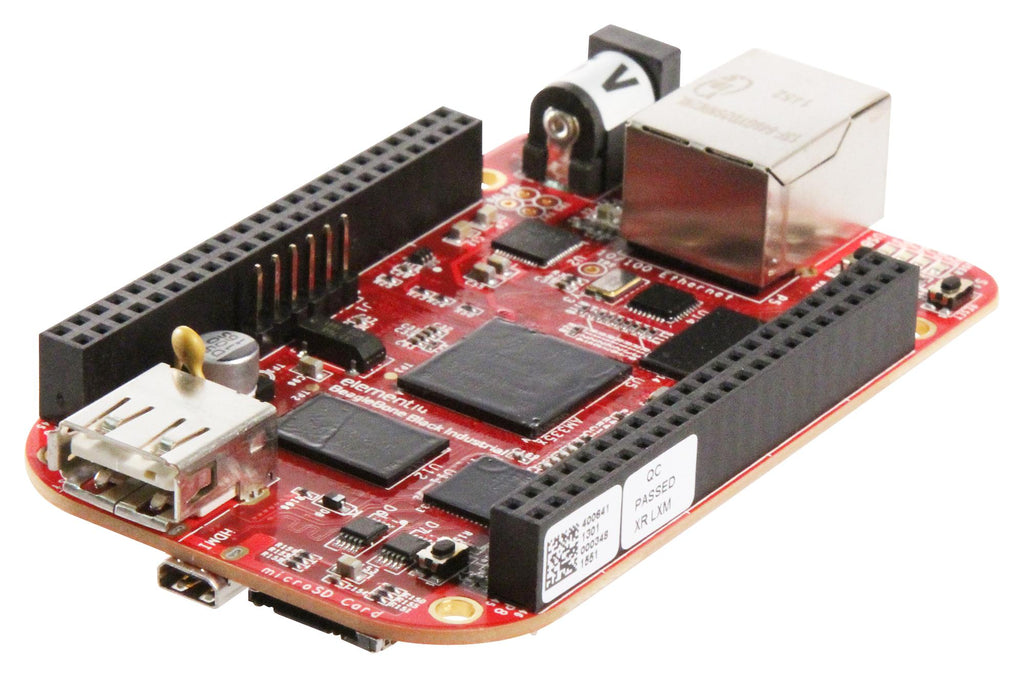

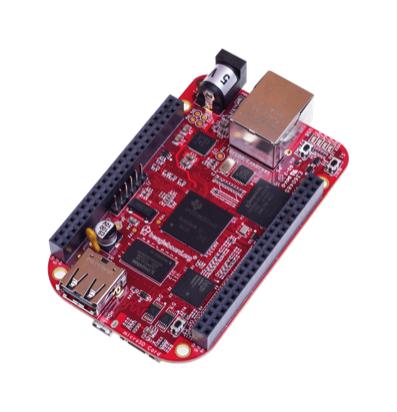

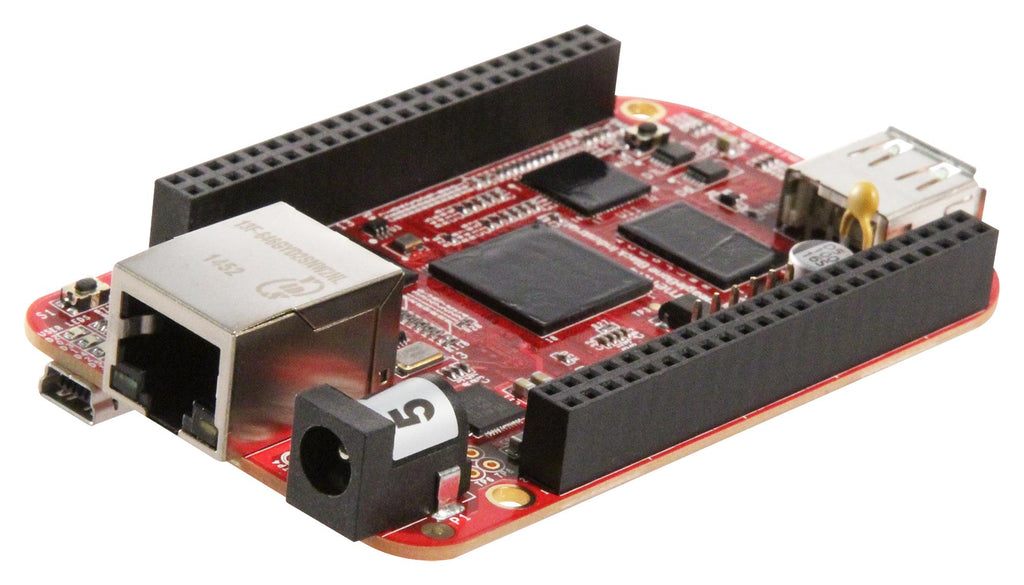

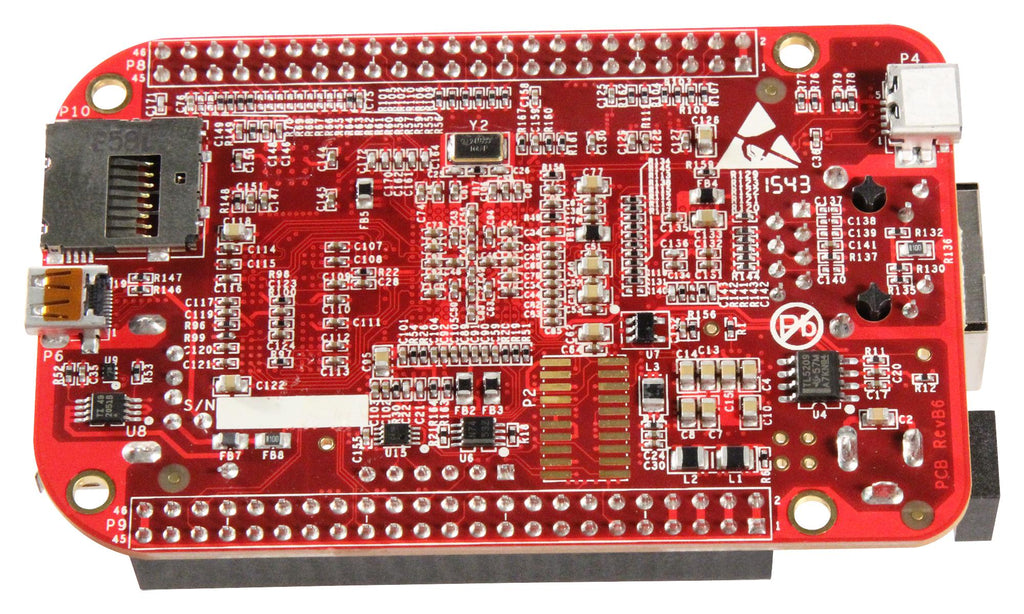

- BeagleBone® Black industrial based on Sitara AM3358 Processor
- Sitara AM3358BZCZ100 1GHz, 2000 MIPS ARM Cortex-A8 32-Bit RISC microprocessor
- Programmable real-time unit subsystem
- 512MB DDR3L 800MHz SDRAM, 4GB eMMC memory
- Operating temperature can span from -40°C to +85°C
- PS65217C PMIC is used along with a separate LDO to provide power to the system
- SD/MMC connector for microSD
- Debug support: optional on-board 20-pin CTI JTAG, serial header
- HS USB 2.0 client and host ports
Contents
BeagleBone Black industrial board, miniUSB to USB Type A cable, Quick start guide.
Product details
| Silicon Manufacturer |
Texas Instruments |
| Silicon Family Name |
Sitara - AM335x |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-A8 |
| Silicon Core Number |
AM3358 |
| Kit Contents |
Dev Board AM3358, USB Cable |
| Product Range |
- |
Other details
| Brand |
BEAGLEBOARD |
| Part Number |
102110423 |
| Quantity |
Each |
| Operating Instructions EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
