Description
BB&S Lighting Reflect 5600K Overview

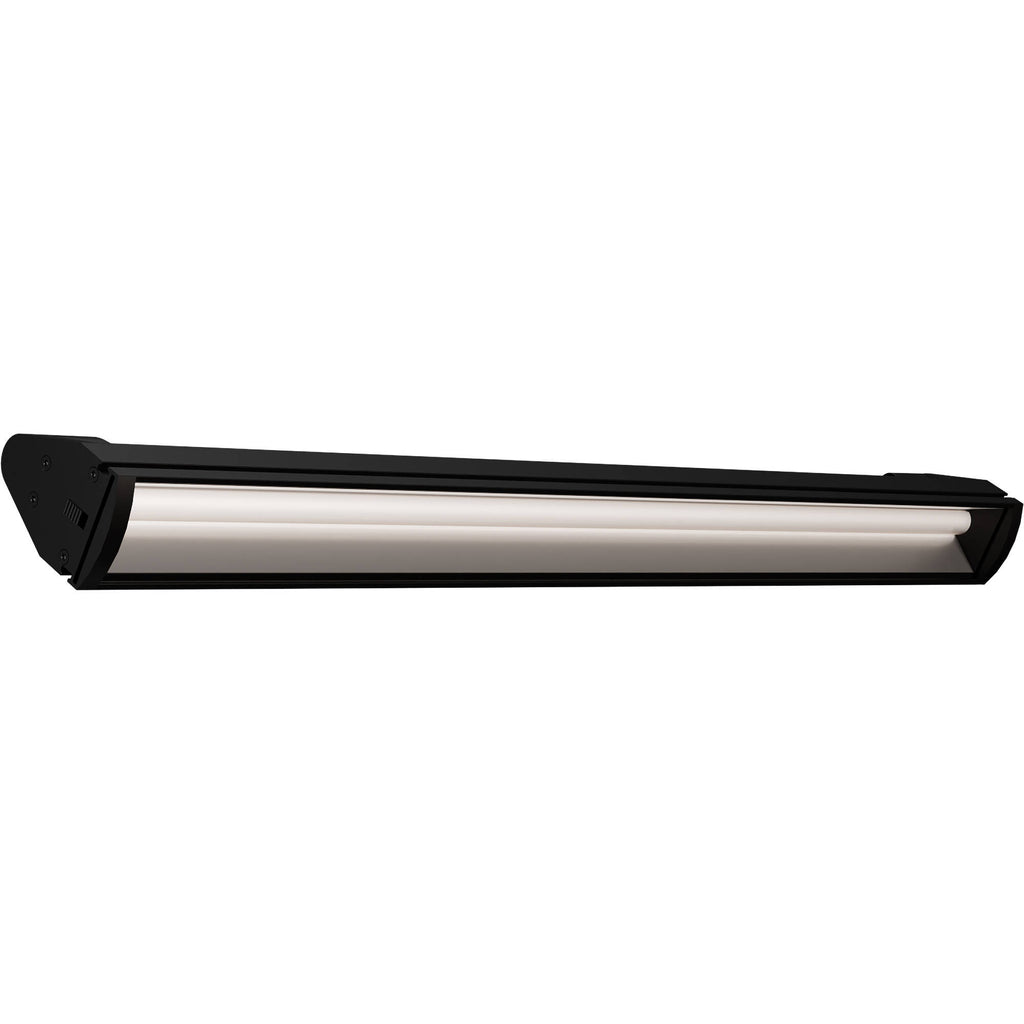

Based on their popular 1-inch diameter remote phosphor LED Pipes, the 2' long 5600K Pipeline Reflect from BB&S is designed with the Pipe ensconced in a polished aluminum reflector with a 2" opening that compresses the angle of illumination to 90 degrees and doubles the output, as compared to Pipes when used alone. As you might expect with a remote phosphor, the fixture has an impressive TLCI rating of 95, an indicator of high accuracy in color rendering.
The reflector is the core of the fixture's system offering wide latitude of power and control options. It has sliding mount plates with 3/8" and 1/4" female threads. The unit also has a 3-pin XLR connection that interfaces with an optional controller that has four 40W channels for operating multiple fixtures. The controller also has an onboard DMX and RDM for remote operation from a console, while it also has provision for wireless DMX. The controller features precise dimming and 48V power supply with a powerCON True-1 locking cable for AC power. An optional manual-control dimmer/driver unit, a D-tap cable for 14.4 VDC batteries, and an optional AC power supply are also available.
Items Included
- BB&S Lighting Pipeline Reflect (5600K, 2')
- 2 x Sliding Mount Plate
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
BB&S Lighting Reflect 5600K Specs
| Item Type |
1x LED Light Tube/Wand
|
| Included Storage Case |
No
|
| Photometrics |
90? at 5600K: 89 fc / 963 Lux
|
| Color Temperature |
5600K
|
| Color Modes |
Daylight
|
| Color Accuracy Standard |
TLCI 95
|
| Dimming |
Controller Not Included
|
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Wireless DMX *Adapter Required (Not Included)
|
| Power Source |
AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included)
Battery (Not Included) *Requires Power Supply/Controller (Not Included) |
| Input Power |
40 VDC
|
| Power Consumption |
20 W
|
| Fixture Mounting |
Proprietary
|
| Item Type |
1x LED Light Tube/Wand
|
| Included Filters |
Phosphor Panel (Built-In)
|
| Included Storage Case |
No
|
| Photometrics |
90? at 5600K:
89 fc / 963 Lux at 3.3' / 1 m* 10 fc / 107 Lux at 9.84' / 3 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
5600K
|
| Color Modes |
Daylight
|
| Color Accuracy Standard |
TLCI 95
|
| Dimming |
Controller Not Included
|
| Cooling System |
Passive
|
| Beam Angle |
90?
|
| Built-In Flash |
No
|
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Wireless DMX *Adapter Required (Not Included)
|
| Power Source |
AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included)
Battery (Not Included) *Requires Power Supply/Controller (Not Included) |
| Inputs/Outputs |
1x XLR 3-Pin Power/DMX Input
|
| Input Power |
40 VDC
|
| Power Pass-Thru |
No
|
| Power Consumption |
20 W
|
| Fixture Mounting |
Proprietary
|
| Included Adapter |
1x Non-Swivel Mount: 1/4"-20 Male Screw to Proprietary
1x Non-Swivel Mount: 3/8"-16 Male Screw to Proprietary |
| Display |
No
|
| Environmental Resistance |
No
|
| Operating Conditions |
-4 to 104?F / -20 to 40?C
|
| Materials |
Aluminum (Housing)
|
| Dimensions |
24 x 1" / 60.96 x 2.54 cm (Fixture Panel)
|
