Description
BB&S Lighting Area 48 Overview

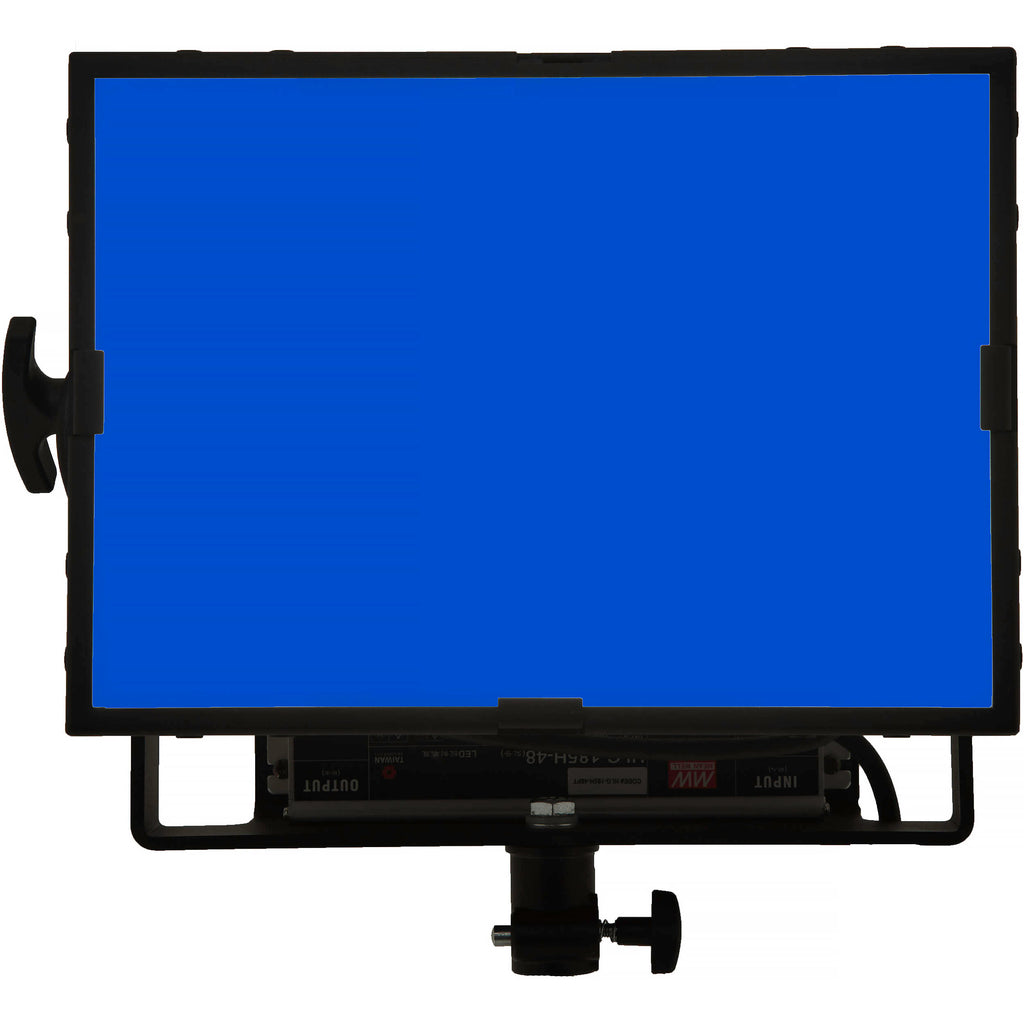

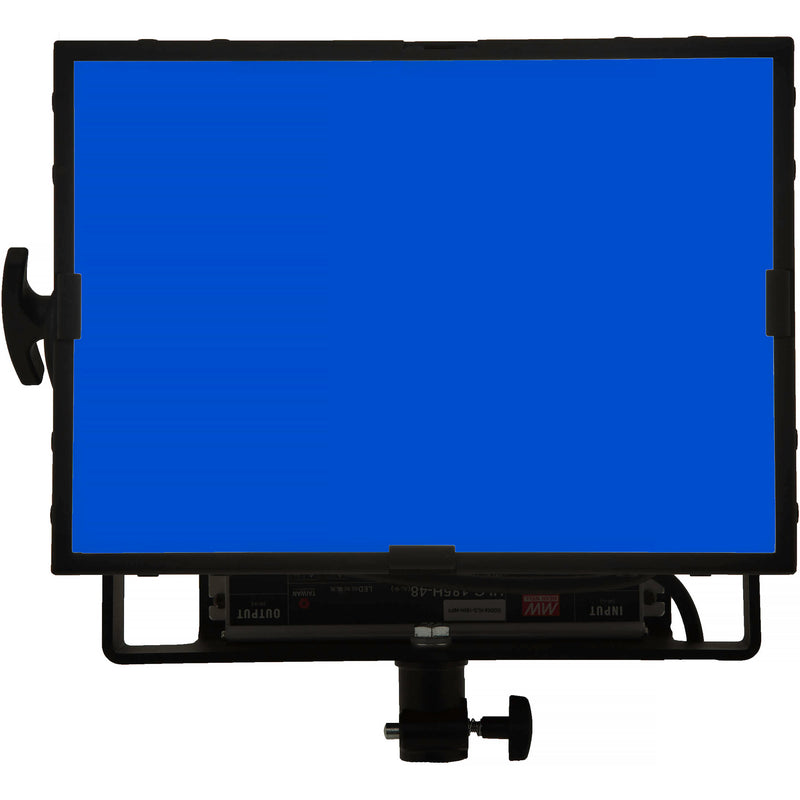

Designed to render the most accurate color possible, the black Area 48 Studio Remote Phosphor LED Light Panel AC Kit from BB&S Lighting is a unique LED light source that separates the phosphor, which is normally integrated into the LED, from the Area 48 Studio's array. Instead, a phosphor panel with the desired color temperature is inserted into the light's accessory channel. The benefit is a higher degree of color accuracy exhibited by the Area 48 Studio's very high TLCI rating of 98 for all but the chroma panels. This version of the light ships with a chroma blue panel, but there are also optional 2700, 3200, 4300, 5600, 6500, and 10,000K panels, as well as chroma green. The Area 48 Studio also has a strobing mode for visual effects.
Area 48 Studio Features
Built with the professional user in the studio in mind, the Area 48 Studio has a 48V power supply that accepts 100-240 VAC current, allowing 0-100% dimming locally on the fixture or remotely via DMX. The light has a low-heat output equivalent to a 1200W tungsten flood light while consuming only 122W, which translates to low operating costs and a fast return on investment.
Benefits
- 1200W tungsten equivalent output

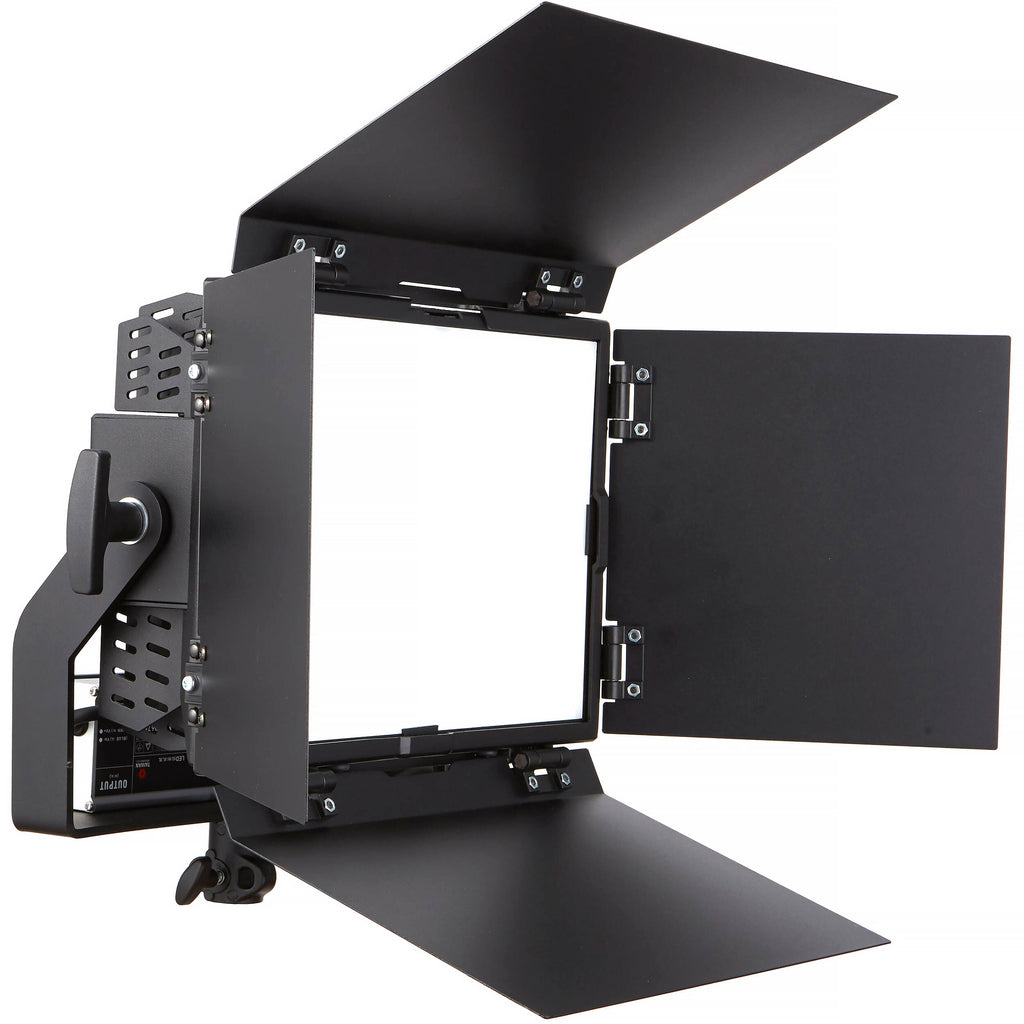

- Includes detachable barndoors, yoke, and TVMP connector
- 160W, 100-240 VAC, 50/60 Hz, 48 VDC power supply allows 0-100% dimming
- Draws just 122W and weighs 10 lb
- Integrated DMX512 control
- Flicker-free, silent operation, no fans
- 8-/16-bit dimming: 0-100% plus strobe mode built into the software
- Optional Remote Phosphor media is available in chroma green and 2700/3200/4300/5600/6500/10,000K
Items Included
- BB&S Lighting Area 48 Studio Remote Phosphor LED Light Panel (AC Kit)
- Detachable Barndoors
- BB&S Lighting Angled Yoke for Area 48
- BB&S Lighting Power Supply for Area 48 Soft LED
- Locking IEC Cable
- TVMP Stand Mount
- BB&S Lighting Interchangeable Chroma Blue Phosphor Panel for Area 48 LED Light
- Limited 3-Year Manufacturer Warranty
Additional Resources
BB&S Lighting Area 48 Specs
Key Specs
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Barndoors
|
| Included Storage Case |
No
|
| Photometrics |
Not Specified by Manufacturer
|
| Color Temperature |
Not Specified by Manufacturer
|
| Color Accuracy Standard |
TLCI 98 at 2700K
TLCI 98 at 3200K TLCI 98 at 4300K TLCI 98 at 5600K TLCI 98 at 6500K |
| Dimming |
Built-In Dimmer
� 0 to 100% |
| Front Accessory Mount |
Proprietary
|
| Power Source |
AC to DC Adapter (Included)
|
| Input Power |
48 VDC
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
122 W
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
|
Light Fixture
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Barndoors
|
| Included Filters |
Chroma Blue Phosphor Panel
|
| Included Storage Case |
No
|
| Photometrics |
Not Specified by Manufacturer
|
| Color Temperature |
Not Specified by Manufacturer
|
| Color Accuracy Standard |
TLCI 98 at 2700K
TLCI 98 at 3200K TLCI 98 at 4300K TLCI 98 at 5600K TLCI 98 at 6500K |
| Dimming |
Built-In Dimmer
� 0 to 100% |
| Cooling System |
Passive
|
| Expected Lamp Life |
50,000 Hours
|
| Beam Angle |
160°
|
| Built-In Flash |
No
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Connectivity
| Mobile App Compatible |
No
|
Power & I/O
| Power Source |
AC to DC Adapter (Included)
|
| Input Power |
48 VDC
100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable |
Yes
|
| Power Pass-Thru |
No
|
| Power Consumption |
122 W
|
Mounting
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
|
General
| Display |
Yes
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Dimensions |
14 x 11 x 5" / 35.6 x 27.9 x 12.7 cm (Fixture)
|
| Weight |
10 lb / 4.54 kg (Fixture with Yoke)
|
