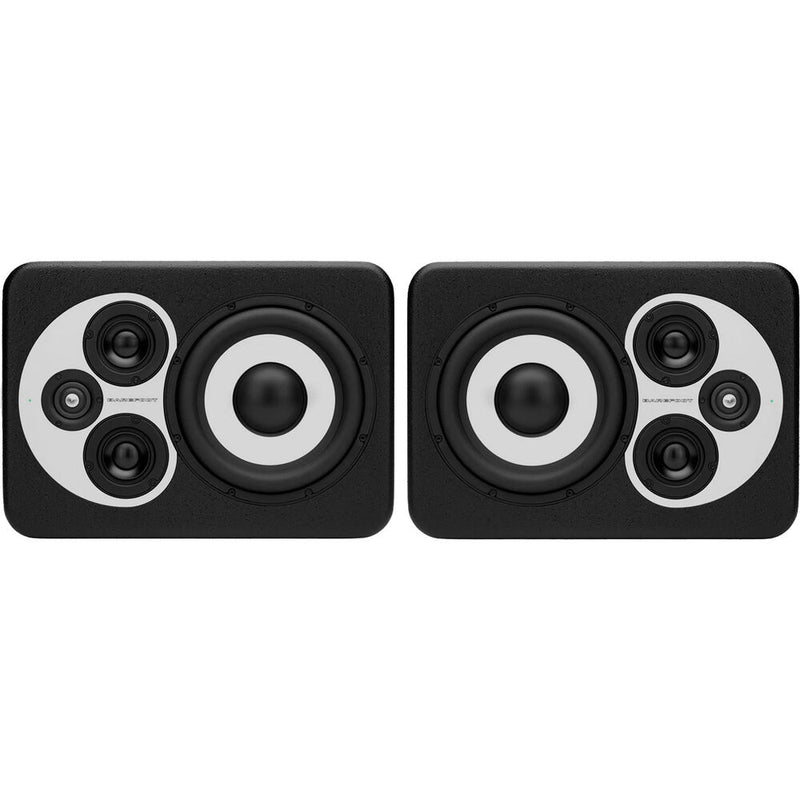

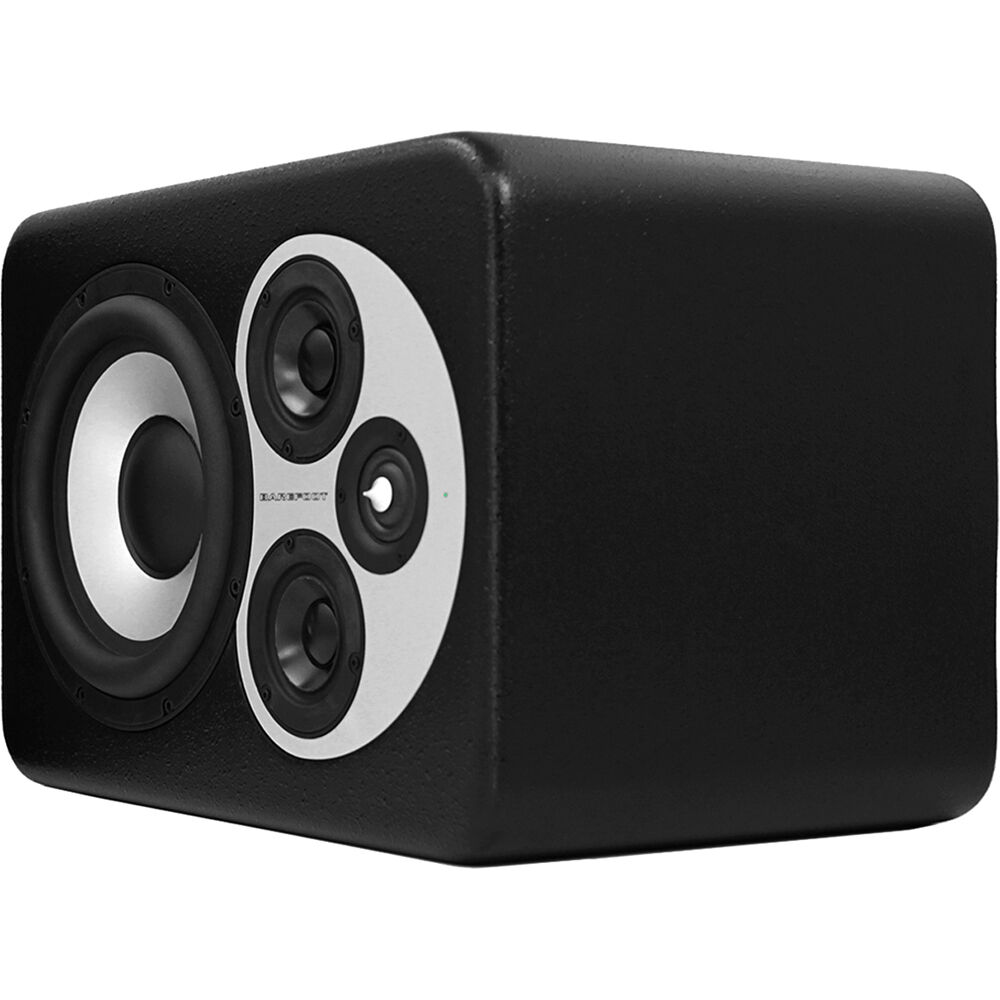

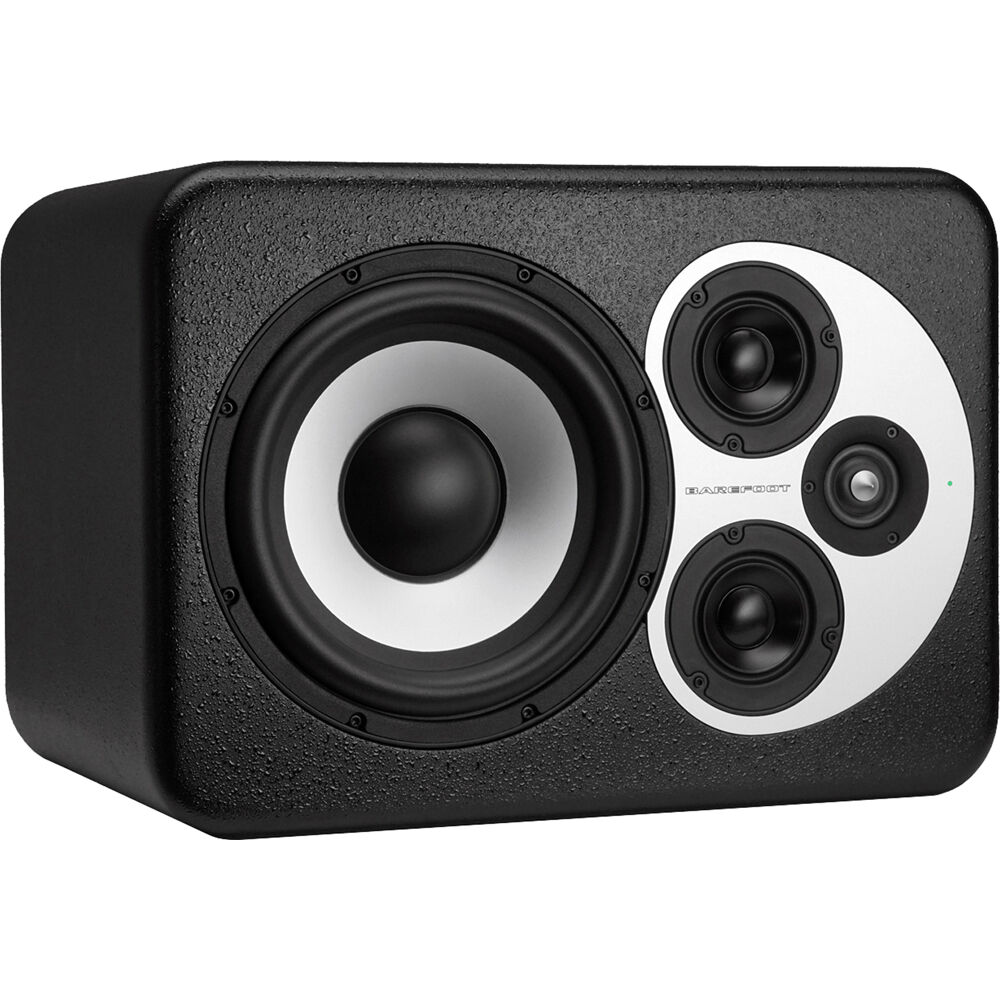

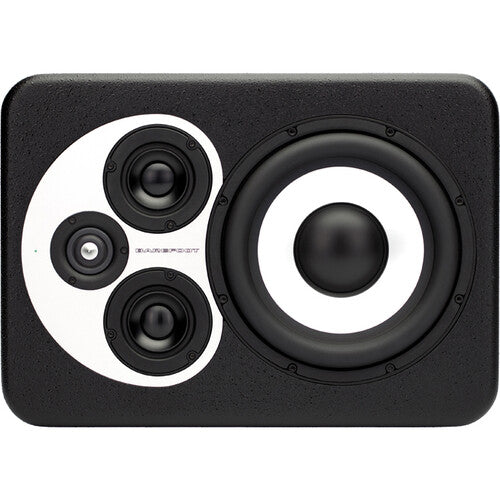

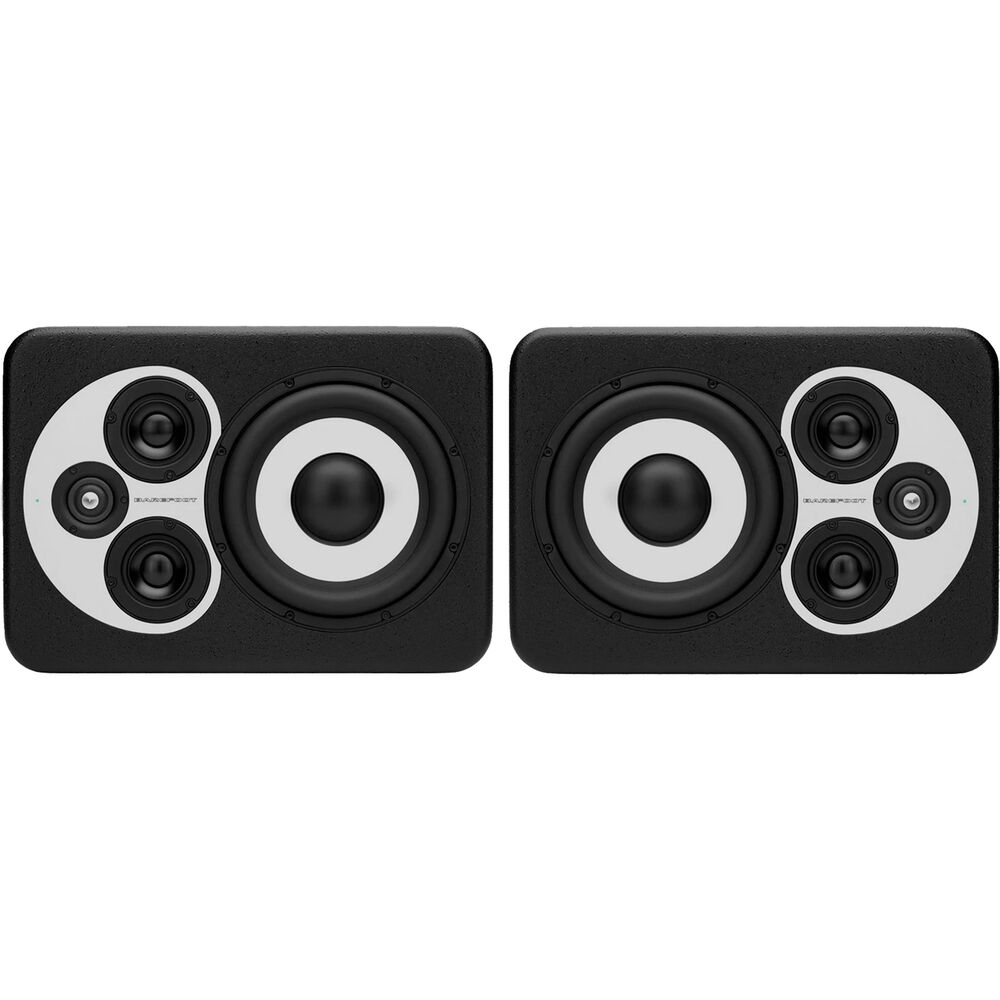

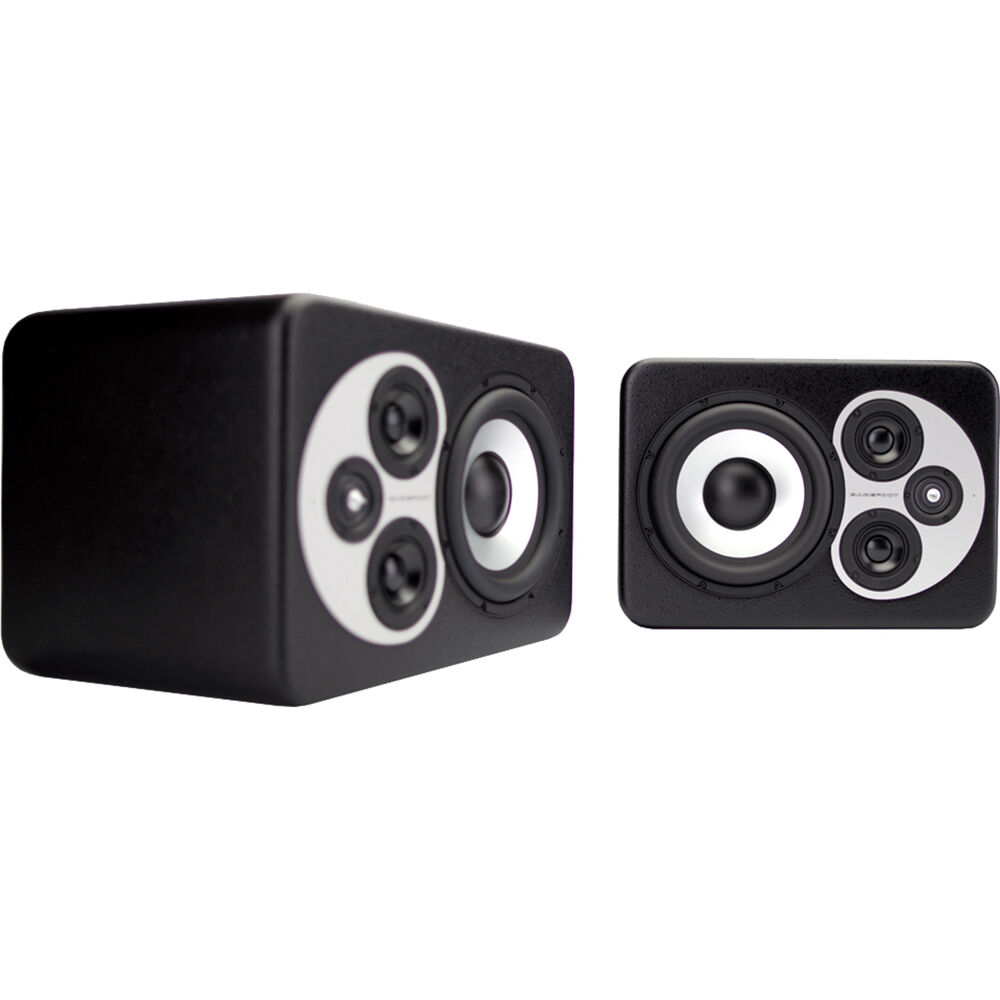

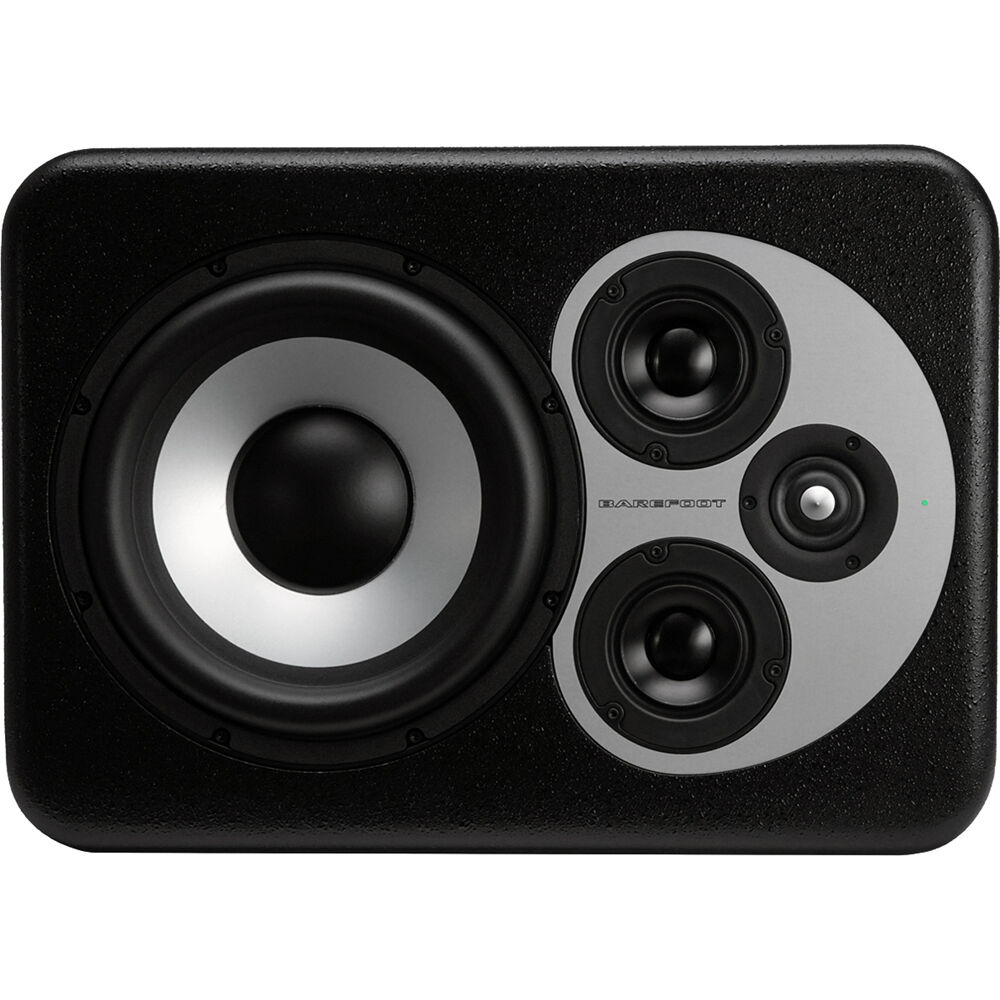

BAREFOOT SOUND MicroMain45 3-Way 8" Active Studio Monitor (Pair)

At a Glance

• 3-way active monitor
• 610W of power per monitor
• Frequency Response: 40 Hz to 45 kHz
• MAX SPL: Continuous 113 dB
• Sealed cabinet design
• 8? aluminum cone subwoofer
• Dual 2.5" aluminum cone midrange
• 1? ring radiator tweeter
• MEME Technology Voice Emulation
• Compact and affordable

MEME Technology

Barefoot MEME technology allows you to box up your secondary reference monitors for good. Despite the numerous advantages of high-resolution monitors like the Footprint03, many engineers still rely on their NS10s and mix cubes as secondary references. These speakers have long traditions, and people find them familiar and useful for focusing in on certain aspects of their mix.

However, it�s also a fact that crowding your console with those extra boxes degrades the sound field of the primary reference monitors. Not to mention, these speakers are no longer manufactured, need amplifiers, require cable runs, and consume more studio space. MEME offers an elegant solution by emulating the sound and translation characteristics of those other classic monitors.

MEME Vocies:

Flat

• Optimal setting for accuracy, transparency, and outstanding translation. Setting has a flat frequency response and an extremely fast transient response. This is the default voice, when the MEME Selector Switch is not connected to the speaker.

Hi-Fi

• While it does not emulate any one speaker in particular, this setting is indicative of hi-fi in the colloquial sense of the term. The midrange is a bit scooped and highs are a little accentuated. The bass response is altered to have less damping, yielding a hybrid character somewhere between the fast, tight, articulate sound of a sealed cabinet and the slower, fatter sound of a ported speaker. The result is a sweeter, more forgiving sonic character.

Old School

• This setting emulates the frequency, phase, and transient response of the NS10M.

Cube

• This setting emulates the frequency, phase, and transient response of classic mix cubes.



BAREFOOT SOUND MicroMain45 Specs

Monitor Type & Configuration	Active 3-Way
Total Power Output	610 W per Monitor
Tweeter	1x 1" / 25.4 mm Ring Radiator
Midrange	2x 2.5" / 6.3 cm Aluminum Cone
Woofer	1x 8" / 20.3 cm Aluminum Cone
Frequency Range	40 Hz to 45 kHz ± 3 dB
Audio I/O	1x XLR 3-Pin Balanced Mic Input (50 Kilohms)
Digital Audio I/O	No
Network I/O	No
Wireless	No

Number of Included Monitors	Stereo Pair
Enclosure	Sealed, Shielded
Total Power Output	610 W per Monitor

Tweeter	1x 1" / 25.4 mm Ring Radiator
Midrange	2x 2.5" / 6.3 cm Aluminum Cone
Woofer	1x 8" / 20.3 cm Aluminum Cone
Amplifiers	HF: 180 W MF: 180 W LF: 250 W

Frequency Range	40 Hz to 45 kHz ± 3 dB
Frequency Response	53 Hz to 40 kHz ± 1 dB
Maximum Sound Pressure Level (SPL)	113 dB

Crossover Frequency	600 to 3600 Hz
Phase Adjustment	No

Audio I/O	1x XLR 3-Pin Balanced Mic Input (50 Kilohms)
Digital Audio I/O	No
Network I/O	No

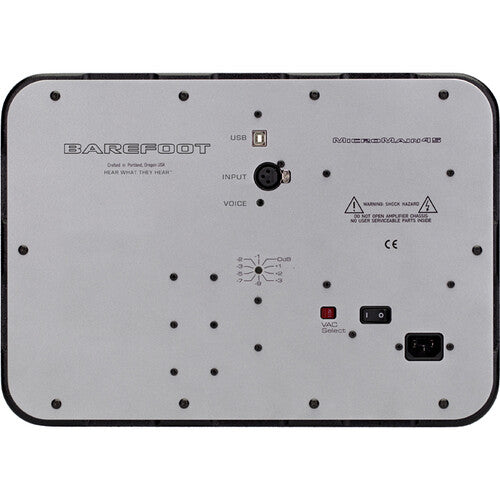

Other I/O	2x 1/8" / 3.5 mm TRS Control In/Out (Rear Panel)
USB	1x USB-B (Service/Update)
Wireless	No
Mobile App Compatible	No

AC Input Power	115 to 230 VAC, 50/60 Hz
Power Consumption	18 W (Idle) 400 W (Maximum)

Color	Black
Monitor Orientation	Horizontal
Mounting Points	No
Dimensions (W x H x D)	15.5 x 11 x 11" / 39.4 x 27.9 x 27.9 cm
Weight	37.5 lb / 17.0 kg
