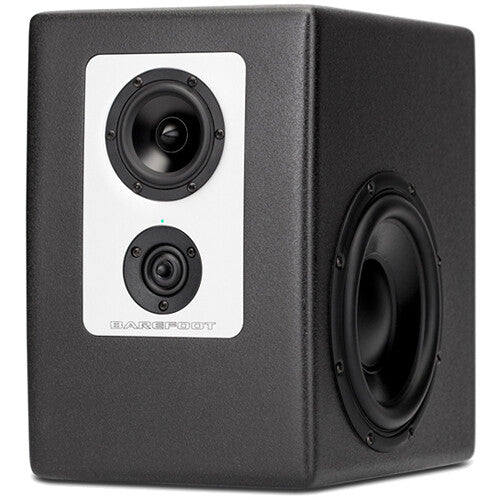

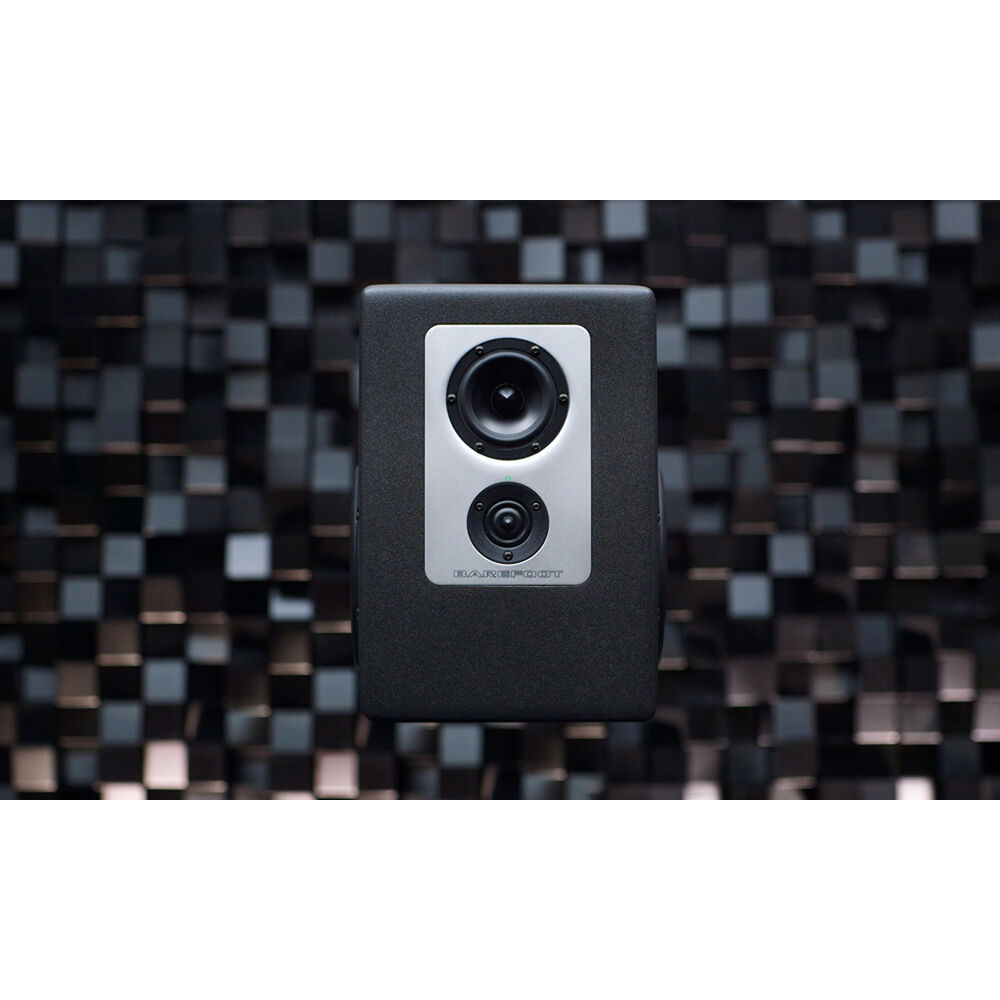

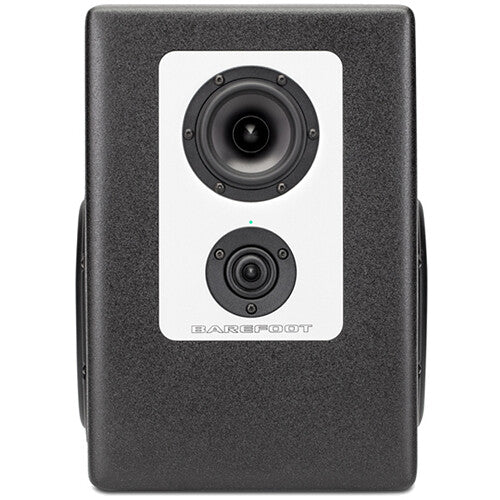

BAREFOOT SOUND Footprint01 3-Way Dual 8" Active Studio Monitor (Pair)

At a Glance

• 3-way active monitor
• 650W of power per monitor
• Frequency response: 36 Hz to 45 kHz
• MAX SPL: Continuous 113 dB
• Crossover frequencies 250/3600 Hz
• Dual 8" woofers
• 4" midrange driver
• 1" ring radiator tweeter
• MEME technology voice emulation
• Dual-Force technology

Design

Barefoot's approach to reference monitor speaker design has always been to provide audio professionals with exemplary sound quality, wide dynamic range and bass extension at every stage of the audio production process, from recording through mixing to mastering. Composers, songwriters, musicians, beatmakers, postproduction specialists, and others can benefit from the Barefoot sound, whatever their work environment.

• 18 liters total internal volume
• Sealed woofer and midrange enclosures
• Machined aluminum baffle plate
• Acoustic damping throughout

Dual-Force Technology

• Cabinet vibrations are a significant source of distortion and coloration in most loudspeakers. The primary mechanism is simple action and reaction. As the driver motor forces the cone to move back and forth in order to generate sound, the cone exerts an equal and opposite force on the motor. This force is transmitted through the driver frame to the cabinet. The effect is especially prevalent in the low frequencies, where the cone motion is greatest.

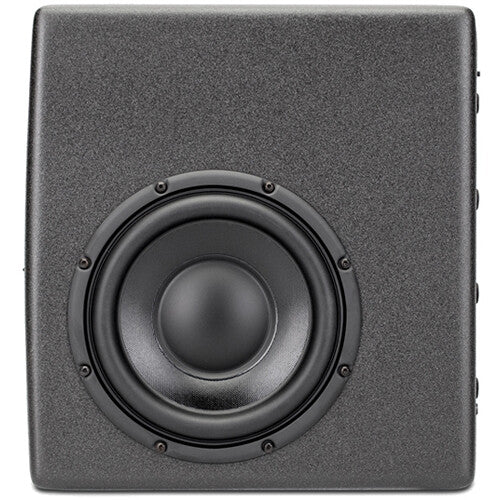

• Footprint01 cabinets eliminate vibrations before they even begin through Barefoot's innovative force cancellation design (Dual-Force Technology). The low-frequency drivers are mounted on opposing sides of the cabinet, and their motors are locked together. As the cones are driven in and out in opposite directions, the forces exerted on the motors cancel out one another. The vibrations never make it to the cabinet because they are not allowed to develop in the first place.
• This layout has the further benefit of forming a massive internal metal cabinet bracing. Furthermore, because the wavelengths generated by the subwoofers are much larger than the speaker cabinet dimensions, the subs radiate as if they were a single point source located on the axis with the tweeter.

MEME Technology

Barefoot MEME technology allows you to box up your secondary reference monitors for good. Despite the numerous advantages of high-resolution monitors, many engineers still rely on their NS10s and mix cubes as secondary references. These speakers have long traditions and people find them familiar and useful for focusing in on certain aspects of their mix.

However, it�s also a fact that crowding your console with those extra boxes degrades the sound field of the primary reference monitors. Not to mention, these speakers are no longer manufactured, need amplifiers, require cable runs, and consume more studio space. MEME offers an elegant solution by emulating the sound and translation characteristics of those other classic monitors.

MEME Vocies:

Flat

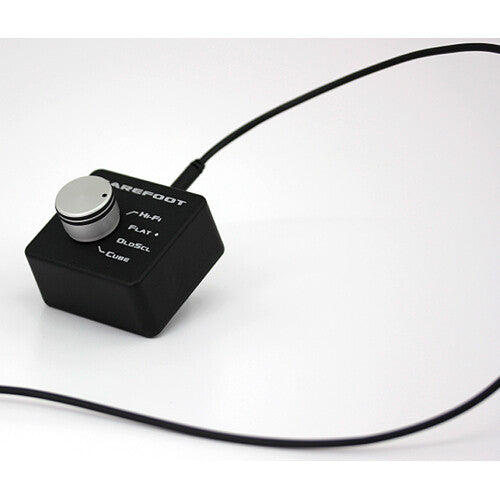

• Optimal setting for accuracy, transparency and outstanding translation. Setting has a flat frequency response and extremely fast transient response. This is the default voice when the MEME Selector Switch is not connected to the speaker.

Hi-Fi

• While it does not emulate any one speaker in particular, this setting is indicative of hi-fi in the colloquial sense of the term. The midrange is a bit scooped and highs are a little accentuated. The bass response is altered to have less damping, yielding a hybrid character somewhere between the fast, tight, articulate sound of a sealed cabinet and the slower, fatter sound of a ported speaker. The result is a sweeter more forgiving sonic character.

Old School

• This setting emulates the frequency, phase, and transient response of the NS10M.

Cube

• This setting emulates the frequency, phase, and transient response of classic mix cubes.

BAREFOOT SOUND Footprint01 Specs

Monitor Type & Configuration	Active 3-Way
Total Power Output	650 W per Monitor
Tweeter	1x 1" / 25.4 mm Ring Radiator
Midrange	1x 4" / 10.2 cm Aluminum Cone
Woofer	2x 8" / 20.3 cm Aluminum Cone
Frequency Range	36 Hz to 45 kHz ± 3 dB
Audio I/O	1x XLR 3-Pin Balanced Line Input (50 Kilohms)
Digital Audio I/O	No
Network I/O	No
Wireless	No

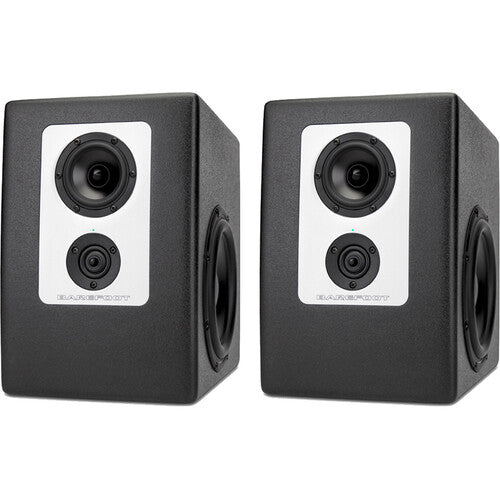

Number of Included Monitors	Stereo Pair
Enclosure	Sealed, Shielded
Total Power Output	650 W per Monitor

Tweeter	1x 1" / 25.4 mm Ring Radiator
Midrange	1x 4" / 10.2 cm Aluminum Cone
Woofer	2x 8" / 20.3 cm Aluminum Cone
Amplifiers	High-Mid: 150 W LF: 500 W

Frequency Range	36 Hz to 45 kHz ± 3 dB
Frequency Response	45 Hz to 40 kHz ± 1 dB
Maximum Sound Pressure Level (SPL)	113 dB

Crossover Frequency	250 to 3600 Hz
Phase Adjustment	No

Audio I/O	1x XLR 3-Pin Balanced Line Input (50 Kilohms)
Digital Audio I/O	No
Network I/O	No

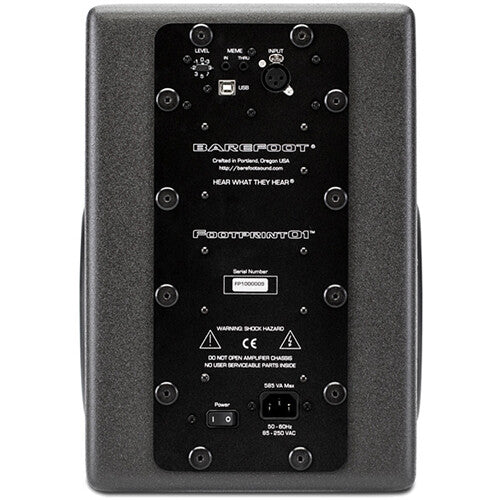

Other I/O	1x 1/8" / 3.5 mm TRS Control Input (Rear Panel) 1x 1/8" / 3.5 mm TRS Control Thru (Rear Panel)
USB	1x USB-B (Service/Update)
Wireless	No
Mobile App Compatible	No

AC Input Power	85 to 265 VAC, 50/60 Hz
Power Consumption	15 W (Idle) 765 W (Maximum)

Color	Black
Monitor Orientation	Vertical
Enclosure Material	MDF
Mounting Points	No
Dimensions (W x H x D)	9.5 x 14 x 13" / 24.1 x 35.6 x 33 cm
Weight	35.0 lb / 15.9 kg
