Description

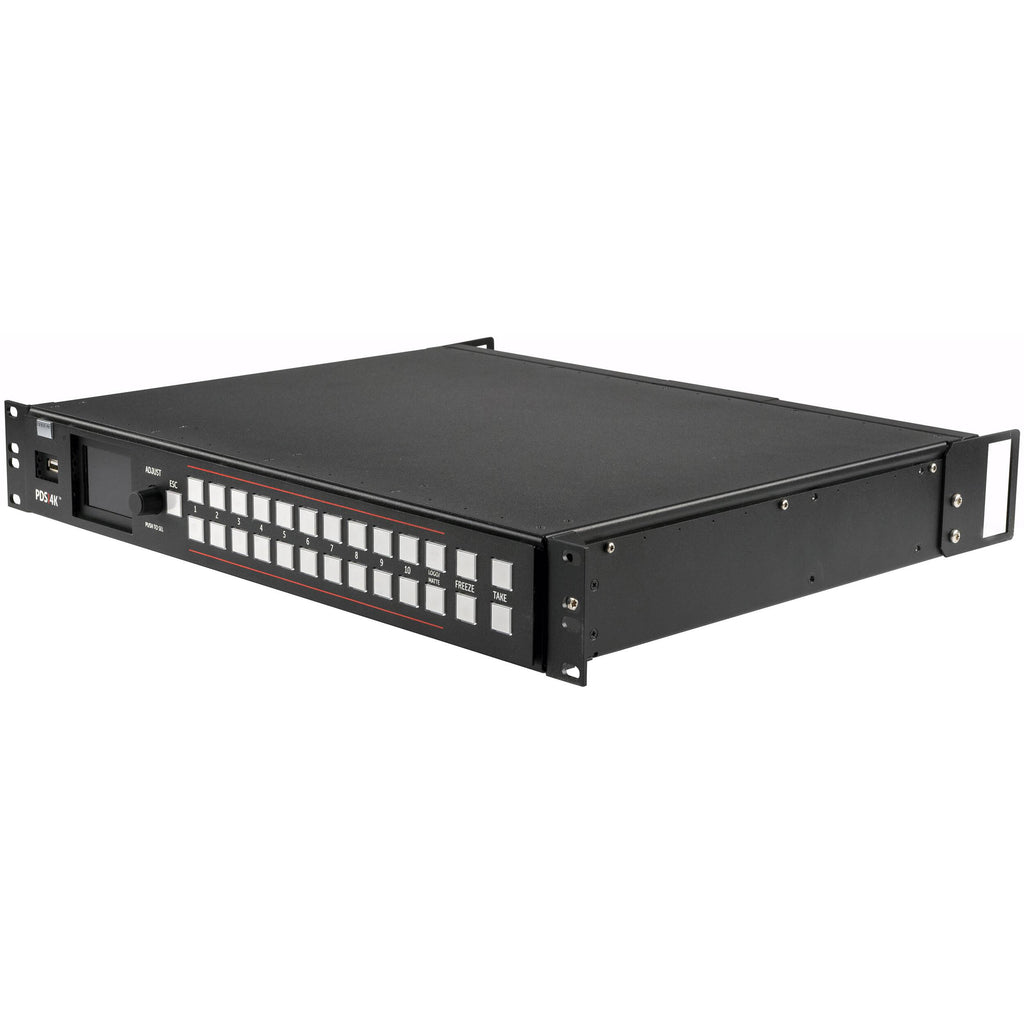

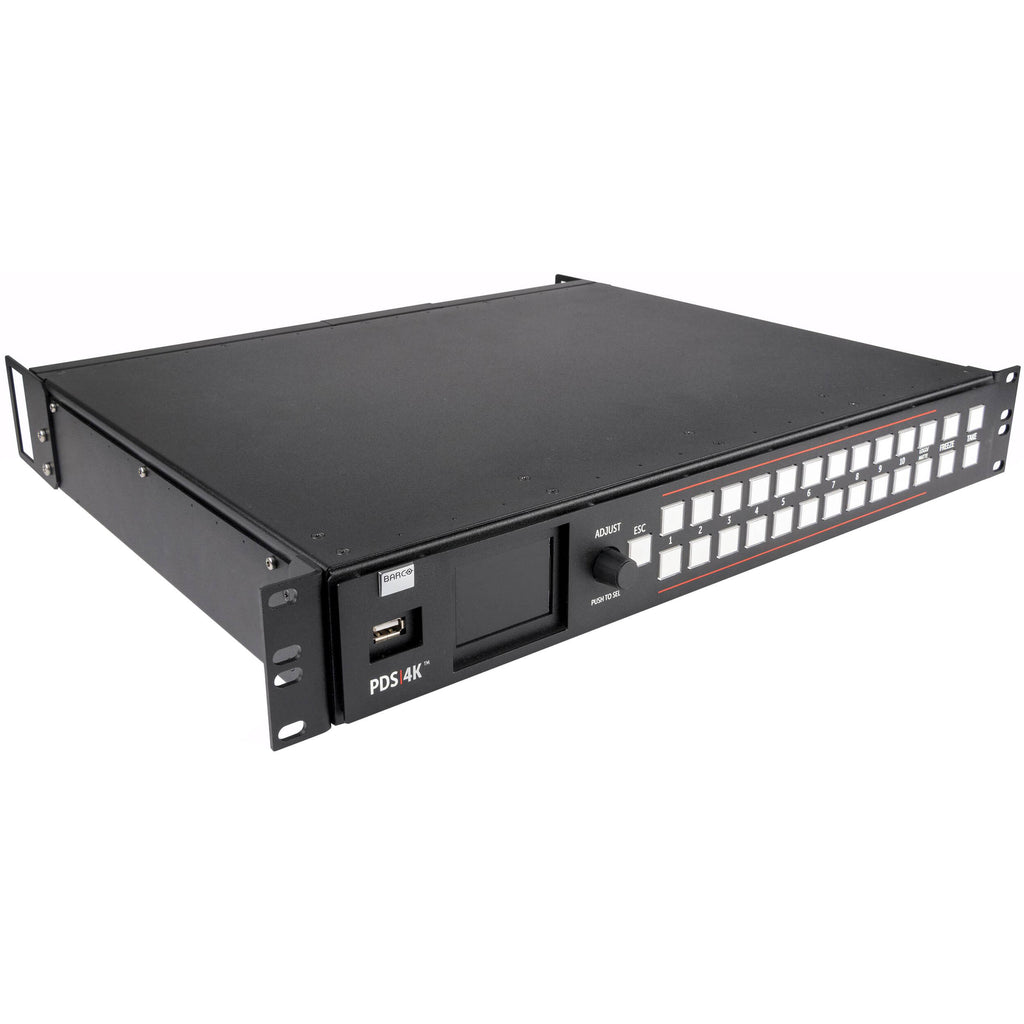

Barco PDS-4K Overview
This PDS-4K UHD 4K HDMI and 12G-SDI Presentation Switcher with Dante Audio and DisplayPort 1.2 Input Card from Barco bundles together an intuitive HDMI/SDI switcher and input card expansion for increased connectivity and audio embedding capabilities. The PDS-4K switcher itself has six HDMI 2.0 and two 12G-SDI inputs as well as four HDMI 2.0 and four 12G-SDI outputs capable of supporting UHD 4K video at 60 Hz with a latency of just 2 frames. The included input card inserts into the switcher and adds two DisplayPort 1.2 ports to pass video and embedded audio to the switcher's outputs and embed/de-embed Dante network audio.
The switcher is best suited for midsized events like seminars or boardroom applications thanks to its number of video inputs and outputs. It's even capable of showing two live inputs simultaneously via PiP. Control of the bundle can be achieved via the switcher's onboard buttons or using the Ethernet port with WebUI software. The whole system is easily installed in your preexisting space thanks to the included installation hardware and power cables.

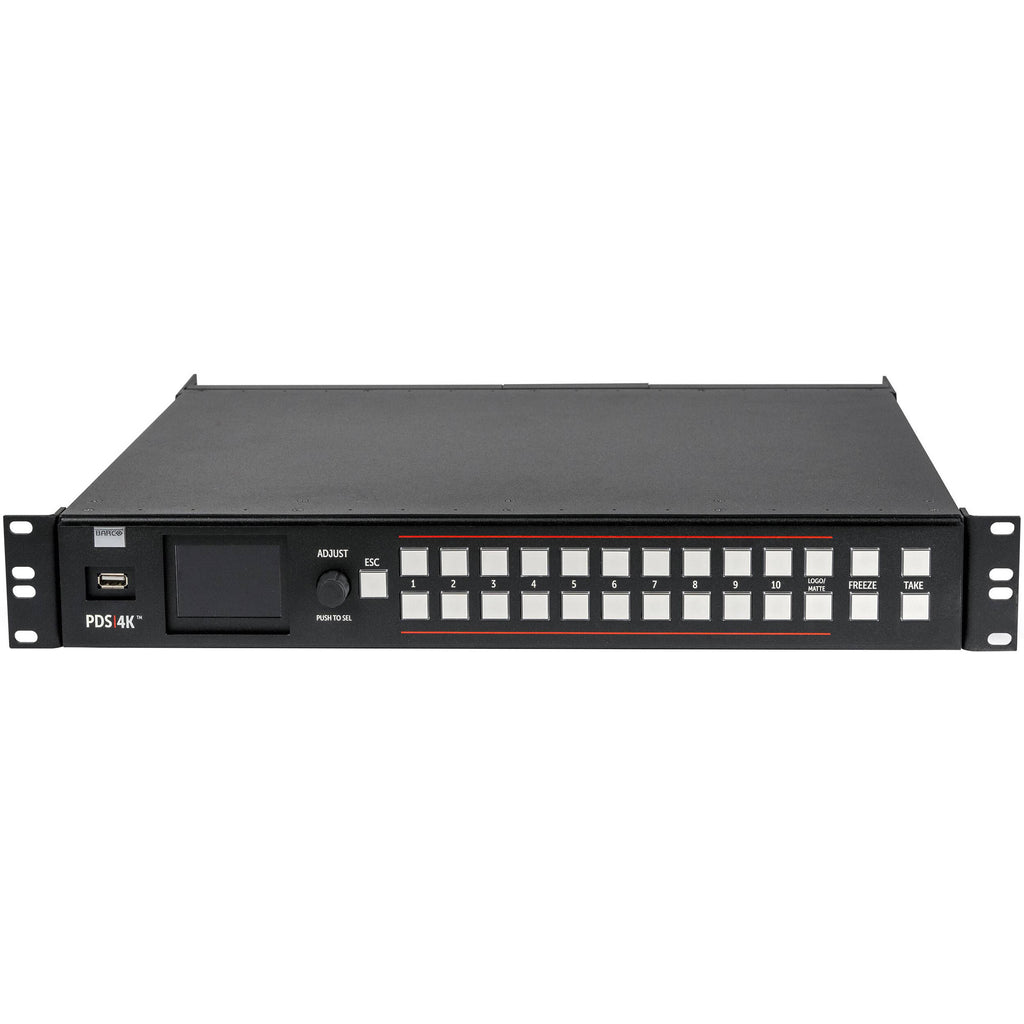

- Front-panel buttons, LCD screen
- Compatible with Barco ClickShare, third-party control panels
- RJ45 Ethernet connector to WebUI control via Event Master Toolset
- HDR compatible, HDCP 1.x and 2.2 compliant
- Event Master Athena Scaling technology
- PiP layers display two live inputs simultaneously
- USB inputs to upload up to eight stills or perform firmware updates
- Dual-screen and quad-screen switching
- Passes video and embedded audio from PDS-4K HDMI inputs and DisplayPort 1.2 inputs to program outputs and embed/de-embed to Dante network audio
- Outputs are selectable between inputs via Dante Audio
- PGM audio return to Dante Audio
- All inputs transmit to Dante Audio
In the Box
- Barco PDS-4K UHD 4K HDMI and 12G-SDI Presentation Switcher with Dante Audio and DisplayPort 1.2 Input Card
- Barco PDS-4K UHD 4K HDMI and 12G-SDI Presentation Switcher
- ImagePRO-II Rear Rack Support
- 2 x Rear Connector Protector
- 2 x Rack Ear
- 4 x Screw
- USB Thumb Drive
- US/EU Power Cords
- Dante Audio and DisplayPort 1.2 Input Card
- Limited 3-Year Manufacturer Warranty
Barco PDS-4K Specs
| Switching Type | Pushbutton, Software |
| Latency | 2 Frames |
| Audio Processing | 48 kHz / 16-Bit 48 kHz / 24-Bit |

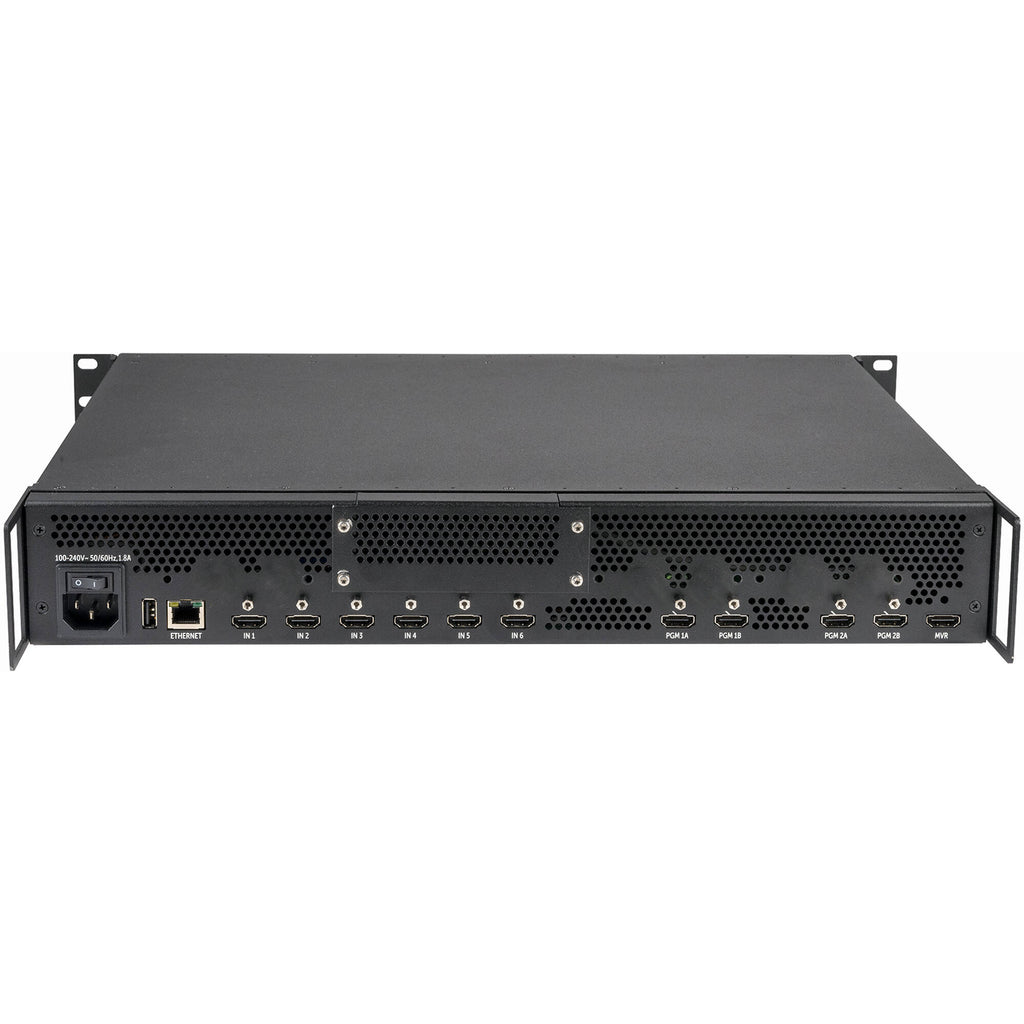

| Video Inputs | 6 x HDMI (HDMI 2.0) Female 2 x BNC (12G-SDI) Female 2 x DisplayPort (DisplayPort 1.2) Female |
| Input Video Format | HDMI UHD 4K 50/59.94/60 fps DCI 2K 60 fps XGA (1024 x 768) 47.95 fps SDI UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps WUXGA (1920 x 1200) 50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94 fps DisplayPort UHD 4K 60 fps |
| Embedded Audio Input | RJ45: 2-Channel (per Input) |
| Video Outputs | 4 x HDMI (HDMI 2.0) Female 4 x BNC (12G-SDI) Female |
| Output Video Format | HDMI UHD 4K 50/59.94/60 fps DCI 2K 60 fps XGA (1024 x 768) 47.95 fps SDI UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps WUXGA (1920 x 1200) 50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94 fps |
| Output Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
| Embedded Audio Output | RJ45: 2-Channel (per Output) |
| Multiview Output | 4-Way Multiview |
| Inputs/Outputs | 1 x RJ45 Female |
| Other I/O | 1 x RJ45 LAN Input 2 x USB-A Firmware Input |
| Video Standard Compliance | SMPTE 292M/424M/ST-2081-10/ST-2082-10 |
| HDCP Support | , Version 2.2 |
| HDR Compatibility | HDR10 |
| OS Compatibility | Windows macOS *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi | Yes |
| Bluetooth | None |
| Power I/O | 1 x IEC C14 Input |
| Power Consumption | Device: 100 to 240 VAC (151 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 85% (Non-Condensing) |
| Storage Humidity | 0 to 95% (Non-Condensing) |
| Dimensions | 19.06 x 16.1 x 2.61" / 48.41 x 40.9 x 6.62 cm |
| Weight | 13.69 lb / 6.21 kg |
