Description
- HDCP 1.0 Compliant Matrix Router
- 16 DVI Inputs, 16 DVI Outputs
- Resolutions from 480p to WUXGA & Full HD
- Signal Re-Clocking
- Programmable EDID Support
- Monitor Output
- Built-in Test Pattern Generator
- Encore & ScreenPro-II Controller Support
- 4RU Height
- Auto Ranging Power Supply Included

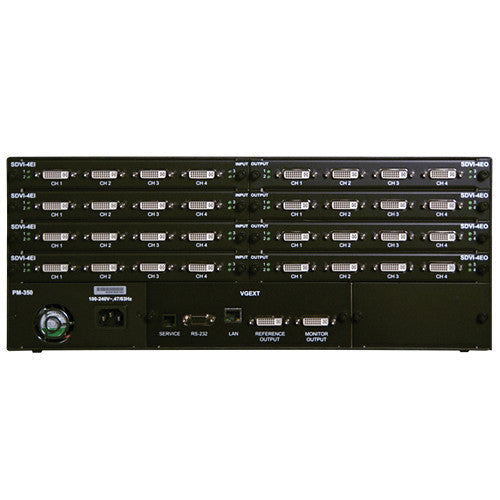

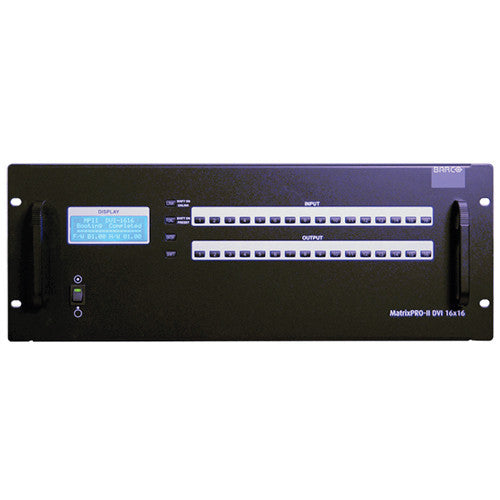

The MatrixPRO-II 16x16 DVI Router from Barco is an HDCP compliant video signal matrix router that can switch any of the 16 DVI inputs to any or all of the 16 outputs. Any input source, such as a DVD player, Blu-ray player, or a computer with high-resolution graphics, can be routed to a DVI or HDMI (via an optional adapter) output digital display.
The router accepts input resolutions from 480p up to 2048x1080 and 1920x1200. Each input is re-clocked as it passes through the router to maintain the DVI signal strength. Each channel can be programmed with unique EDID information based on the system requirements. In addition to the 16 outputs, the router features a monitoring output to which any input can be routed to and allows you to monitor and verify the input signal before it is switched to the output.
An integrated test pattern generator lets you diagnose and fix issues that may arise during installation. The test pattern is available with or without any valid input signals. The router can be controlled in a variety of ways, including the front panel, Encore and ScreenPro-II controllers via Ethernet for easy integration into the Barco Encore family of products, the integrated web page server, or the GUI program running on a Windows PC.
The router comes included with an auto ranging power supply. For enhanced reliability, an optional redundant power supply is also available. The additional power supply shares the load during operation, extending the lifetime of your power supplies.
- Main Features
-
- Fast switching
- Signal re-clocking
- HDCP 1.0 support
- Programmable EDID support
- Monitor output
- All progressive resolutions from 480p up to WUXGA/HD
- Built-in test pattern
- LED indicators for valid input video and output device sense (HPD)
- Control from Encore and ScreenPro-II controllers
- Auto ranging power supply
- Optional redundant power supply
- 4RU height
- Power Supply
- Limited 3-Year Warranty
| Input & Output | 16 x DVI input 16 x DVI output All single-link DVI digital formats up to 165 MHz, per DVI 1.0 specification |
| EDID | 1.3 compatible |
| HDCP | 1.0 compatible |
| Control | Ethernet RJ-45, 10/100 Mbps autosense Computer, tablet, smartphone, or Encore or ScreenPRO-II controller via Ethernet link Command line control via Telnet or RS-232 serial |
| Input Power | 100 to 240 VAC, 47 to 63 Hz, auto-selecting 2.0A maximum |
| Temperature | 32 to 104&def;F (0 to 40�C) |
| Humidity (Non-condensing) | 0 to 95% |
| Rack Mountable | 4 RU |
| Dimensions | 17.3 x 15.0 x 7.0" (44.0 x 38.0 x 17.8 cm) |
| Weight | 24 lb (11 kg) |
