Description
BAE Audio 500C Overview

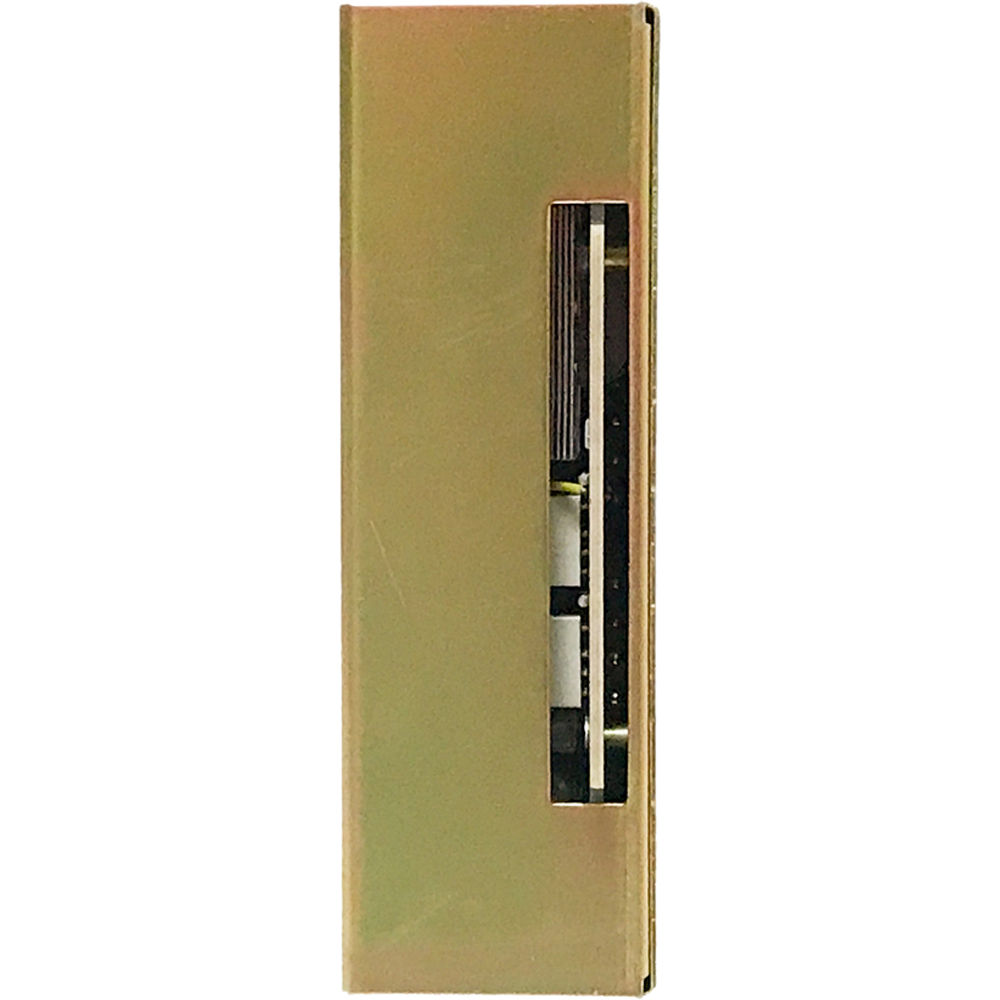

The BAE 500C is a 500-Series FET compressor designed to deliver dynamics control based upon classic studio FET compressors of the ?60s and ?70s for recording and mixing engineers, musicians, and producers in home setups, project studios, and commercial facilities. Fully enclosed and hand-wired in California, this single-width unit is compatible with 500-Series racks and features feedback-style limiting.

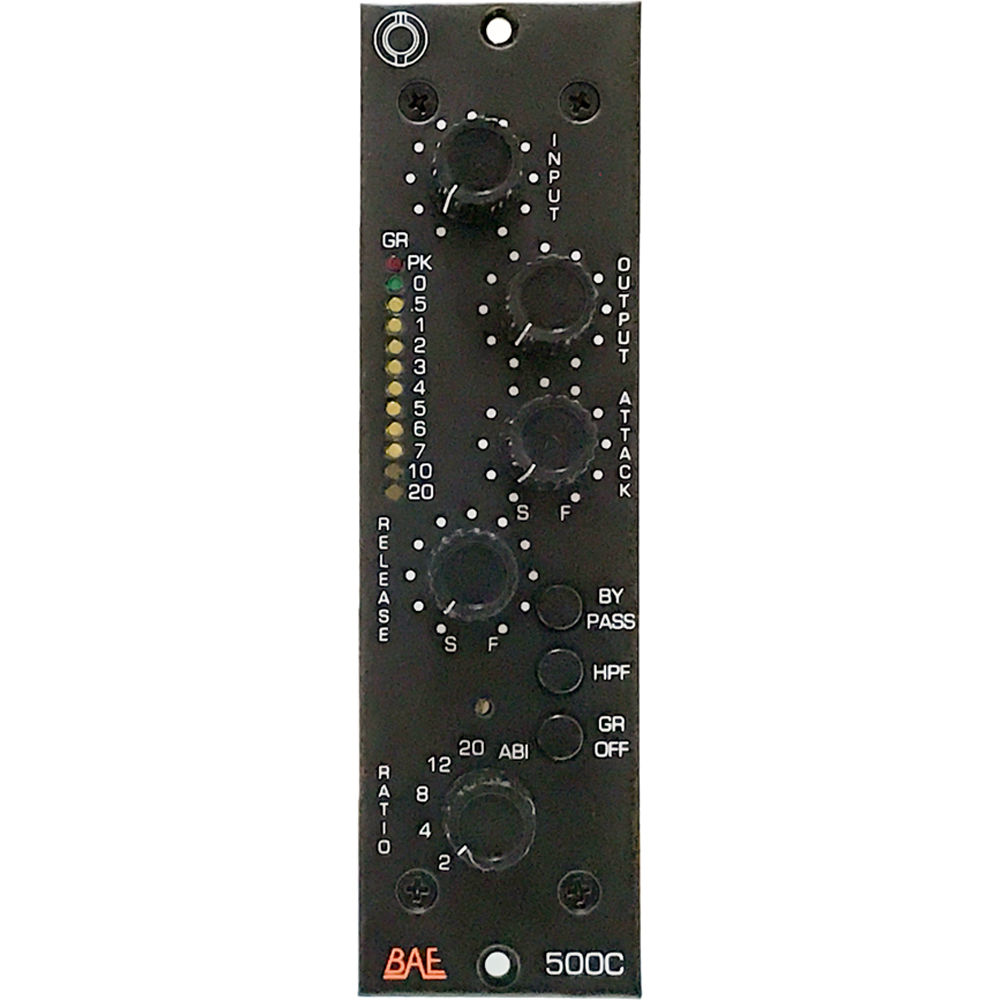

Its three API 2520-style op amps and transformer-coupled output contribute to its analog warmth. A 6 dB/octave high-pass filter at 125 Hz is selectable for the sidechain. There is a 12-segment meter for gain reduction, which can be switched off when you want the 500C?s tone without compression. Ratios are selectable via a rotary knob and include 2:1, 4:1, 8:1, 12:1, 20:1, and ABI (All Buttons In). Like the compressors that inspired it, the 500C offers adjustable input, output, attack, and release.
- Single-width unit compatible with 500-Series racks
- Based on classic FET compressors from the '60s and '70s
- Three API 2520?style op amps
- Transformer-coupled output
- Feedback-style peak limiter
- 6 dB/octave high-pass filter @ 125 Hz for sidechain
- Selectable ratio and ABI (All Buttons In) mode
- Adjustable input, output, attack, and release
- Gain reduction on/off switch
- 12-segment meter for gain reduction
- Hand-wired in California
- BAE Audio 500C FET Compressor for 500-Series Racks
- Limited 1-Year Warranty with 4-Year Extension upon Online Registration
BAE Audio 500C Specs
| Function |
Compressor
|
| Number of Channels |
1
|
| Inputs |
500-Series connector
|
| Outputs |
500-Series connector
|
| Maximum Input Level |
+27 dBu
|
| Compression Threshold |
Fixed
|
| Compression Ratio |
2:1, 4:1, 8:1, 12:1, 20:1, and ABI (All Buttons In)
|
| Attack Time |
Adjustable
|
| Release Time |
Adjustable
|
| Make-up Gain |
Adjustable
|
| Frequency Response |
10 Hz to 22 kHz (+0.3 dB, -0 dB)
|
| Noise |
-82 dB (+4 dBu input, 1 kHz, A-weighted, gain reduction off)
|
| THD + N |
0.15% (+4 dBu input, 1 kHz, A-weighted, gain reduction off)
|
| Specialties |
Sidechain HPF: 6 dB/octave @ 125 Hz
|
| Current Draw |
120 mA (approximately)
|
| Dimensions |
7.3 x 1.5 x 5.3" / 184.2 x 38.1 x 133.4 mm
|
| Weight |
2 lb / 0.9 kg
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
