Description
BAE Audio 312A Overview
This version of the BAE Audio 312A Preamp Rackmount Module has a capacitor-free circuit design, a 1 RU 19" rackmount form factor, and utilizes Jensen input and output transformers as well as the Avedis 1122 opamp.
I/O is provided by rear-panel XLR connectors as well as a high-impedance front-panel 1/4"phone DI input for guitars, synthesizers, and other instruments. A front-panel MIC/INST switch engages the DI, while a dedicated gain knob allows you to add 10 to 66 dB of gain. Three dedicated switches provide phantom power, polarity inversion, and a signal pad. The contacts in the preamplifier's switches are gold-plated to ensure reliability and signal fidelity.

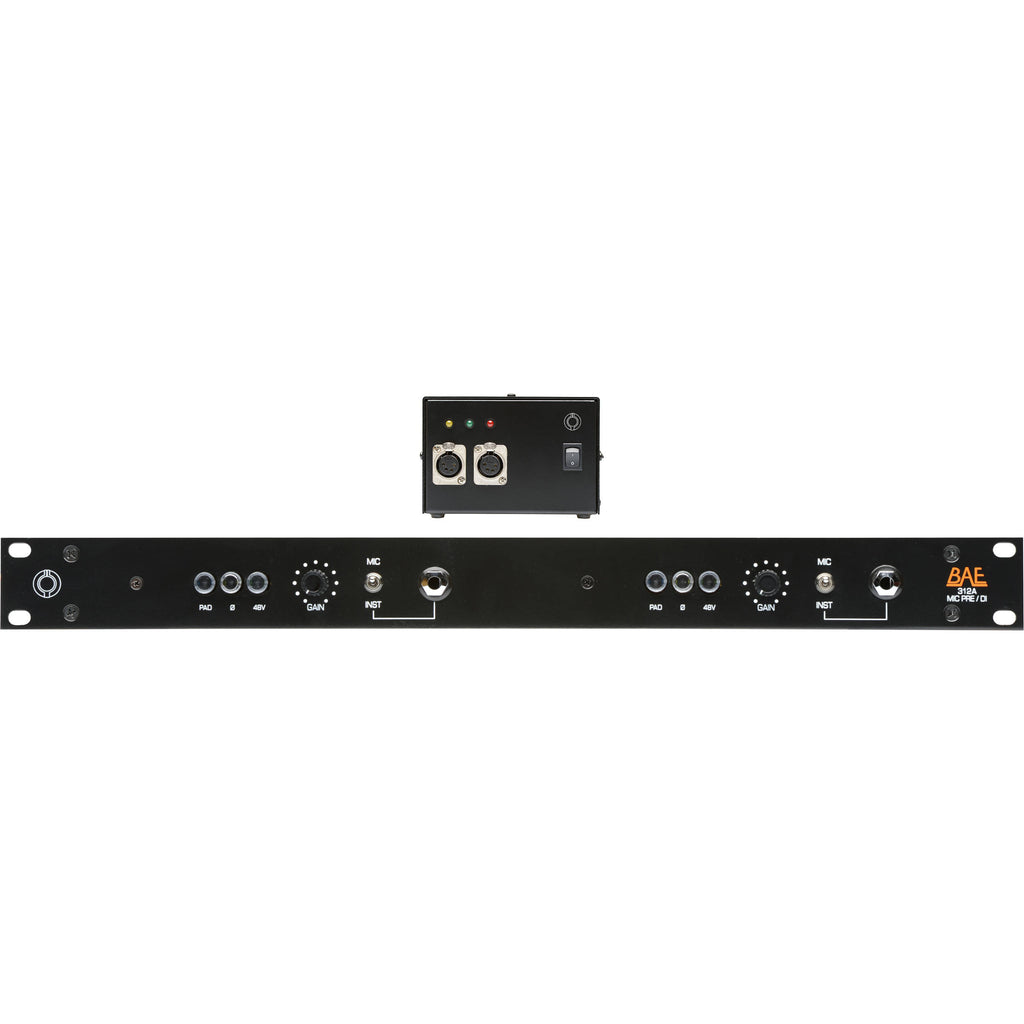

- BAE Audio 312A Rackmount and Module (Dual, With Power Supply)

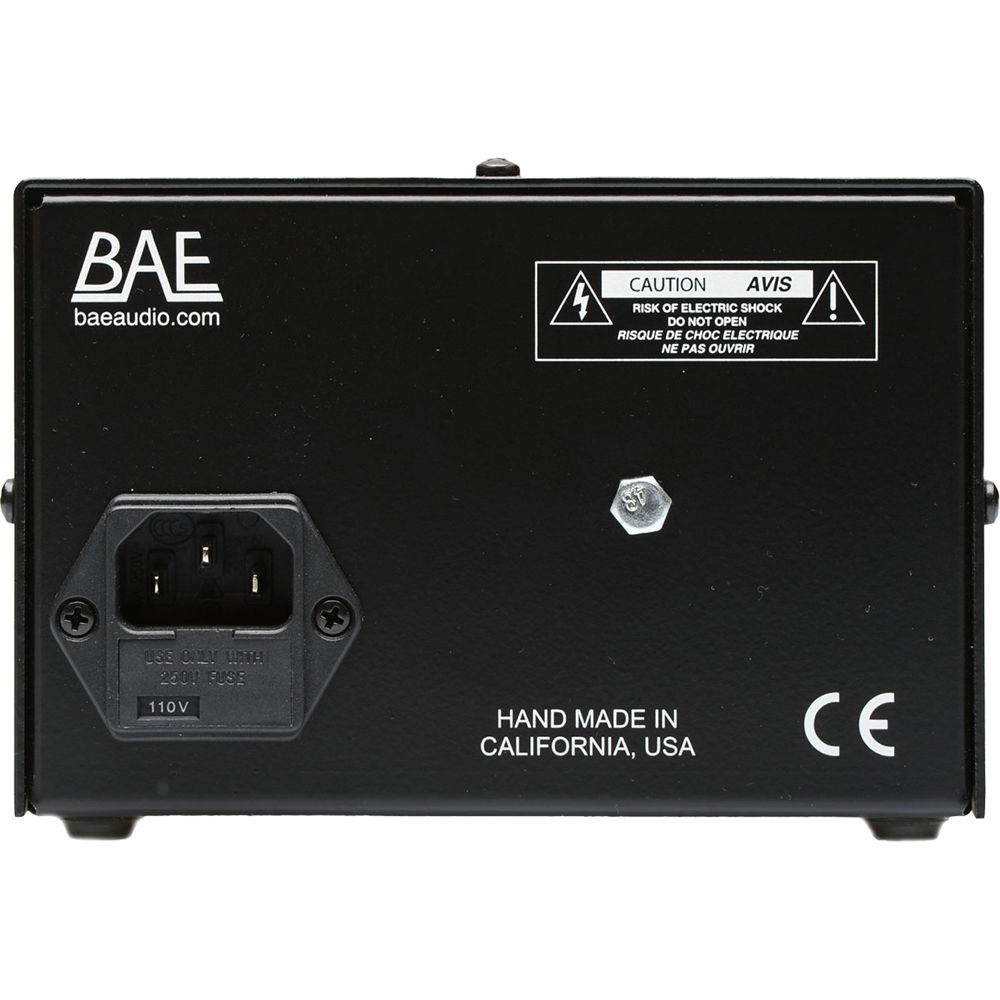

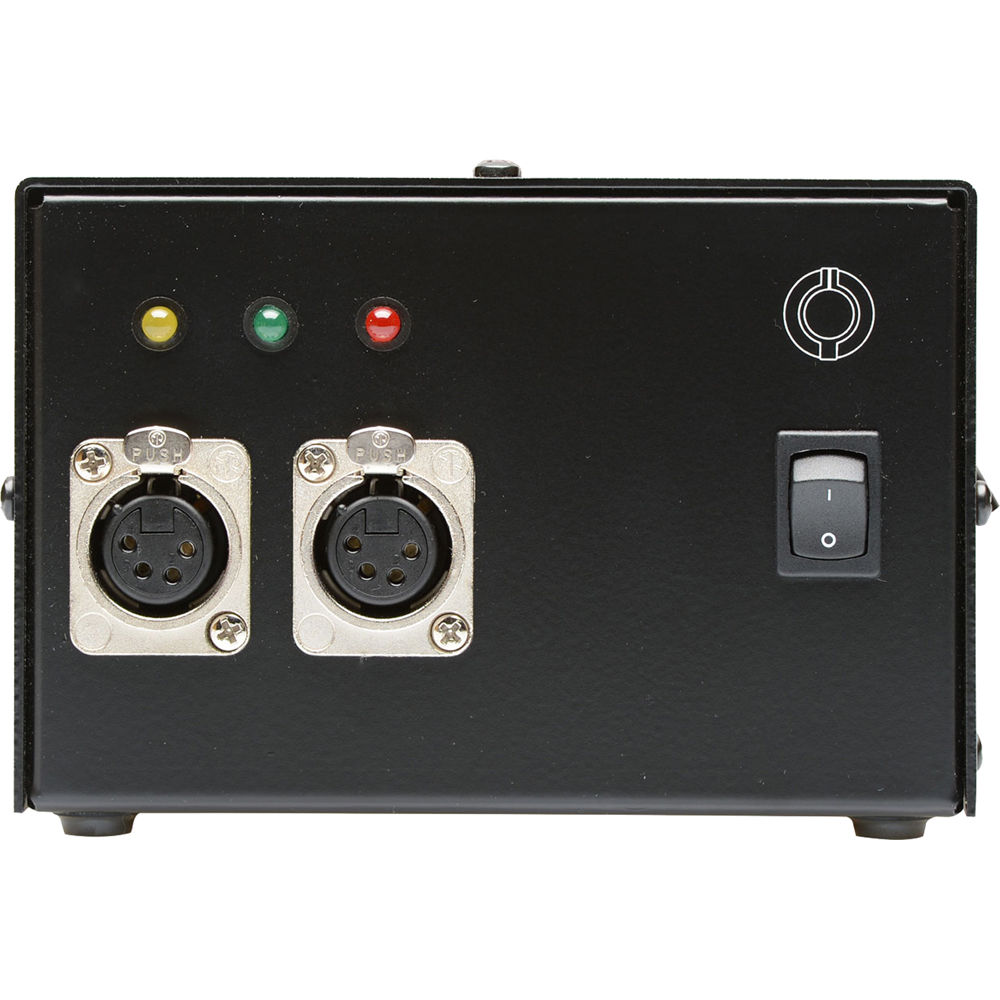

- Remote Power Supply with 4' (1.2 m) Cable
- Limited 5-Year Warranty (If Purchased in the U.S.A.)
No additional resources available
BAE Audio 312A Specs
| I/O |
2x XLR rear-panel connectors for mic I/O
1x front panel 1/4" (6.35 mm) DI input |
| Frequency Response |
5 Hz to 75 kHz (-3 dB)
|
| Input Impedance |
Mic: 1400 ohms
Line: 10 kOhms D.I.: 250 kOhms |
| Output Impedance |
75 ohms
|
| Common Mode Rejection Ratio |
110 dB minimum at 60 Hz
|
| Maximum Output Level |
+27.1 dBu at 600 ohms
|
| Power Requirements |
115/230 VAC, 27 W(Rackmount)
40 mAh per rail |
| Gain |
10 to 66 dB
|
| Equivalent Input Noise |
-120 dBu, unweighted 300 kHz bandwidth
|
| Dimensions |
19 x 1.75 x 9" (48.26 x 4.45 x 22.86 cm)
|
| Box Dimensions (LxWxH) |
17 x 16 x 10"
|
