Description
BAE Audio 1084 Module Overview
The 1084 Module from BAE is a hand-wired mic preamp/EQ that uses Canford wire with St. Ives (Carnhill) transformers and Elma switches. It can be used by engineers, producers, and musicians for applications such as recording, broadcast TV, sound reinforcement, and more.
The 1084 features a frequency range of 10 Hz to 55 kHz and has a 3-band equalizer; it looks identical to the original module and will happily retrofit in vintage Neve 80 Series consoles. It is engineered in exactly the same way as the original: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry.

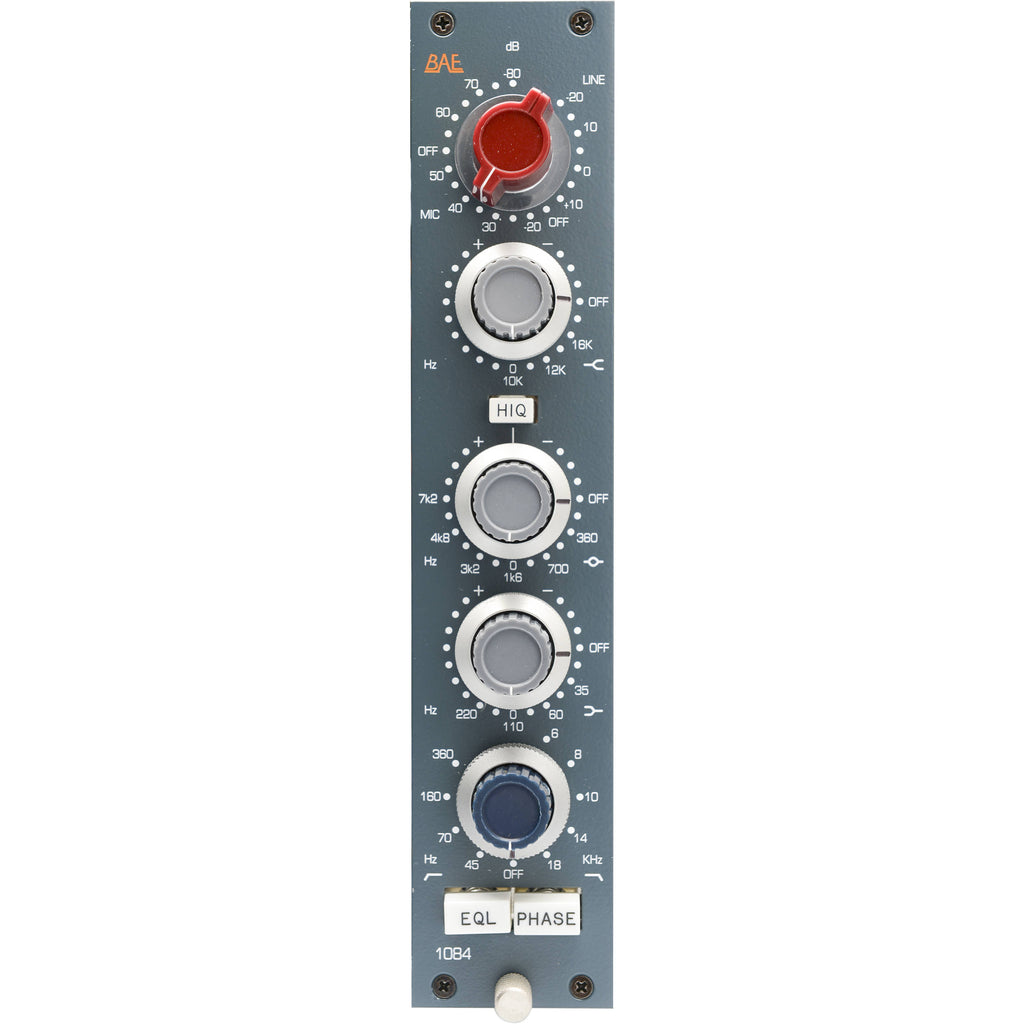

Some other features include an EQ switch, and phase switch on the front panel.
- BAE Audio 1084 Mic Pre/EQ Module
- Limited 5-Year Warranty
-
Expansion ChassisEssential
No additional resources available
BAE Audio 1084 Module Specs
| Input/Output |
N/A
|
| Frequency Response |
10 Hz to -3 dB at 55 kHz
|
| 3-Band Equalizer |
HF: +/-16 dB fixed frequency shelving at 10 kHz, 12 kHz, and 16 kHz
LF: +/-16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz, and 220 Hz MF: +/-18 dB peaking, fixed Q with selectable frequencies of 36 Hz. 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHz & 7.2 kHz. |
| High Pass Filter |
50 Hz, 80 Hz, 160 Hz, and 300 Hz
|
| Low Pass Filter |
6 kHz, 8 kHz, 10 kHz, 14 kHz, & 18 kHz
|
| Mic Input Impedance |
1200/300 ohms
|
| Line Input Impedance |
10 kOhms
|
| DI Input Impedance |
150 kOhms
|
| Output Impedance |
65 ohms
|
| Common Mode Rejection Ratio |
100 dB min @ 60 Hz
|
| Maximum Output Level |
+27.4 dBu @ 600 ohms
|
| Power Requirements |
115/230 VAC, 28 W
|
| Gain |
0 to 80 dB
|
| Equivalent Input Noise |
-110 dBu; unweighted 300 kHz bandwidth
|
| Dimensions |
1.8 x 8.8 x 10.5" (4.6 x 22 x 27 cm)
|
| Weight |
6 lb (2.72 kg)
|
