Description
BAE Audio 1073MP Overview

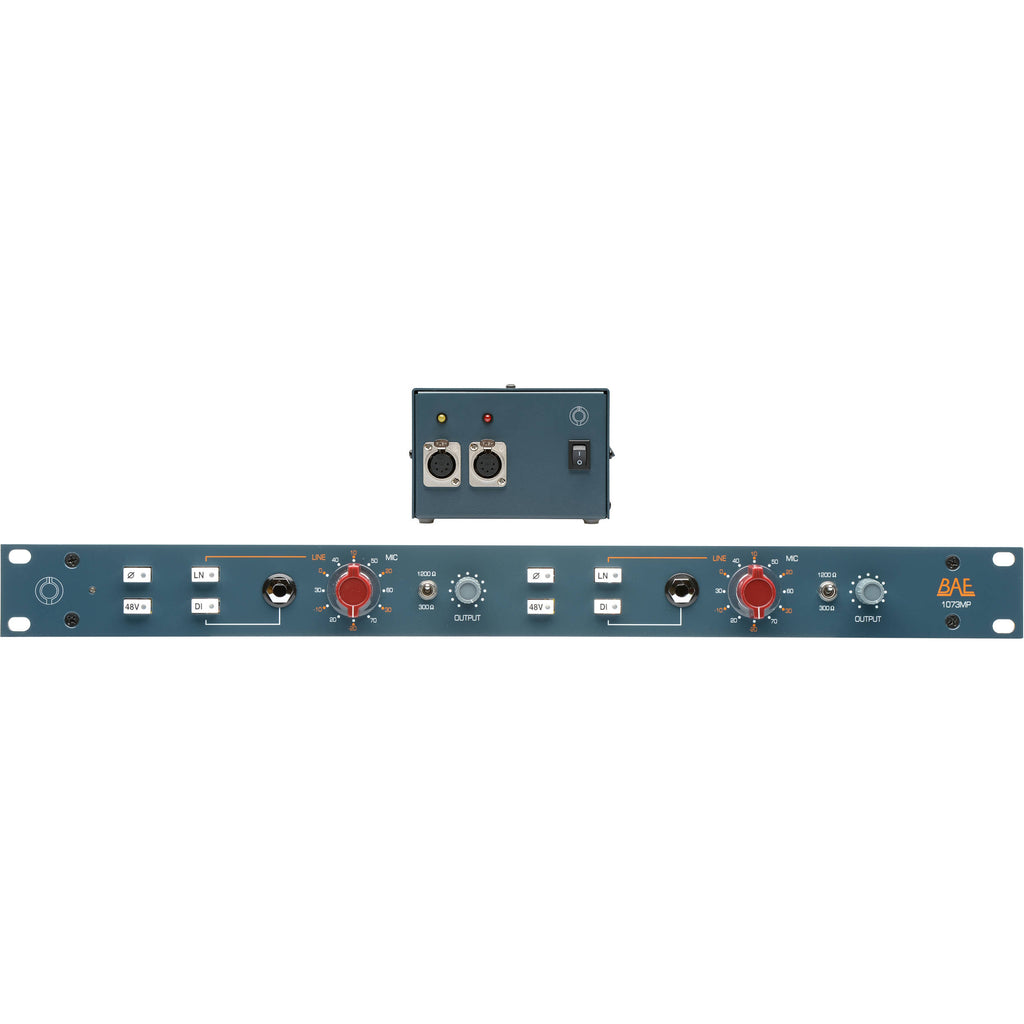

The 1073MP from BAE is a dual-channel hand-wired mic preamp with power supply. It can be used by engineers, producers, and musicians for applications such as recording, broadcast TV, sound reinforcement, and more.
The 1073MP features a frequency range of 10 Hz to 55 kHz and shares the same characteristic Class A sound as the mic preamp version of the 1073 equalizer. Built with a transformer-coupled input with two selectable impedances, the 1073MP works well with a variety of different microphones.
There is also a line-input feature for adding depth to 2-bus mixes, and a DI input for all passive and active instruments. Other features include a phase switch and a 48V phantom switch on the front panel. On the back panel there is one XLR input and output connector for each channel, and one mixed XLR output.
- BAE Audio 1073MP - Dual-Channel Mic Pre, with Power Supply

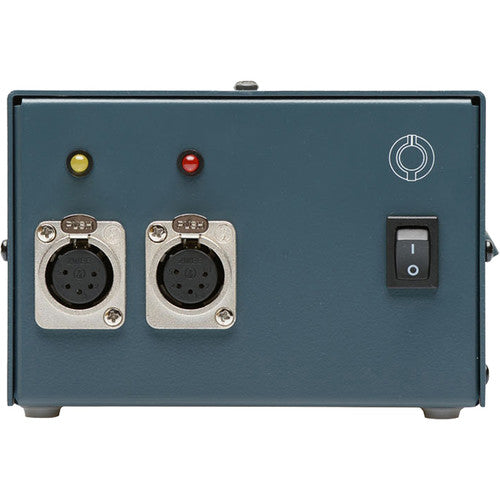

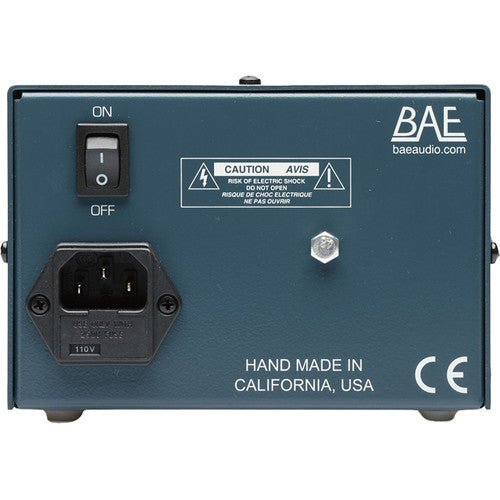

- BAE Audio 24V Power Supply
- Limited 5-Year Warranty
No additional resources available
BAE Audio 1073MP Specs
| Input/Output |
2x 1/4" (6.3 mm) DI input
2x 3-pin XLRF (output) 2x 3-pin XLRM (mic/line input) |
| Frequency Response |
10 Hz to 55 kHz @ -3 dB
|
| High Pass Filter |
N/a
|
| Mic Input Impedance |
1200/300 ohms
|
| Line Input Impedance |
10 kOhms
|
| DI Input Impedance |
150 kOhms
|
| Output Impedance |
65 ohms
|
| Common Mode Rejection Ratio |
100 dB min @ 60 Hz
|
| Maximum Output Level |
+27.4 dBu @ 600 ohms
|
| Power Requirements |
115/230 VAC, 30 W
|
| Gain |
0 to 71 dB
|
| Equivalent Input Noise |
-110 dBu; unweighted 300 kHz bandwidth
|
| Dimensions |
19 x 1.8 x 9" (48 x 4.6 x 23 cm)
|
| Weight |
10 lb (4.54 kg)
|
