Description
BAE Audio 1073 Overview
The 1073 19" Rack with No Power Supply from BAE is a hand-wired mic preamp using Canford wire, with St. Ives (Carnhill) transformers, and Elma switches. It can be used by engineers, producers, and musicians for applications such as recording, broadcast TV, sound reinforcement, and more.
The 1073 features a frequency range of 10 Hz to 55 kHz and has a 3-band equalizer. It is engineered in exactly the same way as the original: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry.

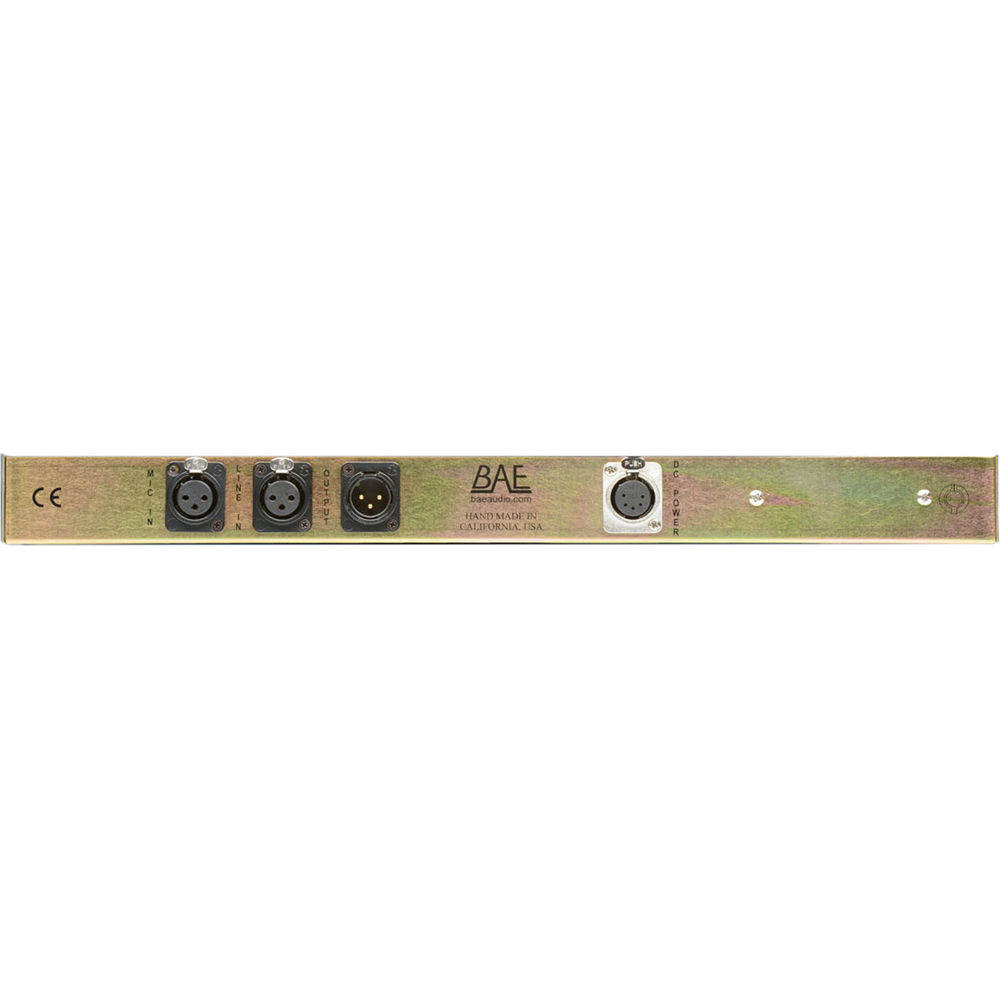

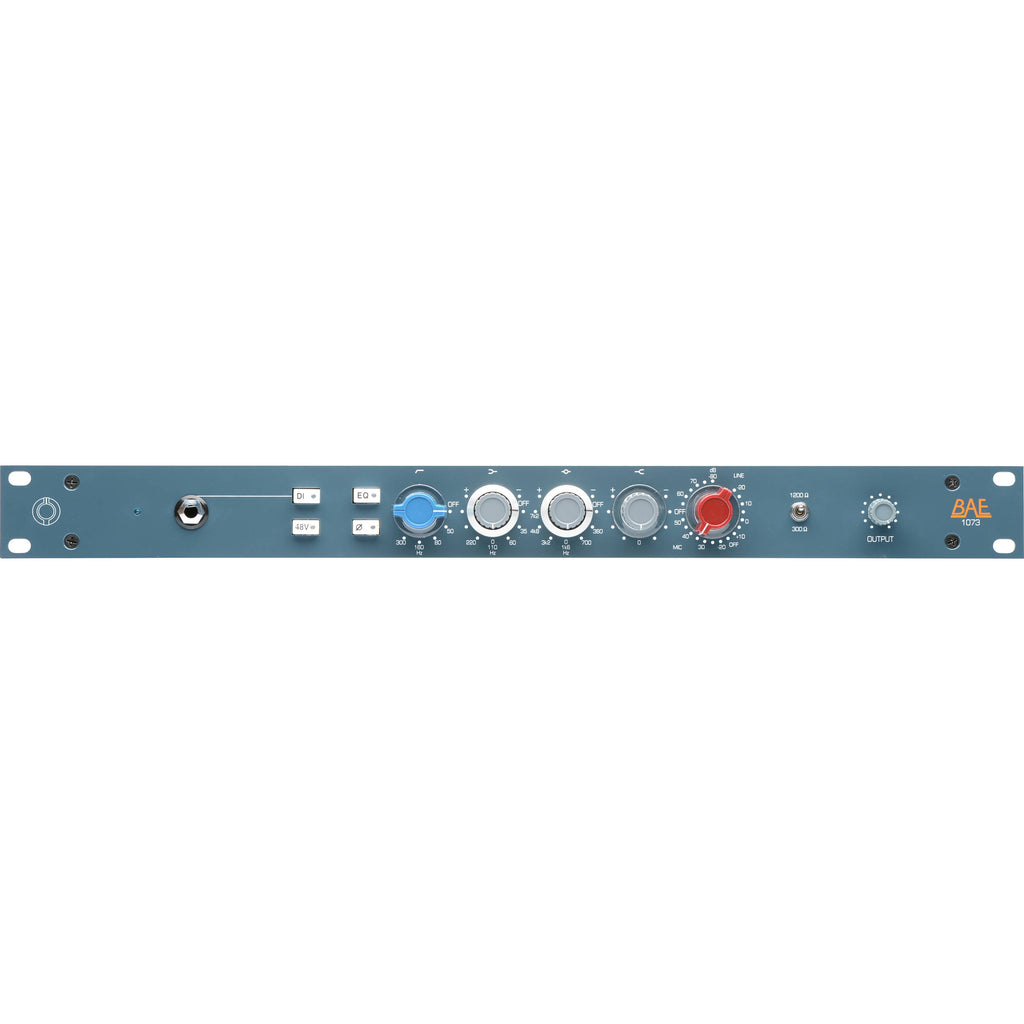

Several other features include a high-impedance DI input for guitar or synth, an EQ switch, a phase switch, and a 48V phantom switch on the front panel. In addition, there are three XLR connectors on the back panel. One is for a mic input, one is for a line input, and one is for an output.
- BAE Audio 1073 Mic Pre, 19" Rack, No Power Supply
- Limited 5-Year Warranty
No additional resources available
BAE Audio 1073 Specs
| Input/Output |
1/4" (6.3 mm) DI input
2x 3-pin XLRF (mic, line) 1x 3-pin XLRM (output) |
| Frequency Response |
10 Hz to -3 dB at 55 kHz
|
| 3-Band Equalizer |
HF: +/-16 dB fixed frequency shelving at 12 kHz
LF: +/-16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz & 220 Hz MF: +/-18 dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36 kHz, 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHz & 7.2 kHz |
| High Pass Filter |
50 Hz, 80 Hz, 160 Hz, and 300 Hz
|
| Mic Input Impedance |
1200/300 ohms
|
| Line Input Impedance |
10 kOhms
|
| DI Input Impedance |
150 kOhms
|
| Output Impedance |
35 ohms
|
| Common Mode Rejection Ratio |
100 dB min @ 60 Hz
|
| Maximum Output Level |
+27.4 dBu @ 600 ohms
|
| Power Requirements |
115/230 VAC, 28 W
|
| Gain |
0 to 80 dB
|
| Equivalent Input Noise |
-110 dBu; unweighted 300 kHz bandwidth
|
| Dimensions |
19 x 1.8 x 9" (48 x 4.6 x 23 cm)
|
| Weight |
10 lb (4.54 kg)
|
