BAE Audio 1023 Overview
The 1023 from BAE is a completely hand-wired, 3-band equalizer that uses Carnhill (St. Ives) transformers, and offers more EQ frequencies in the mid and high sections. It can be used by musicians, producers, and engineers in audio applications such as broadcast TV, live sound, recording studios, rehearsals, and more.
The 1023 features the same mic/line preamps as the 1073 EQ but has more frequencies to play with. In addition, the expanded EQ sections also allow you to play the mid-bell curve directly against the high, and low-shelves where they overlap. This capability opens the tone shaping possibilities in more musical ways.

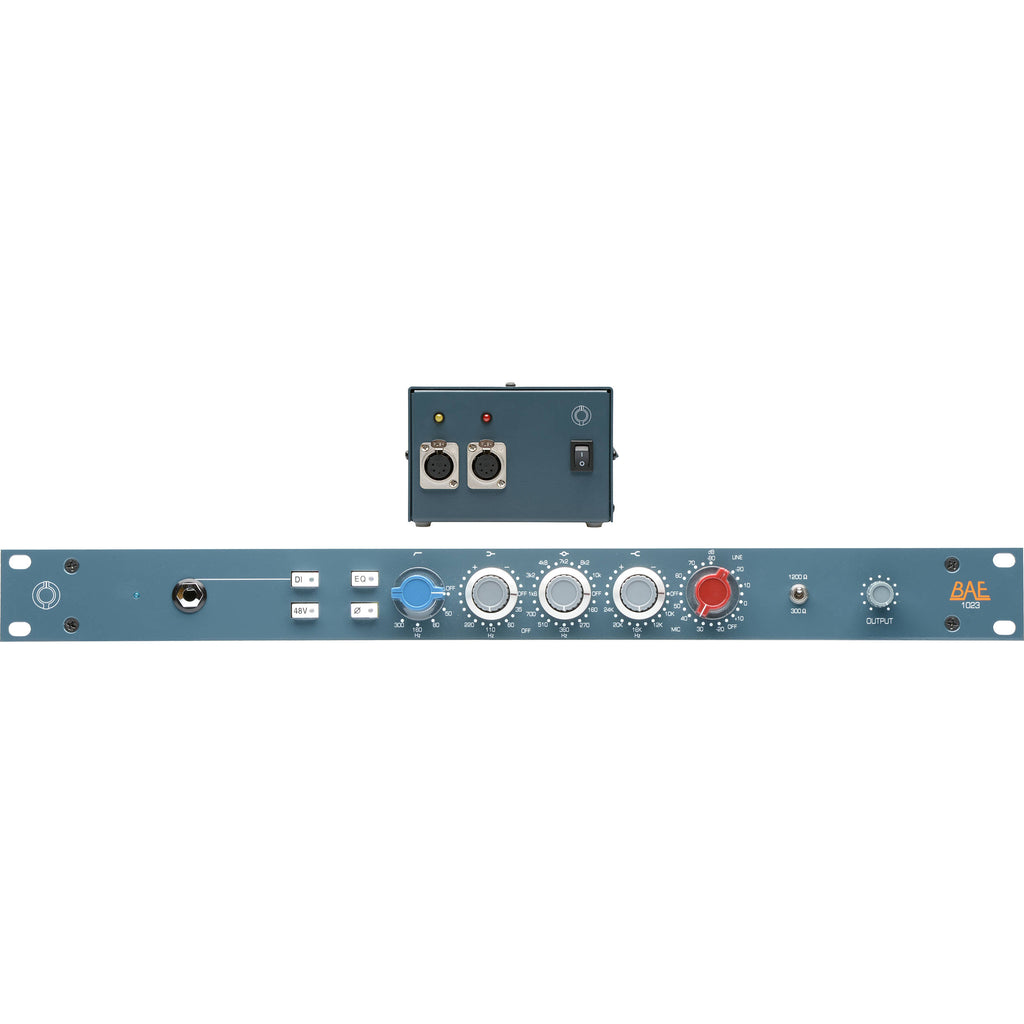

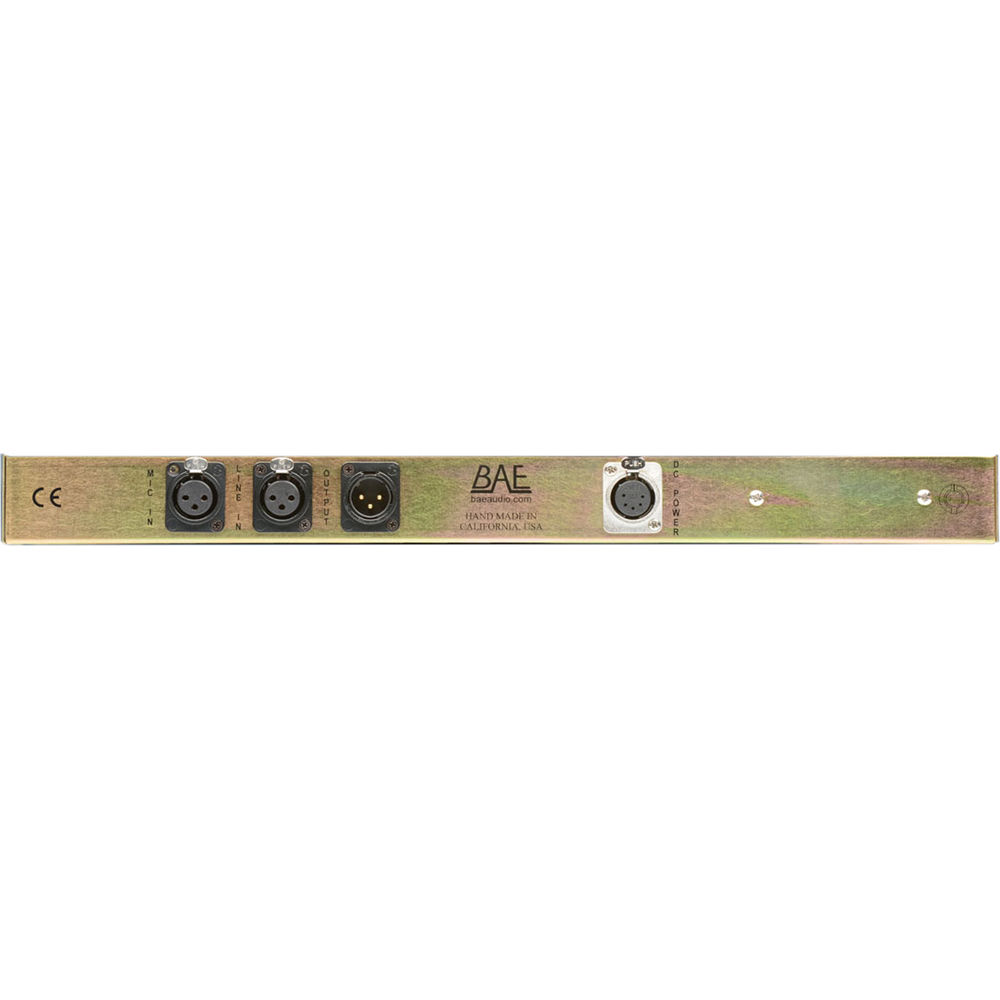

The 1023's back panel is built with an XLR mic input, an XLR line input, and an XLR output jack along with the DC power input jack. The front panel has one DI instrument input jack. Furthermore, the 48V phantom power is built-in and a switch on the front panel allows you to switch it on and off. A 24V PSU power supply is also included.
- BAE Audio 1023 3-Band EQ, with Power Supply, Rackmount
- BAE Audio 24V Power Supply
- Limited 5-Year Warranty
No additional resources available
BAE Audio 1023 Specs
| Frequency Response |
10 Hz to -3 dB at 55 kHz
|
| 3-Band Equalizer |
HF: +/-16 dB fixed frequency shelving at 10 kHz,12 kHz, 16 kHz, 20 kHz and 24 kHz
LF: +/-16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz, and 220 Hz MF: +/-18 dB +/-12 dB or +/-18 dB peaking with switchable selectable centre frequencies of 160 Hz, 270 Hz, 360 Hz, 510 Hz, 700 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz, 7.2 kHz, 8.2 kHz, and 10 kHz |
| High Pass Filter |
45 Hz, 70 Hz, 160 Hz, and 360 Hz
|
| Mic Input Impedance |
1200/300 ohms
|
| Line Input Impedance |
10 kOhms
|
| DI Input Impedance |
150 kOhms
|
| Output Impedance |
65 ohms
|
| Common Mode Rejection Ratio |
100 dB min @ 60 Hz
|
| Maximum Output Level |
+27.4 dBu @ 600 ohms
|
| Power Requirements |
115/230 VAC, 28 W
|
| Gain |
0 to 80 dB
|
| Equivalent Input Noise |
-110 dBu; unweighted 300 kHz bandwidth
|
| Dimensions |
19 x 1.8 x 9" (48 x 4.6 x 23 cm)
|
| Weight |
10 lb (4.54 kg)
|
