- VHF Frequency Band
- 2-Channel Transmitter and Receiver
- RF Technology
- Up to 250' Range
- EX-413 Handheld Microphone Included
- EX-503 Lavalier Microphone Included
- Powered by 9V Batteries
- Shoe Mount Attached
- Hook and Loop Fastener Included
- Includes Output Cable
The WMS-PRO VHF Wireless Lavalier and Handheld Mic System from Azden are used to capture audio. The system works with DSLR and video cameras. It is a complete system used in various applications such as for wedding videographers, interviews, live stage, and more. This system transmits on the VHF frequency band and includes an output cable which makes it compatible with several consumer devices. The 2-channel switchable transmitter and receiver deliver clean reliable RF performance for up to 250'. The system includes a lavalier and a handheld mic which both attach to the same beltpack (but not simultaneously)

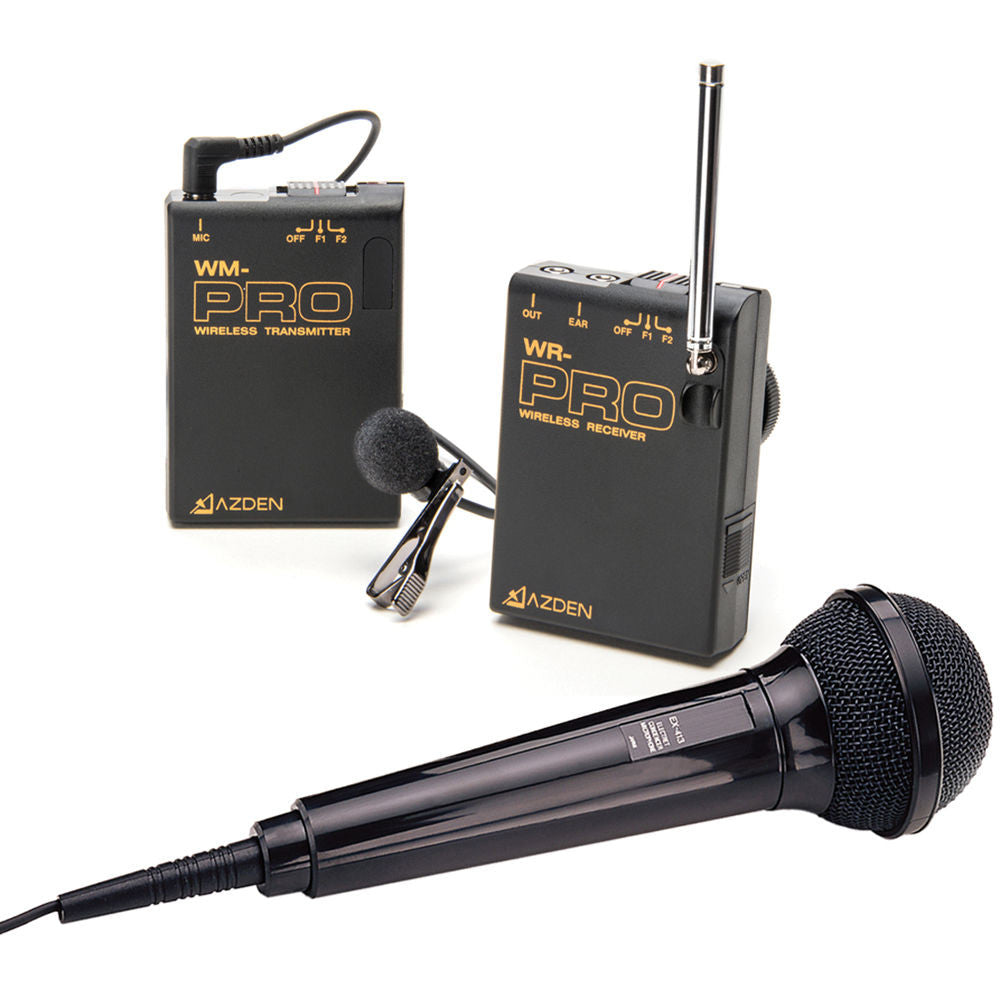

The wireless lavalier and handheld system features a WM-PRO beltpack transmitter, an EX-413 wired electret condenser handheld mic, an EX-503 omnidirectional lavalier mic, and a WR-PRO camera-mount receiver. All receivers and transmitters in the PRO series are on the same 2 frequencies (169.445 and 170.245 MHz), allowing them to be interchangeable. This also allows you to switch frequencies if interference is encountered on one channel. The receiver is built with a single antenna. The receiver and transmitter are both individually powered by 9V batteries, and both have a shoe mount, and hook and loop fastener to attach to cameras or tripods.
- The EX-503 features an omnidirectional polar pattern and provides a generous pick-up area at off-axis sections of the microphone
- The EX-413 omnidirectional microphone is wired with a mini-jack connector and designed to plug into the WM-PRO wireless beltpack transmitter
- 169.445 and 170.245 MHz are the two frequencies offered in this wireless system
- Can be used for wireless solutions on DSLR cameras, and camcorders
- Ultra lightweight system that doesn't change the weight on the camera when mounted
UPC: 095528000229
| Receiver Specifications |
| Receiver Type | Double superheterodyne |
| Sensitivity | 2 mV @ S/N of 40 dB |
| Battery | 1 x 9 V alkaline |
| Power Consumption | 25 mA |
| Monitor Output | 1 V @ 30 W, modulation frequency 1 kHz, deviation +/-7 kHz |
| Mic Output | 8 mV w/10 kW load, modulation frequency 1 kHz, deviation +/-7 kHz |
| Dimensions (H x W x D) | 3.3 x 2.4 x 0.85" (86 x 60 x 21.5 mm) |
| Weight | 4.5 oz (128 g) with battery |
| Transmitter |
| Modulation System | FM |
| Sensitivity | 94 dB SPL @ +/- 2.5 kHz deviation |
| Battery | 1 x 9 V |
| Power Consumption | 30 mA |
| Dimensions (H x W x D) | 3.3 x 2.4 x 0.85" (86 x 60 x 21.5 mm) |
| Weight | 3.4 oz (98 g) |
| Lavalier |
| Mic | EX-503 |
| Type | Electret condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 30 Hz to 18 kHz |
| Impedance | 2.2 k? @ 1 kHz |
| Sensitivity | -44 dB at 1 kHz (0 dB = 1 V/Pa) |
| Power Requirement | 1 to 10 VDC |
| Current Draw | 0.5 mA |
| Connector | 1/8" (3.5 mm) mono |
| Handheld Transmitter |
| Mic | EX-413 |
| Type | Electret condenser |
| Polar Pattern | Omnidirectional |
| Connector | Wired 1/8" (3.5 mm) for PRO series transmitter |
| Packaging Info |
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 9.9 x 5.3 x 2.3" |
In the Box

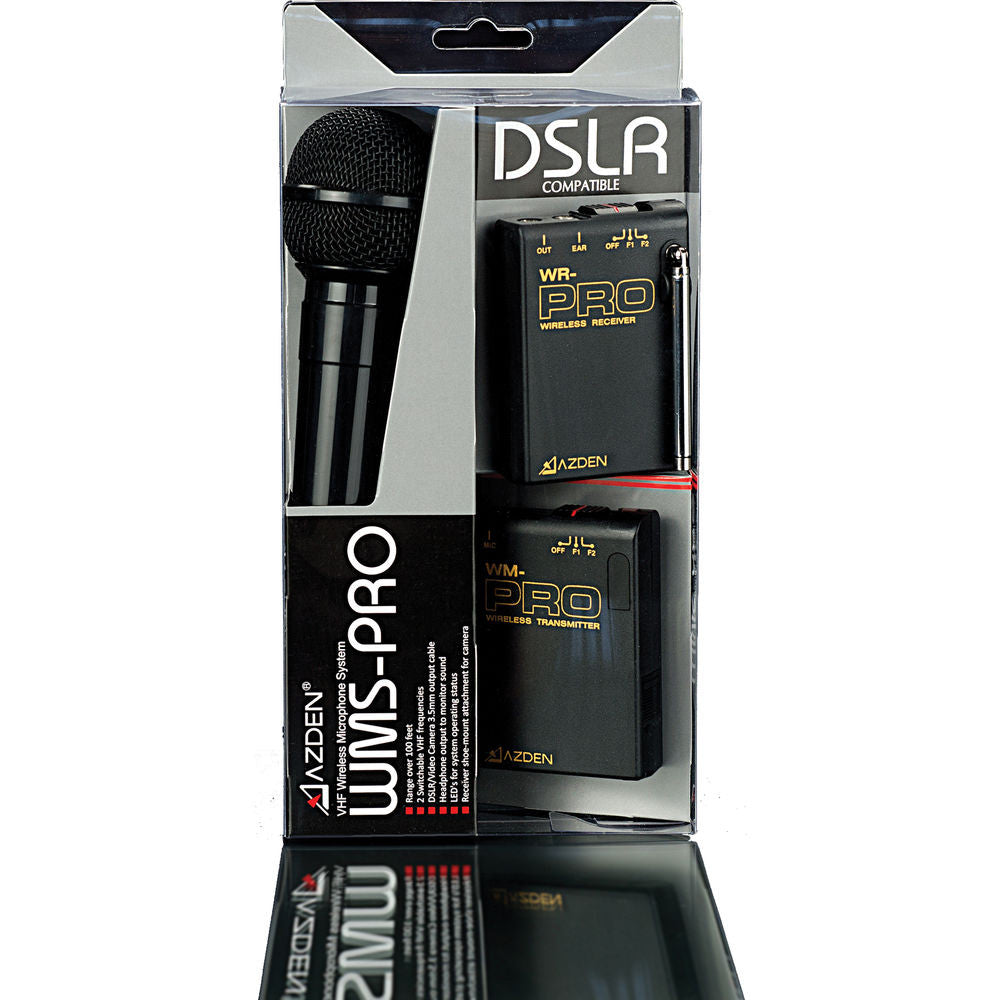

Azden WMS-PRO VHF Wireless Lavalier and Handheld Mic System
