Azden SGM-250MX Overview
Basic Tips for Recording Audio for Video | Audio for Video, Part 1 Choosing a Mic for Video Production | Audio for Video, Part 2 How to Get Great Audio Levels | Audio for Video, Part 3 Recording Sound to Your Camera vs. an Audio Recorder | Audio for Video, Part 4 Azden SGM-250MX

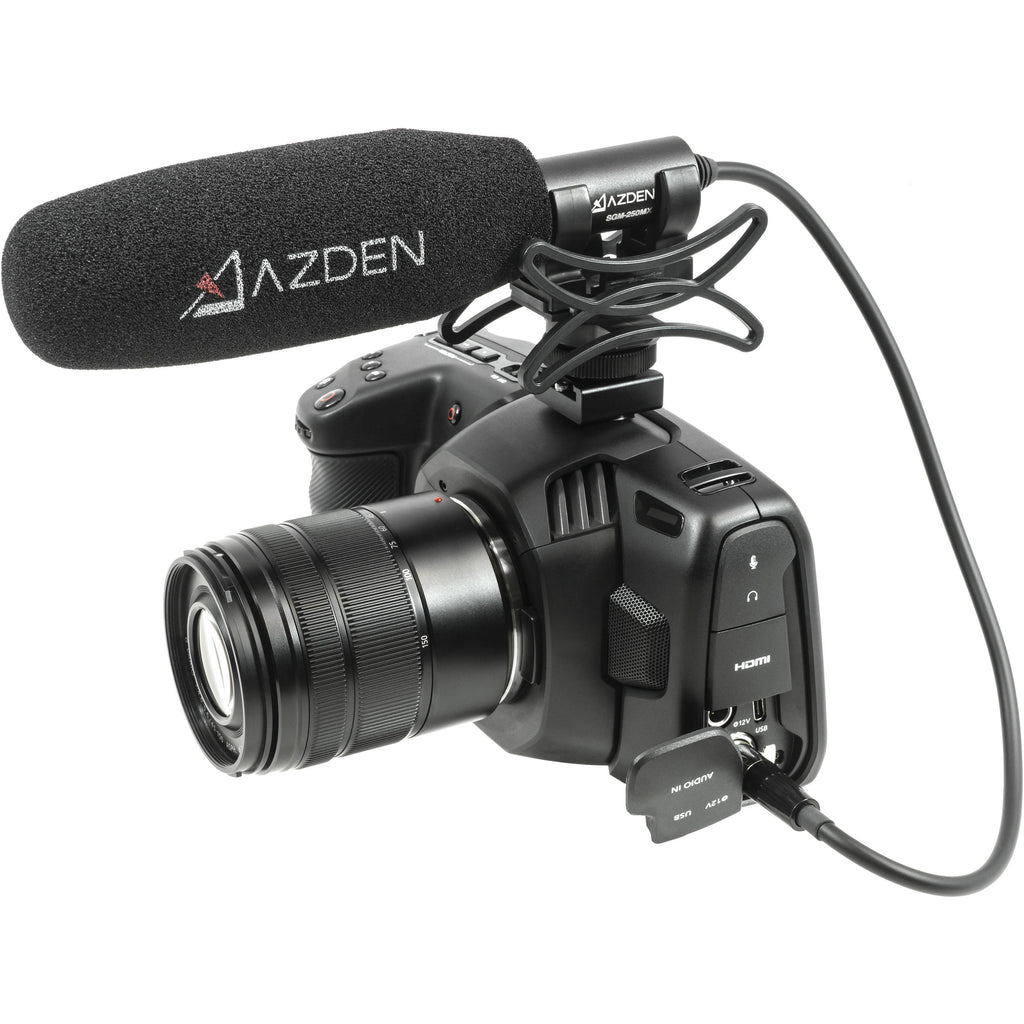

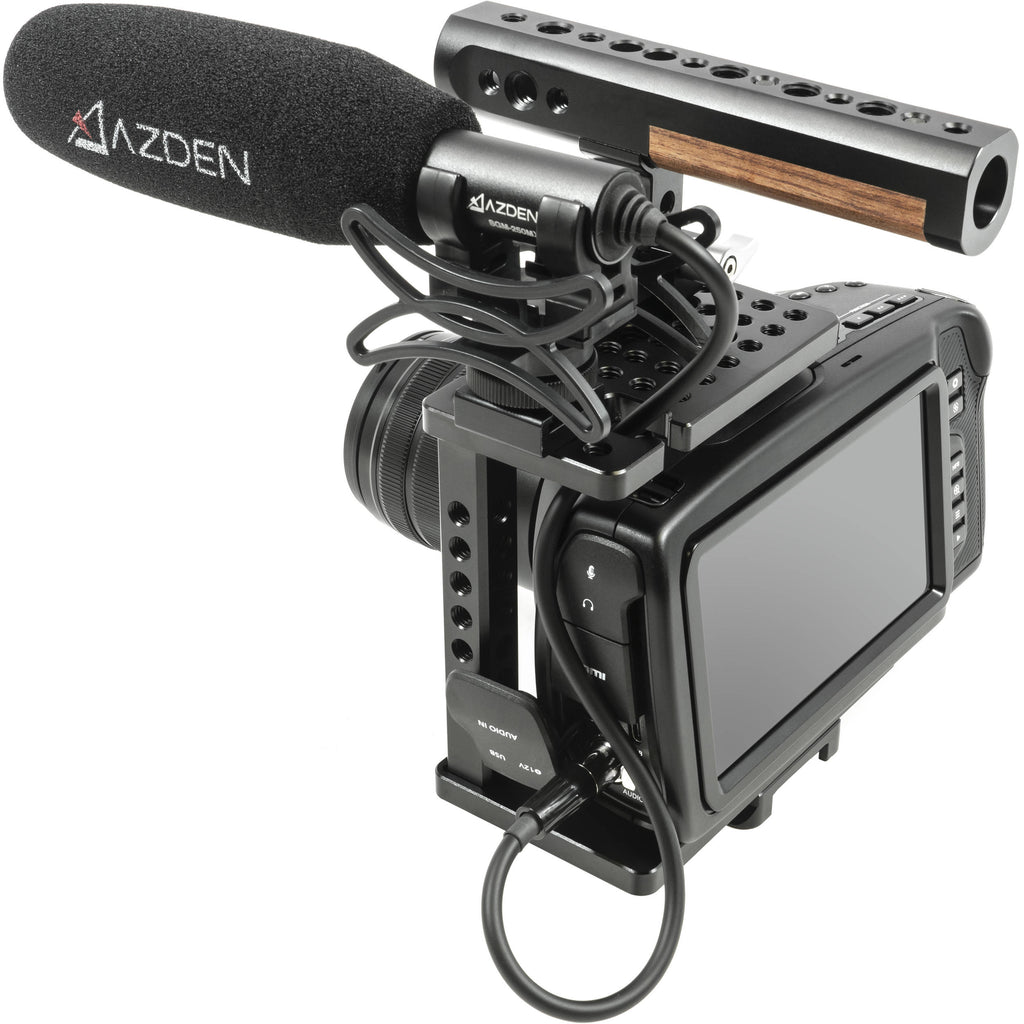

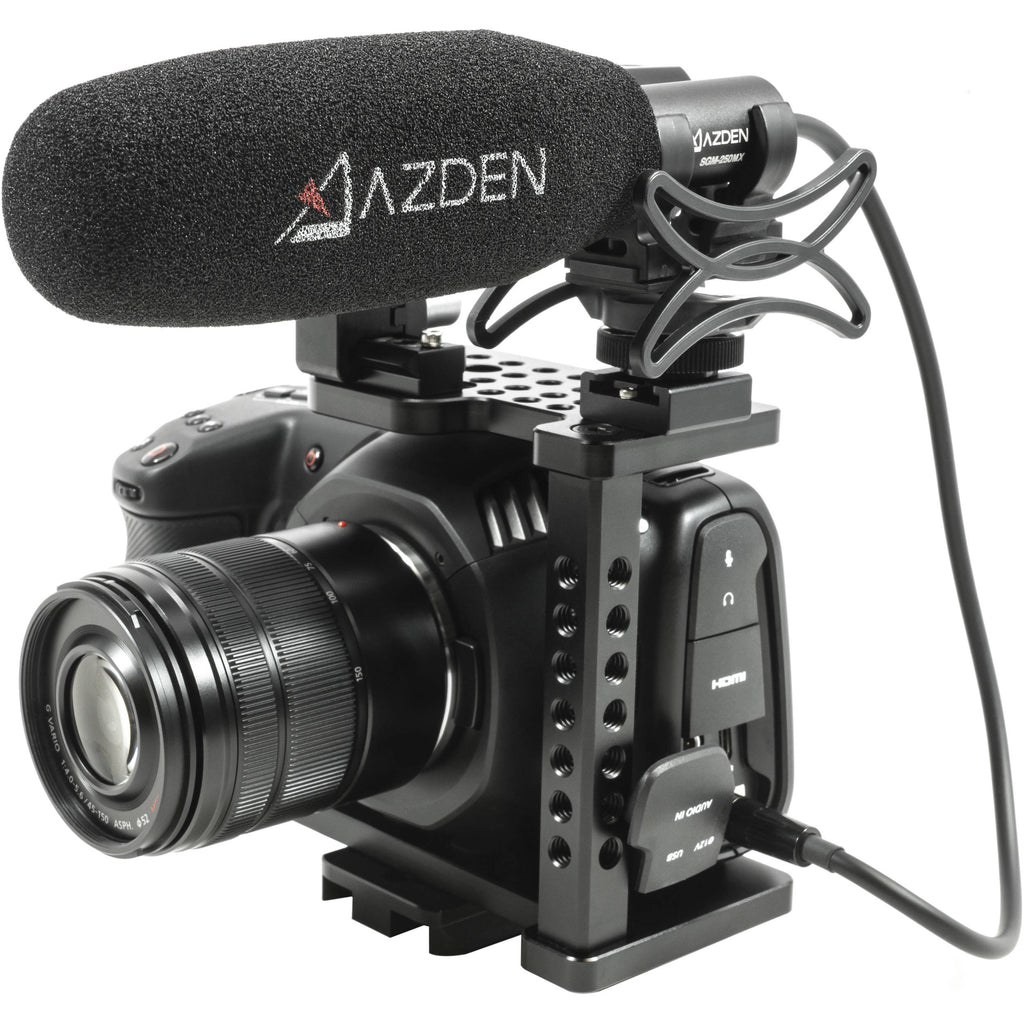

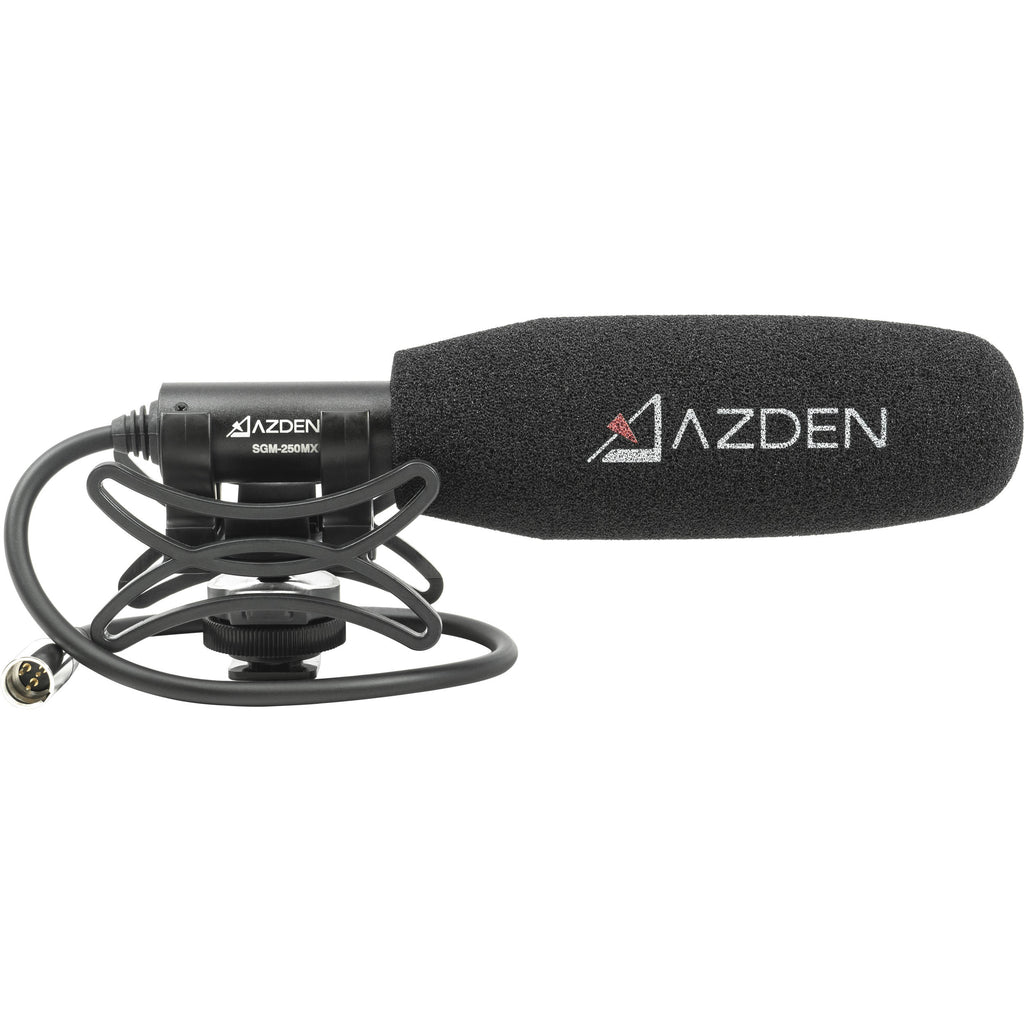

Ideal for independent films, web shows, documentaries, and weddings, the Azden SGM-250MX is a short-length, compact shotgun microphone designed for use with mini-XLR-equipped cinema cameras such as the Blackmagic Pocket Cinema Camera 4K. Specifically tuned to preserve the natural qualities of a speaking subject, it features a supercardioid polar pattern and a custom-designed acoustic tube with high-precision, phase-canceling slots that minimize the recording of extraneous noise while focusing on the sound in front of the camera.
The SGM-250MX is equipped with an electret condenser capsule that is powered by 11 to 50 VDC phantom power. The highly sensitive capsule delivers a flat-frequency response (20 Hz to 20 kHz) with low self-noise and 130 dB SPL for accurate audio capture.
Handcrafted in Japan, the SGM-250MX is housed in a brass/aluminum alloy case that improves durability and rejects ambient radio frequencies (RF). The mic comes with a 13" long, hardwired mini-XLR mic cable for convenient connection to a camera's microphone input. Included are a foam windscreen, and an SMH-X shockmount with two diameter expander sheets that provide a secure hold for your mic, whether you run-and-gun or mount it to a pistol grip or to a boompole.
- Short length and compact design ideal for mounting on cinema and mirrorless cameras
- Specifically tuned to preserve the natural qualities of a speaking subject
- Supercardioid polar pattern with narrow pickup area, provides enhanced directionality for isolating dialog from ambient noise
- Electret condenser microphone element delivers high sensitivity and low self-noise for clear recording of quiet sounds
- Custom-designed acoustic tube with high-precision, phase-canceling slots
- Powered by 11 to 50 VDC phantom power
- Flat-frequency response for accurate audio capture�20 Hz to 20 kHz
- Wide dynamic range allows for capturing sounds at up to 112 dB without distortion
- Brass/aluminum alloy case for improved durability and rejection of ambient RF

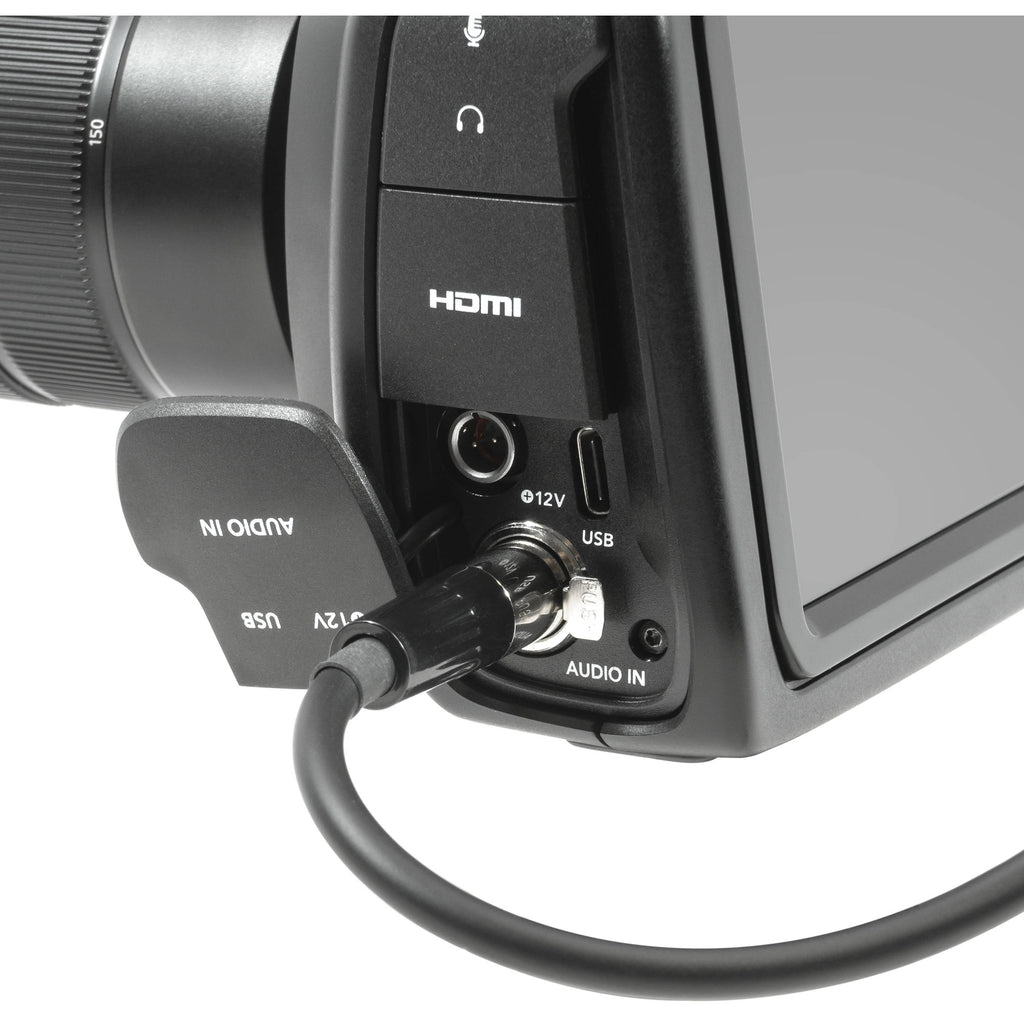

- Gold-plated, 3-pin mini-XLR output connector with 13" hardwired cable extension�connects to camera microphone inputs
- Includes SMH-X shockmount�compatible with standard-size camera shoe slots, as well as 1/4-20-threaded boompoles and tripods
- Includes two diameter expander sheets with adhesive backing�wrap around the base of the microphone to allow for a secure fit in ring-clamps with diameter larger than 0.82"
- Includes foam windscreen and carry pouch
- Handcrafted in Japan
![]()
UPC: 095528730034
In the Box
- Azden SGM-250MX Compact Shotgun Microphone for Blackmagic Pocket Cinema Camera 4K
- Azden SMH-X Universal Shockmount for Camera Shoes and Boompoles
- Foam Windscreen
- Carry Pouch
- 2 x Diameter Expander Rubber Sheets
- Limited 2-Year Warranty, Extended to 10 Years with Online Registration
Azden SGM-250MX Specs
Microphone
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Pad | None |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 130 dB SPL |
| Impedance | 100 Ohms |
| Sensitivity | -33 dB at 1 kHz |
| Dynamic Range | 112 dB |
| Signal-to-Noise Ratio | 76 dB |
Packaging Info
| Package Weight | 0.73 lb |
| Box Dimensions (LxWxH) | 10.35 x 3.8 x 2.7" |
