| ₹ 83690.0 includes GST and import duties. | |
| B2B customers can avail ₹ 12762.73 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Azden PRO-XR Overview
- 1 Description
- 2 Azden PRO-XR Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)
- 3 Rode VXLR - Mono Mini-Jack to XLR Converter
- 4 Hosa Technology Stereo Mini (3.5mm) Male to 2 Mono Mini (3.5mm) Female Y-Cable - 6"
- 5 Vello V-Rig 4.1" Triple Shoe Bracket

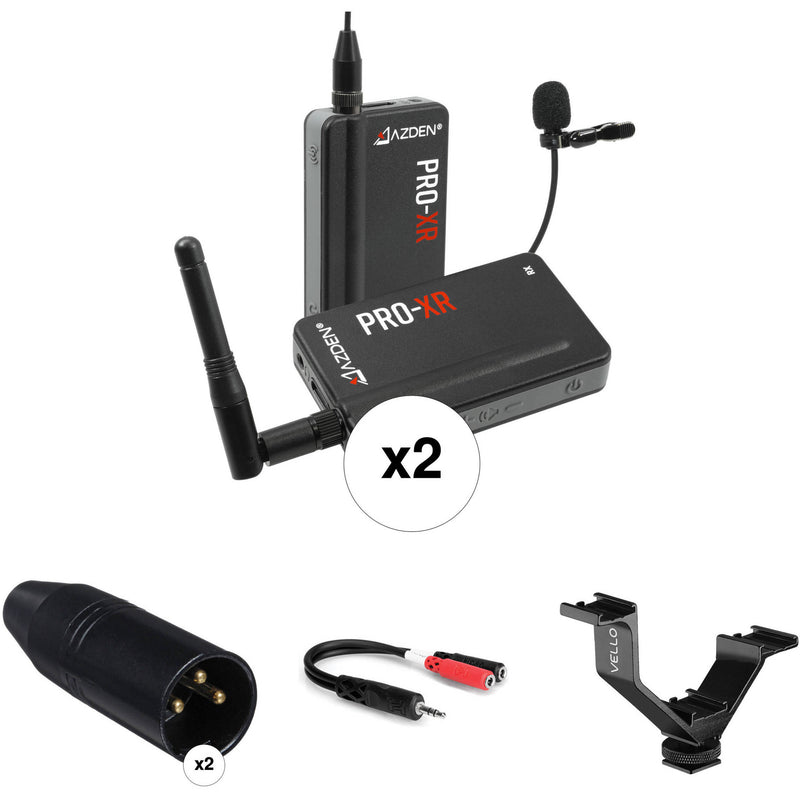

The Azden PRO-XR 2-Person Digital Camera-Mount Wireless Omni Lavalier Microphone System Kit from B&H lets you record two subjects to your camera, camcorder, or mobile device for interviews and vlogs. It includes two omnidirectional lavalier mics with bodypack transmitters and two camera-mount receivers.

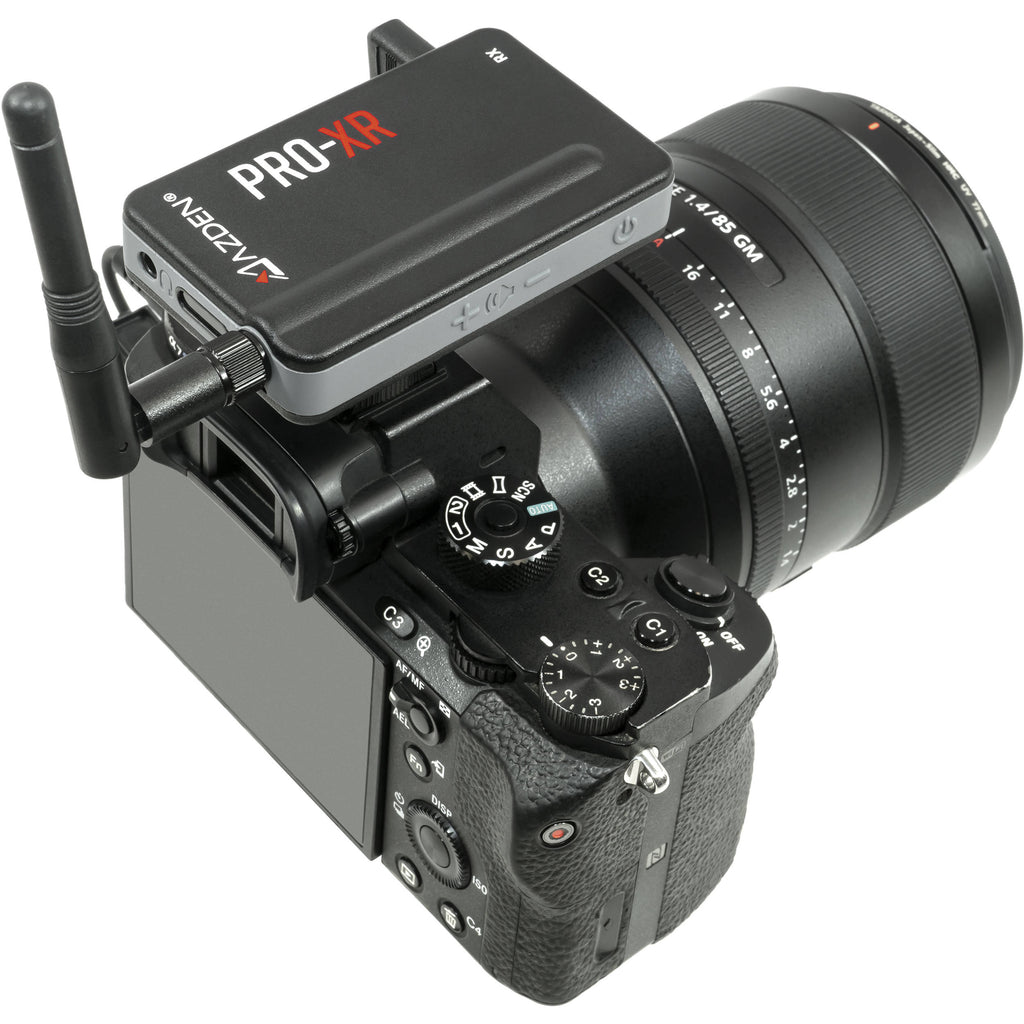

Both receivers can be mounted onto a single camera/smartphone using the included Vello triple shoe bracket. The outputs of both receivers can be plugged into the single audio input of a DSLR/mirrorless camera or mobile device using the included Y-cable. Two Rode VXLR 3.5mm to XLR converters are also included to plug the receivers directly into the individual XLR inputs of a camcorder.

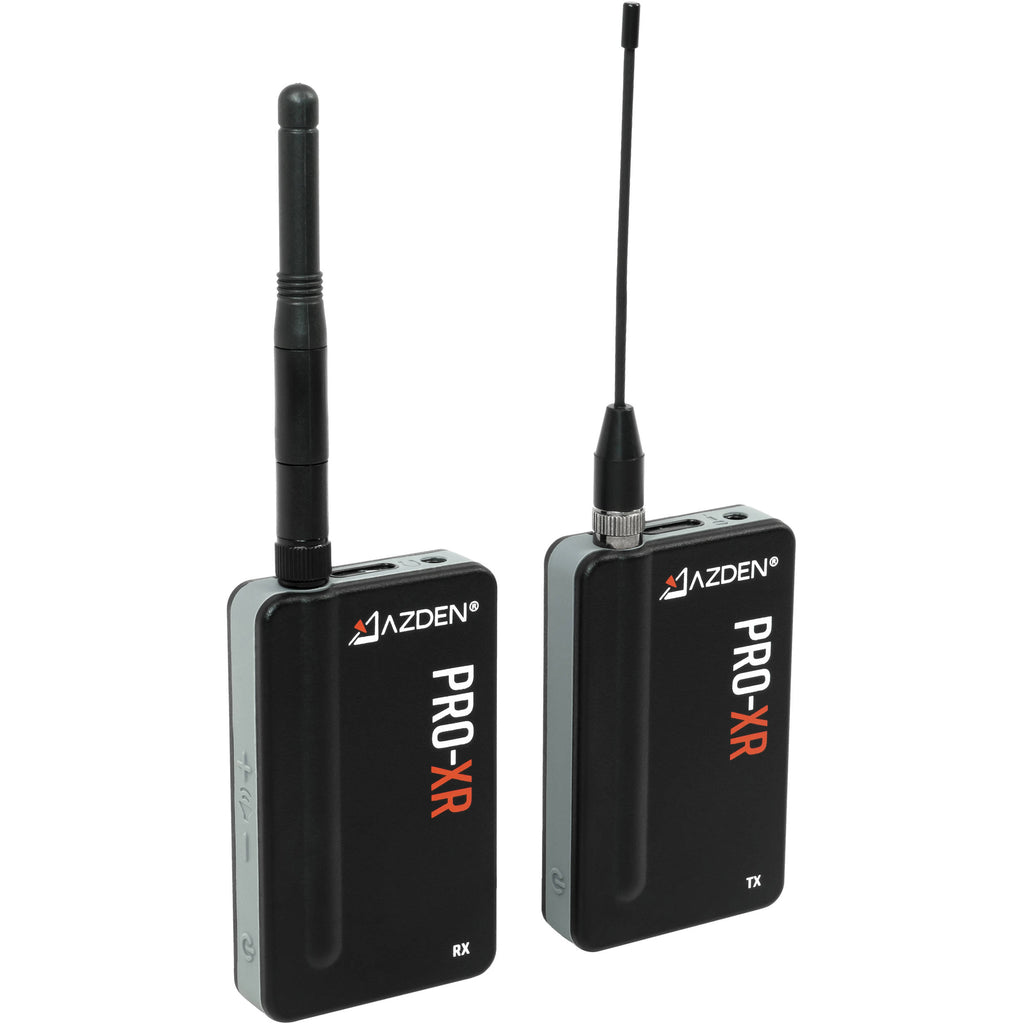

Azden PRO-XR Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)

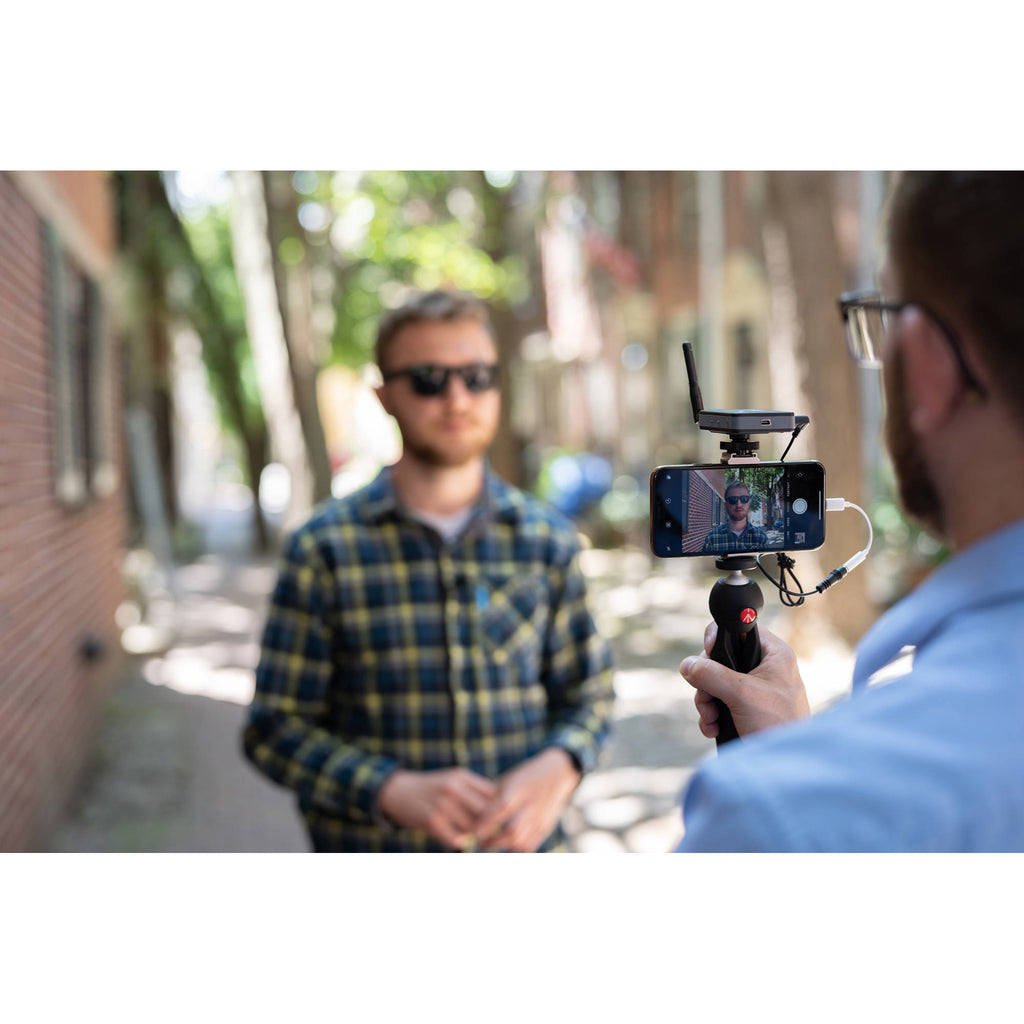

You don't have to be an audio expert to achieve reliable, hassle-free wireless audio with the Azden PRO-XR , a lavalier digital wireless microphone system that's ideal for run-and-gun video shoots, interviews, and vlog production on your DSLR camera or smartphone.
The PRO-XR offers exceptionally reliable and robust 2.4 GHz wireless performance using proprietary Signal Redundancy technology, adjustable 20/50/100mW transmitter RF output, and an external antenna design. This combination helps avoid signal interference and prevents dropouts at a range up to 500 feet.

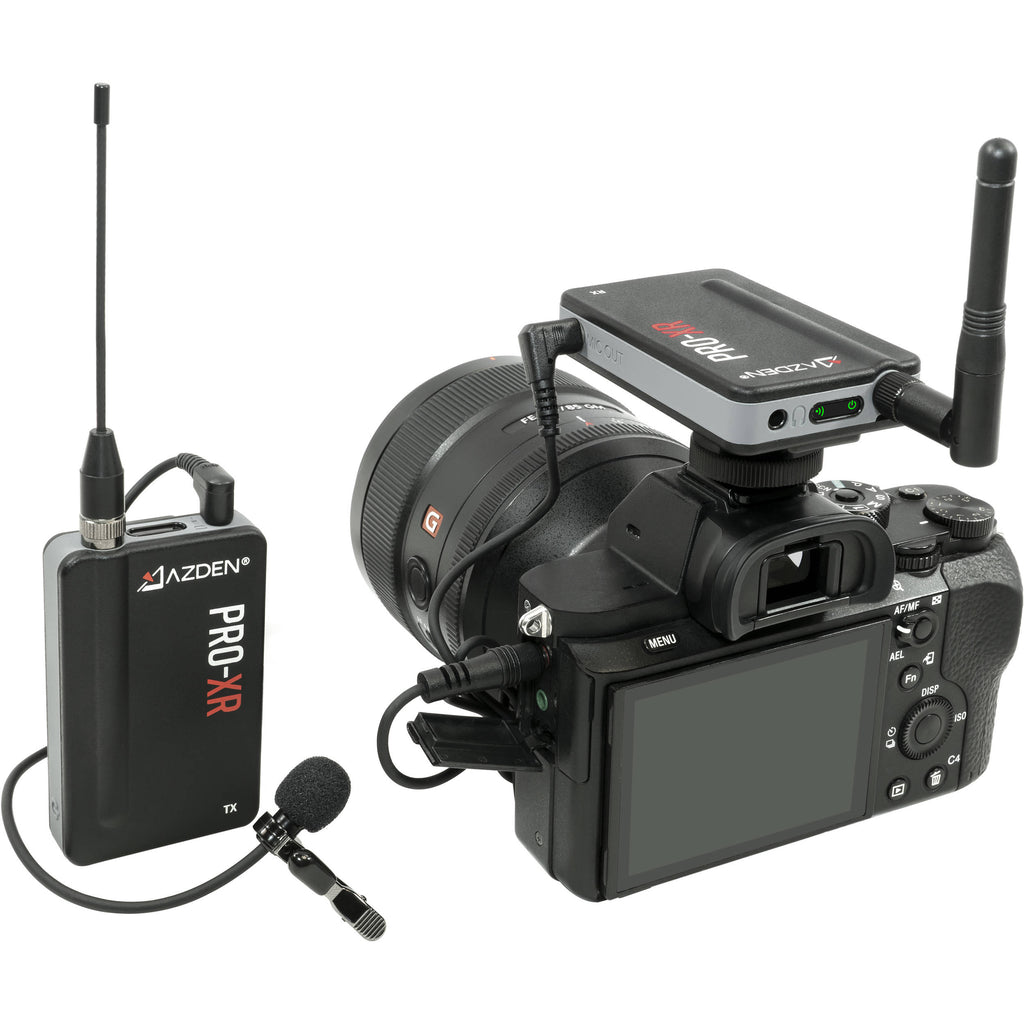

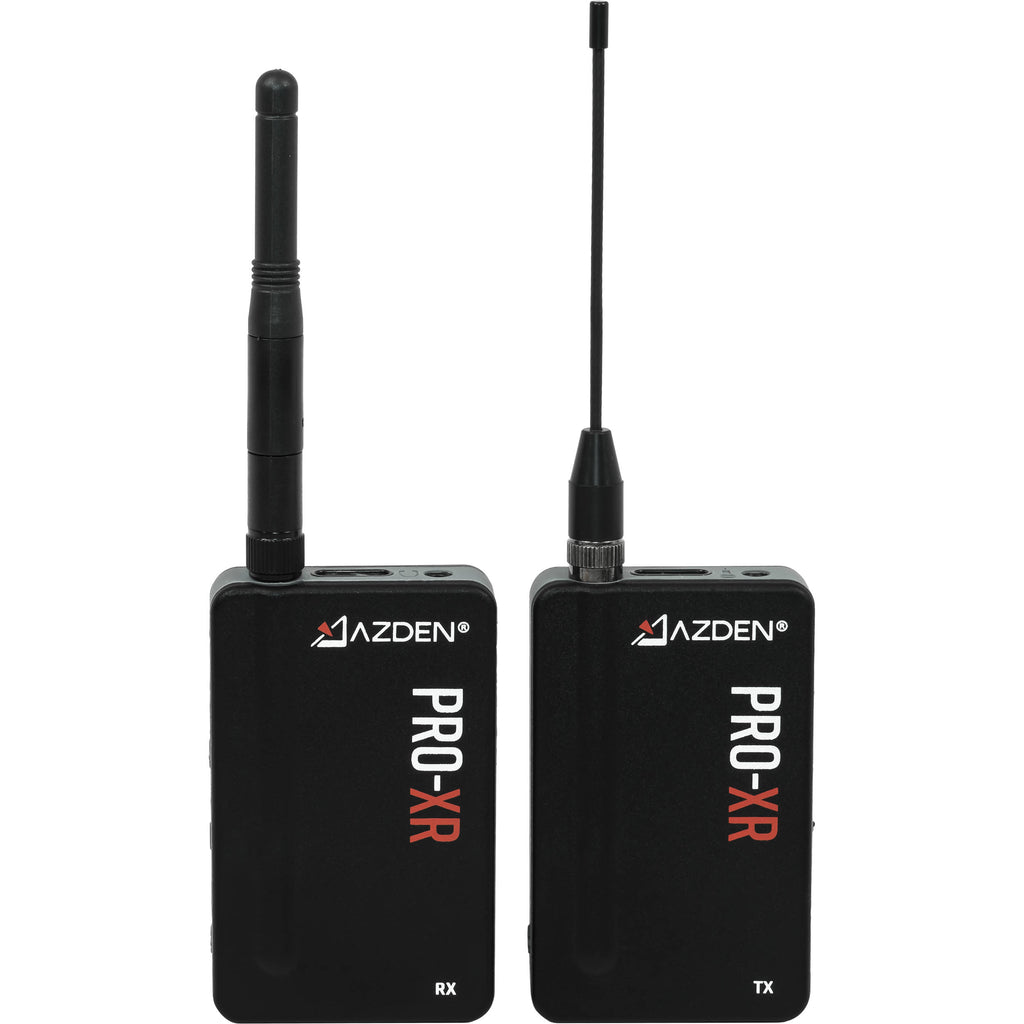

This system features an omnidirectional lavalier microphone, a compact bodypack transmitter, a camera-mount receiver, and a slew of accessories optimized for mobile video production. Plug the mic into the transmitter, connect the receiver to your camera or smartphone, then power up and go. You can operate up to 4 mics at the same location.
Built-in rechargeable lithium-ion batteries ensure that you'll have plenty of operating time, even for all-day shoots. Whether you work with a smartphone, camcorder, or mirrorless/DSLR, the PRO-XR provides the simplicity you need for fast setups, and the dependability you require for every gig, even in busy RF environments.
Getting Started
- Clip the lavalier microphone to your subject's clothing, then connect it to the transmitter's 3.5mm mic input. Alternatively, you can route signal from a mixer or recorder into the transmitter's 3.5mm aux input.

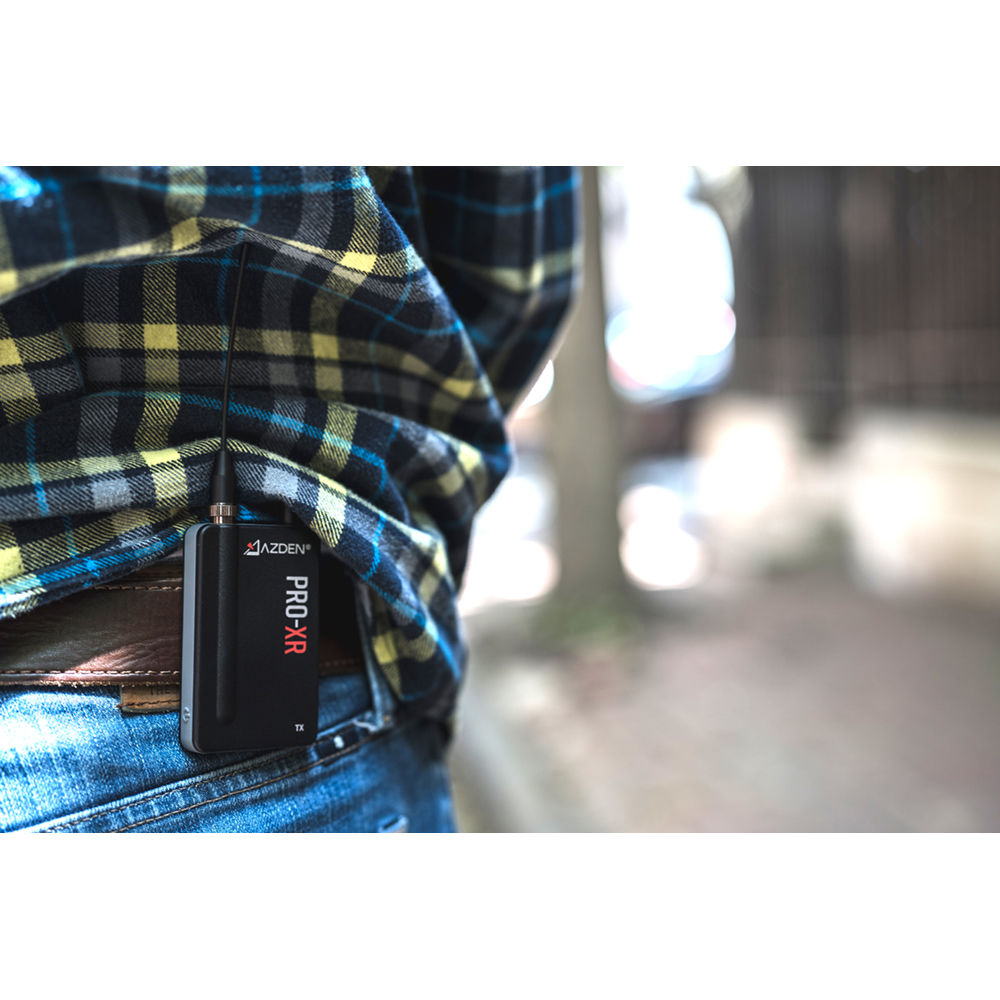

- Weighing just over two ounces, the compact transmitter can be conveniently placed in a pocket or affixed at the waist via its belt clip.

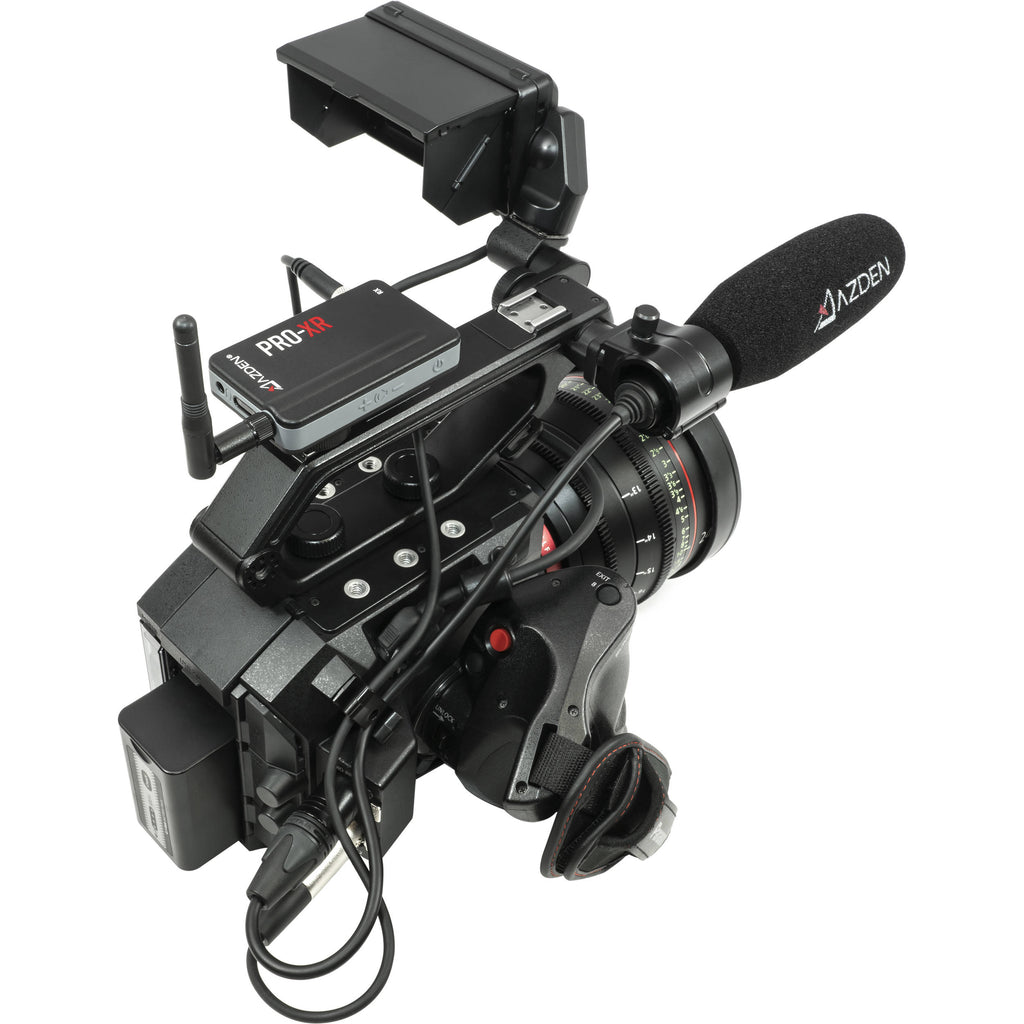

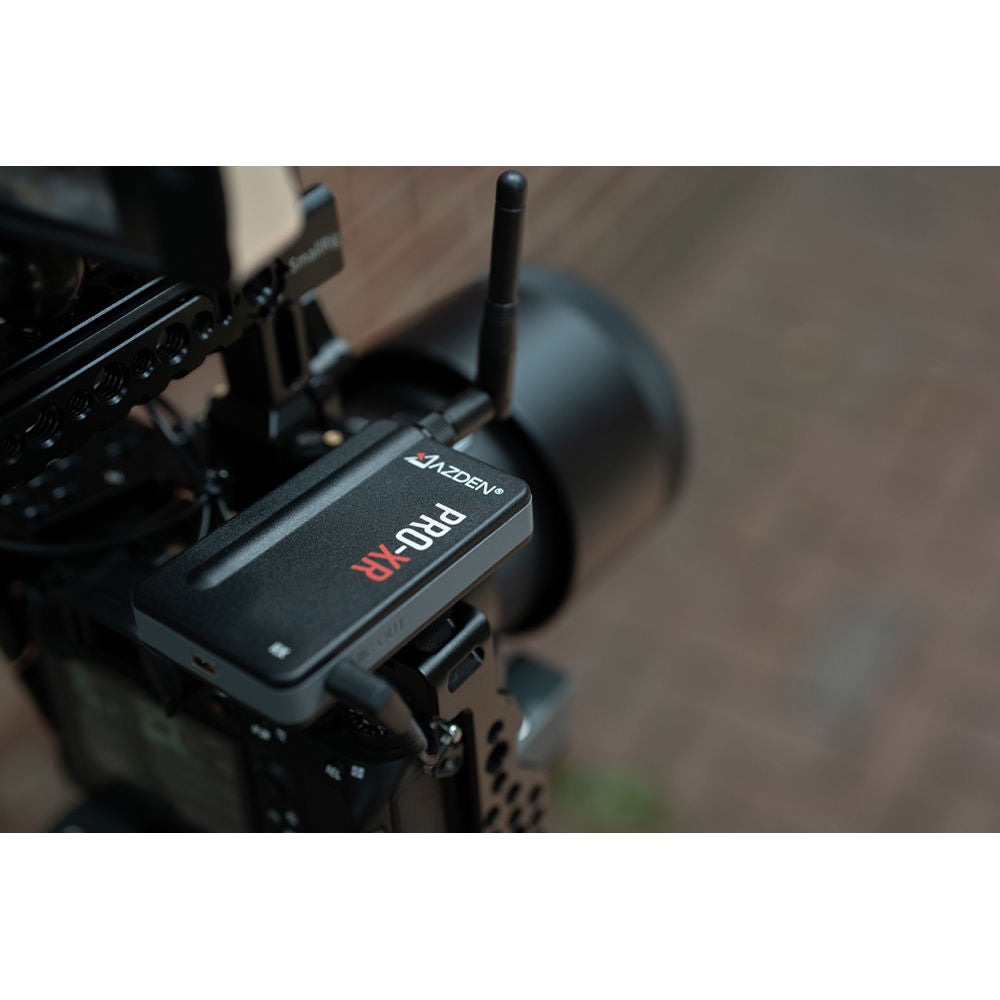

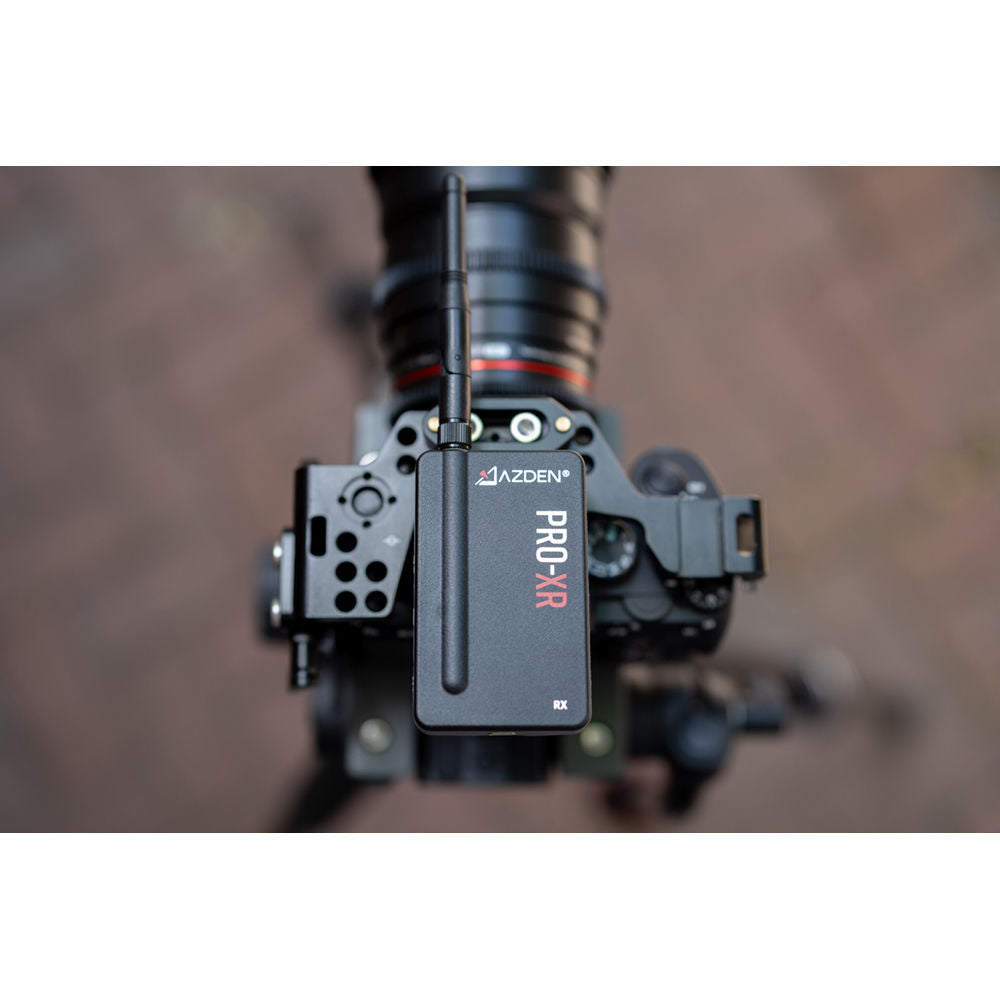

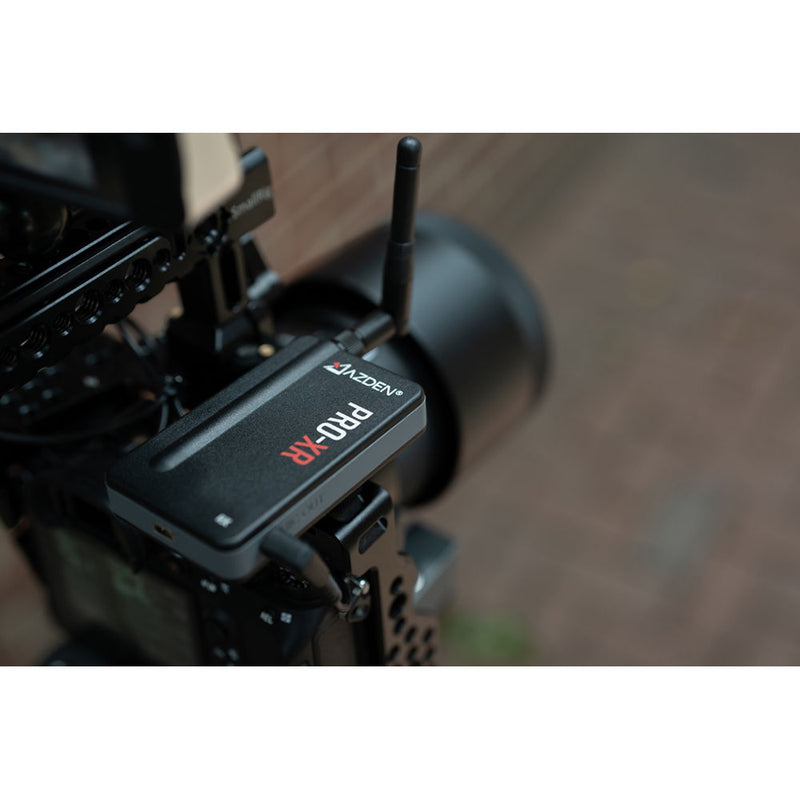

- Equally compact, the portable receiver includes mounting facilities to allow attachment to a camera, tripod, camera cage, or boompole. Its two 3.5mm outputs enable simultaneous connection to your recording device and a pair of headphones.
Easy Operability
- Upon powering on the receiver and transmitter, the PRO-XR is ready to streamline your workflow. There are no menus, groups, channels, or frequencies to worry about.
- No learning curves means that you can spend more time on your content, and less time fussing with settings.
Smart Technologies to Intelligently Avoid Dropouts
- 2.4 GHz Range : The PRO-XR operates in the 2.4 GHz ISM band, away from TV and Bluetooth signal interference.
- Frequency Spectrum Auto-Scan: The PRO-XR automatically scans the 2.4 GHz frequency spectrum and selects the 12 best available frequencies to use for its connection.
- Signal-Redundancy Technology: As an additional layer of protection, the PRO-XR employs Azden�s proprietary Signal Redundancy technology. The transmitter sends two copies of its signal to the receiver at all times, each on a different frequency. If the system predicts interference of the primary signal, it will instantly switch to using the secondary signal without any interruptions.
- Automatic Interference Avoidance: The PRO-XR constantly monitors the RF spectrum. When it detects the possibility of an interference, it automatically and seamlessly changes its transmission frequency to a clean one.
Long-Lasting Rechargeable Batteries
- Internal 1200 mAh lithium-ion batteries power the receiver and transmitter for hours upon hours�up to 20 hours for the receiver, and up to 10 to 14 hours for the transmitter (depending on RF power output).
- Recharge the batteries in just 2.5 hours via mini-USB, which can also power the units while charging.
Adjustable Transmission Power
- Change the transmission RF output power of the transmitter to adapt to challenging RF environments. Use the default 20mW setting for optimal battery life.
- Increase the RF output power to 50mW or 100mW for better reception at extreme distances, or to overcome line-of-sight obstructions and over-crowded Wi-Fi environments.
- Combining the 100mW output with the use of the included high-gain transmitter antenna can extend the range of the system up to an incredible 500 feet.
Other Features
- Low system latency of 4.5 ms.
- 3.5mm mic and headphone outputs on receiver allow simultaneous connection to your recorder and headphones.
- 3.5mm mix and aux inputs on transmitter for connection of a lav/headset mic or a feed from a mixer/recorder.
- Omnidirectional electret condenser microphone provides reliable sound pickup regardless of its angle of orientation

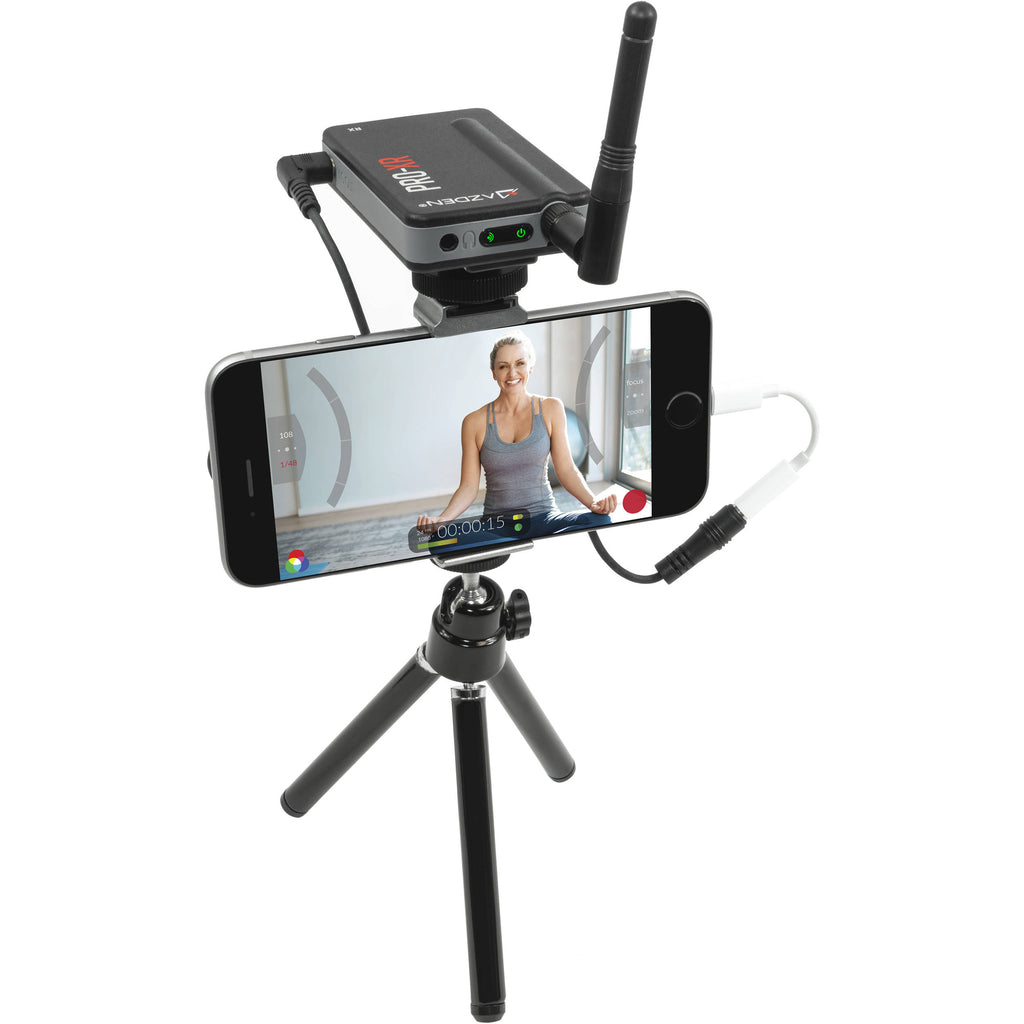

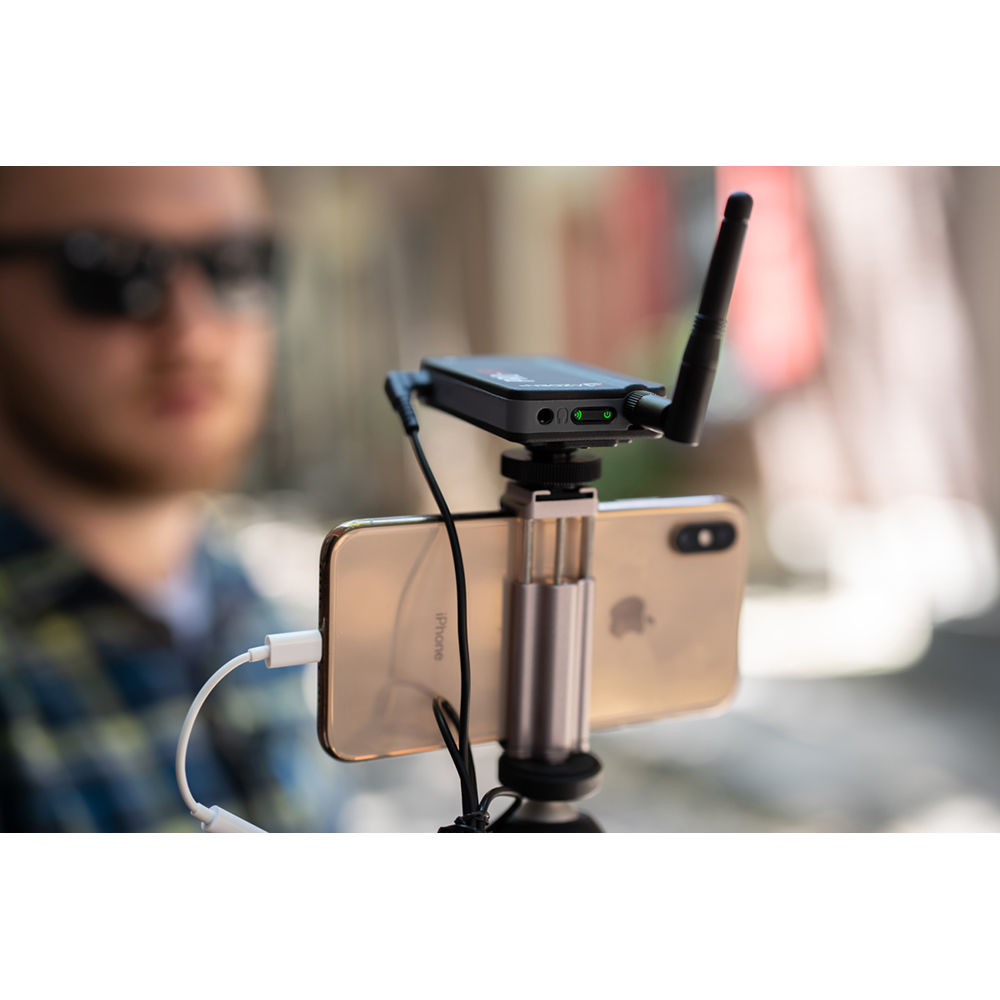

- Includes a clamp-style phone mount with an accessory shoe mount.
- Includes a 3.5mm TRRS adapter cable for smartphones and tablets, and a Lightning-to-headphone adapter for iOS mobile devices that don't have a 3.5mm headphone jack.

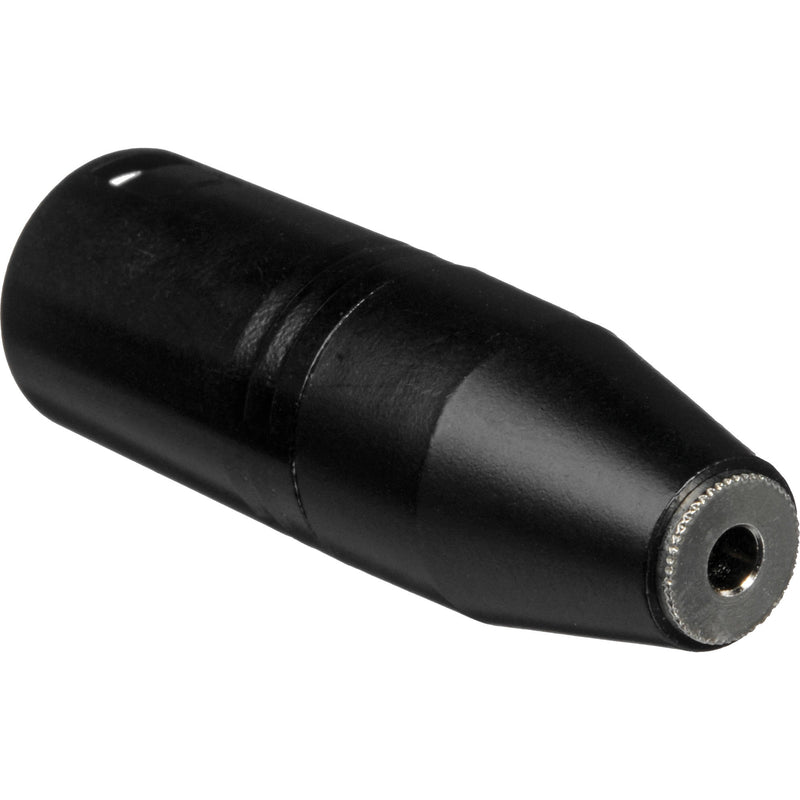

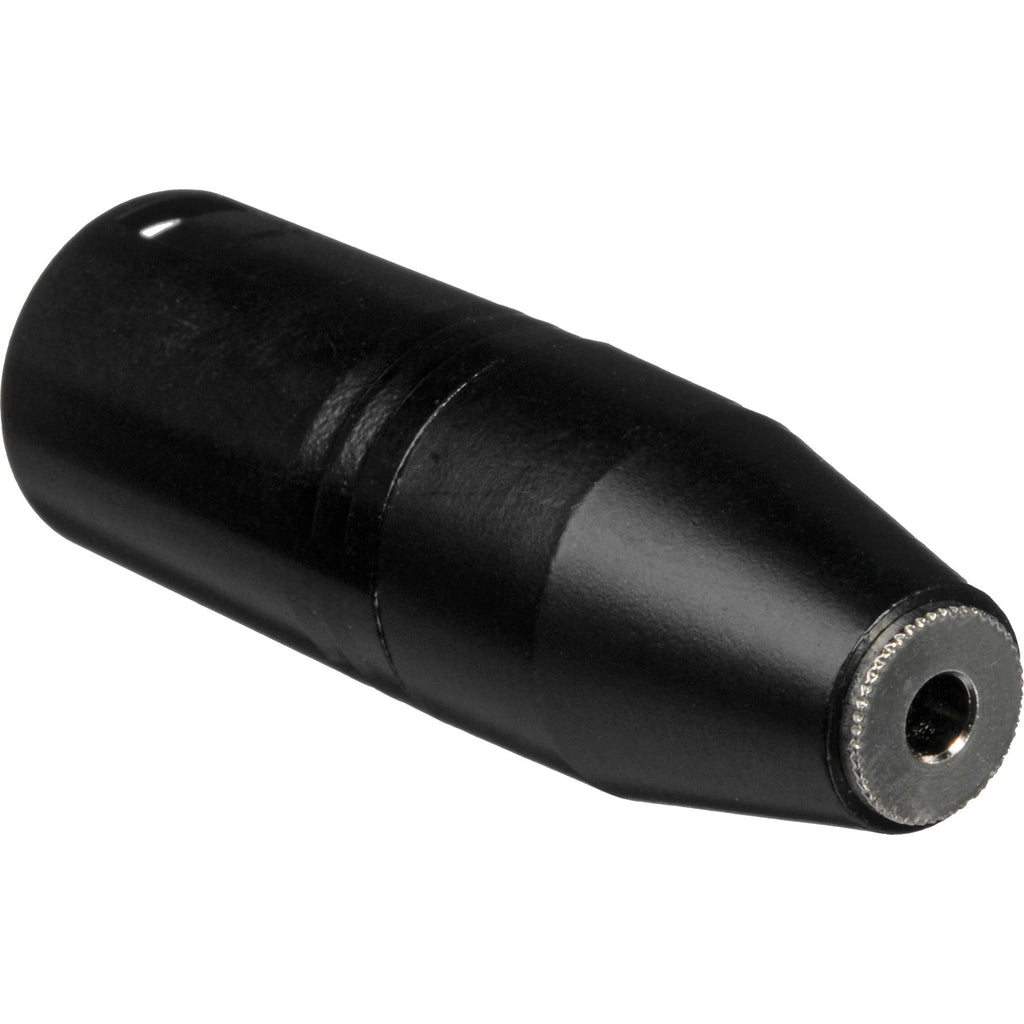

Rode VXLR - Mono Mini-Jack to XLR Converter
The VXLR from Rode Microphones is an adapter that converts a 3.5mm mini jack input to a male XLR output. The adapter is useful for connecting a microphone with a mini jack connect to an XLR input.
Hosa Technology Stereo Mini (3.5mm) Male to 2 Mono Mini (3.5mm) Female Y-Cable - 6"
This Hosa Stereo Mini Male to 2 Mono Mini Female Y-Cable is a "Send Return" cable (also known as a Insert Cable), conventionally wired: TIP = Send, RING = Return. It can also be used as a "Y" to split stereo signal into Left and Right. In this case, Right = RING and Left = TIP.

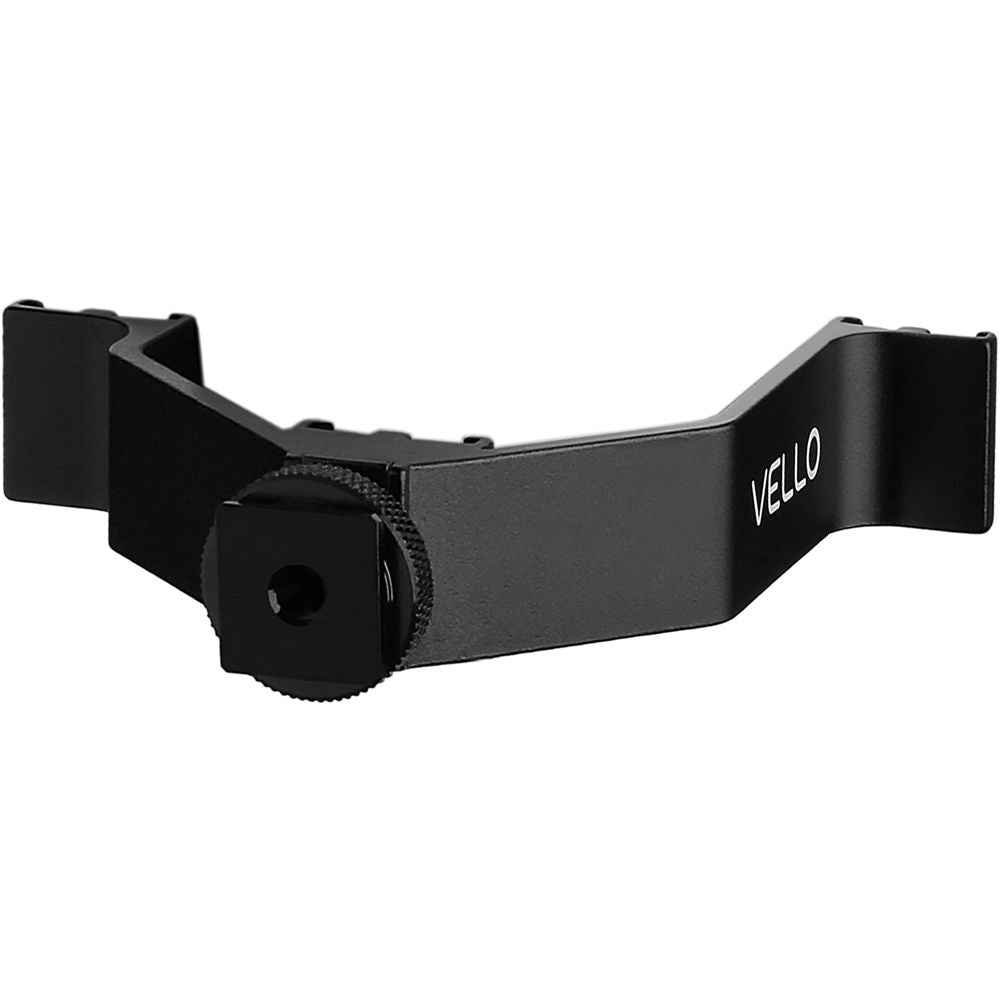

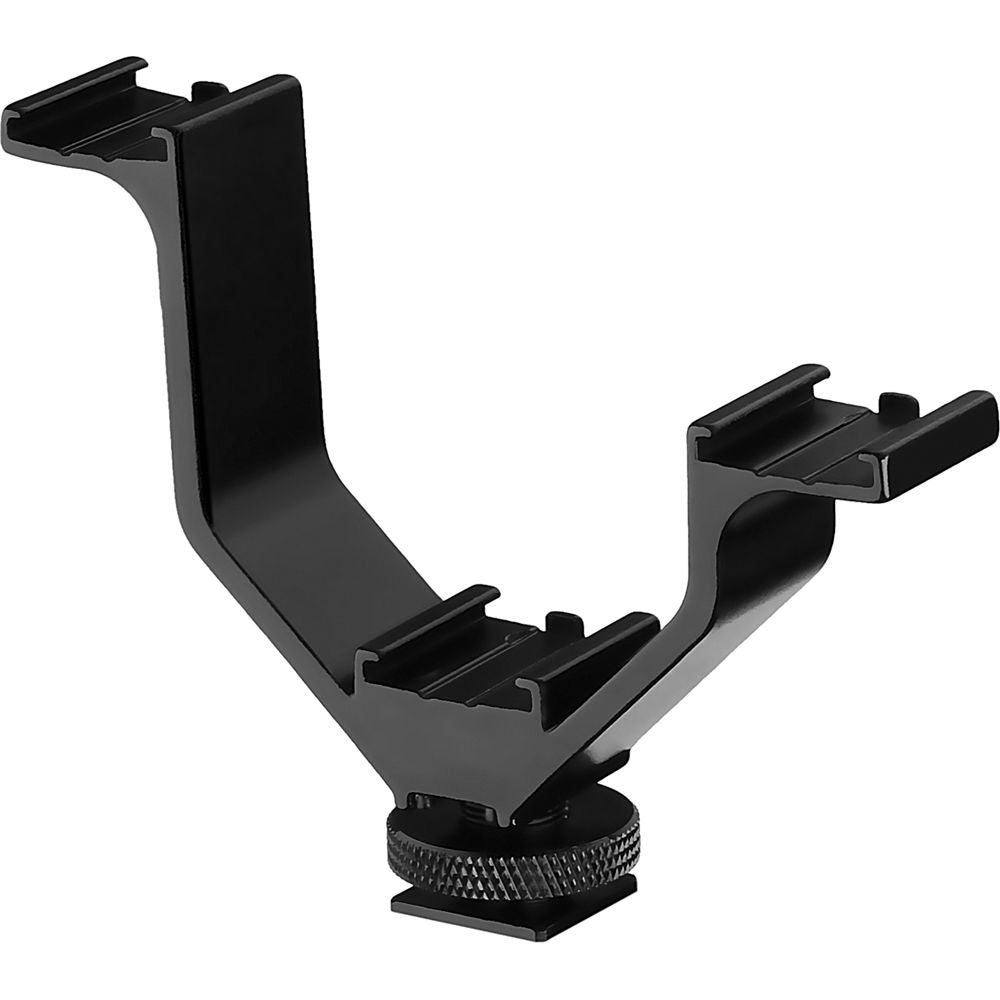

Vello V-Rig 4.1" Triple Shoe Bracket

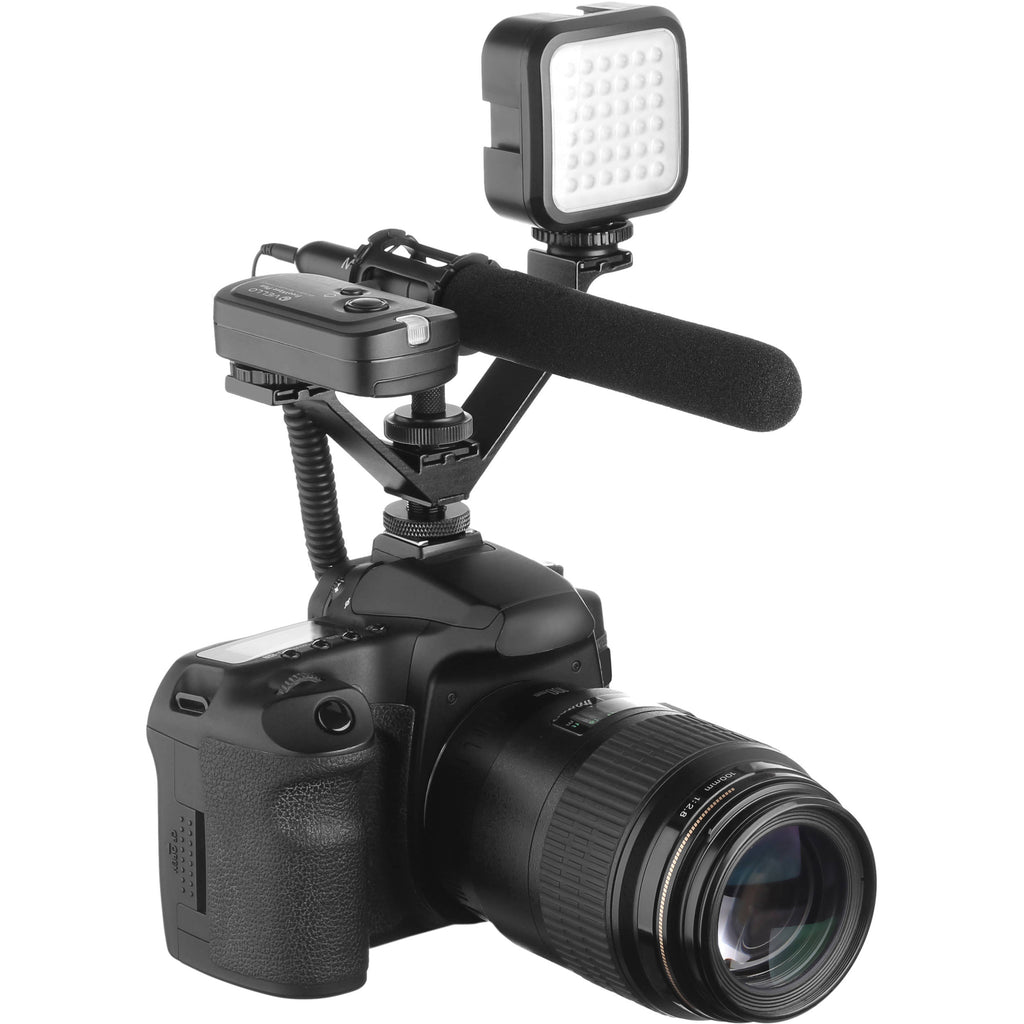

The Vello V-Rig 4.1" Triple Shoe Bracket mounts onto a camera's accessory shoe in order to provide three additional accessory shoes for mounting lights, monitors, microphones, or other accessories. In addition to the shoe mount, a 1/4"-20 thread is also available for attaching the bracket to a tripod, rig, or other bracket featuring a 1/4"-20-threaded mount.
The bracket is constructed from rigid, yet lightweight single-piece aluminum alloy, and the mounting shoes are machined out of the same piece as the bracket, for additional strength. The accessory shoes also feature backstops for greater security when attaching accessories. The bottom shoe that attaches to the camera features a locking pin, which keeps the shoe in place and prevents the shoe from rotating during use.
4.1"-Wide Bracket
Machined Aluminum Alloy
Accessory Shoe and 1/4"-20 Socket Mounts
Locking Pin

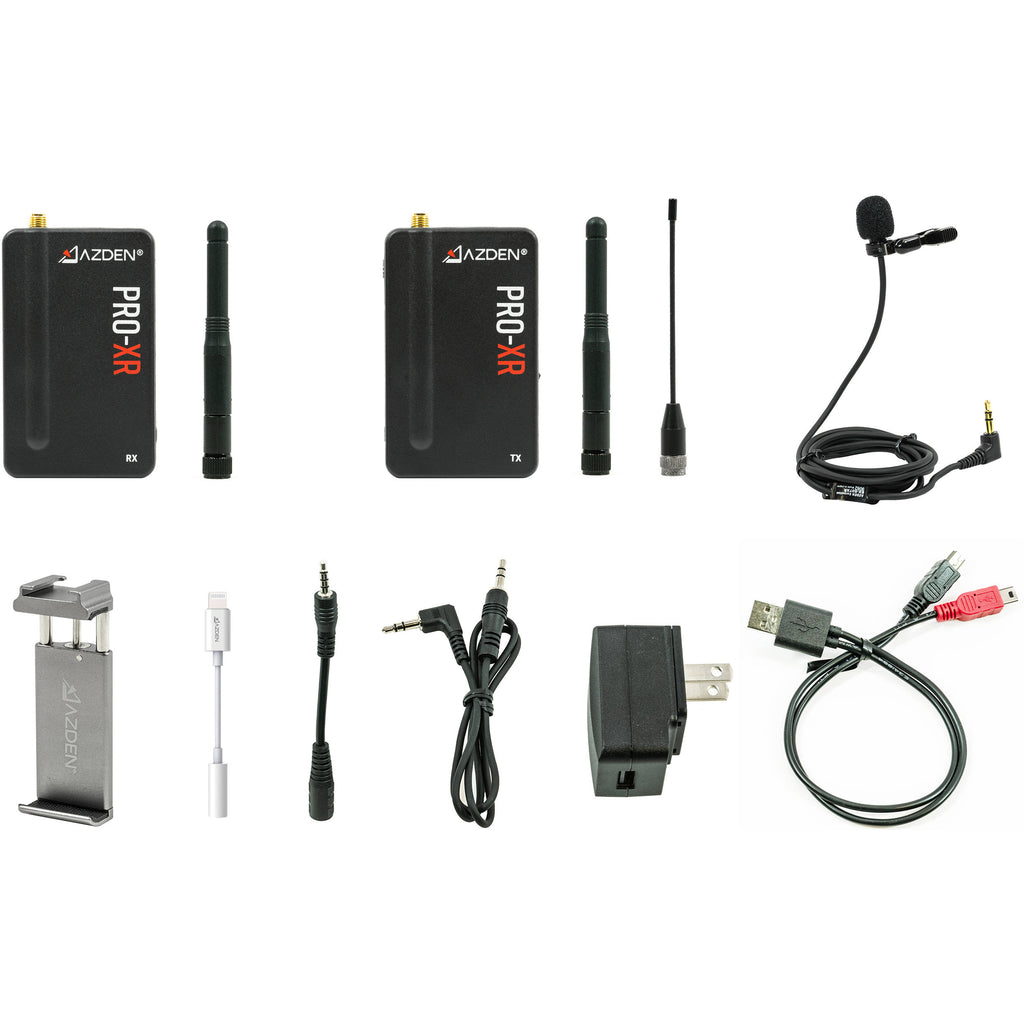

In the Box
- 2 x Azden PRO-XR Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)
- PRO-XR Receiver
- PRO-XR Transmitter
- EX-507XR Omnidirectional Lavalier Mic
- 2 x High-Gain Antennas
- Flexible Transmitter Antenna
- Clamp-Style Smartphone Mount
- 3.5mm to 3.5mm TRS Cable
- 3.5mm TRS Female to 3.5mm TRRS Adapter Cable
- Lightning-to-Headphone Adapter
- USB to Dual Mini-USB Charging Cable
- AC Adapter
- Limited 2-Year Warranty
- 2 x Rode VXLR - Mono Mini-Jack to XLR Converter
- Limited 10-Year Warranty
- Hosa Technology Stereo Mini (3.5mm) Male to 2 Mono Mini (3.5mm) Female Y-Cable - 6"
- Lifetime Warranty
- Vello V-Rig 4.1" Triple Shoe Bracket
- Limited 1-Year Warranty
- Description
- Azden PRO-XR Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)
- Rode VXLR - Mono Mini-Jack to XLR Converter
- Hosa Technology Stereo Mini (3.5mm) Male to 2 Mono Mini (3.5mm) Female Y-Cable - 6"
- Vello V-Rig 4.1" Triple Shoe Bracket
Azden PRO-XR Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz) Specs
| Wireless Transmission | Digital 2.4 GHz |
| Number of RF Channels | 76 |
| Included Transmitters | 1 x Bodypack with Microphone |
| Diversity | Frequency |
| Max Operating Range | 500' / 152.4 m (Line of Sight) |
| Latency | 4.5 ms |
| Dynamic Range | 90 dB (Mic Input) 87 dB (Instrument Input) |
| Encryption | None |
| Form Factor | Camera-Mount |
| Mounting Options | Shoe-Mount (with Included Hardware) |
| Antenna | 1 x 1/4 Wave External |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
| Audio Output Level | 1.5 dBV (Max) |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | 1 x Mini-USB (Bus Power, Charging) |
| Impedance | 1/8" / 3.5 mm Output: 2 Kilohms Headphone Output: 10 Kilohms |
| Power Requirements | Battery or Bus Power (USB) |
| Battery Type | 1 x Built-In Rechargeable (Included) |
| Internal Battery Capacity | 1200 mAh |
| Battery Charging Time | 150 Minutes |
| Approx. Battery Life | 20 Hours |
| Battery Cycle Count | Up to 500 Cycles |
| Dimensions | 1.9 x 3.1 x 0.6" / 4.8 x 7.9 x 1.4 cm |
| Weight | 2.7 oz / 76.0 g |
| Form Factor | Bodypack with Microphone |
| RF Output Power | 20 / 50 / 100 mW |
| Audio I/O | 2 x 1/8" / 3.5 mm TRS Female Unbalanced Input |
| Audio Input Level | 22 dBV (Mic Level) 2 dBV (Line Level) |
| Frequency Response | 60 Hz to 20 kHz (Mic) 30 Hz to 20 kHz (Line) |
| Antenna | 1 x 1/4 Wave External |
| Power Requirements | Battery or Bus Power (USB) |
| Battery Type | 1 x Built-In Rechargeable (Included) |
| Internal Battery Capacity | 1200 mAh |
| Battery Charging Time | 150 Minutes |
| Approx. Battery Life | Low: 14 Hours Med.: 12 Hours High: 10 Hours |
| Battery Cycle Count | Up to 500 Cycles |
| USB/Lightning Connectivity | 1 x Mini-USB (Bus Power, Charging) |
| Dimensions | 1.9 x 3.1 x 0.6" / 4.8 x 7.9 x 1.4 cm |
| Weight | 2.3 oz / 65.0 g |
| Form Factor | Lavalier |
| Sound Field | Mono |
| Operating Principle | Pressure Operated |
| Transducer | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 20 Hz to 20 kHz |
| Impedance | 2.2 Kilohms |
| Sensitivity | -38 dB |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced |
| Cable Length | 3.94' / 1.2 m |
| Operating Voltage | 1 to 10 V |
| Package Weight | 0.965 lb |
| Box Dimensions (LxWxH) | 7.5 x 5.7 x 2.75" |
Rode VXLR - Mono Mini-Jack to XLR Converter Specs
| Connector 1 | 1 x 1/8" (3.5 mm) TS Female |
| Connector 2 | 1 x Lockable 3-Pin XLR Male |
| Package Weight | 0.105 lb |
| Box Dimensions (LxWxH) | 4 x 3.45 x 0.65" |
Hosa Technology Stereo Mini (3.5mm) Male to 2 Mono Mini (3.5mm) Female Y-Cable - 6" Specs
| Connector 1 | 1 x 1/8" (3.5 mm) TRS Male Straight |
| Connector 2 | 2 x 1/8" (3.5 mm) TS Female Straight |
| Cable Length | 5.9" / 15 cm |
| Wire Gauge | 26 AWG |
| Shielding | Spiral |
| Package Weight | 0.065 lb |
| Box Dimensions (LxWxH) | 4.646 x 3 x 2.047" |
Vello V-Rig 4.1" Triple Shoe Bracket Specs
| Bottom Mount | 1 x Accessory Foot |
| Top Mount | 3 x Accessory Shoe |
| Material | Aluminum |
| Dimensions | 4.1 x 3.4 x 0.9" / 10.5 x 8.5 x 2.2 cm |
| Weight | 2 oz / 56.7 g |
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 7.7 x 6.1 x 0.9" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 82016.2 |
| 3-5 | ₹ 81179.3 |
| 5-10 | ₹ 79505.5 |
| 10+ | ₹ 77831.7 |
Bulk discount will be automatically applied during checkout based on quantity.
