Description
- 4 XLR Inputs
- Phantom Power
- Input Limiter
- 2 Balanced Mic/Line XLR Outputs
- Make Backup Recordings Using USB Output
- Record to Smartphone, Tablet or Computer

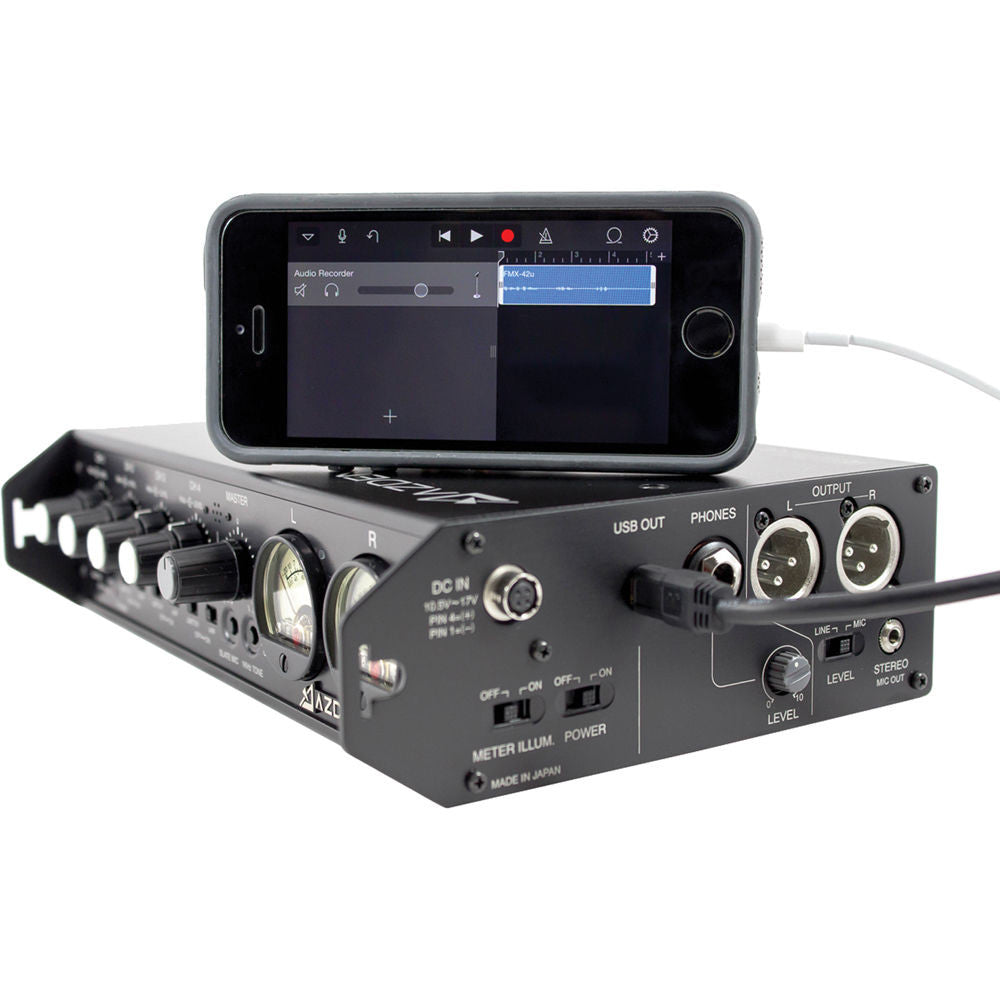

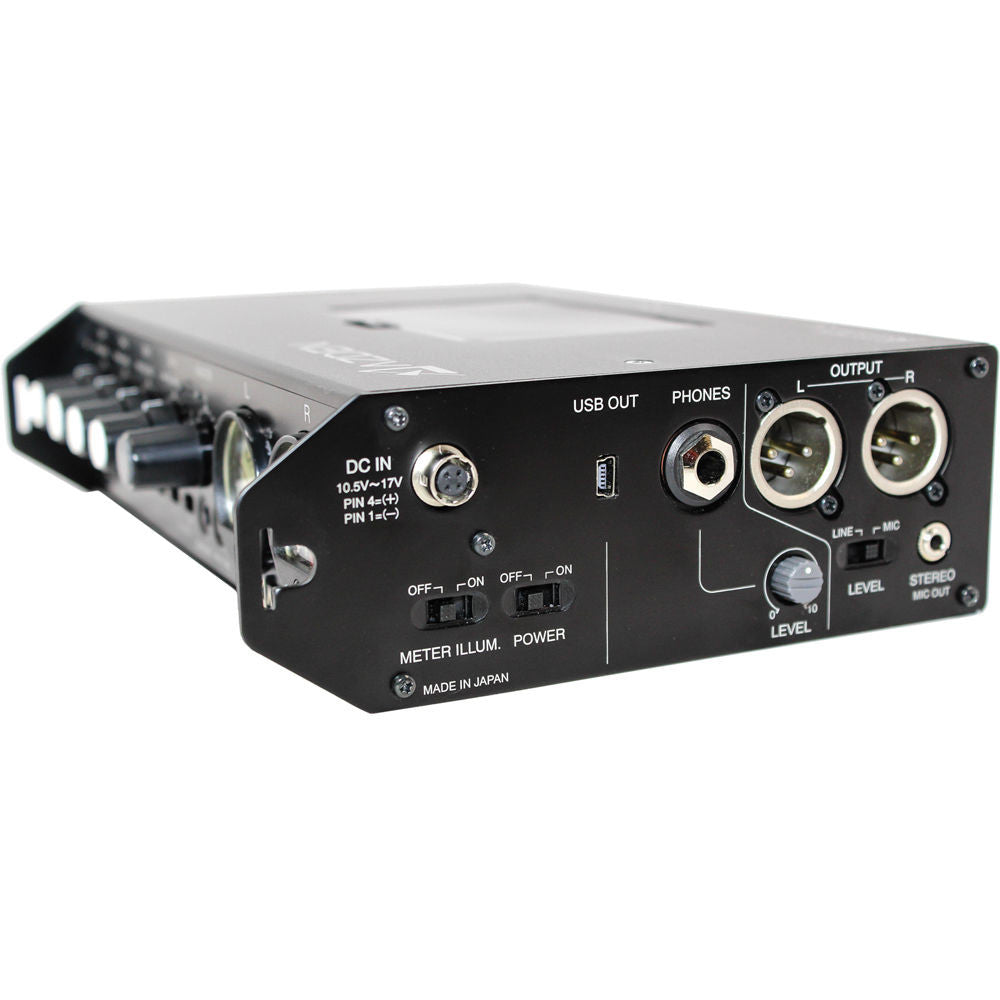

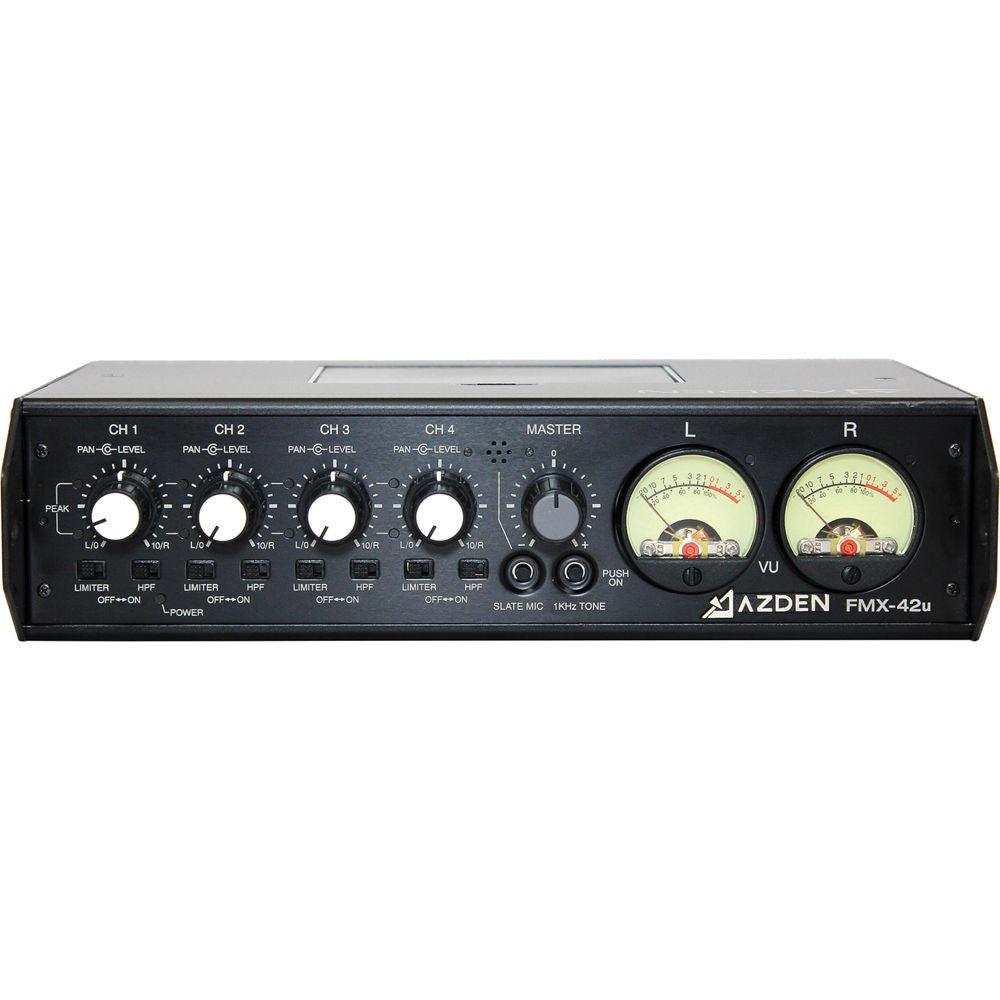

The Azden FMX-42u is a portable 4-channel audio mixer with built-in A/D conversion and audio output via mini-USB for connection to smartphones, tablets, and computers. It is designed for professional and semi-professional field audio capturing.
The FMX-42u also features 4 balanced 3-pin XLR microphone inputs with individually switched +48V phantom power. A pair of balanced XLR outputs provide line or mic level (switchable) signal to cameras, recorders, etc. Additional features include a switchable input limiter to reduce the possibility of overload distortion, Left / Center / Right Pan switches on all input channels, and enhanced circuitry for improved signal-to-noise ratio. The FMX-42u can be powered either by 6 AA batteries or an optional 12 VDC external power supply. A ballistic nylon carrying case is included.
The FMX-42u is an affordable field mixing solution for event videos, ENG/EFP applications, documentaries, and more.
- Features:
-
- On-board A/D converter and 2-channel mini-USB digital audio output
- Mini-USB output connects to computer, smartphone or tablet
- Simultaneous use of both outputs allows the analog signal to be sent to the camera while a backup digital signal can be sent to a smartphone or tablet or computer via mini-USB
- 4 balanced XLR line/mic inputs and pan controls
- Switchable 48V phantom power and limiting
- Professional-quality VU meters
- 2 balanced XLR outputs (line/mic switchable)
- Stereo mini-jack output for DV cameras
- 6x AA battery powered
- Optional A/C adapter
| Input | |
|---|---|
| Balanced Input | XLR 3-pin female x 4 (CH1, 2, 3 & 4) |
| Level | Line- Standard: +4 dBu (electronically balanced) Maximum: > +26 dBu Impedance: 20 kOhms MIC HI- Standard: -38 dBu (electronically balanced) Maximum: +4 dBu Impedance: 2 kOhms MIC LO- Standard: -58 dBu (electronically balanced) Maximum: -15 dBu Impedance: 2 kOhms |
| High Pass Filter | 100 Hz - 6 dB/oct |
| Input Level | -20 to +19 dBu (unbalanced) |
| Impedance | 11 kOhms |
| Return Input | No |
| Output | |
|---|---|
| Balanced Output | XLR 3-pin male x 2 (output L & R) |
| Unbalanced Outputs | 1/8" (3.5 mm ) stereo mini-jack |
| Monitor Output | 1/4" (6.3 mm) stereo jack |
| Balanced Output Level | LINE- Standard: +4 dBu (electronically balanced, 5 kOhms load) Maximum: +20 dBu (electronically balanced, 5 kOhms load) Impedance: 600 ohms MIC- Standard: -36 dBu (electronically balanced, 5 kOhms load) Maximum: -20 dBu (electronically balanced, 5 kOhms load) Impedance: 600 ohms |
| Unbalanced Output Level | Standard: -36 dBu (electronically balanced, 2 kOhms load) Maximum: -20 dBu (electronically balanced, 2 kOhms load) Impedance: 120 ohms |
| Monitor Output | Max Output: +1 dBu (32 ohm load at 9 V), 16 - 100 ohms load recommended |
| Meters | Standard Output Level: 0 VU (+4 dBu) |
| Digital Output | Connector: USB mini-B (female) Interface Format: USB 2.0 full speed Audio Data Format: Isochronous data format Sampling Frequencies: 16 / 22.05 / 32 / 44.1 / 48 kHz compatible Bit Depth: 8 / 16-bit compatible Channels: 2 Device Name: USB AUDIO CODEC |
| General | |
|---|---|
| Frequency Response | Balanced or Unbalanced Output: 20 Hz - 30 kHz (+0/-1.5 dB) Monitor Output: 30 Hz - 30 kHz (+0/-2 dB) |
| Signal-to-Noise Ratio | Balanced Output: -120 dBu (A weighted, input equivalent level) |
| THD | Balanced Output: < 0.005% @ 1 kHz (at LINE position +19 dBu output) |
| Phantom Power | 48 V (±1.5 V) |
| Sample Frequency | 1 kHz |
| Battery Requirement | 6x Alkaline AA |
| Current Drain | Not Specified By Manufacturer |
| External Power | 10.5 ~ 17 VDC @ 200 mA |
| Dimensions | 9.0 x 6.5 x 2.3" (220 x 160 x 56.0 mm), without protrusions |
| Weight | 2.9 lb (1.3 kg), without batteries |
| Packaging Info | |
|---|---|
| Package Weight | 3.85 lb |
| Box Dimensions (LxWxH) | 10.4 x 6.7 x 3.7" |
- Nylon Carrying Case
- Limited 2-Year Warranty
