Azden EX-507XR Overview
The EX-507XR Lavalier Microphone for PRO-XR from Azden is designed to be used with the PRO-XR wireless system. The EX-507XR is an omnidirectional lapel mic with a wide frequency response and a sensitive electret condenser capsule, but it's 3.5mm TRS plug allows it to be used with a variety of wireless systems, from Azden's own VHF Pro Series and 310/330 UHF systems to third-party wireless systems compatible with 3.5mm lavalier inputs.

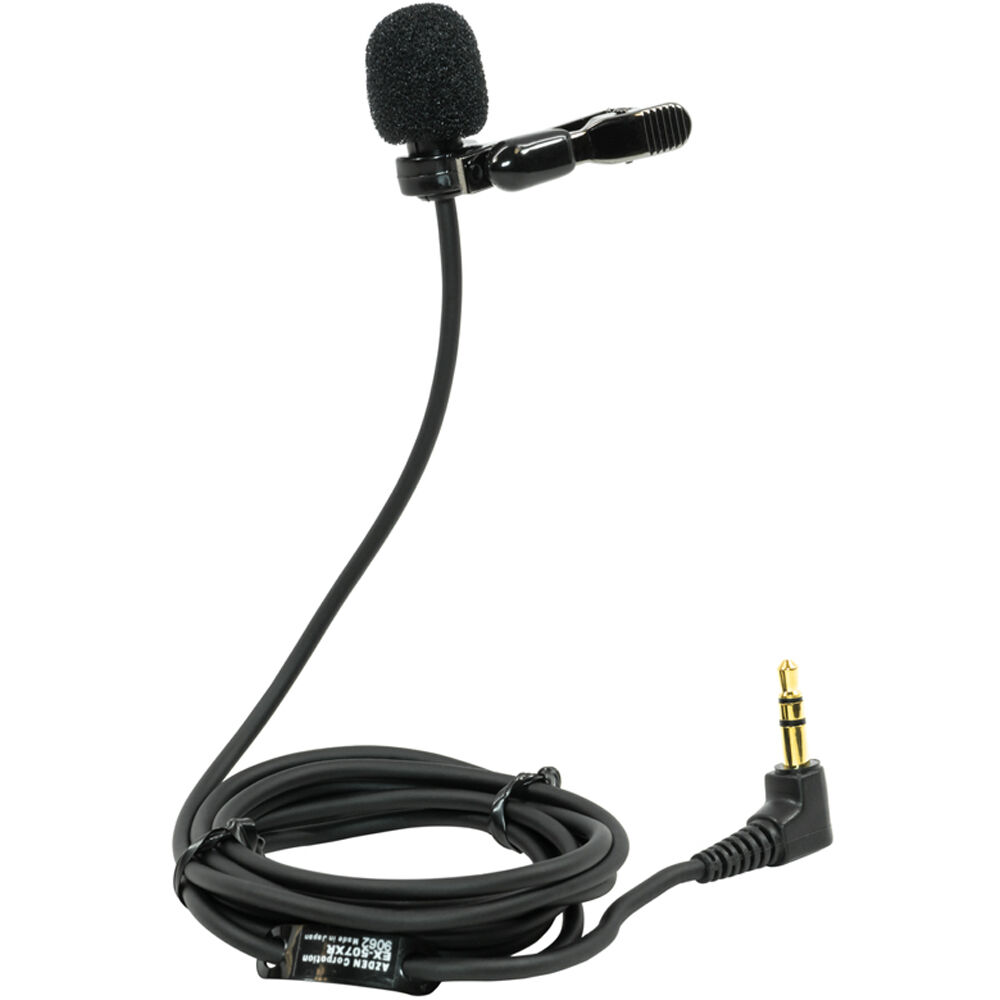

The lav mic features a right-angle plug on it's attached four foot cable for preventing accidental disconnections, and the included alligator lapel clip makes it easy to attach to clothing. Simple plug-in power (1-10 VDC) is all it needs to get rolling, and the mic can be an excellent companion not only to wireless transmitters, but also to cameras and digital audio recorders. Whether you are looking to replace your PRO-XR mic or are simply looking for a high-performing and affordable lavalier mic to add to your location recording system, the EX-507XR can deliver quality performance on-the-go.
- Omnidirectional lavalier microphone, designed to replace mic from PRO-XR wireless system
- Compatible with Azden PRO-XR, VHF Pro Series, and the 310 and 330 UHF Wireless Series systems
- Also compatible with most third-party wireless systems that include a 3.5mm lavalier input
- Electret condenser capsule with wide 20 Hz to 20 kHz frequency response
- Takes 1-10 VDC plug-in power from transmitter, audio recorder, or camera
- 3.5mm TRS connector for wide compatibility
- Four foot long attached cable
- Includes alligator clip and foam windscreen
Azden EX-507XR Specs
Microphone
| Sound Field |
Mono |
| Operating Principle |
Pressure Operated |
| Capsule |
1 x Electret Condenser |
| Polar Pattern |
Omnidirectional |
| Pad |
None |
| High-Pass Filter |
None |
| Indicators |
None |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
20 Hz to 20 kHz |
| Impedance |
2.2 Kilohms at 1 kHz |
| Sensitivity |
-38 dB at 1 kHz |
Connectivity
| Outputs |
1 x 1/8" / 3.5 mm TRS Male (Right Angle, on Attached Cable) |
| Headphone Connector |
None |
| Cable Length |
3.9' / 1.2 m (Straight) |
Power
| Operating Voltage |
1 to 10 V (Plug-In Power) |
Physical
| Color |
Black |
| Mounting |
Alligator Clip (Included) |
Packaging Info
| Package Weight |
0.07 lb |
| Box Dimensions (LxWxH) |
4.4 x 3.65 x 1" |
